Designation: D7250/D7250M − 06(Reapproved 2012)
Standard Practice for
Determining Sandwich Beam Flexural and Shear Stiffness
This standard is issued under the fixed designation D7250/D7250M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope D3878 Terminology for Composite Materials
D7249/D7249M Test Method for Facing Properties of Sand-
1.1 This practice covers determination of the flexural and
wich Constructions by Long Beam Flexure
transverse shear stiffness properties of flat sandwich construc-
E6 Terminology Relating to Methods of Mechanical Testing
tions subjected to flexure in such a manner that the applied
E122 Practice for Calculating Sample Size to Estimate,With
moments produce curvature of the sandwich facing planes.
Specified Precision, the Average for a Characteristic of a
Permissible core material forms include those with continuous
Lot or Process
bonding surfaces (such as balsa wood and foams) as well as
E177 Practice for Use of the Terms Precision and Bias in
those with discontinuous bonding surfaces (such as honey-
ASTM Test Methods
comb). The calculation methods in this practice are limited to
E456 Terminology Relating to Quality and Statistics
sandwich beams exhibiting linear force-deflection response.
E1309 Guide for Identification of Fiber-Reinforced
This practice uses test results obtained from Test Methods
Polymer-Matrix Composite Materials in Databases
C393/C393M and/or D7249/D7249M.
E1434 Guide for Recording Mechanical Test Data of Fiber-
1.2 The values stated in either SI units or inch-pound units
Reinforced Composite Materials in Databases
are to be regarded separately as standard. The values stated in
3. Terminology
each system may not be exact equivalents; therefore, each
system shall be used independently of the other. Combining
3.1 Definitions—Terminology D3878 defines terms relating
values from the two systems may result in non-conformance
to high-modulus fibers and their composites. Terminology
with the standard.
C274 defines terms relating to structural sandwich construc-
1.2.1 Within the text the inch-pound units are shown in
tions. Terminology D883 defines terms relating to plastics.
brackets.
Terminology E6 defines terms relating to mechanical testing.
1.3 This standard does not purport to address all of the Terminology E456 and Practice E177 define terms relating to
safety concerns, if any, associated with its use. It is the statistics.Intheeventofaconflictbetweenterms,Terminology
responsibility of the user of this standard to establish appro-
D3878 shall have precedence over the other terminologies.
priate safety and health practices and determine the applica-
3.2 Symbols: b = sandwich width, mm [in.]
bility of regulatory limitations prior to use.
c = core thickness, mm [in.]
d = sandwich thickness, mm [in.]
2. Referenced Documents
2 2
D = flexural stiffness, N-mm [lb-in. ]
2.1 ASTM Standards:
∆ = beam mid-span deflection, mm [in.]
C273 Test Method for Shear Properties of Sandwich Core
G = core shear modulus, MPa [psi]
Materials
S = support span length, mm [in.]
C274 Terminology of Structural Sandwich Constructions
L = load span length, mm [in.] (L = 0.0 for 3-point mid-span
C393/C393M Test Method for Core Shear Properties of
loading configuration)
Sandwich Constructions by Beam Flexure
n = number of specimens
D883 Terminology Relating to Plastics
P = total applied force, N [lb]
t = facing thickness, mm [in.]
U = transverse shear rigidity, N [lb]
This practice is under the jurisdiction ofASTM Committee D30 on Composite
Materials and is the direct responsibility of Subcommittee D30.09 on Sandwich
4. Summary of Practice
Construction.
4.1 This practice consists of calculating the flexural
Current edition approved Feb. 1, 2012. Published March 2012. DOI: 10.1520/
D7250_D7250M-06R12.
stiffness, transverse (through-thickness) shear rigidity and core
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
shear modulus of a sandwich beam using deflection and/or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
strain data from two or more flexure tests of different loading
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. configurations conducted under Test Methods C393/C393M
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D7250/D7250M − 06 (2012)
and/or D7249/D7249M. This practice also includes equations specimens, as in the case of a designed experiment. For
for calculating the shear rigidity and core shear modulus of a statistically significant data, consult the procedures outlined in
sandwich beam using deflection data from a single flexure test Practice E122. Report the method of sampling.
conducted under Test Method C393/C393M when the facing
7.2 Specimen Geometry—The test specimens shall be rect-
modulus is known.
angular in cross section. The depth of the specimens shall be
equal to the thickness of the sandwich construction, and the
5. Significance and Use
width shall be not less than twice the total thickness, not less
5.1 Flexure tests on flat sandwich constructions may be
than three times the dimension of a core cell, nor greater than
conductedtodeterminethesandwichflexuralstiffness,thecore
one half the span length.The specimen length shall be equal to
shear strength and shear modulus, or the facings compressive
the span length plus 50 mm [2 in.] or plus one half the
and tensile strengths. Tests to evaluate core shear strength may
sandwich thickness whichever is the greater.
also be used to evaluate core-to-facing bonds.
7.3 Loading Configurations, Unknown Facing Modulus—
5.2 Thispracticeprovidesastandardmethodofdetermining
For cases where the facing modulus is not known, a minimum
sandwich flexural and shear stiffness and core shear modulus
of two loading configurations must be selected. Refer to Test
using calculations involving measured deflections of sandwich
Methods C393/C393M and D7249/D7249M for the equations
flexure specimens. Tests can be conducted on short specimens
usedtosizethespecimenlengthsandloadingconfigurationsso
and on long specimens (or on one specimen loaded in two
that facing failure and core shear failures do not occur below
ways), and the flexural stiffness, shear rigidity and core shear
the desired maximum applied force level. It is recommended
modulus can be determined by simultaneous solution of the
that one loading configuration use a short support span and
complete deflection equations for each span or each loading. If
specimen and the other loading configuration use a long
thefacingmodulusvaluesareknown,ashortspanbeamcanbe
support span and specimen. The purpose of this recommenda-
tested and the calculated bending deflection subtracted from
tion is to obtain force-deflection data for one test with
thebeam’stotaldeflection.Thisgivesthesheardeflectionfrom
relativelyhighsheardeflectionandonetestwithrelativelyhigh
which the transverse shear modulus can be determined.
flexural deformation. If two short configurations or two long
NOTE 1—Core shear strength and shear modulus are best determined in
configurations are tested, measurement errors may be large
accordance with Test Method C273 provided bare core material is
available. relative to the difference in shear and flexural deflections
NOTE 2—For cores with high shear modulus, the shear deflection will
between the two tests and may lead to significant errors in the
be quite small and ordinary errors in deflection measurements will cause
calculated flexural and shear stiffness values.
considerable variations in the calculated shear modulus.
NOTE 3—To insure that simple sandwich beam theory is valid, a good
7.4 Loading Configurations, Known Facing Modulus—For
rule of thumb for a four-point bending test is the span length divided by
cases where the facing modulus is known for sandwich beams
thesandwichthicknessshouldbegreaterthan20(L /d>20)withtheratio
with identical facings, a short support span loading configura-
of facing thickness to core thickness less than 0.1 (t/c < 0.1).
tion test should be conducted per Test Method C393/C393M.
6. Interferences
8. Procedure
6.1 Material and Specimen Preparation—Important aspects
8.1 Unknown Facing Modulus—Conduct tests on sandwich
of sandwich core specimen preparation that contribute to data
beam specimens per Test Methods C393/C393M and/or
scatter include the existence of joints, voids or other core
D7249/D7249M using two or more different loading configu-
discontinuities, out-of-plane curvature, and surface roughness.
rations; Fig. 1. It is preferable to conduct each of the loading
6.2 Geometry—Specific geometric factors that affect sand-
conditionsoneachtestspecimen.Thisrequiresthattheapplied
wich facing stiffness and thereby the sandwich flexural stiff-
forces for all but the last loading condition to be kept
ness include facing thickness, core cell geometry, and facing
sufficientlylowtoavoidfailureandpermanentdeformationsof
surface flatness (toolside or bagside surface in compression).
the specimen.
6.3 Environment—Resultsareaffectedbytheenvironmental
8.2 Known Facing Modulus—Conduct tests on sandwich
conditions under which specimens are conditioned, as well as
beam specimens perTest Methods C393/C393M using a single
the conditions under which the tests are conducted. Specimens
short support span loading configuration.
tested in various environments can exhibit significant differ-
8.3 Data Recording—Record force-deflection curves for
ences in stiffness. Critical environments must be assessed
each test specimen using a transducer, deflectometer, or dial
independently for each specific combination of core material,
gage to measure the mid-span deflection.
facing material, and core-to-facing interfacial adhesive (if
NOTE 4—The use of crosshead or actuator displacement for the beam
used) that is tested.
mid-span deflection produces inaccurate results; the direct measurement
6.4 Core Material—For some core materials, the core shear
of the deflection of the mid-span of the beam must be made by a suitable
modulus is a function of the direction that the core is oriented instrument.
relative to the length of the specimen. Another material factor
9. Validation
thataffectssandwichcorestiffnessisvariabilityincoredensity.
9.1 Values for stiffness properties shall not be calculated at
7. Sampling and Test Specimens
any applied force level above or beyond the point of initial
7.1 Sampling—Test at least five specimens per test condi- specimen failure, or above a point where the specimen exhibits
tion unless valid results can be gained through the use of fewer obvious non-linear deflection response due to excessive local
D7250/D7250M − 06 (2012)

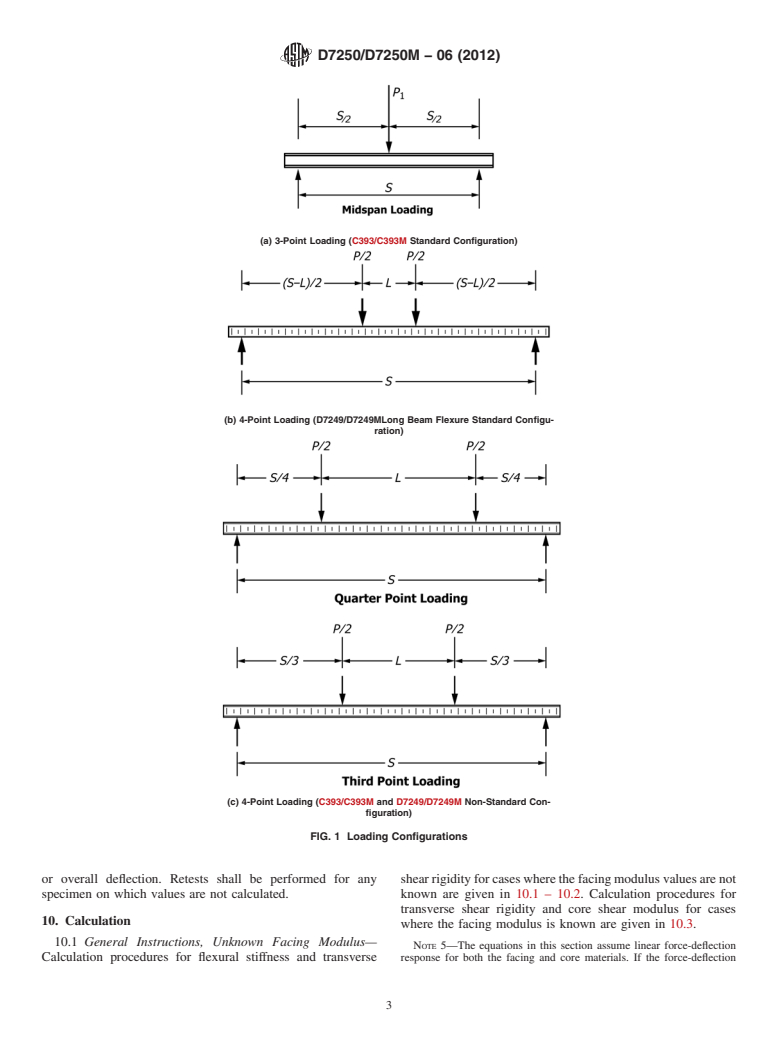

(a) 3-Point Loading (C393/C393M Standard Configuration)
(b) 4-Point Loading (D7249/D7249MLong Beam Flexure Standard Configu-
ration)
(c) 4-Point Loading (C393/C393M and D7249/D7249M Non-Standard Con-
figuration)
FIG. 1 Loading Configurations
or overall deflection. Retests shall be performed for any shearrigidityforcaseswherethefacingmodulusvaluesarenot
specimen on which values are not calculated. known are given in 10.1 – 10.2. Calculation procedures for
transverse shear rigidity and core shear modulus for cases
10. Calculation
where the facing modulus is known are given in 10.3.
10.1 General Instructions, Unknown Facing Modulus—
NOTE 5—The equations in this section assume linear force-deflection
Calculation procedures for flexural stiffness and transverse response for both the facing and core materials. If the force-deflection
D7250/D7250M − 06 (2012)
response is non-linear, the extraction of non-linear flexural and shear
levels evenly spaced over the force range. Next, calculate the
stiffnesses is significantly more complicated and is beyond the scope of
average value of flexural stiffness, shear rigidity and core shear
this standard practice.
modulusforeachforcelevelforeachspecimen.Thencalculate
10.1.1 Criteria for Force-Deflection Linearity—For pur-
the average values of the flexural stiffness, shear rigidity and
poses of validating the force-displacement linearity
core shear modulus using the values calculated at each force
assumption, determine the maximum offset from a linear
level for each specimen replicate.The result is a set of stiffness
force-displacement curve over the range of applied forces to be
values as a function of force level. If the sandwich response is
used to calculate the stiffnesses. Determine the offset from
linear, then calculate an overall average flexural stiffness, shear
linearity using the method shown in Fig. 2. The maximum
rigidity and core shear modulus using the values from all force
offset shall be less than 10 % for the linearity assumption to be
levels. Report all of the individual and average calculated
valid.
stiffness values.
10.1.2 Results from Tests Using Two Loading Configura-
10.1.4 Results from Tests Using Two Loading Configura-
tionsontheSameTestSpecimen—Foreachspecimen,calculate
tions on Different Test Specimens—In some cases it may not be
the flexural stiffness, shear rigidity and core shear modulus
using the equations in 10.2 for a series of applied forces up to possible or desired to conduct tests using two or more loading
the lowest maximum applied force of the two loading configu-
conditions on the same specimen. In this case, a continuous
rations. Values should be calculated for a minimum of ten (10)
force-displacement curve must be calculated for each loading
force levels evenly spaced over the force range. Calculate the
configuration so that displacement values for the two speci-
average value and statistics of the flexural stiffness, shear
mens can be determined at the same force value. To calculate
rigidity and core shear modulus using the values calculated at
the continuous force-displacement curve, perform a linear
each force level for each specimen replicate. The result is a set
regression analysis on the force-displacement data for each
of stiffness values as a function of force level. If the sandwich
loading condition for each specimen using a linear function in
response is linear, then calculate an overall average flexural
displacement for the regression analysis. If the linear curve
stiffness, shear rigidity and core shear modulus using the
gives a poor fit to the data, the regression and stiffness
values from all force levels. Report all of the individual and
calculations should only be perfor
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
