ASTM A449-14

(Specification)

Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use

Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use

ABSTRACT
This specification2 covers quenched and tempered steel hex cap screws, bolts, and studs having a minimum tensile strength. The fasteners are intended for general engineering use. Type 1 fasteners shall be plain carbon steel, carbon boron steel, alloy steel, or alloy boron steels conforming to the requirements. Type 3 fasteners shall be weathering steel and shall conform to one of the chemical compositions specified. Tensile strength, proof load, hardness tests, and axial tension tests shall be performed to conform with the specified requirements.
SCOPE
1.1 This specification2 covers quenched and tempered steel hex cap screws, bolts, and studs having a minimum tensile strength of 120 ksi for diameters 1.0 in. and smaller; 105 ksi for diameters over 1.0 in. to 11/2 in.; and 90 ksi for diameters 13/4 in. to 3.0 in. inclusive. The term "fasteners" in this specification denotes hex cap screws, bolts, and studs.
1.2 The fasteners are intended for general engineering use.
1.3 The fasteners are furnished in diameters 1/4 to 3.0 in. inclusive. They are designated by type denoting chemical composition as follows:
Type
Description
Type I
Plain carbon steel, carbon boron steel, alloy steel, or alloy boron steel
Type 2
Withdrawn 2003
Type 3
Weathering steel
1.4 Terms used in this specification are defined in Terminology F1789 unless otherwise defined in this specification.
1.5 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

Status
Historical
Publication Date
30-Sep-2014
ICS
21.060.10 - Bolts, screws, studs
Technical Committee
F16 - Fasteners
Drafting Committee
F16.02 - Steel Bolts, Studs and Nuts
Current Stage
Ref Project

Buy Standard

ASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General UseASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use
PreviousNext
Technical specification
ASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General UseREDLINE ASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use
PreviousNext
Technical specification
REDLINE ASTM A449-14 - Standard Specification for Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/105/90 ksi Minimum Tensile Strength, General Use
English language
7 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

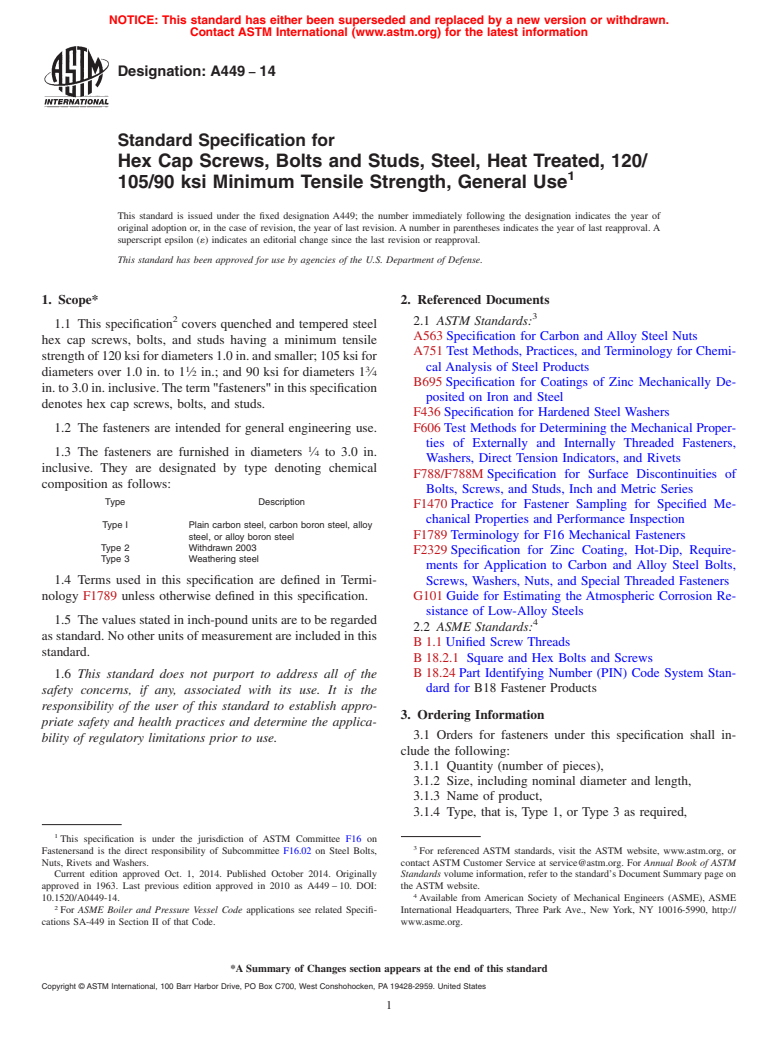

Designation:A449 −14
Standard Specification for
Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/
1
105/90 ksi Minimum Tensile Strength, General Use
This standard is issued under the fixed designation A449; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope* 2. Referenced Documents
3
2
2.1 ASTM Standards:
1.1 This specification covers quenched and tempered steel
A563Specification for Carbon and Alloy Steel Nuts
hex cap screws, bolts, and studs having a minimum tensile
A751Test Methods, Practices, and Terminology for Chemi-
strengthof120ksifordiameters1.0in.andsmaller;105ksifor
cal Analysis of Steel Products
1 3
diameters over 1.0 in. to 1 ⁄2 in.; and 90 ksi for diameters 1 ⁄4
B695Specification for Coatings of Zinc Mechanically De-
in.to3.0in.inclusive.Theterm "fasteners"inthisspecification
posited on Iron and Steel
denotes hex cap screws, bolts, and studs.
F436Specification for Hardened Steel Washers
1.2 The fasteners are intended for general engineering use. F606Test Methods for Determining the Mechanical Proper-
ties of Externally and Internally Threaded Fasteners,
1
1.3 The fasteners are furnished in diameters ⁄4 to 3.0 in.
Washers, Direct Tension Indicators, and Rivets
inclusive. They are designated by type denoting chemical
F788/F788MSpecification for Surface Discontinuities of
composition as follows:
Bolts, Screws, and Studs, Inch and Metric Series
Type Description
F1470Practice for Fastener Sampling for Specified Me-
chanical Properties and Performance Inspection
Type I Plain carbon steel, carbon boron steel, alloy
F1789Terminology for F16 Mechanical Fasteners
steel, or alloy boron steel
Type 2 Withdrawn 2003
F2329Specification for Zinc Coating, Hot-Dip, Require-
Type 3 Weathering steel
ments for Application to Carbon and Alloy Steel Bolts,
1.4 Terms used in this specification are defined in Termi-
Screws, Washers, Nuts, and Special Threaded Fasteners
nology F1789 unless otherwise defined in this specification. G101Guide for Estimating the Atmospheric Corrosion Re-
sistance of Low-Alloy Steels
1.5 Thevaluesstatedininch-poundunitsaretoberegarded
4
2.2 ASME Standards:
asstandard.Nootherunitsofmeasurementareincludedinthis
B1.1Unified Screw Threads
standard.
B18.2.1 Square and Hex Bolts and Screws
B18.24Part Identifying Number (PIN) Code System Stan-
1.6 This standard does not purport to address all of the
dard for B18 Fastener Products
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
3. Ordering Information
priate safety and health practices and determine the applica-
3.1 Orders for fasteners under this specification shall in-
bility of regulatory limitations prior to use.
clude the following:
3.1.1 Quantity (number of pieces),
3.1.2 Size, including nominal diameter and length,
3.1.3 Name of product,
3.1.4 Type, that is, Type 1, or Type 3 as required,
1
This specification is under the jurisdiction of ASTM Committee F16 on
3
Fastenersand is the direct responsibility of Subcommittee F16.02 on Steel Bolts, For referenced ASTM standards, visit the ASTM website, www.astm.org, or
Nuts, Rivets and Washers. contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Current edition approved Oct. 1, 2014. Published October 2014. Originally Standards volume information, refer to the standard’s Document Summary page on
approved in 1963. Last previous edition approved in 2010 as A449–10. DOI: the ASTM website.
4
10.1520/A0449-14. Available from American Society of Mechanical Engineers (ASME), ASME
2
For ASME Boiler and Pressure Vessel Code applications see related Specifi- International Headquarters, Three Park Ave., New York, NY 10016-5990, http://
cations SA-449 in Section II of that Code. www.asme.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

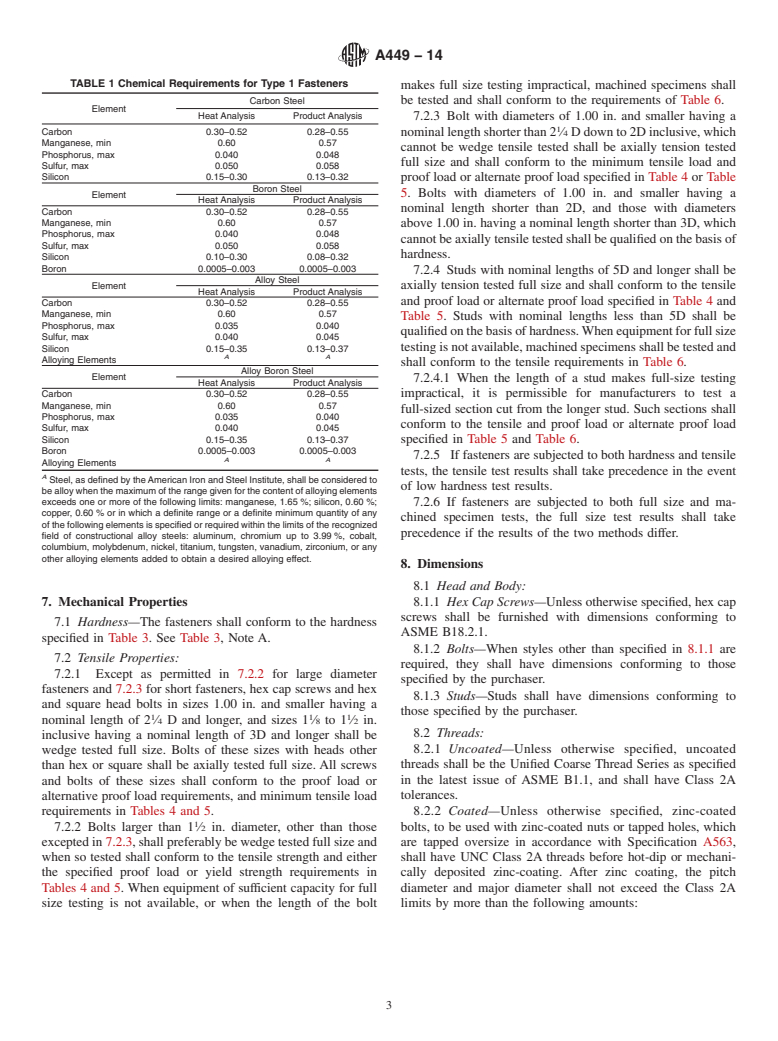

A449−14
3.1.5 ASTM designation and year of issue, and 5. Protective Coatings
3.1.6 Other components such as nuts and washers if re-
5.1 Zinc, Hot Dip, and Mechanically Deposited Requiring
quired.
Over-tapped Nuts:
3.1.7 Hot-Dip or Mechanically Deposited Zinc Coatings—
5.1.1 When zinc-coated fasteners are required, the pur-
Forhot-dipormechanicallydepositedzinccoatingscoveredby
chaser shall specify the zinc-coating process, such as, hot-dip,
5.1 and requiring over-tapped nuts, specify the zinc coatin
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

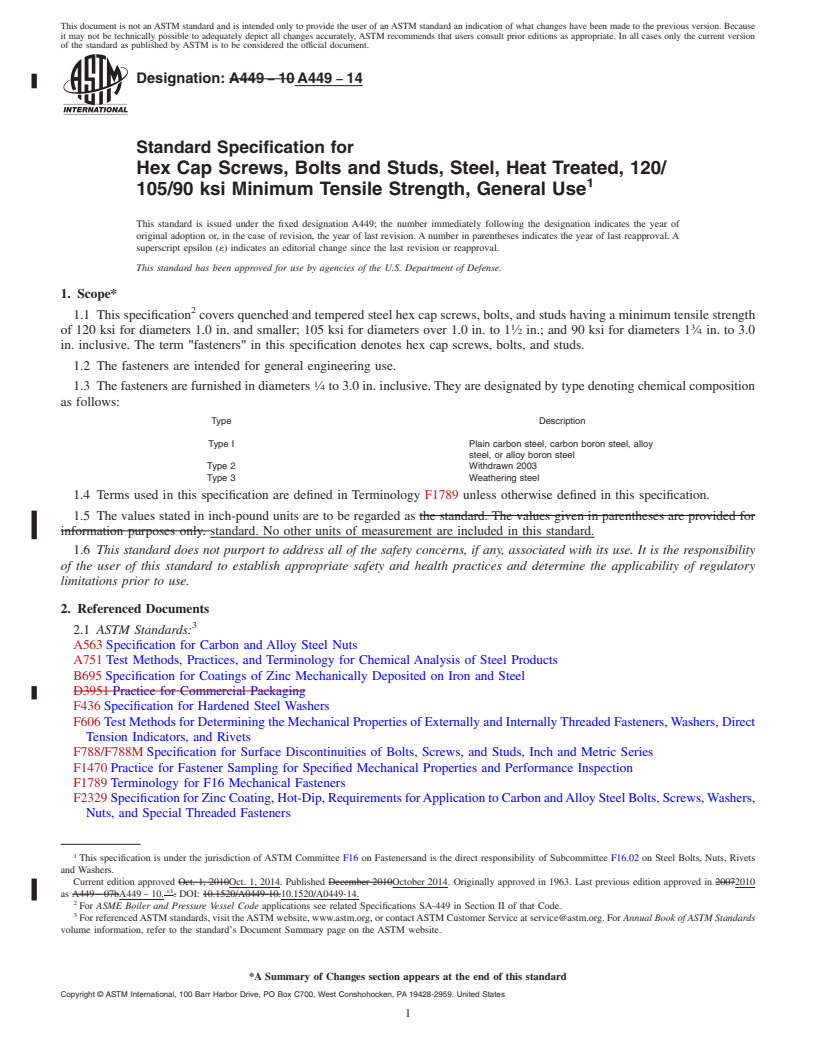

Designation: A449 − 10 A449 − 14
Standard Specification for
Hex Cap Screws, Bolts and Studs, Steel, Heat Treated, 120/
1
105/90 ksi Minimum Tensile Strength, General Use
This standard is issued under the fixed designation A449; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
2
1.1 This specification covers quenched and tempered steel hex cap screws, bolts, and studs having a minimum tensile strength
1 3
of 120 ksi for diameters 1.0 in. and smaller; 105 ksi for diameters over 1.0 in. to 1 ⁄2 in.; and 90 ksi for diameters 1 ⁄4 in. to 3.0
in. inclusive. The term "fasteners" in this specification denotes hex cap screws, bolts, and studs.
1.2 The fasteners are intended for general engineering use.
1
1.3 The fasteners are furnished in diameters ⁄4 to 3.0 in. inclusive. They are designated by type denoting chemical composition
as follows:
Type Description
Type I Plain carbon steel, carbon boron steel, alloy
steel, or alloy boron steel
Type 2 Withdrawn 2003
Type 3 Weathering steel
1.4 Terms used in this specification are defined in Terminology F1789 unless otherwise defined in this specification.
1.5 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are provided for
information purposes only. standard. No other units of measurement are included in this standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
3
2.1 ASTM Standards:
A563 Specification for Carbon and Alloy Steel Nuts
A751 Test Methods, Practices, and Terminology for Chemical Analysis of Steel Products
B695 Specification for Coatings of Zinc Mechanically Deposited on Iron and Steel
D3951 Practice for Commercial Packaging
F436 Specification for Hardened Steel Washers
F606 Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners, Washers, Direct
Tension Indicators, and Rivets
F788/F788M Specification for Surface Discontinuities of Bolts, Screws, and Studs, Inch and Metric Series
F1470 Practice for Fastener Sampling for Specified Mechanical Properties and Performance Inspection
F1789 Terminology for F16 Mechanical Fasteners
F2329 Specification for Zinc Coating, Hot-Dip, Requirements for Application to Carbon and Alloy Steel Bolts, Screws, Washers,
Nuts, and Special Threaded Fasteners
1
This specification is under the jurisdiction of ASTM Committee F16 on Fastenersand is the direct responsibility of Subcommittee F16.02 on Steel Bolts, Nuts, Rivets
and Washers.
Current edition approved Oct. 1, 2010Oct. 1, 2014. Published December 2010October 2014. Originally approved in 1963. Last previous edition approved in 20072010
ε1
as A449 – 07bA449 – 10. . DOI: 10.1520/A0449-10.10.1520/A0449-14.
2
For ASME Boiler and Pressure Vessel Code applications see related Specifications SA-449 in Section II of that Code.
3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

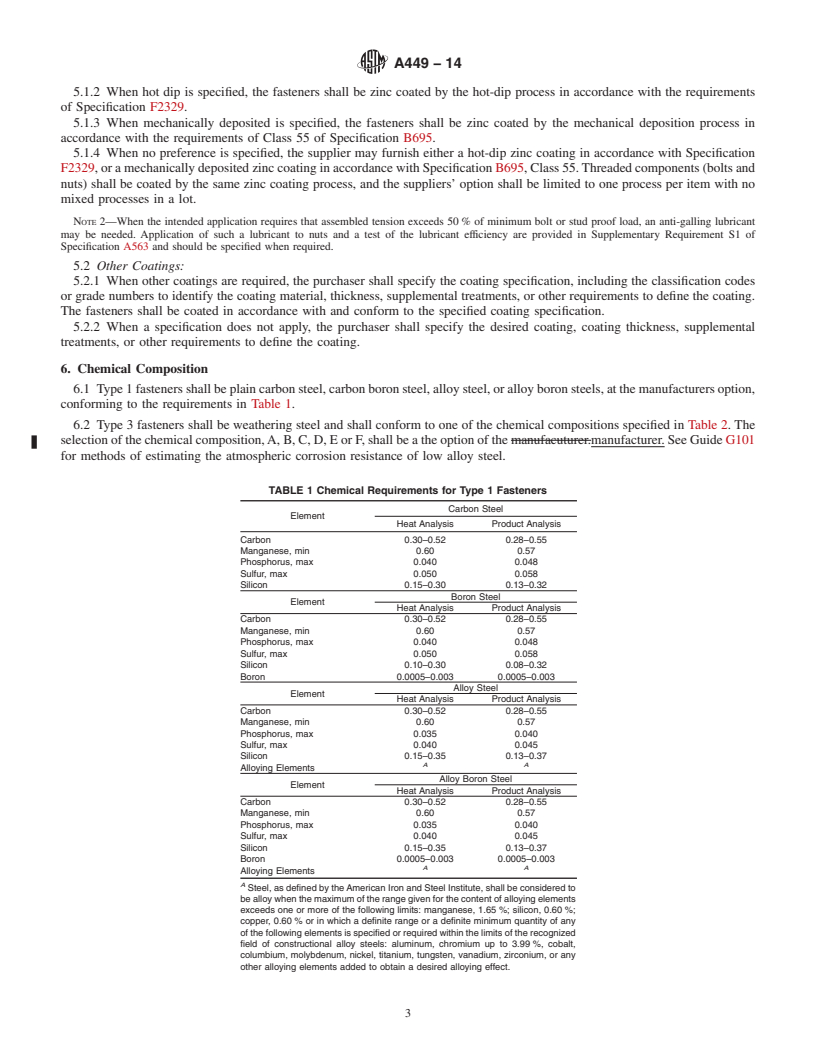

A449 − 14
G101 Guide for Estimating the Atmospheric Corrosion Resistance of Low-Alloy Steels
4
2.2 ASME Standards:
B 1.1 Unified Screw Threads
B 18.2.1 Square and Hex Bolts and Screws
B 18.24 Part Identifying Number (PIN) Code System Standard for B18 Fastener Products
3. Ordering Information
3.1 Orders for fasteners under this specification shall include the following:
3.1.1 Quantity (number of pieces),
3.1.2 Size, including nominal diameter and length,
3.1.3 Name of product,
3.1.4 Type, that is, Type 1, or Type 3 as required,
3.1.5 ASTM designation and year of issue, and
3.1.6 Other components such as nuts and washers if required.
3.1.7 Hot-Dip or Mechanically De
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM F3125/F3125M-23(Specification)
Standard Specification for High Strength Structural Bolts and Assemblies, Steel and Alloy Steel, Heat Treated, Inch Dimensions 120 ksi and 150 ksi Minimum Tensile Strength, and Metric Dimensions 830 MPa and 1040 MPa Minimum Tensile Strength

ABSTRACT
This specification provides the chemical, physical and mechanical requirements for quenched and tempered bolts manufactured from steel and alloy steel, in inch and metric dimensions, in two strength grades, two types and two styles. It is intended to ensure alignment between standards with the same intended end use and to simplify the use and maintenance of structural bolt specifications.
SCOPE
1.1 This specification covers chemical, physical and mechanical requirements for quenched and tempered bolts manufactured from steel and alloy steel, in inch and metric dimensions, in two strength grades, two types and two styles.
1.1.1 This specification is a consolidation and replacement of six ASTM standards, including; A325, A325M, A490, A490M, F1852 and F2280.
1.1.2 This consolidated standard is to ensure alignment between standards with the same intended end use and to simplify the use and maintenance of structural bolt specifications.
1.2 Intended Use:
1.2.1 Bolts manufactured under this specification are intended for use in structural connections covered in the Specification for Structural Joints Using High-Strength Bolts, as approved by the Research Council on Structural Connections.
1.2.2 Bolts in this specification are furnished in sizes from 1/2 to 1-1/2 in. inclusive and from M12 to M36 inclusive.
1.3 Classification, Table 1:
1.3.1 Bolts are designated by grade, which indicates inch or metric strength and style.
1.3.2 Bolts are designated by type denoting raw material chemical composition.
1.3.3 Bolts are designated by style denoting Heavy Hex bolts or “Twist-Off” Style assemblies.
1.4 Terms used in this specification are defined in F1789.
1.5 Units—The values stated in either SI units or inch pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.6 Table footnotes are requirements. Notes are advisory.
1.7 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    14 pages
    English language
    sale 15% off
  • Technical specification
    14 pages
    English language
    sale 15% off
ASTM
ASTM F835-23(Specification)
Standard Specification for Alloy Steel Socket Button, Low and Flat Countersunk Head Cap Screws

ABSTRACT
This specification covers the requirements for quenched and tempered alloy steel hexagon socket button (SBHCS) and flat countersunk (SFHCS) head cap screws. The screws shall be fabricated from alloy steel made to fine grain practice. The chemical composition of the screw material shall conform to the heat analysis specified. Hardness, tensile strength, yield strength, elongation, and area reduction shall be tested to meet the requirements prescribed.
SCOPE
1.1 This specification covers the requirements for quenched and tempered alloy steel hexagon socket button (SBHCS) 0.060 through 0.625 thread sizes, flat countersunk (SFHCS) 0.060 through 1.5 thread sizes and low (SLHCS) 0.1120 through 0.625 thread sizes head cap screws having material properties for high-strength requirements.
1.2 Fasteners meeting this specification are intended for shear-type applications and have tensile requirements ranging from 122 to 150 ksi.
1.3 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 The hazard statement applies only to the test method section, Section 11, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    5 pages
    English language
    sale 15% off
  • Technical specification
    5 pages
    English language
    sale 15% off
ASTM
ASTM F879-23(Specification)
Standard Specification for Stainless Steel Socket Button, Low and Flat Countersunk Head Cap Screws

ABSTRACT
This specification covers the chemical and mechanical requirements for stainless steel metric hexagon socket button (SBHCS) and flat countersunk (SFHCS) head cap screws with nominal thread M 3 through M 20 intended for use in applications requiring general corrosion resistance. These steels are designated into three classes: Austenitic Class A 1-50 in an annealed condition, Austenitic Class A1-55 in a cold worked condition, and Austenitic Class A 1-70 in a cold worked condition. The austenitic stainless steel socket screw shall be designated F879M A1-50, F879M A1–55, or F 879M A1-70. Screws shall be formed by upsetting or extruding, or both. Also, these screws shall be roll threaded. Austenitic alloys ClassA 1-50 screws, following manufacture, shall be annealed by heating to a certain temperature to obtain maximum corrosion resistance and minimum permeability. The screws shall be held for a sufficient time at temperature, then cooled at a rate sufficient to prevent precipitation of the carbide and provide the properties specified. Different tests shall be conducted in order to determine the following mechanical properties of screws: tensile strength, minimum extension, yield strength, elongation, Vickers hardness, and Rockwell hardness.
SCOPE
1.1 This specification covers the chemical and mechanical requirements for stainless steel inch hexagon socket button (SBHCS), flat countersunk (SFHCS) head cap screws with nominal thread 0.060 through 0.625 in. and low head (SLHCS) cap screws with nominal thread 0.112 through 0.625 in. intended for use in applications requiring general corrosion resistance.
1.2 Two groups of austenitic stainless steel alloys and three conditions are covered. See Table 1 and Table 2.
1.3 Units—The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 The following precautionary caveat pertains only to the test method portion, Section 12, of this specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    7 pages
    English language
    sale 15% off
  • Technical specification
    7 pages
    English language
    sale 15% off
ASTM
ASTM F468-23(Specification)
Standard Specification for Nonferrous Bolts, Hex Cap Screws, Socket Head Cap Screws, and Studs for General Use

ABSTRACT
This specification covers the requirements for commercial wrought nonferrous bolts, hex cap screws, and studs manufactured from a number of alloys in common use and intended for general service applications. The bolts, cap screws, and studs shall be manufactured from material having a chemical composition conforming to the requirements specified. The fasteners shall be cold formed, hot formed, or machined from suitable material. Different tests shall be conducted in order to determine the following mechanical properties of fasteners: hardness, tensile strength, yield strength, and elongation.
SIGNIFICANCE AND USE
12.1 For purposes of determining compliance with the specified limits for requirements of the properties listed in this specification, an observed value or calculated value shall be rounded in accordance with Practice E29.
SCOPE
1.1 This specification covers the requirements for commercial wrought nonferrous bolts, hex cap screws, and studs 0.250 to 1.500 in., socket head cap screws (including socket head cap, button head and flat countersunk head configurations) with nominal thread 0.06 (size 0) through 1.500 in. and low head socket cap screws with nominal thread 0.112 (size 4) through 0.625 (5/8 ) in. inclusive in diameter manufactured from a number of alloys in common use and intended for general service applications.
1.2 Applicable nuts for use with bolts, cap screws, and studs covered by this specification are covered by Specification F467.
1.2.1 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
Note 1: A complete metric companion to Specification F468 has been developed—F468M; therefore no metric equivalents are presented in this specification.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    15 pages
    English language
    sale 15% off
  • Technical specification
    15 pages
    English language
    sale 15% off
ASTM
ASTM F593-22(Specification)
Standard Specification for Stainless Steel Bolts, Hex Cap Screws, and Studs

SIGNIFICANCE AND USE
13.1 For the purposes of determining compliance with the specified limits for properties listed in this specification, an observed value or calculated value shall be rounded in accordance with Practice E29.
SCOPE
1.1 This specification covers the requirements for stainless steel bolts, hex cap screws, and studs 0.25 to 1.50 in., inclusive, in nominal diameter in a number of alloys in common use and intended for service applications requiring general corrosion resistance.
1.2 Seven groups of stainless steel alloys are covered, including fourteen austenitic, two ferritic, four martensitic, and one precipitation hardening.
Group
AlloysA
ConditionB
1
304, 305, 384, 304 L,
(CW) cold workedC
18-9LW, 302HQ, 304J3D
2
316, 316 L
(CW) cold workedC
3
321, 347
(CW) cold workedC
4
430E
(CW) cold workedC
5
410F
(H) hardened and tempered
6
431
(H) hardened and tempered
7
630
(AH) age hardened
1.3 Supplementary requirements of an optional nature are provided, applicable only when agreed upon between the manufacturer and the purchaser at the time of the inquiry and order.
1.4 Suitable nuts for use with bolts, hex cap screws, and studs included in this specification are covered by Specification F594. Unless otherwise specified, all nuts used on these fasteners shall conform to the requirements of Specification F594, shall be of the same alloy group, and shall have a specified minimum proof stress equal to or greater than the specified minimum full-size tensile strength of the externally threaded fastener.
1.5 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    9 pages
    English language
    sale 15% off
  • Technical specification
    9 pages
    English language
    sale 15% off
ASTM
ASTM F2482/F2482M-21(Specification)
Standard Specification for Load-Indicating Externally Threaded Fasteners

ABSTRACT
This specification covers externally threaded bolts, studs, and cap screws called fasteners, capable of indicating clamping forces up to yield strength during the tightening process or post installation residual tension, or both. Load-indicating fasteners utilize mechanical, electronic, or ultrasonic means to indicate fastener tension. These fasteners provide a means to verify the desired clamp load in critical applications upon installation and in service. This specification covers the following four different types of load-indicating fasteners: mechanical dial type (MT); electronic type (ET); strain gauge type (ST); and ultrasonic type (UT). Tension test shall be performed to conform to the chemical and mechanical requirements specified.
SCOPE
1.1 This specification covers externally threaded bolts, studs, and cap screws, herein called fasteners, capable of indicating clamping forces up to yield strength during the tightening process or post installation residual tension, or both. Load-indicating fasteners utilize a variety of sensor types to indicate fastener tension. This specification outlines the various types of load indication technologies available and defines their performance requirements.
1.2 This specification covers fastener diameters 1/4 to 7 in. [M6 to M180] inclusive. Fasteners are manufactured from a variety of material types and grades. All fastener materials shall be defined by a governing engineering standard or specification for strength and performance values (see 6.1). Fasteners governed by this specification shall maintain traceability of material test records throughout the manufacturing process to verify conformance with the applicable fastener standards.
1.3 These fasteners provide a means to verify the desired clamp load in critical applications upon installation and in service.
1.4 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.5 The following precautionary statement pertains only to the test method portion, Section 11, of the specification: This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    5 pages
    English language
    sale 15% off
  • Technical specification
    5 pages
    English language
    sale 15% off
ASTM
ASTM A574-21(Specification)
Standard Specification for Alloy Steel Socket-Head Cap Screws

ABSTRACT
This specification covers the requirements for quenched and tempered alloy steel socket-head cap screws. The screws shall be fabricated from steel made to fine grain practice and shall be alloy steel conforming to the chemical composition specified. Different tests shall be conducted in order to determine the following mechanical properties of screws: tensile or wedge strength, proof load, yield strength, elongation, Rockwell hardness, and Vickers hardness.
SCOPE
1.1 This specification covers the requirements for quenched and tempered alloy steel hexagon socket-head cap screws, 0.060 through 4 in. in diameter where high strength is required.
1.2 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 The following hazard caveat pertains only to the test method portions, Sections 5.1, 5.6, 8, and 12, of this specification. This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    7 pages
    English language
    sale 15% off
  • Technical specification
    7 pages
    English language
    sale 15% off
ASTM
ASTM A307-21(Specification)
Standard Specification for Carbon Steel Bolts, Studs, and Threaded Rod 60 000 PSI Tensile Strength

ABSTRACT
This specification covers the chemical and mechanical requirements for three grades (Grades A, B, and C) of carbon steel bolts and studs in specified sizes. This specification does not cover the requirements for machine screws, thread cutting/forming screws, mechanical expansion anchors, or other similar externally threaded fasteners. When tested, sampled specimens shall adhere to specified values for chemical composition, hardness, tensile strength, yield point, elongation, and dimensions.
SCOPE
1.1 This specification2 covers the chemical and mechanical requirements of two grades of carbon steel bolts and studs in sizes 1/4 in. through 4 in. The fasteners are designated by “Grade” denoting tensile strength and intended use, as follows:
Grade
Description
Grade A
Bolts, studs, and threaded rod having a minimum tensile strength of 60 ksi and intended for general applications,
Grade B
Bolts, studs, and threaded rodA having a tensile strength of 60 to 100 ksi and intended for flanged joints in piping systems with cast iron flanges, and
Grade C
Replaced by Specification F1554 Gr.36
1.2 This specification does not cover requirements for machine screws, thread cutting/forming screws, mechanical expansion anchors or similar externally threaded fasteners.
1.3 Suitable nuts are covered in Specification A563. Unless otherwise specified, the grade and style of nut for each grade of fastener, of all surface finishes, shall be as follows:
Fastener Grade and Size
Nut Grade and StyleA
A 1/4 to 11/2 in.
A, hex
A over 11/2 to 4 in.
A, heavy hex
B, 1/4 to 4 in.
A, heavy hex
1.4 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.5 Supplementary Requirement S1 of an optional nature is provided, which describes additional restrictions to be applied when bolts are to be welded. It shall apply only when specified in the inquiry, order, and contract.
1.6 Terms used in this specification are defined in Terminology F1789 unless otherwise defined herein.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    6 pages
    English language
    sale 15% off
  • Technical specification
    6 pages
    English language
    sale 15% off
ASTM
ASTM F1554-20(Specification)
Standard Specification for Anchor Bolts, Steel, 36, 55, and 105-ksi Yield Strength

ABSTRACT
This specification covers the chemical, mechanical, and dimensional requirements, and associated test methods for straight and bent, headed and headless anchor bolts (also known as anchor rods) made of carbon, carbon boron, alloy, or high-strength low-alloy steel and having specified yield strengths. The anchor bolts are furnished in three strength grades, two thread classes, and various sizes, and are intended for anchoring structural supports to concrete foundations such as building columns, column supports for highway signs, street lighting and traffic signals, steel bearing plates, and similar applications. This specification, however, does not cover the requirements for mechanical expansion anchors, powder-activated nails or studs, and anchor bolts fabricated from deformed bars. The bolts shall adhere to specified elemental chemical compositions as examined by heat and product analysis. They shall also be tested for their conformance with mechanical properties such as tensile strength, yield strength, elongation, reduction of area, and stress area. The anchor bolts shall also meet specified values for nominal size, body diameter, bend section, length, bend angle, and coated length.
SCOPE
1.1 This specification covers straight, bent, headed, and headless anchor bolts (also known as anchor rods) made of carbon, medium carbon boron, alloy, or high-strength low-alloy steel. It provides for anchor bolts in three strength grades, two thread classes, and in the diameters specified in Section 4. The specification also covers all-thread rod for use in anchoring to concrete. References to anchor bolts in this standard do not necessarily exclude all-thread rod.
1.2 Anchor bolts are intended for anchoring structural supports to concrete foundations. Such structural supports include building columns, column supports for highway signs, street lighting and traffic signals, steel bearing plates, and similar applications.
1.3 Supplementary requirements are included to provide for Grade 55 weldable steel, permanent manufacturers and grade identification, and impact properties for Grades 55 and 105.
1.4 Zinc coating requirements are in Section 7.
1.5 Suitable nuts and washers are listed in 6.7. Washers are detailed in 6.8.
1.6 This specification does not cover mechanical expansion anchors, powder-activated nails or studs, or anchor bolts fabricated from deformed bar.
1.7 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.8 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    8 pages
    English language
    sale 15% off
  • Technical specification
    8 pages
    English language
    sale 15% off
ASTM
ASTM F541-12(2020)(Specification)
Standard Specification for Alloy Steel Eyebolts

ABSTRACT
This specification covers the basic requirements and corresponding test methods for forged, quenched, and tempered, alloy steel threaded eyebolts with improved toughness properties and that are chemically and metallurgically constituted to produce a low transition temperature to minimize brittle failure, intended primarily for low temperature applications. The eyebolts are furnished either as straight shank eyebolts (Type 1), or shoulder eyebolts (Type 2). Sampled specimens shall be tested, and conform accordingly to chemical (carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum, and nickel), metallurgical (grain size, decarburization, and macrotech properties), and mechanical (Brinell hardness, tensile strength, breaking strength, proof load, impact strength, and bend strength) requirements.
SCOPE
1.1 This specification covers forged, quenched and tempered, alloy steel threaded eyebolts with improved toughness properties and intended primarily for low temperature applications. The eyebolts are chemically and metallurgically constituted to produce a low transition temperature to minimize brittle failure. Maximum thread size is 2.500 in. (63.50 mm).
1.2 The eyebolts are furnished in two types, as follows:
1.2.1 Type 1—Straight Shank Eyebolt.
1.2.2 Type 2—Shoulder Eyebolt.
1.3 The values stated in inch-pound units are to be regarded as the standard. The values in parentheses are for information only.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    6 pages
    English language
    sale 15% off
