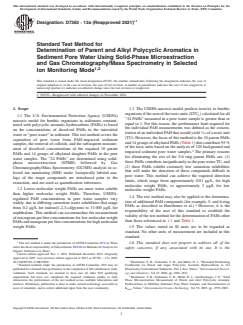

Designation: D7363 − 13a (Reapproved 2021)
Standard Test Method for
Determination of Parent and Alkyl Polycyclic Aromatics in
Sediment Pore Water Using Solid-Phase Microextraction
and Gas Chromatography/Mass Spectrometry in Selected
1,2
Ion Monitoring Mode
This standard is issued under the fixed designation D7363; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
ε NOTE—Reapproved with editorial changes in November 2021.
1. Scope 1.3 The USEPA narcosis model predicts toxicity to benthic
organismsifthesumofthetoxicunits(ΣTU )calculatedforall
c
1.1 The U.S. Environmental Protection Agency (USEPA)
“34 PAHs” measured in a pore water sample is greater than or
narcosis model for benthic organisms in sediments contami-
equal to 1. For this reason, the performance limit required for
nated with polycyclic aromatic hydrocarbons (PAHs) is based
the individual PAH measurements was defined as the concen-
on the concentrations of dissolved PAHs in the interstitial
trationofanindividualPAHthatwouldyield ⁄34ofatoxicunit
water or “pore water” in sediment.This test method covers the
(TU).However,thefocusofthismethodisthe10parentPAHs
separation of pore water from PAH-impacted sediment
and14groupsofalkylatedPAHs(Table1)thatcontribute95%
samples, the removal of colloids, and the subsequent measure-
of the toxic units based on the analysis of 120 background and
ment of dissolved concentrations of the required 10 parent
impacted sediment pore water samples. The primary reasons
PAHs and 14 groups of alkylated daughter PAHs in the pore
for eliminating the rest of the 5-6 ring parent PAHs are: (1)
water samples. The “24 PAHs” are determined using solid-
thesePAHscontributeinsignificantlytotheporewaterTU,and
phase microextraction (SPME) followed by Gas
(2) these PAHs exhibit extremely low saturation solubilities
Chromatography/Mass Spectrometry (GC/MS) analysis in se-
that will make the detection of these compounds difficult in
lected ion monitoring (SIM) mode. Isotopically labeled ana-
pore water. This method can achieve the required detection
logs of the target compounds are introduced prior to the
limits, which range from approximately 0.01 µg/L, for high
extraction, and are used as quantification references.
molecular weight PAHs, to approximately 3 µg/L for low
1.2 Lower molecular weight PAHs are more water soluble
molecular weight PAHs.
than higher molecular weight PAHs. Therefore, USEPA-
1.4 The test method may also be applied to the determina-
regulated PAH concentrations in pore water samples vary
tion of additional PAH compounds (for example, 5- and 6-ring
widely due to differing saturation water solubilities that range
PAHs as described in Hawthorne et al.). However, it is the
from 0.2 µg/L for indeno[1,2,3-cd]pyrene to 31000 µg/L for
responsibility of the user of this standard to establish the
naphthalene. This method can accommodate the measurement
validityofthetestmethodforthedeterminationofPAHsother
ofmicrogramperlitreconcentrationsforlowmolecularweight
than those referenced in 1.1 and Table 1.
PAHsandnanogramperlitreconcentrationsforhighmolecular
weight PAHs. 1.5 The values stated in SI units are to be regarded as
standard. No other units of measurement are included in this
standard.
This test method is under the jurisdiction ofASTM Committee D19 on Water 1.6 This standard does not purport to address all of the
andisthedirectresponsibilityofSubcommitteeD19.06onMethodsforAnalysisfor
safety concerns, if any, associated with its use. It is the
Organic Substances in Water.
Current edition approved Nov. 1, 2021. Published December 2021. Originally
approved in 2007. Last previous edition approved in 2013 as D7363 – 13a. DOI:
10.1520/D7363-13AR21E01. Hawthorne, S. B., Grabanski, C. B., and Miller, D. J., “Measured Partitioning
Standard methods under the jurisdiction of ASTM Committee D19 may be Coefficients for Parent and Algae Polycyclic Aromatic Hydrocarbons in 114
publishedforalimitedtimepreliminarytothecompletionoffullcollaborativestudy Historically Contaminated Sediments: Part I, Koc Values,” Environmental Toxicol-
validation. Such standards are deemed to have met all other D19 qualifying ogy and Chemistry, Vol 25, 2006, pp. 2901–2911.
requirements but have not completed the required validation studies to fully Hawthorne, S. B., Grabanski, C. B., Miller, D. J., and Kreitinger, J. P., “Solid
characterize the performance of the test method across multiple laboratories and Phase Microextraction Measurement of Parent and Akyl Polycyclic Aromatic
matrices. Preliminary publication is done to make current technology accessible to Hydrocarbons in Milliliter Sediment Pore Water Samples and Determination of
users of standards, and to solicit additional input from the user community. K Values,” Environmental Science Technology, Vol 39, 2005, pp. 2795–2803.
DOC
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
´1
D7363 − 13a (2021)
A

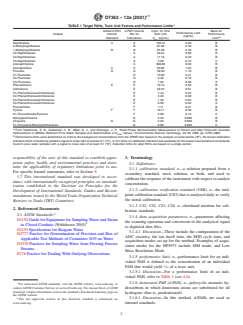

TABLE 1 Target PAHs, Toxic Unit Factors and Performance Limits
