ASTM F1362-13

Standard Test Method for Shear Strength and Shear Modulus of Aerospace Glazing Interlayer Materials

SIGNIFICANCE AND USE
5.1 The basic material properties obtained from this test method can be used in the control of the quality of interlayers, in the theoretical equations for designing laminated transparencies, and in the evaluation of new interlayers.
SCOPE
1.1 This test method covers the determination of the shear strength and shear modulus of interlayer materials that are restrained by relatively high modulus plies in laminated transparencies. This test method can be used with single or multiple plies of the same interlayer materials.
1.2 The values stated in SI units are to be regarded as the standard. The values in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 30-Nov-2013
• ICS: 49.045 - Structure and structure elements
• Technical Committee: F07 - Aerospace and Aircraft
• Drafting Committee: F07.08 - Transparent Enclosures and Materials

Relations

• Replaces: ASTM F1362-09 - Standard Test Method for Shear Strength and Shear Modulus of Aerospace Glazing Interlayer Materials
• Effective Date: 01-Dec-2013
• Referred By: ASTM F942-18(2023)e1 - Standard Guide for Selection of Test Methods for Interlayer Materials for Aerospace Transparent Enclosures
• Effective Date: 01-Dec-2013
• Referred By: ASTM F790-23 - Standard Guide for Testing Materials for Aerospace Plastic Transparent Enclosures
• Effective Date: 01-Dec-2013

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

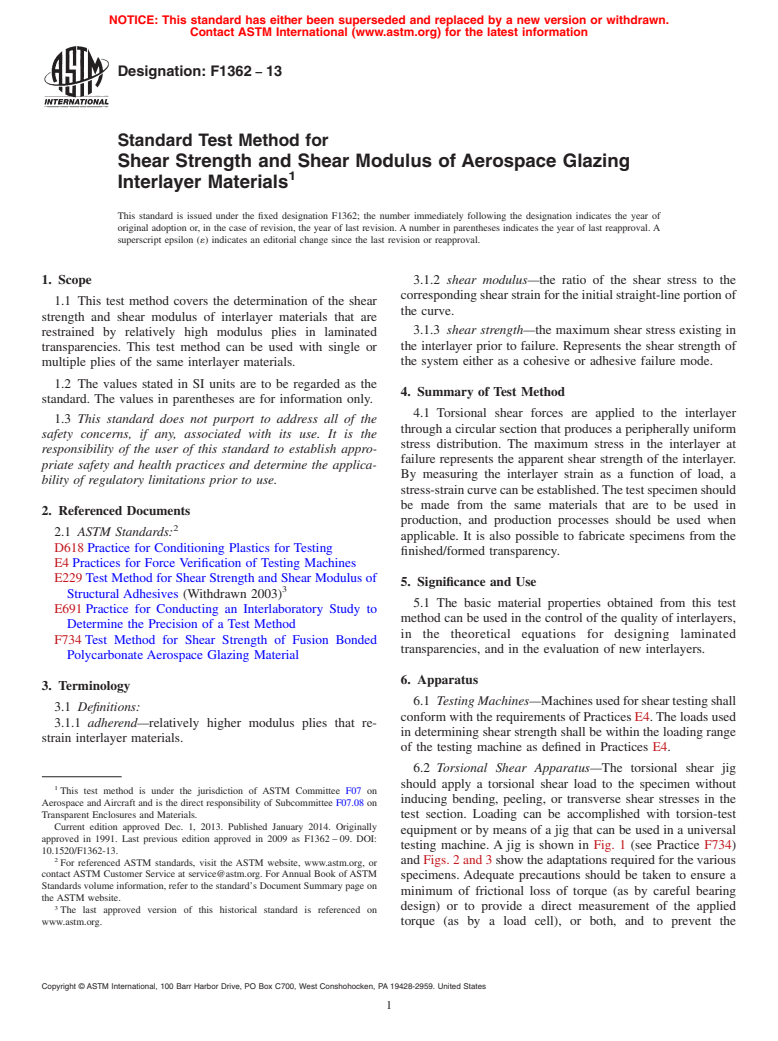

Designation: F1362 − 13
Standard Test Method for
Shear Strength and Shear Modulus of Aerospace Glazing
1
Interlayer Materials
This standard is issued under the fixed designation F1362; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.1.2 shear modulus—the ratio of the shear stress to the
correspondingshearstrainfortheinitialstraight-lineportionof
1.1 This test method covers the determination of the shear
the curve.
strength and shear modulus of interlayer materials that are
3.1.3 shear strength—the maximum shear stress existing in
restrained by relatively high modulus plies in laminated
the interlayer prior to failure. Represents the shear strength of
transparencies. This test method can be used with single or
the system either as a cohesive or adhesive failure mode.
multiple plies of the same interlayer materials.
1.2 The values stated in SI units are to be regarded as the
4. Summary of Test Method
standard. The values in parentheses are for information only.
4.1 Torsional shear forces are applied to the interlayer
1.3 This standard does not purport to address all of the
through a circular section that produces a peripherally uniform
safety concerns, if any, associated with its use. It is the
stress distribution. The maximum stress in the interlayer at
responsibility of the user of this standard to establish appro-
failure represents the apparent shear strength of the interlayer.
priate safety and health practices and determine the applica-
By measuring the interlayer strain as a function of load, a
bility of regulatory limitations prior to use.
stress-straincurvecanbeestablished.Thetestspecimenshould
be made from the same materials that are to be used in
2. Referenced Documents
production, and production processes should be used when
2
2.1 ASTM Standards:
applicable. It is also possible to fabricate specimens from the
D618Practice for Conditioning Plastics for Testing
finished/formed transparency.
E4Practices for Force Verification of Testing Machines
E229Test Method for Shear Strength and Shear Modulus of
5. Significance and Use
3
Structural Adhesives (Withdrawn 2003)
5.1 The basic material properties obtained from this test
E691Practice for Conducting an Interlaboratory Study to
method can be used in the control of the quality of interlayers,
Determine the Precision of a Test Method
in the theoretical equations for designing laminated
F734Test Method for Shear Strength of Fusion Bonded
transparencies, and in the evaluation of new interlayers.
Polycarbonate Aerospace Glazing Material
6. Apparatus
3. Terminology
6.1 Testing Machines—Machinesusedforsheartestingshall
3.1 Definitions:
conform with the requirements of PracticesE4.The loads used
3.1.1 adherend—relatively higher modulus plies that re-
in determining shear strength shall be within the loading range
strain interlayer materials.
of the testing machine as defined in Practices E4.
6.2 Torsional Shear Apparatus—The torsional shear jig
should apply a torsional shear load to the specimen without
1
This test method is under the jurisdiction of ASTM Committee F07 on
inducing bending, peeling, or transverse shear stresses in the
Aerospace andAircraft and is the direct responsibility of Subcommittee F07.08 on
Transparent Enclosures and Materials.
test section. Loading can be accomplished with torsion-test
Current edition approved Dec. 1, 2013. Published January 2014. Originally
equipment or by means of a jig that can be used in a universal
approved in 1991. Last previous edition approved in 2009 as F1362–09. DOI:
testing machine. A jig is shown in Fig. 1 (see Practice F734)
10.1520/F1362-13.
2
andFigs.2and3showtheadaptationsrequiredforthevarious
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contactASTM Customer Service at [e-mail]. ForAnnual Book ofASTM
specimens. Adequate precautions should be taken to ensure a
Standards volume information, refer to the standard’s Document Summary page on
minimum of frictional loss of torque (as by careful bearing
the ASTM website.
3
design) or to provide a direct measurement of the applied
The last approved version of this historical standard is referenced on
www.astm.org. torque (as by a load cell), or both, and to prevent the
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F1362 − 13
FIG. 1 Torsional Shear Test Fixture (See Fig. 1, Practice F734).

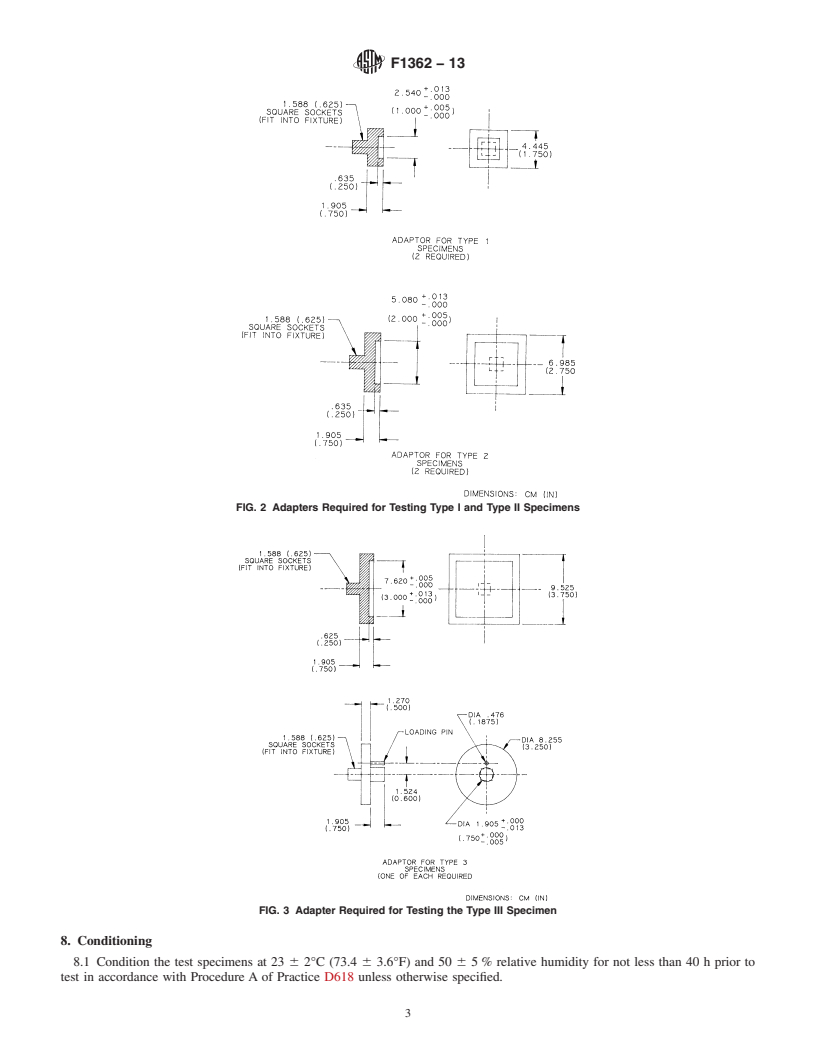

FIG. 2 Adapters Required for Testing Type I and Type II Speci-
application of axial forces.Also, take c
...

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

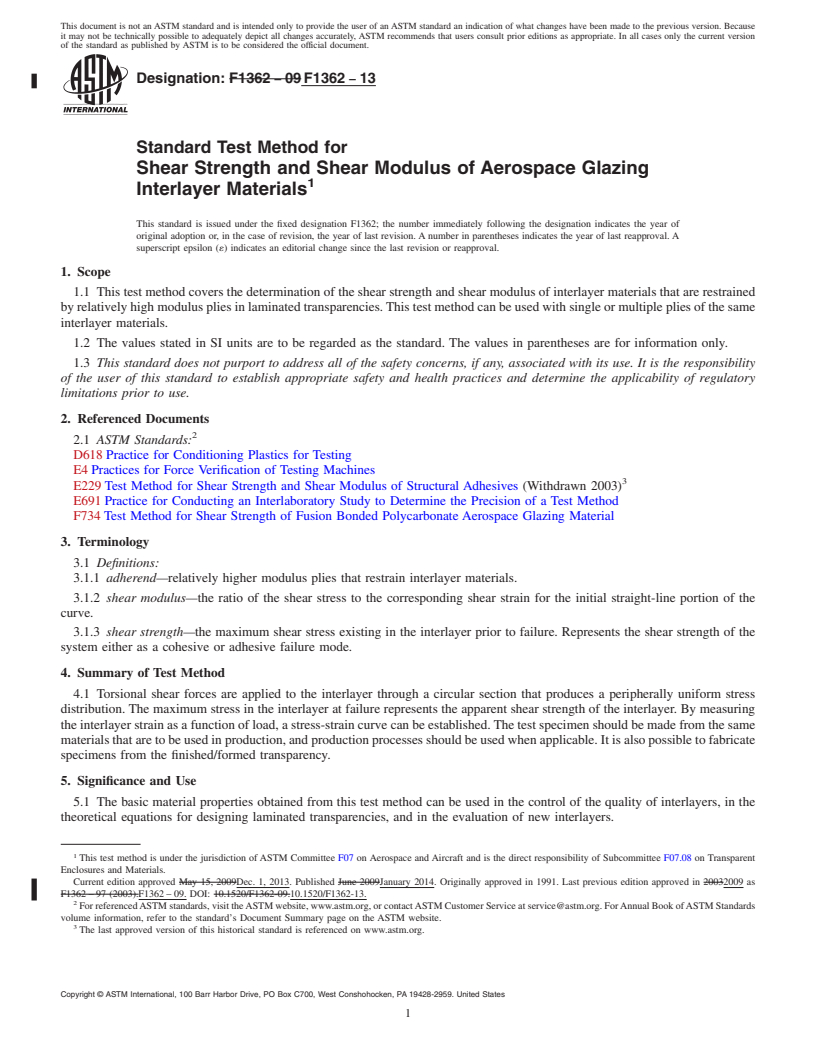

Designation: F1362 − 09 F1362 − 13
Standard Test Method for
Shear Strength and Shear Modulus of Aerospace Glazing
1
Interlayer Materials
This standard is issued under the fixed designation F1362; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method covers the determination of the shear strength and shear modulus of interlayer materials that are restrained
by relatively high modulus plies in laminated transparencies. This test method can be used with single or multiple plies of the same
interlayer materials.
1.2 The values stated in SI units are to be regarded as the standard. The values in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
D618 Practice for Conditioning Plastics for Testing
E4 Practices for Force Verification of Testing Machines
3
E229 Test Method for Shear Strength and Shear Modulus of Structural Adhesives (Withdrawn 2003)
E691 Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
F734 Test Method for Shear Strength of Fusion Bonded Polycarbonate Aerospace Glazing Material
3. Terminology
3.1 Definitions:
3.1.1 adherend—relatively higher modulus plies that restrain interlayer materials.
3.1.2 shear modulus—the ratio of the shear stress to the corresponding shear strain for the initial straight-line portion of the
curve.
3.1.3 shear strength—the maximum shear stress existing in the interlayer prior to failure. Represents the shear strength of the
system either as a cohesive or adhesive failure mode.
4. Summary of Test Method
4.1 Torsional shear forces are applied to the interlayer through a circular section that produces a peripherally uniform stress
distribution. The maximum stress in the interlayer at failure represents the apparent shear strength of the interlayer. By measuring
the interlayer strain as a function of load, a stress-strain curve can be established. The test specimen should be made from the same
materials that are to be used in production, and production processes should be used when applicable. It is also possible to fabricate
specimens from the finished/formed transparency.
5. Significance and Use
5.1 The basic material properties obtained from this test method can be used in the control of the quality of interlayers, in the
theoretical equations for designing laminated transparencies, and in the evaluation of new interlayers.
1
This test method is under the jurisdiction of ASTM Committee F07 on Aerospace and Aircraft and is the direct responsibility of Subcommittee F07.08 on Transparent
Enclosures and Materials.
Current edition approved May 15, 2009Dec. 1, 2013. Published June 2009January 2014. Originally approved in 1991. Last previous edition approved in 20032009 as
F1362 – 97 (2003).F1362 – 09. DOI: 10.1520/F1362-09.10.1520/F1362-13.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
3
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
F1362 − 13
6. Apparatus
6.1 Testing Machines—Machines used for shear testing shall conform with the requirements of Practices E4. The loads used in
determining shear strength shall be within the loading range of the testing machine as defined in Practices E4.
6.2 Torsional Shear Apparatus—The torsional shear jig should apply a torsional shear load to the specimen without inducing
bending, peeling, or transverse shear stresses in the test section. Loading can be accomplished with torsion-test equipment or by

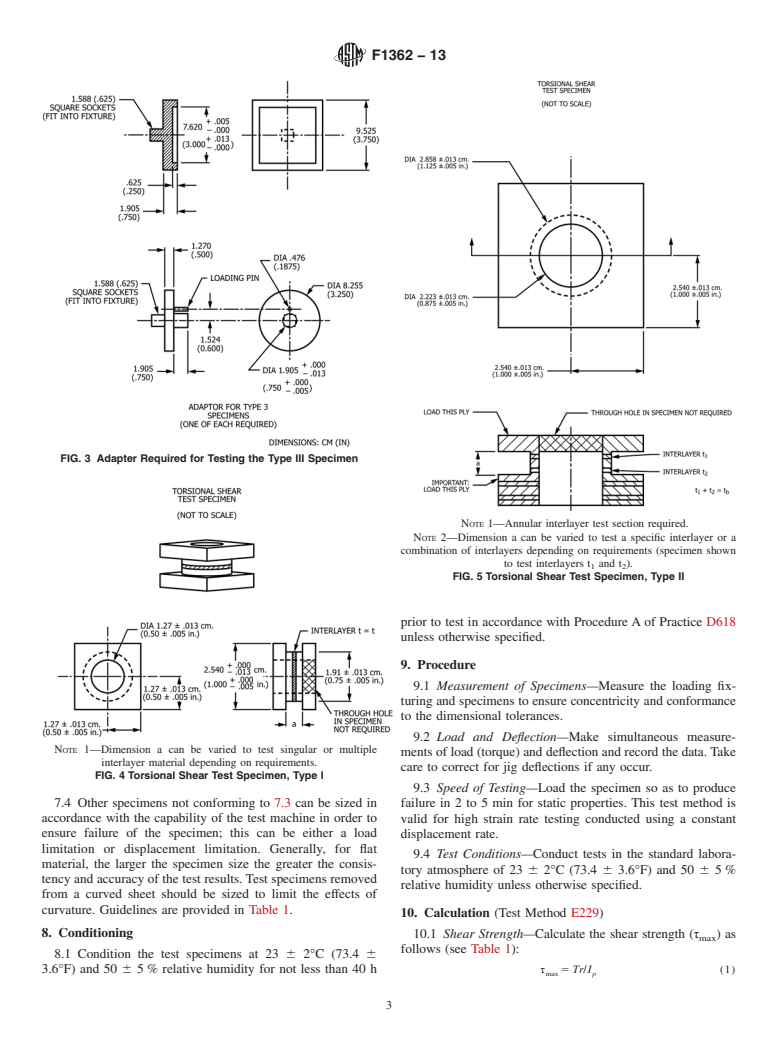

means of a jig that can be used in a universal testing machine. A jig is shown in Fig. 1 (see Practice F734) and Figs. 2 and 3 show
the adaptations required for the various specimens.
...
