ASTM C1707-10

Standard Specification for Pozzolanic Hydraulic Lime for Structural Purposes

SCOPE
1.1 This standard covers four types of pozzolanic hydraulic lime for structural purposes which include use in mortar, scratch, brown, and finish (stucco) coats of interior or exterior plaster.
1.1.1 PHL—Pozzolanic hydraulic lime for use in mortar, scratch, brown, and finish (stucco) coats of interior or exterior plaster.
1.1.2 PHLc—PHL with a maximum 20 % binder weight of hydraulic cement.
1.1.3 PHL-A—Air-entrained PHL.
1.1.4 PHLc-A—Air-entrained PHLc.
1.2 This specification classifies pozzolanic hydraulic lime by minimum hydrated lime content, maximum hydraulic cement content, and specific performance requirements.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. Appropriate conversion can be done using .
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use.

General Information

• Status: Historical
• Publication Date: 14-Dec-2010
• ICS: 91.100.10 - Cement. Gypsum. Lime. Mortar
• Technical Committee: C07 - Lime and Limestone
• Drafting Committee: C07.02 - Specifications and Guidelines

Relations

• Replaces: ASTM C1707-09 - Standard Specification for Pozzolanic Hydraulic Lime for Structural Purposes
• Effective Date: 15-Dec-2010
• Replaced By: ASTM C1707-11 - Standard Specification for Pozzolanic Hydraulic Lime for Structural Purposes
• Effective Date: 01-Jun-2011
• Referred By: ASTM C1713-23 - Standard Specification for Mortars for the Repair of Historic Masonry
• Effective Date: 15-Dec-2010
• Referred By: ASTM C1722-23 - Standard Guide for Repair and Restoration of Dimension Stone
• Effective Date: 15-Dec-2010
• Referred By: ASTM C51-21 - Standard Terminology Relating to Lime and Limestone (as Used by the Industry)
• Effective Date: 15-Dec-2010

Standards Content (Sample)

NOTICE: This standard has either been superseded and replaced by a new version or withdrawn.
Contact ASTM International (www.astm.org) for the latest information

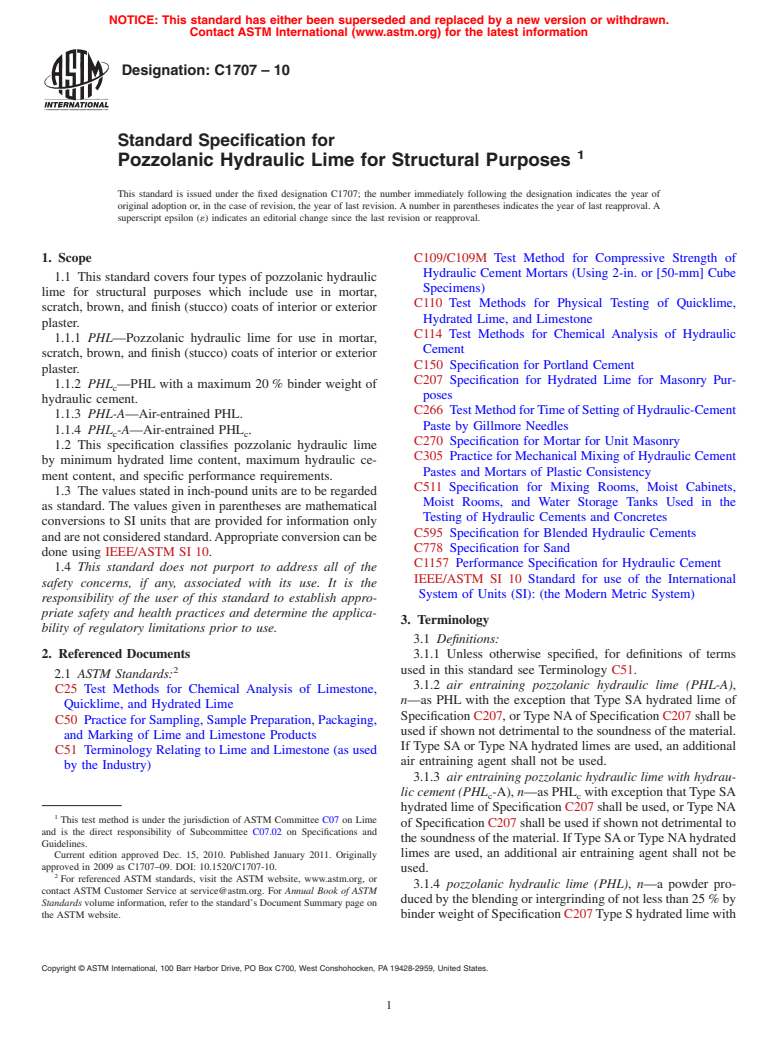

Designation: C1707 – 10
Standard Specification for
1
Pozzolanic Hydraulic Lime for Structural Purposes
This standard is issued under the fixed designation C1707; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope C109/C109M Test Method for Compressive Strength of
Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube
1.1 This standard covers four types of pozzolanic hydraulic
Specimens)
lime for structural purposes which include use in mortar,
C110 Test Methods for Physical Testing of Quicklime,
scratch, brown, and finish (stucco) coats of interior or exterior
Hydrated Lime, and Limestone
plaster.
C114 Test Methods for Chemical Analysis of Hydraulic
1.1.1 PHL—Pozzolanic hydraulic lime for use in mortar,
Cement
scratch, brown, and finish (stucco) coats of interior or exterior
C150 Specification for Portland Cement
plaster.
C207 Specification for Hydrated Lime for Masonry Pur-
1.1.2 PHL —PHL with a maximum 20 % binder weight of
c
poses
hydraulic cement.
C266 TestMethodforTimeofSettingofHydraulic-Cement
1.1.3 PHL-A—Air-entrained PHL.
Paste by Gillmore Needles
1.1.4 PHL -A—Air-entrained PHL .
c c
C270 Specification for Mortar for Unit Masonry
1.2 This specification classifies pozzolanic hydraulic lime
C305 Practice for Mechanical Mixing of Hydraulic Cement
by minimum hydrated lime content, maximum hydraulic ce-
Pastes and Mortars of Plastic Consistency
ment content, and specific performance requirements.
C511 Specification for Mixing Rooms, Moist Cabinets,
1.3 The values stated in inch-pound units are to be regarded
Moist Rooms, and Water Storage Tanks Used in the
as standard. The values given in parentheses are mathematical
Testing of Hydraulic Cements and Concretes
conversions to SI units that are provided for information only
C595 Specification for Blended Hydraulic Cements
andarenotconsideredstandard.Appropriateconversioncanbe
C778 Specification for Sand
done using IEEE/ASTM SI 10.
C1157 Performance Specification for Hydraulic Cement
1.4 This standard does not purport to address all of the
IEEE/ASTM SI 10 Standard for use of the International
safety concerns, if any, associated with its use. It is the
System of Units (SI): (the Modern Metric System)
responsibility of the user of this standard to establish appro-
priate safety and health practices and determine the applica-
3. Terminology
bility of regulatory limitations prior to use.
3.1 Definitions:
2. Referenced Documents 3.1.1 Unless otherwise specified, for definitions of terms
2 used in this standard see Terminology C51.
2.1 ASTM Standards:
3.1.2 air entraining pozzolanic hydraulic lime (PHL-A),
C25 Test Methods for Chemical Analysis of Limestone,
n—as PHL with the exception that Type SA hydrated lime of
Quicklime, and Hydrated Lime
Specification C207, or Type NAof Specification C207 shall be
C50 Practice for Sampling, Sample Preparation, Packaging,
used if shown not detrimental to the soundness of the material.
and Marking of Lime and Limestone Products
If Type SA or Type NA hydrated limes are used, an additional
C51 Terminology Relating to Lime and Limestone (as used
air entraining agent shall not be used.
by the Industry)
3.1.3 air entraining pozzolanic hydraulic lime with hydrau-
lic cement (PHL -A), n—as PHL with exception thatType SA
c c
hydrated lime of Specification C207 shall be used, or Type NA
1
This test method is under the jurisdiction of ASTM Committee C07 on Lime
of Specification C207 shall be used if shown not detrimental to
and is the direct responsibility of Subcommittee C07.02 on Specifications and
the soundness of the material. IfType SAorType NAhydrated
Guidelines.
limes are used, an additional air entraining agent shall not be
Current edition approved Dec. 15, 2010. Published January 2011. Originally
approved in 2009 as C1707–09. DOI: 10.1520/C1707-10.
used.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
3.1.4 pozzolanic hydraulic lime (PHL), n—a powder pro-
contact ASTM Customer Service at [e-mail]. For Annual Book of ASTM
duced by the blending or intergrinding of not less than 25 % by
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. binder weight of Specification C207Type S hydrated lime with
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
C1707 – 10
one or more pozzolan and inert filler. Type N hydrated lime of for this specification shall be measured by weight by convert-
Specification C207 shall be used if shown not detrimental
...

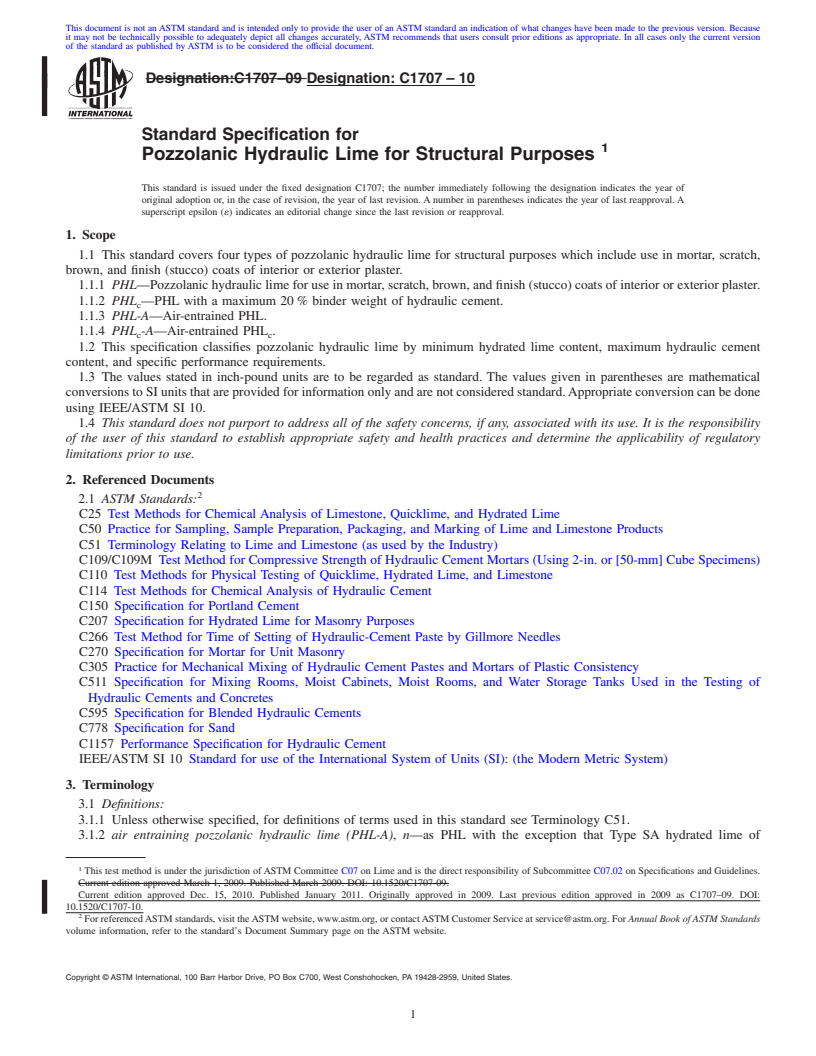

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation:C1707–09 Designation: C1707 – 10
Standard Specification for
1
Pozzolanic Hydraulic Lime for Structural Purposes
This standard is issued under the fixed designation C1707; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This standard covers four types of pozzolanic hydraulic lime for structural purposes which include use in mortar, scratch,
brown, and finish (stucco) coats of interior or exterior plaster.
1.1.1 PHL—Pozzolanic hydraulic lime for use in mortar, scratch, brown, and finish (stucco) coats of interior or exterior plaster.
1.1.2 PHL —PHL with a maximum 20 % binder weight of hydraulic cement.
c
1.1.3 PHL-A—Air-entrained PHL.
1.1.4 PHL -A—Air-entrained PHL .
c c
1.2 This specification classifies pozzolanic hydraulic lime by minimum hydrated lime content, maximum hydraulic cement
content, and specific performance requirements.
1.3 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.Appropriate conversion can be done
using IEEE/ASTM SI 10.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2
2.1 ASTM Standards:
C25 Test Methods for Chemical Analysis of Limestone, Quicklime, and Hydrated Lime
C50 Practice for Sampling, Sample Preparation, Packaging, and Marking of Lime and Limestone Products
C51 Terminology Relating to Lime and Limestone (as used by the Industry)
C109/C109M Test Method for Compressive Strength of Hydraulic Cement Mortars (Using 2-in. or [50-mm] Cube Specimens)
C110 Test Methods for Physical Testing of Quicklime, Hydrated Lime, and Limestone
C114 Test Methods for Chemical Analysis of Hydraulic Cement
C150 Specification for Portland Cement
C207 Specification for Hydrated Lime for Masonry Purposes
C266 Test Method for Time of Setting of Hydraulic-Cement Paste by Gillmore Needles
C270 Specification for Mortar for Unit Masonry
C305 Practice for Mechanical Mixing of Hydraulic Cement Pastes and Mortars of Plastic Consistency
C511 Specification for Mixing Rooms, Moist Cabinets, Moist Rooms, and Water Storage Tanks Used in the Testing of
Hydraulic Cements and Concretes
C595 Specification for Blended Hydraulic Cements
C778 Specification for Sand
C1157 Performance Specification for Hydraulic Cement
IEEE/ASTM SI 10 Standard for use of the International System of Units (SI): (the Modern Metric System)
3. Terminology
3.1 Definitions:
3.1.1 Unless otherwise specified, for definitions of terms used in this standard see Terminology C51.
3.1.2 air entraining pozzolanic hydraulic lime (PHL-A), n—as PHL with the exception that Type SA hydrated lime of
1
This test method is under the jurisdiction ofASTM Committee C07 on Lime and is the direct responsibility of Subcommittee C07.02 on Specifications and Guidelines.
Current edition approved March 1, 2009. Published March 2009. DOI: 10.1520/C1707-09.
Current edition approved Dec. 15, 2010. Published January 2011. Originally approved in 2009. Last previous edition approved in 2009 as C1707–09. DOI:
10.1520/C1707-10.
2
For referencedASTM standards, visit theASTM website, www.astm.org, or contactASTM Customer Service at [e-mail]. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959, United States.
1

---------------------- Page: 1 ----------------------
C1707 – 10
Specification C207, or Type NAof Specification C207 shall be used if shown not detrimental to the soundness of the material. If
Type SA or Type NA hydrated limes are used, an additional air entraining agent shall not be used.
3.1.3 air entraining pozzolanic hydraulic lime with hydraulic cement (PHL -A), n—as PHL with exception that Type SA
c c
hydrated lime of Specification C207 shall be used, or Type NA of Specification C207 shall be used if shown not detrimental to
the soundness of the material. If Type SAor Type NAhydrated li
...
