ASTM D3638-21e1

(Test Method)

Standard Test Method for Comparative Tracking Index of Electrical Insulating Materials

Standard Test Method for Comparative Tracking Index of Electrical Insulating Materials

SIGNIFICANCE AND USE
5.1 Electrical equipment can fail as a result of electrical tracking of insulating material that is exposed to various contaminating environments and surface conditions. This method is an accelerated test which at relatively low test voltages, provides a comparison of the performance of insulating materials under wet and contaminated conditions. The comparative tracking index is not related directly to the suitable operating voltage in service.
5.2 When organic electrical insulating materials are subjected to conduction currents between electrodes on their surfaces, many minute tree-like carbonaceous paths or tracks are developed near the electrodes. These tracks are oriented randomly, but generally propagate between the electrodes under the influence of the applied potential difference. Eventually a series of tracks spans the electrode gap, and failure occurs by shorting of the electrodes.
5.3 The conditions specified herein are intended to produce a condition conducive to the formation of surface discharges and possible subsequent tracking. Test conditions are chosen to accelerate a process that is reproducible. Consequently, they rarely reproduce the varied conditions found in actual service. Therefore, while tracking tests serve to differentiate materials under given conditions, results of tracking tests cannot be used to infer either direct or comparative service behavior of an application design. Rather, the results provide a tool for judging the suitability of materials for a given application. The suitability can only be verified through testing the design in actual end use or under conditions which simulate end use as closely as possible.
5.4 The results have been used for insulation coordination of equipment with rated voltage up to 1000 Vac or 1500 Vdc connected to low-voltage supply systems (higher voltages permitted in internal circuits). The complete principles of insulation coordination involve the consideration of the combination of clearanc...
SCOPE
1.1 This test method evaluates in a short period of time the low-voltage (up to 600 V) track resistance or comparative tracking index (CTI) of materials in the presence of aqueous contaminants.
1.2 The values stated in metric (SI) units are to be regarded as standard. The inch-pound equivalents of the metric units are approximate.
1.3 This test method is technically equivalent to the version of IEC Publication 112 cited in 2.2. However, the 2007 version of IEC 60112 Fourth Edition yields numerical CTI values that are very likely to differ significantly from this test method.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
31-Dec-2020
ICS
29.035.01 - Insulating materials in general
Technical Committee
D09 - Electrical and Electronic Insulating Materials
Drafting Committee
D09.12 - Electrical Tests
Current Stage
Ref Project

Buy Standard

ASTM D3638-21e1 - Standard Test Method for Comparative Tracking Index of Electrical Insulating MaterialsASTM D3638-21e1 - Standard Test Method for Comparative Tracking Index of Electrical Insulating Materials
PreviousNext
Standard
ASTM D3638-21e1 - Standard Test Method for Comparative Tracking Index of Electrical Insulating Materials
English language
6 pages
sale 15% off
Preview
sale 15% off
Preview

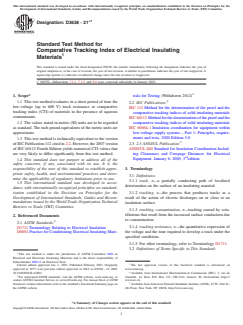

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
´1
Designation: D3638 − 21
Standard Test Method for
Comparative Tracking Index of Electrical Insulating
1
Materials
This standard is issued under the fixed designation D3638; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1
ε NOTE—Subsections 7.1.1, 7.1.2, and 9.4 were corrected editorially in January 2022.
3
1. Scope* rials for Testing (Withdrawn 2012)
4
1.1 This test method evaluates in a short period of time the
2.2 IEC Publications:
low-voltage (up to 600 V) track resistance or comparative
IEC 112Method for the determination of the proof and the
tracking index (CTI) of materials in the presence of aqueous
comparative tracking indices of solid insulating materials
contaminants.
IEC60112Methodforthedeterminationoftheproofandthe
comparative tracking indices of solid insulating materials
1.2 The values stated in metric (SI) units are to be regarded
IEC 60664-1Insulation coordination for equipment within
asstandard.Theinch-poundequivalentsofthemetricunitsare
approximate. low-voltage supply systems – Part 1: Principles, require-
ments and tests, 2020 Edition 3.0
1.3 This test method is technically equivalent to the version
5
ofIECPublication112citedin2.2.However,the2007version
2.3 2.3 ANSI/UL Publication:
of IEC 60112 Fourth Edition yields numerical CTI values that
ANSI/UL 840Standard for Insulation Coordination Includ-
are very likely to differ significantly from this test method.
ing Clearances and Creepage Distances for Electrical
rd
Equipment. January 6, 2005, 3 edition
1.4 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
3. Terminology
responsibility of the user of this standard to establish appro-
priate safety, health, and environmental practices and deter-
3.1 Definitions:
mine the applicability of regulatory limitations prior to use.
3.1.1 track, n—a partially conducting path of localized
1.5 This international standard was developed in accor-
deterioration on the surface of an insulating material.
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
3.1.2 tracking, n—the process that produces tracks as a
Development of International Standards, Guides and Recom-
result of the action of electric discharges on or close to an
mendations issued by the World Trade Organization Technical
insulation surface.
Barriers to Trade (TBT) Committee.
3.1.3 tracking, contamination, n—tracking caused by scin-
tillations that result from the increased surface conduction due
2. Referenced Documents
to contamination.
2
2.1 ASTM Standards:
3.1.4 tracking resistance, n—the quantitative expression of
D1711Terminology Relating to Electrical Insulation
the voltage and the time required to develop a track under the
D6054Practice for Conditioning Electrical Insulating Mate-
specified conditions.
3.1.5 For other terminology, refer to Terminology D1711.
3.2 Definitions of Terms Specific to This Standard:
1
This test method is under the jurisdiction of ASTM Committee D09 on
Electrical and Electronic Insulating Materials and is the direct responsibility of
Subcommittee D09.12 on Electrical Tests.
3
Current edition approved Jan. 1, 2021. Published February 2021. Originally The last approved version of this historical standard is referenced on
approved in 1977. Last previous edition approved in 2012 as D3638–12. DOI: www.astm.org.
4
10.1520/D3638-21E01. Available from International Electrotechnical Commission (IEC), 3, rue de
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Varembé, 1st floor, P.O. Box 131, CH-1211, Geneva 20, Switzerland, https://
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM www.iec.ch.
5
Standards volume information, refer to the standard’s Document Summary page on Available fromAmerican National Standards Institute (ANSI), 25 W. 43rd St.,
the ASTM website. 4th Floor, New York, NY 10036, http://www.ansi.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------
´1
D3638 − 21

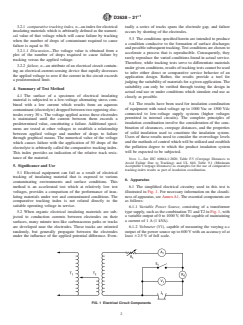

3.2.1 comparative tracking index, n—an index for electrical tually a series of tracks spans the electrode gap, and failure
insulating materials which is arbitrarily defined as the numeri- occurs by shorting of the electrod
...
