ASTM F3519-21

(Guide)

Standard Guide for Establishing a Reporting Structure for Exoskeleton Analysis

Standard Guide for Establishing a Reporting Structure for Exoskeleton Analysis

SIGNIFICANCE AND USE
3.1 This guide describes a template of written considerations that should be provided by the manufacturer to the purchaser related to the documenting of exoskeleton analysis. Adherence to this guide allows analysis results of varied exoskeleton manufacturers to be compared by a purchaser with respect to their end user needs.
3.2 Not every element of this guide may be applicable to all exoskeleton components or configurations. It is the manufacturer’s responsibility to determine which portions of this guide are applicable to their exoskeletons for analysis reporting.
SCOPE
1.1 This guide provides a structure for exoskeleton manufacturers to document their analysis. Furthermore, this guide should be used in conjunction with Practice F3474, Guide F3518, Standard Guide for The Application of Ergonomics to Prevent Injury During Exoskeleton Use2 and other future documents.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

Status
Published
Publication Date
14-Jun-2021
ICS
11.180.10 - Aids and adaptation for moving
25.040.30 - Industrial robots. Manipulators
Technical Committee
F48 - Exoskeletons and Exosuits
Drafting Committee
F48.02 - Human Factors and Ergonomics
Current Stage
Ref Project

Buy Standard

ASTM F3519-21 - Standard Guide for Establishing a Reporting Structure for Exoskeleton AnalysisASTM F3519-21 - Standard Guide for Establishing a Reporting Structure for Exoskeleton Analysis
PreviousNext
Guide
ASTM F3519-21 - Standard Guide for Establishing a Reporting Structure for Exoskeleton Analysis
English language
3 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

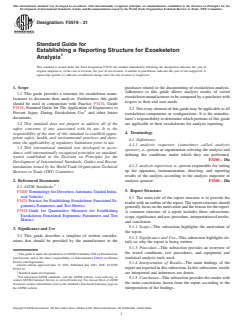

Designation: F3519 − 21
Standard Guide for
Establishing a Reporting Structure for Exoskeleton
1
Analysis
This standard is issued under the fixed designation F3519; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope purchaser related to the documenting of exoskeleton analysis.
Adherence to this guide allows analysis results of varied
1.1 This guide provides a structure for exoskeleton manu-
exoskeleton manufacturers to be compared by a purchaser with
facturers to document their analysis. Furthermore, this guide
respect to their end user needs.
should be used in conjunction with Practice F3474, Guide
F3518, Standard Guide for The Application of Ergonomics to
3.2 Not every element of this guide may be applicable to all
2
Prevent Injury During Exoskeleton Use and other future
exoskeleton components or configurations. It is the manufac-
documents.
turer’s responsibility to determine which portions of this guide
are applicable to their exoskeletons for analysis reporting.
1.2 This standard does not purport to address all of the
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro- 4. Terminology
priate safety, health, and environmental practices and deter-
4.1 Definitions:
mine the applicability of regulatory limitations prior to use.
4.1.1 analysis requestor (sometimes called analysis
1.3 This international standard was developed in accor-
sponsor), n—person or organization selecting the analysis and
dance with internationally recognized principles on standard-
defining the conditions under which they are performed.
ization established in the Decision on Principles for the
F3200 – 18a
Development of International Standards, Guides and Recom-
4.1.2 analysis supervisor, n—person responsible for setting
mendations issued by the World Trade Organization Technical
up the apparatus, instrumentation, directing, and reporting
Barriers to Trade (TBT) Committee.
results of the analysis according to the analysis requestor or
2. Referenced Documents
analysis sponsor. F3200 – 18a
3
2.1 ASTM Standards:
5. Report Structure
F3200 Terminology for DriverlessAutomatic Guided Indus-
trial Vehicles
5.1 The main role of the report structure is to provide the
F3474 Practice for Establishing Exoskeleton Functional Er-
reader with an outline of the report.The report structure should
gonomic Parameters and Test Metrics
generally focus on the motivation and the reason for the report.
F3518 Guide for Quantitative Measures for Establishing
A common structure of a report includes these subsections:
Exoskeleton Functional Ergonomic Parameters and Test
scope,significanceanduse,procedure,interpretationofresults,
Metrics
and conclusion.
5.1.1 Scope—This subsection highlights the motivation of
3. Significance and Use
the report.
3.1 This guide describes a template of written consider-
5.1.2 Significance and Use—This subsection highlights de-
ations that should be provided by the manufacturer to the
tails on why the report is being written.
5.1.3 Procedure—This subsection provides an overview of
the tested conditions, test procedures, and equipment and
1
This guide is under the jurisdiction ofASTM Committee F48 on Exoskeletons
statistical analysis tools used.
and Exosuits and is the direct responsibility of Subcommittee F48.02 on Human
Factors and Ergonomics.
5.1.4 Interpretation of Results—The main findings of the
Current edition approved June 15, 2021. Published July 2021. DOI: 10.1520/
report are reported in this subsection. In this subsection, results
F3519-21.
2
Standard under development. are interpreted and inferences are drawn.
3
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.1.5 Conclusion—This subsection provides the reader with
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
the main conclusions drawn from the report according to the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. interpretation of the findings.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

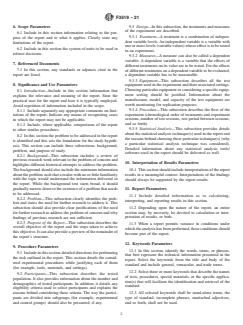

F3519 − 21
6. Scope Parameters 9.3 Design—In this subsection, the treatments and measures
of the experiment are described.
6.1 Include in this section information relating to the pur-
9.3.1 Treatment—A treatment is a combinat
...
