EN 2252:2024

Aerospace series - Steel 15CrMoV6 (1.7334) - Forgings - De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa

This document specifies the requirements relating to:
Steel 15CrMoV6 (1.7334)
Forgings
De ≤ 100 mm
1 080 MPa ≤ Rm ≤ 1 250 MPa
for aerospace applications.
W.nr: 1.7334.
ASD-STAN designation: FE-PL1505.

Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) - Schmiedestücke - De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa

Dieses Dokument legt die Anforderungen an:
Stahl 15CrMoV6 (1.7334)
Schmiedestücke
De ≤ 100 mm
1 080 MPa ≤ Rm ≤ 1 250 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
W.-Nr: 1.7334.
ASD STAN Bezeichnung: FE-PL1505.

Série aérospatiale - Acier 15CrMoV6 (1.7334) - Pièces forgées ou matricées - De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa

Le présent document spécifie les exigences relatives à :
Acier 15CrMoV6 (1.7334)
Pièces forgées ou matricées
De ≤ 100 mm
1 080 MPa ≤ Rm ≤ 1 250 MPa
pour les applications aérospatiales.
W.nr : 1.7334.
Désignation ASD-STAN : FE-PL1505.

Aeronavtika - Jeklo 15CrMoV6 (1.7334) - Izkovki - Palice - De ≤ 100 mm - 1080 MPa ≤ Rm ≤ 1250 MPa

Ta dokument določa zahteve, ki se navezujejo na:
jeklo 15CrMoV6 (1.7334),
izkovke,
palice,
De ≤ 100 mm,
1080 MPa ≤ Rm ≤ 1250 MPa
za uporabo v aeronavtiki.
Št. W.: 1.7334.
Oznaka ASD-STAN: FE-PL1505.

General Information

• Status: Published
• Publication Date: 17-Dec-2024
• ICS: 49.025.10 - Steels
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 4/S 3 - Steels & Heat Resisting Alloys
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 18-Dec-2024
• Completion Date: 18-Dec-2024
• Ref Project: SIST EN 2252:2025 - Aerospace series - Steel 15CrMoV6 (1.7334) - Forgings - Bars - De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa

Relations

• Replaces: EN 2252:2012 - Aerospace series - Steel FE-PL1505 (15CrMoV6) - 1 080 MPa ≤ Rm ≤ 1 250 MPa - Forgings - De ≤ 100 mm
• Effective Date: 20-Jun-2018

Overview

EN 2252:2024 (CEN / ASD‑STAN FE‑PL1505) defines material and inspection requirements for Steel 15CrMoV6 (W.nr. 1.7334) used for aerospace forgings with a maximum section diameter De ≤ 100 mm. This aerospace series standard specifies chemical composition, heat treatment routes, mechanical properties and non‑destructive testing levels for forgings intended to achieve tensile strength Rm between 1 080 MPa and 1 250 MPa.

Key topics and technical requirements

• Material designation: Steel 15CrMoV6 (1.7334); ASD‑STAN designation FE‑PL1505.
• Form and size: Forgings, De ≤ 100 mm; forged from forging stock per EN 4700‑005.
• Melting method: Air melted.
• Heat treatment / delivery conditions:
  • Annealed (code A) or hardened and tempered (code U).
  • Harden & temper route: quench from 955 °C – 995 °C (WQ or OQ) and temper at 595 °C – 645 °C.
  • Note: a stress‑relief tempering between quenching and tempering at ≥ 350 °C may be used to reduce quench‑crack risk.
• Mechanical properties:
  • Tensile strength Rm: 1 080 – 1 250 MPa.
  • Proof stress Rp0.2: ≥ 930 MPa (for hardened & tempered).
  • Elongation A: ≥ 10%.
  • Hardness: annealed HB ≤ 197; hardened & tempered HB 321 – 380.
  • Impact energy KV: ≥ 30 J (specified test conditions).
• Microstructure and quality:
  • Grain size G ≥ 5 (EN 4700‑006).
  • Inclusion content: Category 1 per EN 2951.
  • Ultrasonic testing (internal imperfections): Class 3.
• Testing & inspection: Test specimens, heat‑treatment control and dimensional/marking inspections per EN 4700‑006.

Applications and users

EN 2252:2024 is targeted at stakeholders who specify, manufacture, test or procure high‑strength aerospace forgings:

• Aerospace material engineers and designers selecting high‑strength steel forgings.
• Forging manufacturers and heat‑treatment shops producing 15CrMoV6 forgings.
• Quality & NDT laboratories performing inspection and acceptance testing.
• Purchasing and certification teams establishing procurement specs for structural or highly stressed aerospace components.

Practical uses include any aerospace application needing a low‑alloy, high‑strength forged steel conforming to controlled microstructure, mechanical performance and defect limits (typical use noted as “low alloy general purpose steel” in the standard).

Related standards

• EN 4700‑005 - Forging stock technical specification
• EN 4700‑006 - Pre‑production and production forgings (testing, sampling)
• EN 2951 - Micrographic determination of non‑metallic inclusions
• EN 4258, EN 4500‑005 - Organization and drafting rules for aerospace metallic material standards

Keywords: EN 2252:2024, Steel 15CrMoV6, 1.7334, aerospace forgings, tensile strength Rm, heat treatment, hardened and tempered, EN 4700, EN 2951.

Standards Content (Sample)

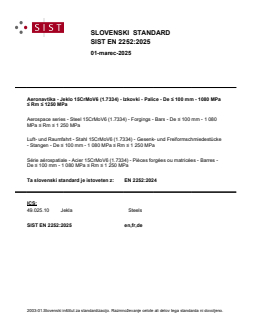

SLOVENSKI STANDARD
01-marec-2025
Aeronavtika - Jeklo 15CrMoV6 (1.7334) - Izkovki - Palice - De ≤ 100 mm - 1080 MPa
≤ Rm ≤ 1250 MPa
Aerospace series - Steel 15CrMoV6 (1.7334) - Forgings - Bars - De ≤ 100 mm - 1 080
MPa ≤ Rm ≤ 1 250 MPa
Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) - Gesenk- und Freiformschmiedestücke
- Stangen - De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa
Série aérospatiale - Acier 15CrMoV6 (1.7334) - Pièces forgées ou matricées - Barres -
De ≤ 100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa
Ta slovenski standard je istoveten z: EN 2252:2024
ICS:
49.025.10 Jekla Steels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

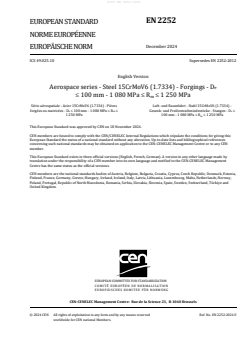

EN 2252
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 2252:2012
English Version
Aerospace series - Steel 15CrMoV6 (1.7334) - Forgings - D
e
≤ 100 mm - 1 080 MPa ≤ R ≤ 1 250 MPa
m
Série aérospatiale - Acier 15CrMoV6 (1.7334) - Pièces Luft- und Raumfahrt - Stahl 15CrMoV6 (1.7334) -
≤ 100 mm - 1 080 MPa ≤ R ≤ ≤
forgées ou matricées - De m Gesenk- und Freiformschmiedestücke - Stangen - De
1 250 MPa
100 mm - 1 080 MPa ≤ Rm ≤ 1 250 MPa
This European Standard was approved by CEN on 18 November 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2252:2024 E
worldwide for CEN national Members.

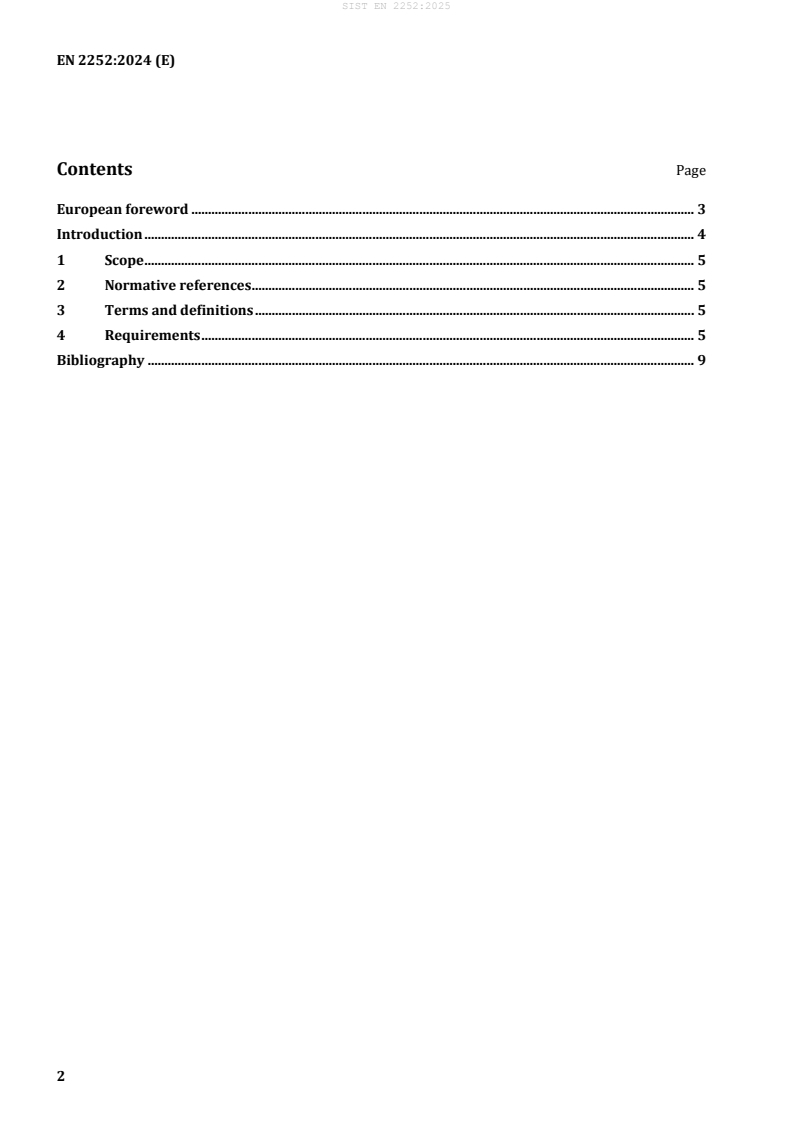

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European foreword
This document (EN 2252:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by June 2025, and conflicting national standards shall be withdrawn at
the latest by June 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 2252:2012.
The main changes with respect to the previous edition are as follows:
— EN 2252 (P1), 02/2012:
o correction of the title: removal of semi-product “bars”;
o correction of the format of Table 1 to comply with the requirements of the EN 4500 series;
o Table 1, line 6.1: addition of note a regarding the heat treatment cycle;
o addition o
...
