EN 2240-076:2011
(Main)Aerospace series - Lamps, incandescent - Part 076: Lamp, code 5678 - Product standard
Aerospace series - Lamps, incandescent - Part 076: Lamp, code 5678 - Product standard
This European Standard specifies the required characteristics for lamp, code 5678, for aerospace applications.
It shall be used together with EN 2756.
Luft- und Raumfahrt - Glühlampen - Teil 076: Lampe, Kode 5678 - Produktnorm
Diese Europäische Norm legt die Anforderungen an Glühlampen mit dem Kode 5678 zur Anwendung in der Luftfahrt fest.
Sie sollte in Verbindung mit EN 2756 angewandt werden.
Série aérospatiale - Lampes à incandescence - Partie 076: Lampe, code 5678 - Norme de produit
Aeronavtika - Žarnice - 076. del: Žarnica, kod 5678 - Standard za izdelek
Ta evropski standard opredeljuje zahtevane lastnosti za žarnico, kod 5678, za uporabo v aeronavtiki. Uporabljal naj bi se skupaj z EN 2756.
General Information
- Status
- Published
- Publication Date
- 26-Jul-2011
- Withdrawal Date
- 30-Jan-2012
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2240-076:2011 is a CEN product standard in the Aerospace series that defines the required characteristics for lamp, code 5678, an incandescent lamp intended for aerospace applications. The standard specifies dimensions, electrical and photometric characteristics, life performance and marking requirements. It is intended to be used together with EN 2756 (test methods) and other EN 2240 series documents to ensure consistent design, testing and interchangeability of aerospace lamps.
Key topics and requirements
- Designation and marking
- Example designation: EN2240-5678 (with optional internal code I9005).
- Lamps and packaging must be marked with the international code number as specified in EN 2240-002.
- Electrical and photometric data
- Nominal voltage: 6 V
- Nominal current: 1.67 A
- Colour temperature: 2 900 K
- Other photometric tolerances and luminous flux requirements are given in the product tables.
- Mechanical and dimensional data
- Light centre length (LCL): 16.2 ± 0.4 mm
- Cap type:BA9s/13 (see EN 2241 for cap dimensions)
- Filament form specified as C-8Z (see EN 2240-002 for filament definitions)
- Mass information is provided (mass for 1 000 units: 2.5 kg).
- Service life
- Static with DC: 2 000 h
- Dynamic with DC: 1 500 h
- Static with AC: 3 500 h
- Technical specification and tests
- The standard refers users to EN 2240-001 (technical specification) and EN 2756 for applicable test methods.
Applications and who uses this standard
- Aircraft manufacturers and system designers specifying lighting components for cockpits, panels, indicators and legacy systems.
- Component suppliers and OEMs producing or certifying incandescent lamps for aerospace use.
- Procurement and QA teams ensuring purchased lamps meet defined interchangeability, marking and life requirements.
- Test laboratories and certification bodies applying EN 2756 test methods to verify compliance with EN 2240-076:2011.
- Maintenance organizations selecting approved replacement lamps that meet original equipment specifications.
Related standards
- EN 2240-001 - Technical specification (lamp series)
- EN 2240-002 - Main characteristics (codes, designation rules)
- EN 2241 - Lamp caps - Dimensions (for BA9s/13)
- EN 2756 - Lamps, incandescent - Test methods
This standard supports reliable selection, testing and replacement of the aerospace incandescent lamp (code 5678) and ensures compatibility across European aerospace supply chains.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 2240-076:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Lamps, incandescent - Part 076: Lamp, code 5678 - Product standard". This standard covers: This European Standard specifies the required characteristics for lamp, code 5678, for aerospace applications. It shall be used together with EN 2756.
This European Standard specifies the required characteristics for lamp, code 5678, for aerospace applications. It shall be used together with EN 2756.
EN 2240-076:2011 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2240-076:2011 has the following relationships with other standards: It is inter standard links to EN 2241:2010, EN 2756:2010, EN 2240-002:2009, EN 2240-001:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2240-076:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

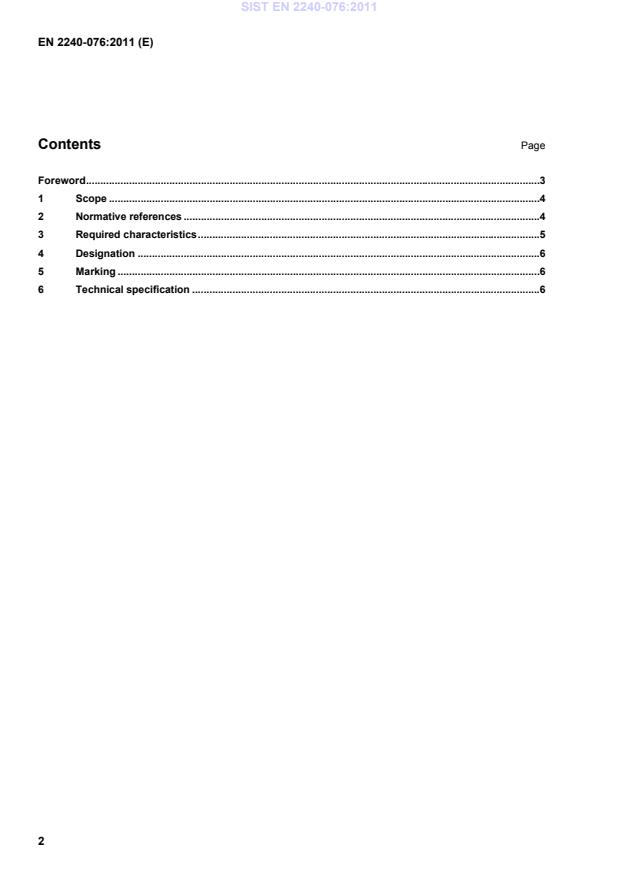

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Žarnice - 076. del: Žarnica, kod 5678 - Standard za izdelekLuft- und Raumfahrt - Glühlampen - Teil 076: Lampe, Kode 5678 - ProduktnormSérie aérospatiale - Lampes à incandescence - Partie 076 : Lampe, code 5678 - Norme de produitAerospace series - Lamps, incandescent - Part 076: Lamp, code 5678 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2240-076:2011SIST EN 2240-076:2011en,de01-oktober-2011SIST EN 2240-076:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2240-076
July 2011 ICS 49.060 English Version
Aerospace series - Lamps, incandescent -Part 076: Lamp, code 5678 - Product standard
Série aérospatiale - Lampes à incandescence - Partie 076: Lampe, code 5678 - Norme de produit
Luft- und Raumfahrt - Glühlampen - Teil 076: Lampe, Kode 5678 - Produktnorm This European Standard was approved by CEN on 28 April 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2240-076:2011: ESIST EN 2240-076:2011
...
