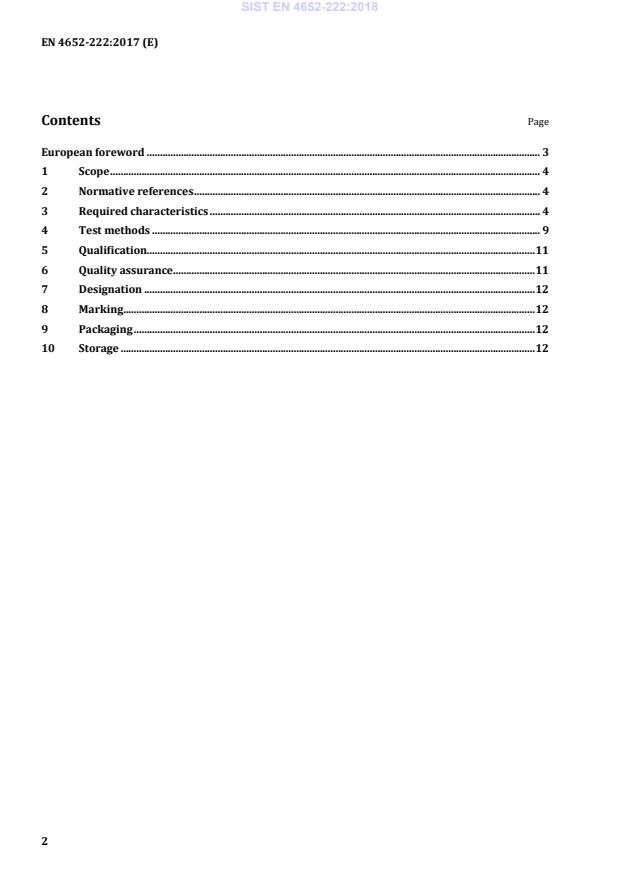

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Required characteristics . 4
4 Test methods . 9
5 Qualification. 11
6 Quality assurance . 11
7 Designation . 12
8 Marking . 12
9 Packaging . 12
10 Storage . 12

European foreword
This document (EN 4652-222:2017) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2018, and conflicting national standards shall be
withdrawn at the latest by May 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
1 Scope
This European Standard specifies the characteristics of screwed on coupling (TNC interface) coaxial
square flange receptacle – 50 ohms. The cable to connector assembly is crimp technology.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2424, Aerospace series — Marking of aerospace products
∗ 1)
EN 2591 , Aerospace series — Elements of electrical and optical connection — Test methods
EN 2812, Aerospace series — Stripping of electric cables

EN 4652-001, Aerospace series — Connectors coaxial radio frequency — Part 001: Technical specification
EN 4652-220, Aerospace series — Connectors, coaxial, radio frequency — Part 220: Type 2 TNC interface —
Crimp version — Straight plug — Product standard
EN 9133, Aerospace series — Quality Management Systems — Qualification Procedure for Aerospace
Standard Products
2)
TR 6058, Aerospace series — Cable code identification list
3 Required characteristics
 The connection technology shall comply to all required tests described in Clause 4.
 All interface shall comply to EN 4652-001.
 Water ingress resistance is required in mated conditions for all cable groups.
 Water ingress resistance is also required in unmated conditions for cable group A.
3.1 Configuration, dimension and mass
Mass without heatshrink tubing.
See Figure 1 and Table 1.
∗
All parts quoted in this standard.
1) Published as ASD-STAN Prestandard at the date of publication of this standard. (http://www.asd-stan.org/).
2) Published as ASD-STAN Technical Report at the date of publication of this standard. (http://www.asd-stan.org/).
Dimensions in millimetres
Centre contact = Socket
Key
1 4 holes 3-56 UNF-2B
2 REF. Plane
3 Marking axis
4 Prospective cap
5 12/2 Flats
Marking: see Clause 8.
Figure 1 — TNC square flange receptacle dimensions
Table 1 — TNC square flange receptacle dimensions and mass
Cable code
Cable A B ØC ØD ØE ØF Mass
(see TR 6058)
group  g
max. max. max.
WM
C 49,9 30,5 11,45 4,2 1,15 2,92 18,9
WZ
D 49,9 30,5 11,45 3,7 1,05 2,55 18,9
WD E 51 30,8 13,95 8,4 2,5 6,3 30,6
WN F 51 30,8 13,95 8,4 2,5 6,3 30,6

3.2 Materials and finish
Center contact (front active part) . : Copper alloy gold plated over nickel undercoat
Ferrule (if e
...
