EN 4652-221:2017

Aerospace series - Connectors, coaxial, radio frequency - Part 221: Type 2, TNC interface - Crimp version - Right angle plug - Product standard

This European Standard specifies the characteristics of screwed on coupling (TNC interface) coaxial right angle plugs - 50 ohms. The cable to connector assembly is a crimp technology.

Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 211: Typ 2, TNC-Schnittstelle - Crimpverbindung - freier Steckverbinder - 90° abgewinkelt - Produktnorm

Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 221 : Type 2, interface TNC - Version à sertir - Fiche coudée - Norme de produit

Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 221. del: Tip 2, vmesnik TNC - Izvedba s stisljivimi priključki - Pravokotni vtič - Standard za proizvod

Ta evropski standard določa lastnosti koaksialnih pravokotnih vtičev z vijačnim spojem (vmesnik TNC) – 50 ohmov. Sklop kabla in konektorja je tehnologija izvedbe s stisljivimi priključki.

General Information

• Status: Published
• Publication Date: 14-Nov-2017
• Withdrawal Date: 30-May-2018
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 2 - Electrical
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 15-Nov-2017
• Completion Date: 15-Nov-2017
• Ref Project: SIST EN 4652-221:2018 - Aerospace series - Connectors, coaxial, radio frequency - Part 221: Type 2, TNC interface - Crimp version - Right angle plug - Product standard

Relations

• Corrected By: EN 4652-221:2017/AC:2018 - Aerospace series - Connectors, coaxial, radio frequency - Part 221: Type 2, TNC interface - Crimp version - Right angle plug - Product standard
• Effective Date: 06-Dec-2017

Overview

EN 4652-221:2017 is a CEN aerospace product standard that defines the characteristics and test requirements for 50 Ω TNC interface coaxial right-angle plugs using crimp assembly technology. It applies to screwed-on coupling (TNC) coaxial RF connectors intended for aerospace use and specifies mechanical, electrical, material and environmental requirements for cable-to-connector assemblies.

Keywords: EN 4652-221, TNC interface, crimp right angle plug, aerospace connectors, 50 ohm, coaxial RF connectors

Key topics and requirements

• Scope & configuration

  • Right-angle plug, TNC (screwed coupling), crimp assembly; 50 Ω characteristic impedance.
  • Interface styles conform to EN 4652-001 (manufacturer declares style).

• Electrical

  • Characteristic impedance: 50 Ω ±5% (measured at 200 MHz).
  • Maximum operating frequency: 6 GHz.
  • VSWR limits: ≤1.15 at 150 MHz, ≤1.20 at 1 GHz, ≤1.35 at 6 GHz.
  • Insertion loss: 0.1 · f dB max (f in GHz).
  • Contact resistance (initial central contact): ≤1.5 mΩ.
  • Insulation resistance: ≥5 000 MΩ.
  • Voltage rating: 1 000 V rms.

• Mechanical & materials

  • Center contact: copper alloy, gold plated over nickel; insulators PTFE; seals silicone rubber or fluorinated material; heat shrink: polyolefin.
  • Operating temperature: –65 °C to 135 °C (polyolefin limited).
  • Tightening torque (coupling nut): 2.6 ± 0.3 Nm.
  • Service life: 500 mating cycles.
  • Centre contact retention: ≥27 N; cable retention examples: WM = ≥140 N.

• Environmental & tests

  • Mandatory tests include visual/dimensional checks, RF performance (VSWR, insertion loss, leakage), corona, salt mist, vibration, shock, temperature cycling, sand/dust, water ingress (mated for all cable groups; unmated required for cable group A), and crimp tensile tests.
  • Quality assurance per EN 9133.

Applications and users

• Intended for avionics, satellite, airborne radio and RF systems where robust, high-reliability coaxial RF connections are required.
• Typical users:
  • Aerospace component designers and engineers specifying RF interconnects.
  • Procurement and supply chain teams selecting qualified connector parts.
  • Cable assembly manufacturers using crimp tooling and cable codes (see TR 6058).
  • Test labs verifying performance to aerospace environmental and RF test regimes.
  • Quality and compliance teams ensuring parts meet EN 4652 series requirements.

Related standards

• EN 4652-001 - Technical specification for coaxial RF connectors (interfaces and designation).
• EN 4652-222 - Matched receptacle product standard (square flange).
• EN 2591 - Aerospace test methods (electrical/optical connection tests).
• EN 2812 - Cable stripping procedures.
• EN 9133 - Quality management / qualification for aerospace standard products.
• TR 6058 - Cable code identification list.

Practical takeaway: EN 4652-221 standardizes a 50 Ω TNC crimp right-angle plug for demanding aerospace environments, providing explicit electrical, mechanical, material and environmental test criteria to ensure reliable RF performance in flight and space applications.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 211: Typ 2, TNC-Schnittstelle - Crimpverbindung - freier Steckverbinder - 90° abgewinkelt - ProduktnormSérie aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 221 : Type 2, interface TNC - version à sertir - fiche coudée - Norme de produitAerospace series - Connectors, coaxial, radio frequency - Part 221: Type 2, TNC interface - Crimp version - Right angle plug - Product standard49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-221:2017SIST EN 4652-221:2018en,fr,de01-februar-2018SIST EN 4652-221:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4652-221
November
t r s y ICS
v {ä r x r English Version
Aerospace series æ Connectorsá coaxialá radio frequency æ Part
t t sã Type
tá TNC interface æ Crimp version æ Right angle plug æ Product standard Série aérospatiale æ Connecteurs coaxiaux pour radio fréquences æ Partie
t t s ã Type
tá interface TNC æ Version à sertir æ Fiche coudée æ Norme de produit
Luftæ und Raumfahrt æ Koaxiale HochfrequenzæSteckverbinder æ Teil
t s sã Typ
tá TNCæSchnittstelle æ Crimpverbindung æ freier Steckverbinder æ
{ r ¹ abgewinkelt æ Produktnorm This European Standard was approved by CEN on
s v August
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x w tæ t t sã t r s y ESIST EN 4652-221:2018

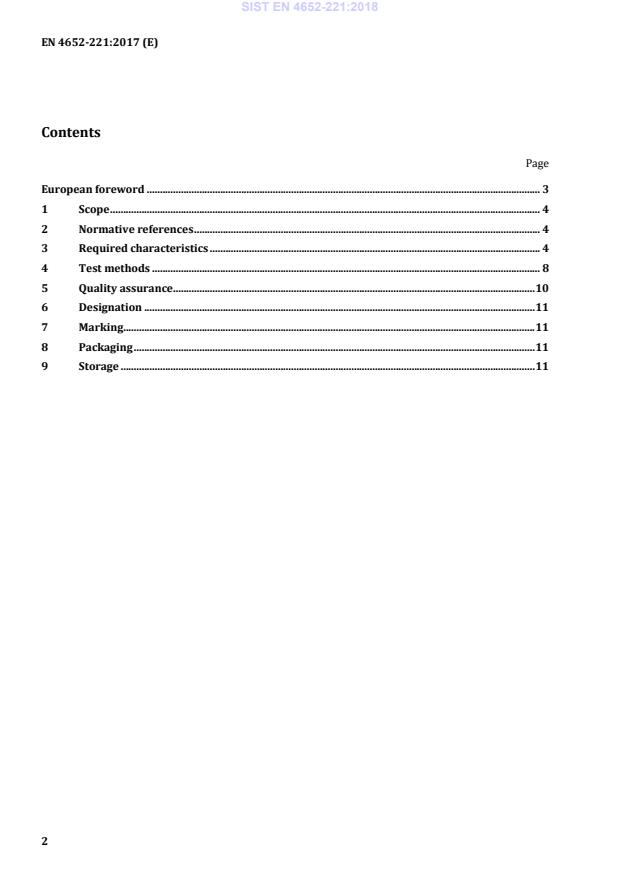

Page European foreword . 3 1 Scope . 4 2 Normative references . 4 3 Required characteristics . 4 4 Test methods . 8 5 Quality assurance . 10 6 Designation . 11 7 Marking . 11 8 Packaging . 11 9 Storage . 11
EN 2812, Aerospace series — Stripping of electric cables EN 4652-001, Aerospace series — Connectors, coaxial, radio frequency — Part 001: Technical specification
EN 4652-222, Aerospace series — Connectors, coaxial, radio frequency — Part 222: Type 2, TNC interface — Crimp version — Square flange receptacle — Product standard 1) EN 9133, Aerospace series — Quality Management Systems — Qualification Procedure for Aerospace Standard Products TR 6058, Aerospace series — Cable code identification list 2) 3 Required characteristics  The connection technology shall comply to all required tests described in Clause 4.  All interface shall comply to EN 4652-001.  Holes for lockwire shall exist in case of no self-locking device on the product.  Water ingress resistance is required in mated conditions for all cable groups.  Water ingress resistance is also required in unmated conditions for cable group A.
∗ All parts quoted in this European Standard. 1) Published as ASD-STAN Prestandard at the date of publication of this European Standard. (www.asd-stan.org). 2) Published as ASD-STAN Technical Report at the date of publication of this European Standard. (www.asd-stan.org). SIST EN 4652-221:2018

Key 1 14/flats 2 Marking axis 3 Protective cap 4 3 holes Ø 0,95 Figure 1 — TNC right angle plug Marking: see Clause 7. Table 1 — TNC right angle plug dimensions and mass Cable code (see TR 6058) Cable group A
max. B
max. ØC
max. ØD ØE ØF Interface style (according to EN 4652-001) Mass
g WM C 36,8 46,3 11,45 4,2 1,15 3 B 30,1
3.2 Materials and finish Center contact (front active part) . : Copper alloy gold plated over nickel undercoat Ferrule (if existing) .
...
