Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 22: Wood Grinders

This European Standard applies to wood grinders intended for the production of pulp used in paper making including sharpening devices and shall be used together with EN 1034-1:2000+A1:2009. It deals with all significant hazards, hazardous situations and hazard events relevant to wood grinders when used as intended and under the conditions foreseen by the manufacturer (see clause 4). This standard does not apply to loading facilities. Hazards caused by overpressure are not covered by this standard.
Note: For hazards caused by overpressure, see the directive for pressure vessels.
This European Standard is not applicable to wood grinders manufactured before the date of publication of this European Standard by CEN.

Sicherheit von Maschinen - Sicherheitstechnische Anforderungen an Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 22: Holzschleifer

Diese Europäische Norm gilt für Holzschleifer, die zur Erzeugung von Holzstoff für die Papierherstellung bestimmt sind, einschließlich der Schärfeinrichtung und ist gemeinsam mit EN 1034 1:2000+A1:2010 anzuwenden. Sie behandelt alle signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungs-ereignisse, die auf Holzschleifer zutreffen, wenn sie bestimmungsgemäß und entsprechend den vorhersehbaren Bedingungen des Herstellers verwendet werden (siehe Abschnitt 4). Ausgenommen vom Anwendungsbereich ist die Beschickungseinrichtung. Nicht behandelt werden Gefährdungen durch Überdruck.
ANMERKUNG   Für Gefährdungen durch Überdruck siehe die Richtlinie über Druckgeräte.
Diese Europäische Norm gilt nicht für Holzschleifer, die hergestellt wurden, bevor CEN diese Europäische Norm veröffentlichte.

Sécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 22: Défibreurs

La présente norme européenne s’applique aux défibreurs destinés à obtenir de la pâte de bois dans la
fabrication du papier, y compris le dispositif d'affûtage, et doit être utilisée conjointement avec
l'!EN 1034-1:2000+A1:2009". Elle traite tous les phénomènes dangereux significatifs, les situations
dangereuses et les évènements dangereux qui s'appliquent aux défibreurs lorsqu'ils sont utilisés dans des conditions
normales et conformément aux conditions prévisibles du fabricant (voir Article 4). La présente norme ne s'applique
pas au dispositif d'alimentation et ne traite pas non plus des phénomènes dangereux engendrés par la surpression.
NOTE Pour les phénomènes dangereux engendrés par la surpression, voir la directive relative aux appareils à pression.
La présente norme européenne ne s'applique pas aux défibreurs qui ont été fabriqués avant sa publication
par le CEN.

Varnost strojev - Varnostne zahteve za načrtovanje in konstrukcijo strojev in opreme za izdelavo papirja - 22. del: Brusilniki za les

Ta evropski standard velja za brusilnike za les, namenjene proizvodnji papirne kaše, ki se uporablja pri izdelavi papirja, vključno z napravami za ostrenje, in se uporablja skupaj z EN 1034-1:2000+A1:2010. Obravnava vse velike nevarnosti, nevarne situacije in primere, pomembne za brusilnike za les, kadar se uporabljajo v skladu z namembnostjo in pod pogoji, kot jih je predvidel proizvajalec (glej Klavzulo 4). Ta evropski standard ne velja za naprave za polnjenje. Standard ne zajema nevarnosti, ki jih povzroča nadtlak.

General Information

Status
Published
Publication Date
01-Dec-2009
Current Stage
9093 - Decision to confirm - Review Enquiry
Due Date
02-Dec-2017
Completion Date
02-Mar-2018

RELATIONS

Buy Standard

Standard
EN 1034-22:2005+A1:2010 - Standard je bil natisnjen za čitalnico.
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sicherheit von Maschinen - Sicherheitstechnische Anforderungen an Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 22: HolzschleiferSécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 22: DéfibreursSafety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 22: Wood Grinders85.100Oprema za papirno industrijoEquipment for the paper industry21.020Characteristics and design of machines, apparatus, equipment13.110Varnost strojevSafety of machineryICS:Ta slovenski standard je istoveten z:EN 1034-22:2005+A1:2009SIST EN 1034-22:2005+A1:2010en,fr01-februar-2010SIST EN 1034-22:2005+A1:2010SLOVENSKI

STANDARD
SIST EN 1034-22:2005+A1:2010
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1034-22:2005+A1
December 2009 ICS 85.100 Supersedes EN 1034-22:2005English Version

Safety of machinery - Safety requirements for the design and construction of paper making and finishing machines - Part 22: Wood Grinders

Sécurité des machines - Prescriptions de sécurité pour la conception et la construction de machines de fabrication et de finition du papier - Partie 22: Défibreurs

Sicherheit von Maschinen - Sicherheitstechnische Anforderungen an Konstruktion und Bau von Maschinen der Papierherstellung und Ausrüstung - Teil 22: Holzschleifer This European Standard was approved by CEN on 21 April 2005 and includes Amendment 1 approved by CEN on 17 November 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,

B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1034-22:2005+A1:2009: ESIST EN 1034-22:2005+A1:2010

EN 1034-22:2005+A1:2009 (E) 2

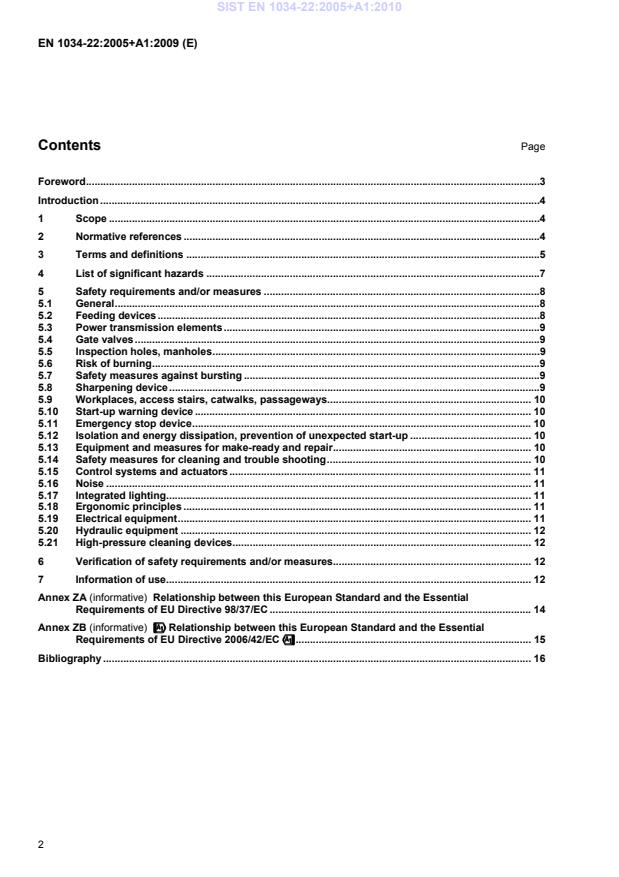

Contents Page Foreword ..............................................................................................................................................................3Introduction .........................................................................................................................................................41Scope ......................................................................................................................................................42Normative references ............................................................................................................................43Terms and definitions ...........................................................................................................................54List of significant hazards ....................................................................................................................75Safety requirements and/or measures ................................................................................................85.1General ....................................................................................................................................................85.2Feeding devices .....................................................................................................................................85.3Power transmission elements ..............................................................................................................95.4Gate valves .............................................................................................................................................95.5Inspection holes, manholes ..................................................................................................................95.6Risk of burning .......................................................................................................................................95.7Safety measures against bursting .......................................................................................................95.8Sharpening device .................................................................................................................................95.9Workplaces, access stairs, catwalks, passageways ....................................................................... 105.10Start-up warning device ..................................................................................................................... 105.11Emergency stop device ...................................................................................................................... 105.12Isolation and energy dissipation, prevention of unexpected start-up .......................................... 105.13Equipment and measures for make-ready and repair ..................................................................... 105.14Safety measures for cleaning and trouble shooting ....................................................................... 105.15Control systems and actuators ......................................................................................................... 115.16Noise .................................................................................................................................................... 115.17Integrated lighting............................................................................................................................... 115.18Ergonomic principles ......................................................................................................................... 115.19Electrical equipment ........................................................................................................................... 115.20Hydraulic equipment .......................................................................................................................... 125.21High-pressure cleaning devices ........................................................................................................ 126Verification of safety requirements and/or measures ..................................................................... 127Information of use............................................................................................................................... 12Annex ZA (informative)

Relationship between this European Standard and the Essential Requirements of EU Directive 98/37/EC ........................................................................................... 14Annex ZB (informative)

!!!!Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC"""" .................................................................................. 15Bibliography ..................................................................................................................................................... 16 SIST EN 1034-22:2005+A1:2010

EN 1034-22:2005+A1:2009 (E) 3

Foreword This document (EN 1034-22:2005+A1:2009) has been prepared by Technical Committee CEN/TC 198 “Printing and paper machinery - Safety”, the secretariat of which is held by DIN. This document shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2010, and conflicting national standards shall be withdrawn at the latest by June 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1, approved by CEN on 17 November 2009. This document supersedes EN 1034-22:2005. The start and finish of text introduced or altered by amendment is indicated in the text by tags !". !This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this document." According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 1034-22:2005+A1:2010

EN 1034-22:2005+A1:2009 (E) 4

Introduction This European Standard is a C type standard as stated in EN ISO 12100-1.

The machinery concerned and the extent to which hazards, hazardous situations and events are covered are indicated in the scope of this European Standard. For machines that have been designed and built according to the provisions of this C standard, the following stipulation applies: When provisions of this type C standard are different from those which are stated in type A or B standards or from provisions made in !EN 1034-1:2000+A1:2010", the provisions of this type C standard take precedence over the provisions of the other standards. 1 Scope This European Standard applies to wood grinders intended for the production of pulp used in paper making including sharpening devices and shall be used together with !EN 1034-1:2000+A1:2010". It deals with all significant hazards, hazardous situations and hazard events relevant to wood grinders when used as intended and under the conditions foreseen by the manufacturer (see clause 4). This standard does not apply to loading facilities. Hazards caused by overpressure are not covered by this standard. Note: For hazards caused by overpressure, see the directive for pressure vessels. This European Standard is not applicable to wood grinders manufactured before the date of publication of this European Standard by CEN. 2 Normative references The following referenced documents are indispensable for the application of this European Standard.

For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any amendments) applies. EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the upper limbs. EN 418:1992. Safety of machinery — Emergency stop equipment — Functional aspects. EN 563:1994, Safety of machinery — Temperatures of touchable surfaces — Ergonomics data to establish temperature limit values for hot surfaces. EN 547-2:1996, Safety of machinery — Human body measurements — Part 2:

Principles for determining the dimensions required for access openings. EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of fixed and movable guards. EN 954-1:1996, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for design. EN 982:1996, Safety requirements for fluid power systems and their components — Hydraulics. SIST EN 1034-22:2005+A1:2010

EN 1034-22:2005+A1:2009 (E) 5

!EN 1034-1:2000+A1:2010", Safety of machinery — Safety requirements for the design and construction of paper making and finishing machines — Part 1: Common requirements. EN 1050:1996, Safety of machinery — Principles for risk assessment. EN 1837:1995, Safety of machinery — Integral lighting of machines. EN 13023:2003, Noise measurement methods for printing, paper converting, paper making machines and auxiliary equipment — Accuracy categories 2 and 3. EN 60204-1:1997, Safety of machinery — Electrical equipment of machines — Part 1: General requirements

(IEC 60204-1:1997). EN 60204-11:2000, Safety of machinery — Electrical equipment of machines — Part 11: High voltage equipment for voltages above 1000 V AC or 1500 V DC up to 36 kV (IEC 60204-11:2000). EN 60529:1992, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989). EN 61000-6-2:2001, Electromagnetic compatibility (EMC) — Part 6-2: Generic standards; immunity for industrial environment (IEC 61000-6-2:1999, modified). EN ISO 11957:1996, Acoustics — Determination of sound insulation performance of cabins — Laboratory and in situ measurements (ISO 11957:1996). EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic terminology, methodology (ISO 12100-1:2003). EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2: Technical principles (ISO 12100-2:2003). EN ISO 14122:2001 (all parts), Safety of machinery — Permanent means of access to machines and industrial plants. 3 Terms and definitions For the purposes of this European Standard, the definitions given in !EN 1034-1:2000+A1:2010", EN ISO 12100-1:2003 and the following definitions apply: 3.1

wood pulp suspension of wood-base fibre in water 3.2 wood grinder

machine for the production of wood pulp with a grinding body (grinding stone) driven by motor or hydraulic power against which debarked logs are pressed. Wood fibre is ground off with the addition of water and discharged as wood pulp 3.3

hydraulic press grinder wood grinder equipped with hydraulic press shoes to press the wood stored in several chambers against the grinding body. A hydraulic press grinder with two chambers is illustrated in Figure 1 3.4

pressure grinder hydraulic press grinder where the grinding chamber is enclosed for grinding under vapour pressure SIST EN 1034-22:2005+A1:2010

EN 1034-22:2005+A1:2009 (E) 6
3.5

continuous grinder wood grinder with continuous feeding of wood, for example by means of chains or by gravity. A continuous grinder is illustrated in Figure 2

Key 1 Grinding stone
Gate valve 2 Sharpening device
5 Finger plate 3 Press shoe
6 Feeding hopper

NOTE: Safety devices are not shown. Figure 1 — Hydraulic pressure grinder (example)

SIST EN 1034-22:2005+A1:2010
EN 1034-22:2005+A1:2009 (E) 7
Key 1 Continuous feeder
Grinding stone 2 Feeding chain
5 Trough 3 Feeding hopper

NOTE Safety devices are not shown. Figure 2 — Continuous wood grinder (example) 4 List of significant hazards Table 1 of this clause contains all the significant hazards, as far as they are dealt with in this European Standard, which are identified by risk assessment in accordance wit

...
