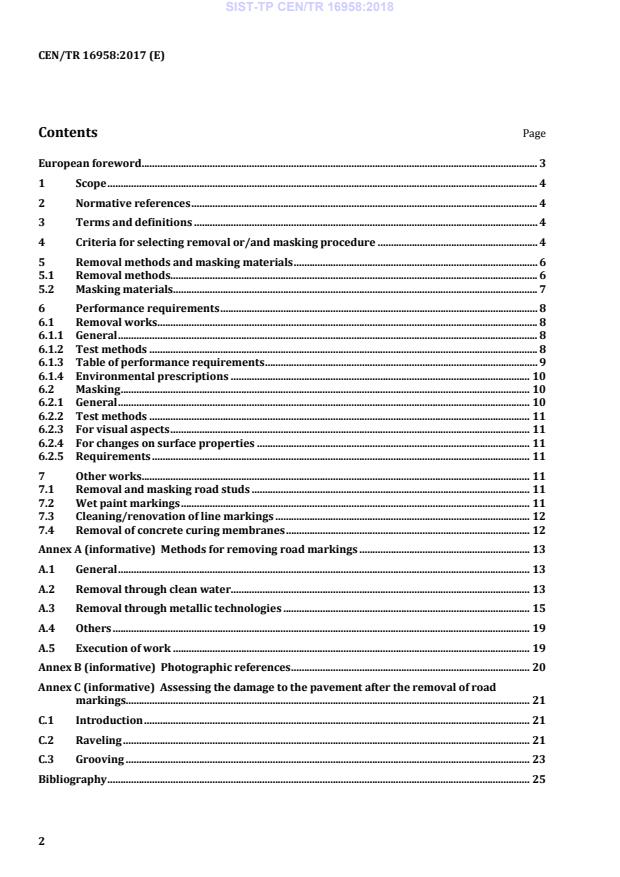

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms and definitions ................................................................................................................................... 4

4 Criteria for selecting removal or/and masking procedure ............................................................. 4

5 Removal methods and masking materials ............................................................................................. 6

5.1 Removal methods ............................................................................................................................................ 6

5.2 Masking materials ........................................................................................................................................... 7

6 Performance requirements ......................................................................................................................... 8

6.1 Removal works................................................................................................................................................. 8

6.1.1 General ................................................................................................................................................................ 8

6.1.2 Test methods .................................................................................................................................................... 8

6.1.3 Table of performance requirements ........................................................................................................ 9

6.1.4 Environmental prescriptions .................................................................................................................. 10

6.2 Masking ............................................................................................................................................................ 10

6.2.1 General ............................................................................................................................................................. 10

6.2.2 Test methods ................................................................................................................................................. 11

6.2.3 For visual aspects ......................................................................................................................................... 11

6.2.4 For changes on surface properties ........................................................................................................ 11

6.2.5 Requirements ................................................................................................................................................ 11

7 Other works.................................................................................................................................................... 11

7.1 Removal and masking road studs .......................................................................................................... 11

7.2 Wet paint markings ..................................................................................................................................... 11

7.3 Cleaning/renovation of line markings ................................................................................................. 12

7.4 Removal of concrete curing membranes ............................................................................................. 12

Annex A (informative) Methods for removing road markings ................................................................. 13

A.1 General ............................................................................................................................................................. 13

A.2 Removal through clean water.................................................................................................................. 13

A.3 Removal through metallic technologies .............................................................................................. 15

A.4 Others ............................................................................................................................................................... 19

A.5 Execution of work ........................................................................................................................................ 19

Annex B (informative) Photographic references ........................................................................................... 20

Annex C (informative) Assessing the damage to the pavement after the removal of road

markings.......................................................................................................................................................... 21

C.1 Introduction ................................................................................................................................................... 21

C.2 Raveling ........................................................................................................................................................... 21

C.3 Grooving .......................................................................................................................................................... 23

Bibliography ................................................................................................................................................................. 25

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)
European foreword

This document (CEN/TR 16958:2017) has been prepared by Technical Committee CEN/TC 226 “Road

equipment”, the secretariat of which is held by AFNOR.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

There are many situations in which road marking removing or masking become necessary. This

document is intended to give some guidance about how to proceed in these cases.

This Technical Report (TR) describes a number of methods for removal and masking and gives guidance

for the appropriate selection. Not all methods are valid or recommended in all cases; some methods are

limited by the kind and nature of existing road marking and the pavement surface. Also the cost of the

operation is depending on the amount of marking to be removed.

In some countries these operations are regulated, in particular in some countries masking the existing

road marking only with black paint is forbidden.

The quality of the removal or masking or any combination of them, may be not enough or result in a

new “phantom line”, which, under particular illumination conditions, may be more visible than the real

road markings (introducing confusion) or may change the surface texture (introducing hazard). Works

shall be done in such a way that the risk for confusion or hazard for drivers be minimized.

Furthermore, recommendations are given for some frequent works such as: removing and masking

road studs, removing wet paints, removing curing membranes in new cement concrete pavements and

cleaning existing road markings.
---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)
1 Scope

This document provides guidance for removal or/and masking existing road markings. It includes

methods of removal and criteria for selecting the removal method, as well as the requirements for the

masking materials and the performance requirements of the resulting surface.

It does not apply to removable temporary road markings, which shall be removed in accordance to the

manufacturer instructions.

Some recommendations are given for removing and masking road studs, removing wet paints,

removing curing membranes in new cement concrete pavements and cleaning existing road markings.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

EN 1436, Road marking materials - Road marking performance for road users
EN 1824, Road marking materials - Road trials
EN 13197, Road marking materials — Wear simulator Turntable

EN ISO 2813, Paints and varnishes - Determination of gloss value at 20°, 60° and 85° (ISO 2813)

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
removal
permanent elimination of road markings, that may be partial or complete
3.2
masking

temporary hiding of existing road marking using a topcoat of a material similar in color, luminance and

specular gloss, to the pavement surface
3.3
phantom line
shadow line
road marking or print resulting from removal or masking process
3.4
specular gloss

ratio of the luminous flux reflected from an object in the specular direction for a specified source and

receptor angle to the luminous flux reflected from a glass with a refractive index of 1,567 in the specular

direction
4 Criteria for selecting removal or/and masking procedure

There are situations in which existing road marking shall be obliterated so as to not function as a

recognizable road marking (phantom line). In order to do it, Removal or Masking techniques may be

used. Removal may be done totally or partially and masking may be done as the unique procedure or

---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)

after a partial removal. In order to take the good decision it is also important to know if the obliterated

road marking shall be renewed or not and if the surface will be repaved or not. Table 1 gives a guidance

to apply these criteria.
Table 1 — Guidance for removal/masking procedures in different situations
Removal/masking criteria
Situations for removal or masking
Removal Masking
After
Road
Totally Partially Only partial
marking
Work needed
removal
renewal is
foreseen?
1 2 3 4
Only in Only in
Permanent change on the
NOT A YES some NO some
road marking lay out
cases cases
Preparation of the
YES B YES YES NO NO
substrate
Hiding road marking on YES with
YES or NOT C YES YES YES
temporary basis masking

When a road marking has to be applied and removed after a short period of time, (for instance less than

6 months) removable temporary materials, in accordance to EN 1824, shall be used.

Removal of such removable temporary materials shall be done in accordance to the manufacturer

instructions.
For each case, some criteria are given in the following:
A.1 When permanent changes in road markings lay out occurs (as for instance. new

exits/entrances from main road, exchange from continuous line to interrupted line,

direction of arrows, etc); unwanted road markings should be totally removed.

A.2 When the existing road marking has poor adhesion or is covering less than 70 % of

the marked area; partial removal can be accepted. The removal processing shall not

adversely damage the pavement surface. There are limits (see Clause 6.1.2) for
changes in surface texture and grooving and for the residual road markings. If

damage to the pavement exceeds the limits, then for a complete obliteration of the

road marking, a complementary masking with a blend of bitumen and fine aggregate
may be used to minimize the difference in level and appearance.
A.3 When permanent changes in road marking occur; unwanted road marking shall
never be obliterated by masking.
A.4 Same comments as in A.2.

B.1 Existing road markings (formed for one or several layers) that have lost adhesion to

the pavement or inter- layers (more than 30 % of the marked area is affected) shall

be totally removed before renewal.
---------------------- Page: 7 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)

B.2 Existing multilayer road markings not fulfilling with the essential requirements

(EN 1436) may be renewed with a new layer whenever the resulting thickness of
the whole multilayer system does not exceed 6 000 microns. If this thickness is

exceeded they shall be partially removed. The resulting surface shall be compatible

(chemically) with the new material; otherwise the existing road marking should be

totally removed or treated with a primer.
Existing structured road markings which have to be renewed with another

structured pattern shall be fully or partially removed. The thickness extent will

depend on the patterns of the existing and the renewed structure.

B.3 Masking is not accepted for preparing surfaces before renewal. Primers may be used

in order to improve the adhesion and compatibility conditions of the existing
substrate with the new material, but it cannot be considered a masking material.
B.4 Partial removal followed of a masking is not a recommended procedure for

preparing substrate for road marking renewal, with the exception mentioned in B.3

in the case of the application of a primer could be considered convenient.

C.1 In case of temporary hiding without subsequent renewal (because of changes in the

lay out) and without repaving; a total removal should be done.
C.2 In case of temporary hiding with subsequent renewal: Total removal is
recommended but partial removal may be used in combination with masking.
Removal is necessary when the existing road marking is a structured road marking
Comments given in A.2 are applicable.
C.3 In case of temporary hiding with subsequent renewal or repaving: When the

thickness of the existing road marking is lower than 3 000 microns and the number

of layers less than 3, just masking may be used.

C.4 In case of temporary hiding with subsequent renewal: When the thickness is higher

than 3 000 microns or there are more than 3 layers; totally removal is
recommended but partial removal and masking may be allowed.
5 Removal methods and masking materials
5.1 Removal methods

The selection of the most efficient method to remove road markings depends on the type of road

marking material and on the type of pavement surface. Table 2 gives a list with the most common types

of removal methods. A more detailed description of each of the removal methods listed in Table 2 may

be found in Annex A.

The selection shall take into account if the removal has to be done totally or partially and in which

extent. The selection will take also into account thickness of the existing road marking and the nature

and texture of the pavement surface.

The complete removal (with not more than a 5 % of old marking particles remaining) means also

removal of material in between the aggregates at the surface. The more important issue is the grade of

aggregate (stone) loss – or “surface grooving” upon marking removed from asphalt surfaces.

Removal road marking formed by a multilayer system, thermoplastics and/or cold plastics will, in

consequence, require a more aggressive removal process than removal of an old, worn, paint. Moreover,

---------------------- Page: 8 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)

removal thermoplastic is recommended to be done at low temperatures (at cooler seasons and at night

better than during hot and sunny days).

Table 2 — List of removal methods all types of pavement and all types of road marking materials

Removal methods
1 PeelJetting
2 Waterblasting
3 High Pressure Water
4 Low Pressure Water
Shot peeling (steel
5
ball)
6 Rotating metallic disc
Grinding or
7
Scrabbling
8 Bush Hammer
9 Sand Blasting
10 Chemical marking
Synthetic media
11
system
12 Heat lance

It is obvious that an old (more worn) material, will give less impact than a new durable marking.

Furthermore, it is clear that a hard concrete surface is less depending on a gentle removal technology

than open porous asphalt.

Methods 6; 7; 8 are not recommended others than for partial removal, unless strong concrete surface or

sealing component.
5.2 Masking materials

Masking of existing road marking only may be used on temporary basis. Masking may be used as the

unique method but also after a partial removal.

For masking the unwanted road markings, coloured paints, thermoplastics, cold plastics and preformed

road markings may be used. These materials may be removable or non-removable.

Application instructions may include drop-on materials or the addition of some dye in order to adjust

the contrast (lower as possible) with the existing pavement and to avoid specular gloss. Suppliers are

required to provide comprehensive application instructions.
---------------------- Page: 9 ----------------------
SIST-TP CEN/TR 16958:2018
CEN/TR 16958:2017 (E)

Materials shall be tested on Road Trials (in accordance to EN 1824) or on Wear Simulator (in

accordance to EN 13197). The application shall be done onto a previous existing white road markings.

The requirements to be fulfilled by the masking products are:
— Luminance Factor (EN 1436): ≤ 0,06;
— specular gloss (EN ISO 2813) a 85°: ≤ 0,50;
— skid resistance (EN 1436) SRT units: ≥ 45 SRT units;
— durability (EN 1824 or EN 13197): ≥ P2.
6 Performance requirements
6.1 Removal works
6.1.1 General

The main target of the work is that the quality of the removal shall minimize the risk for confusion and

hazard for the drivers considering visual aspects and changes on surface properties.

Visual aspects: After removal the resulting phantom lines shall not be visible at night or day, so that

there will be some limits for:
— retroreflection and luminance;

— luminance contrast with the adjacent pavement surface (minimized “Phantom lines”);

— remaining road marking.

NOTE 1 Normally the luminance deviation will be automatically evened out; by the normal dirt pick up and

wearing from traffic. This will happen in a fairly short period of time (approximately 2 months depending on the

ADT). However – if the initial values from the luminance deviation (contrast) are unacceptable; the contrast can

be adjusted by a sprayable, coloured, bitumen.

NOTE 2 The use of aggressive (Metallic) removal technologies, may require to “seal” the surface with some

Sealing or masking material.
Changes on surface properties: There will be some limits for:
— changes in the surface texture;
— grooving.

NOTE 3 After removal there are two things that may change: texture and level compared with the adjacent

pavement. Texture may be measured with a simple test method (sand patch) by using the MTD (mean texture

depth) and expressed as (MTD – MTD ) = × mm (d damaged; u undamaged) or by a profilomet

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
