EN 603-2:2024

(Main)

Aluminium and aluminium alloys - Wrought forging stock - Part 2: Mechanical properties

Aluminium and aluminium alloys - Wrought forging stock - Part 2: Mechanical properties

This document, part of EN 603 series of standards, specifies the mechanical properties of wrought forging stock in aluminium and aluminium alloys for general engineering applications.
The chemical composition and temper designations for these alloys are specified in EN 573 3 and EN 515 respectively.

Aluminium und Aluminiumlegierungen - Stranggepresstes oder gewalztes Schmiedevormaterial - Teil 2: Mechanische Eigenschaften

Dieses Dokument, das Teil der Normenreihe EN 603 ist, legt die mechanischen Eigenschaften von stranggepresstem und gewalztem Schmiedevormaterial aus Aluminium und Aluminiumlegierungen für allgemeine technische Anwendungen fest.
Die chemische Zusammensetzung und die Bezeichnungen der Werkstoffzustände für diese Legierungen werden in EN 573 3 und EN 515 beschrieben.

Aluminium et alliages d'aluminium - Produits corroyés destinés à la forge - Partie 2 : Caractéristiques mécaniques

Le présent document, qui fait partie de la série de normes EN 603, spécifie les caractéristiques mécaniques des produits corroyés en aluminium et alliages d'aluminium destinés à la forge pour applications techniques générales.
La composition chimique et la désignation des états métallurgiques de ces alliages sont respectivement spécifiées dans l'EN 573 3 et l'EN 515.

Aluminij in aluminijeve zlitine - Valjani material za kovanje - 2. del: Mehanske lastnosti

General Information

Status
Published
Publication Date
17-Sep-2024
ICS
77.150.10 - Aluminium products
Technical Committee
CEN/TC 132 - Aluminium and aluminium alloys
Drafting Committee
CEN/TC 132 - Aluminium and aluminium alloys
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
18-Sep-2024
Due Date
10-Sep-2025
Completion Date
18-Sep-2024
Ref Project
kSIST FprEN 603-2:2024 - Aluminium and aluminium alloys - Wrought forging stock - Part 2: Mechanical properties

Relations

Replaces
EN 603-2:1996 - Aluminium and aluminium alloys - Wrought forging stock - Part 2: Mechanical properties
Effective Date
07-Jun-2023

Buy Standard

prEN 603-2:2024prEN 603-2:2024
PreviousNext
Draft
prEN 603-2:2024
English language
9 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
oSIST prEN 603-2:2024
01-januar-2024
Aluminij in aluminijeve zlitine - Valjani material za kovanje - 2. del: Mehanske
lastnosti
Aluminium and aluminium alloys - Wrought forging stock - Part 2: Mechanical properties
Aluminium und Aluminiumlegierungen - Stranggepresstes oder gewalztes
Schmiedevormaterial - Teil 2: Mechanische Eigenschaften
Aluminium et alliages d'aluminium - Produits corroyés destinés à la forge - Partie 2:
Caractéristiques mécaniques
Ta slovenski standard je istoveten z: prEN 603-2
ICS:
77.150.10 Aluminijski izdelki Aluminium products
oSIST prEN 603-2:2024 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN 603-2:2024
oSIST prEN 603-2:2024
DRAFT
EUROPEAN STANDARD
prEN 603-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2023
ICS 77.150.10 Will supersede EN 603-2:1996
English Version
Aluminium and aluminium alloys - Wrought forging stock -
Part 2: Mechanical properties
Aluminium et alliages d'aluminium - Produits corroyés Aluminium und Aluminiumlegierungen -
destinés à la forge - Partie 2: Caractéristiques Stranggepreßtes oder gewalztes Schmiedevormaterial
mécaniques - Teil 2: Mechanische Eigenschaften
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 132.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 603-2:2023 E
worldwide for CEN national Members.

oSIST prEN 603-2:2024
prEN 603-2:2023 (E)

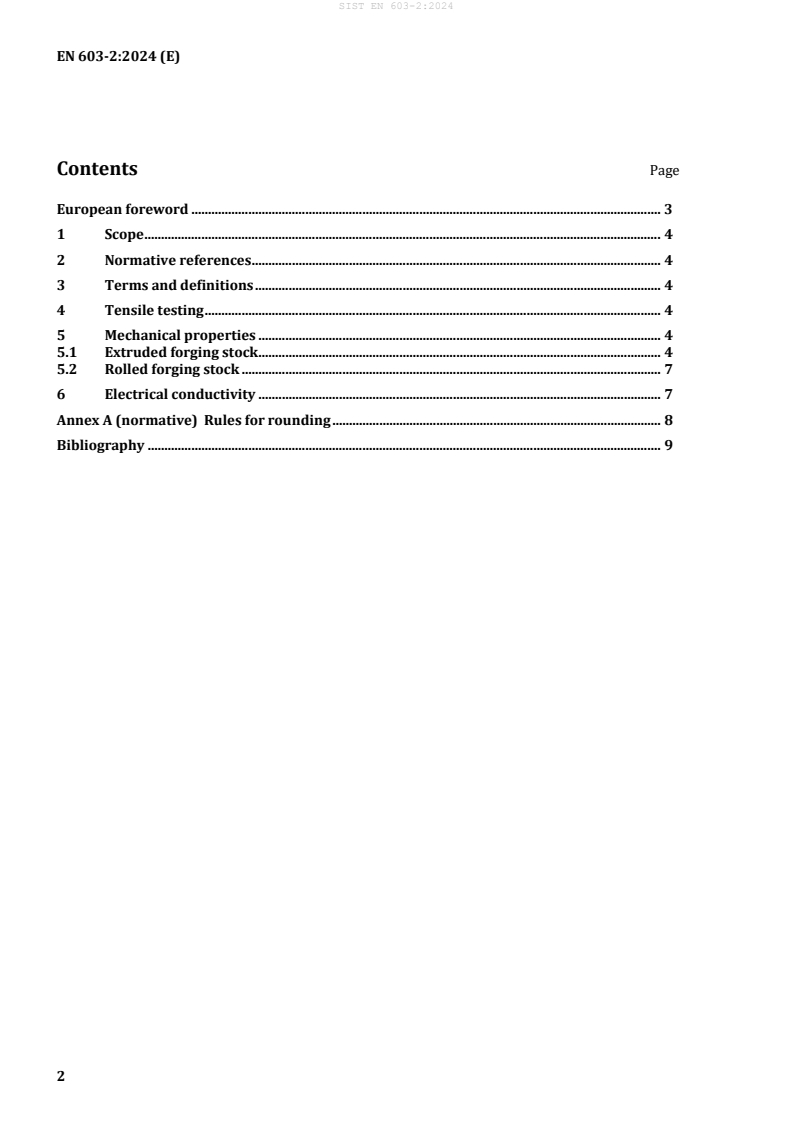

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Tensile testing . 4
5 Mechanical properties . 4
5.1 Extruded forging stock . 4
5.2 Rolled forging stock . 7
6 Electrical conductivity . 7
Annex A (normative) Rules for rounding . 8
Bibliography . 9

oSIST prEN 603-2:2024
prEN 603-2:2023 (E)
European foreword
This document (prEN 603-2:2023) has been prepared by Technical Committee CEN/TC 132 “Aluminium
and aluminium alloys”, the secretariat of which is held by AFNOR.
This document is currently submitted to the Formal Vote.
This document will supersede EN 603-2:1996.
prEN 603-2:2023 includes the following significant technical changes with respect to EN 603-2:1996:
— application of last CEN template to the introductory text of Clause 2 Normative references;
— replacement of withdrawn Standard EN 10002-1 by EN ISO 6892-1 in Clause 2 Normative
references;
— application of last CEN template to Clause 3 Terms and definitions;
— introduction of Standard EN ISO 6892-1 instead of withdrawn Standard EN 10002-1 in Clause 4
Tensile testing;
— move of former text from Note in Table 9 to Clause 6;
— introduction of mechanical properties for alloy EN AW-2033 in new Table 3;
— introduction of mechanical properties for alloy EN AW-2077 in new Table 4;
— introduction of mechanical properties for alloy EN AW-6026 in new Table 7;
— minor text changes.
EN 603 comprises the following parts under the general title Aluminium and aluminium alloys - Wrought
forging stock:
— Part 1: Technical conditions for inspection and delivery;
— Part 2: Mechanical properties;
— Part 3: tolerances on dimensions and form.
oSIST prEN 603-2:2024
prEN 603-2:2023 (E)
1 Scope
This document, part of EN 603 series of Standards, specifies the mechanical properties of wrought forging
stock in aluminium and aluminium alloys for general engineering applications.
The chemical composition and temper designations for these alloys are specified in EN 573-3 and EN 515
respectively.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest
...
