EN 15186:2024
(Main)Furniture - Assessment of the surface resistance to scratching
Furniture - Assessment of the surface resistance to scratching
This document specifies a method for the assessment of the surface resistance to different kinds of visible scratches. It relates to the rigid surfaces of all finished products, regardless of their material.
It does not apply to finishes on leather and fabrics.
Method A is suitable for all types of surface coatings and coverings except for melamine faced boards (according to EN 14322) and HPL (according to EN 438 1). It simulates measurable penetrating and/or deforming scratches.
Method B is suitable for all types of surfaces. It simulates first visible traces (e.g. scratches, marks) that can also be a change in the gloss.
The test is intended to be carried out on a part of finished furniture. It can, however, be carried out on test panels of the same material, finished in an identical manner to the finished product, and of a size sufficient to meet the requirements of the test.
It is essential that the test be carried out on unused surfaces.
Möbel - Bewertung der Kratzfestigkeit von Oberflächen
Dieses Dokument legt ein Verfahren für die Bewertung der Oberflächenbeständigkeit gegen verschiedenartige sichtbare Kratzer fest. Es gilt für die starren Oberflächen aller fertigen Produkte unabhängig von ihrem Werkstoff.
Es ist nicht anwendbar für Oberflächenbehandlungen auf Leder und Textilien.
Verfahren A ist für alle Arten von Oberflächenbeschichtungen und -beläge geeignet, außer für melaminbeschichtete Platten (nach EN 14322) und HPL (Hochdruck-Schichtstoffplatten; en: high pressure laminates) (nach EN 438-1). Es bildet messbare durchdringende und/oder verformende Kratzer nach.
Verfahren B ist für alle Oberflächenarten geeignet. Es bildet erste sichtbare Kratzspuren (z. B. Kratzer, Spuren) nach, bei denen es sich auch um eine Glanzänderung handeln kann.
Die Prüfung ist dafür vorgesehen, an einem Teil des gebrauchsfertigen Möbels durchgeführt zu werden. Sie kann aber auch an Prüfkörpern durchgeführt werden, die aus dem gleichen Werkstoff hergestellt und der gleichen Oberflächenbehandlung unterzogen wurden wie das fertige Produkt, und die groß genug sind, um den Prüfanforderungen zu entsprechen.
Es ist von grundlegender Bedeutung, dass die Prüfung auf unbenutzten Oberflächen durchgeführt wird.
Ameublement - Evaluation de la résistance de la surface à la rayure
Le présent document spécifie une méthode d’évaluation de la résistance de la surface à différents types de rayures visibles. Elle s’applique aux surfaces rigides de tous les produits finis, indépendamment de leur matériau.
Elle ne s’applique pas aux finitions appliquées sur le cuir ou les étoffes.
La méthode A convient à tous les types de revêtements de surface, excepté les panneaux surfacés mélaminés (selon l’EN 14322) et les HPL (selon l’EN 438-1). Elle simule des rayures par pénétration et/ou par déformation mesurables.
La méthode B convient à tous les types de surface. Elle simule les premières traces visibles (par exemple, rayures, marques), qui peuvent n’être qu’un changement de brillance.
L’essai est destiné à être réalisé sur une partie du meuble fini. Il peut cependant être effectué sur des panneaux d’essai constitués du même matériau, de finition identique à celle du produit fini et de dimensions suffisantes pour satisfaire aux exigences de l’essai.
Il est essentiel que l’essai soit réalisé sur des surfaces neuves.
Pohištvo - Ocenjevanje odpornosti površine proti razenju
General Information
Relations
Standards Content (Sample)

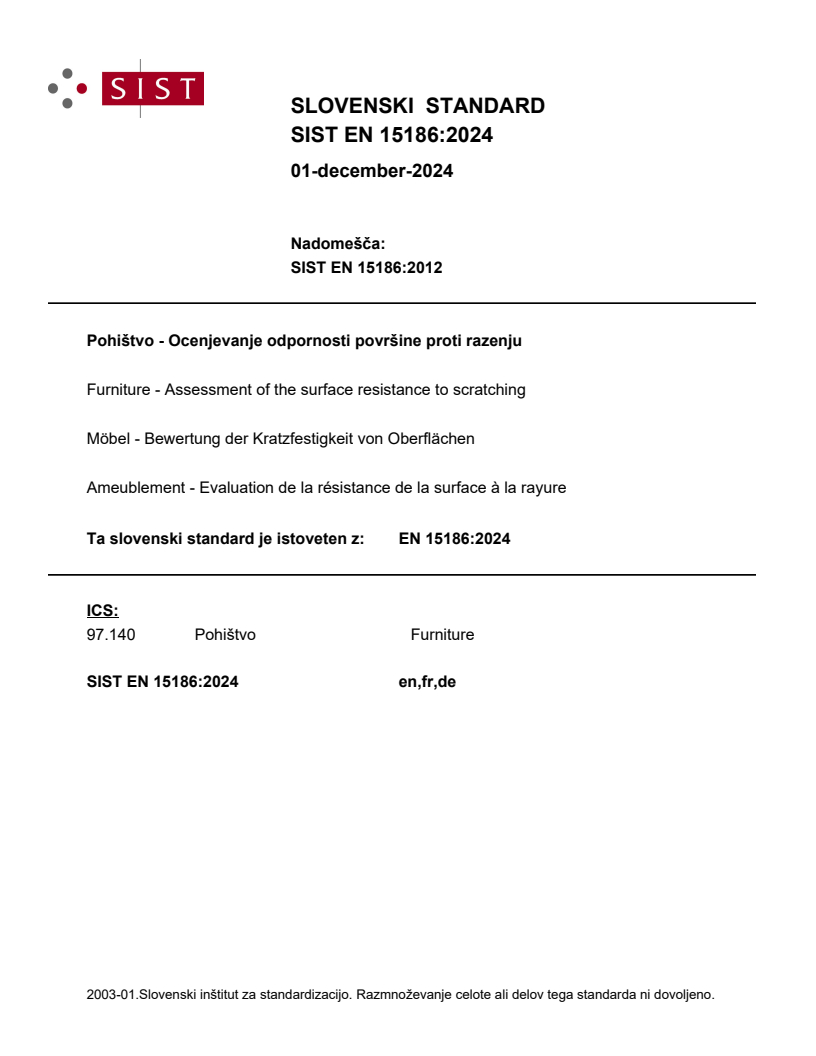

SLOVENSKI STANDARD
01-december-2024
Nadomešča:
SIST EN 15186:2012
Pohištvo - Ocenjevanje odpornosti površine proti razenju
Furniture - Assessment of the surface resistance to scratching
Möbel - Bewertung der Kratzfestigkeit von Oberflächen
Ameublement - Evaluation de la résistance de la surface à la rayure
Ta slovenski standard je istoveten z: EN 15186:2024
ICS:
97.140 Pohištvo Furniture
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

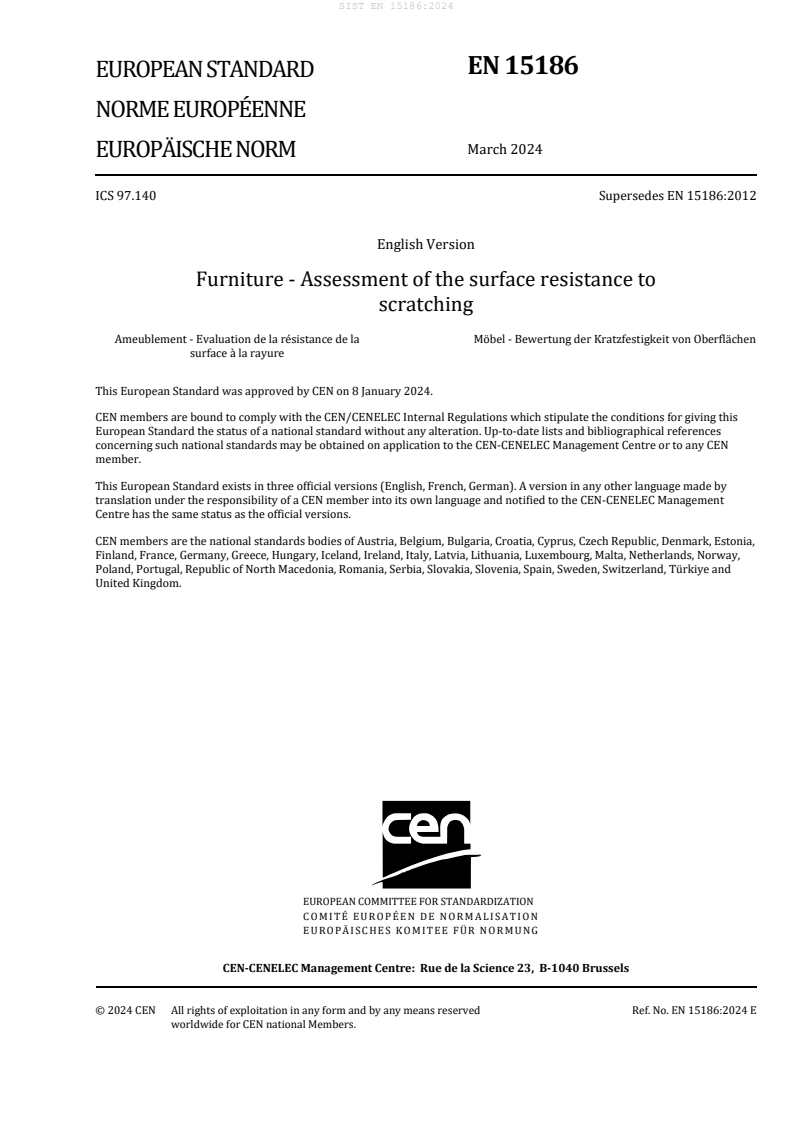

EN 15186
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2024
EUROPÄISCHE NORM
ICS 97.140 Supersedes EN 15186:2012
English Version
Furniture - Assessment of the surface resistance to
scratching
Ameublement - Evaluation de la résistance de la Möbel - Bewertung der Kratzfestigkeit von Oberflächen
surface à la rayure
This European Standard was approved by CEN on 8 January 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15186:2024 E
worldwide for CEN national Members.

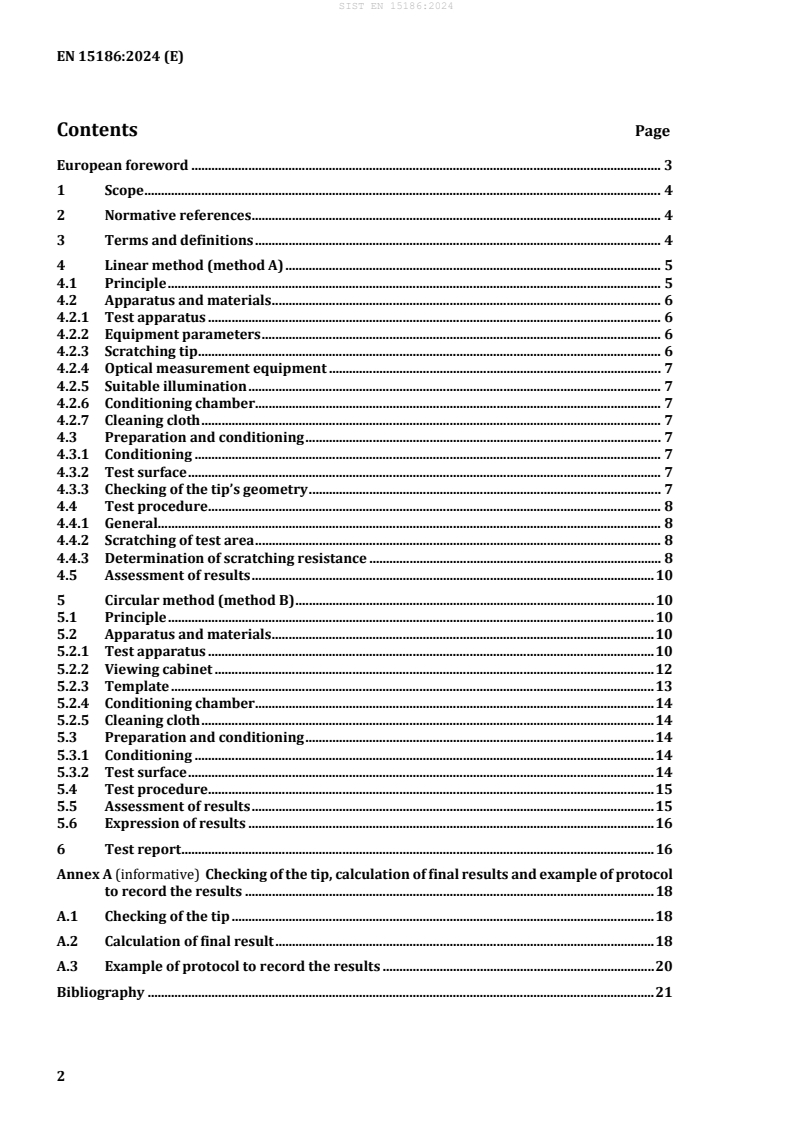

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Linear method (method A) . 5
4.1 Principle . 5
4.2 Apparatus and materials . 6
4.2.1 Test apparatus . 6
4.2.2 Equipment parameters . 6
4.2.3 Scratching tip . 6
4.2.4 Optical measurement equipment . 7
4.2.5 Suitable illumination . 7
4.2.6 Conditioning chamber . 7
4.2.7 Cleaning cloth . 7
4.3 Preparation and conditioning . 7
4.3.1 Conditioning . 7
4.3.2 Test surface . 7
4.3.3 Checking of the tipʼs geometry . 7
4.4 Test procedure . 8
4.4.1 General. 8
4.4.2 Scratching of test area . 8
4.4.3 Determination of scratching resistance . 8
4.5 Assessment of results . 10
5 Circular method (method B) . 10
5.1 Principle . 10
5.2 Apparatus and materials . 10
5.2.1 Test apparatus . 10
5.2.2 Viewing cabinet . 12
5.2.3 Template . 13
5.2.4 Conditioning chamber . 14
5.2.5 Cleaning cloth . 14
5.3 Preparation and conditioning . 14
5.3.1 Conditioning . 14
5.3.2 Test surface . 14
5.4 Test procedure . 15
5.5 Assessment of results . 15
5.6 Expression of results . 16
6 Test report . 16
Annex A (informative) Checking of the tip, calculation of final results and example of protocol
to record the results . 18
A.1 Checking of the tip . 18
A.2 Calculation of final result . 18
A.3 Example of protocol to record the results . 20
Bibliography . 21
European foreword
This document (EN 15186:2024) has been prepared by Technical Committee CEN/TC 207 “Furniture”,
the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2024, and conflicting national standards shall
be withdrawn at the latest by September 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15186:2012.
Compared with EN 15186:2012, the following modifications have been made:
a) subclauses of Clause 4, Linear method (method A), revised;
b) subclauses of Clause 5, Circular method (method B), revised;
c) Annex B deleted; the significant changes in the revised edition are now given in the European
foreword;
d) Bibliography updated.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies a method for the assessment of the surface resistance to different kinds of visible
scratches. It relates to the rigid surfaces of all finished products, regardless of their material.
It does not apply to finishes on leather and fabrics.
Method A is suitable for all types of surface coatings and coverings except for melamine faced boards
(according to EN 14322) and HPL (according to EN 438-1). It simulates measurable penetrating and/or
deforming scratches.
Method B is suitable for all types of surfaces. It simulates first visible traces (e.g. scratches, marks) that
can also be a change in the gloss.
The test is intended to be carried out on a part of finished furniture. It can, however, be carried out on
test panels of the same material, finished in an identical manner to the finished product, and of a size
sufficient to meet the requirements of the test.
It is essential that the test be carried out on unused surfaces.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 1518-1, Paints and varnishes — Determination of scratch resistance — Part 1: Constant-loading
method (ISO 1518-1)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
test surface
part of the test panel
3.2
test panel
panel including the test surface
Note 1 to entry: The panel may be cut from a finished item of furniture or it may be a separate panel produced in
the same manner as the finished item of furniture.
3.3
test area
part of the test surface under the equipment, where the measurement is carried out
3.4
scratching tip
tool with a point of defined geometry
Note 1 to entry: See 4.2.3 for method A.
Note 2 to entry: See 5.2.1.6 for method B.
3.5
scratching trace
3.5.1
method A
visible and measurable scratch on the tested surface which is produced under the specified load of the
scratching tip; the shapes of the traces’ edges can be different depending on the substrate and coating
type as shown in Table 2
3.5.2
method B
first visible traces on the tested surface (e.g. scratches, marks) which may also be a change in the gloss
3.6
scratching resistance
3.6.1
method A
minimum load, in N, applied to the scratching tip, which produces a measurable trace of the width (W) of
≥ 0,30 mm
3.6.2
method B
minimum load, in N, applied to the scratching tip, which produces a continuous visible trace in at least six
of eight slots of the template
3.7
preliminary assessments of scratching resistance (method A)
assessment of minimum load causing the specified width of scratch on test surface
3.8
intermediate assessment of scratching resistance (method A)
mean value of preliminary assessments of test surface
3.9
final result of scratching resistance (method A)
mean value of intermediate assessments of three test surfaces
Note 1 to entry: See Figure A.2 in the informative Annex A.
4 Linear method (method A)
4.1 Principle
Surface scratching resistance is defined as the minimum load in N (Newton) applied to the tip with
specified geometry, which produces a specified scratch width (see 4.4.2).
...
