FprCEN/TS 1401-2

Plastics piping systems for non-pressure underground drainage and sewerage - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity

This document gives requirements and guidance for the assessment of conformity of formulations, products and assemblies in accordance with EN 1401-1 intended to be included in the manufacturer’s quality plan as part of the quality management system and for the establishment of third-party certification procedures.
NOTE 1 The quality management system is expected to conform to or is no less stringent than the relevant requirements to EN ISO 9001 [1].
NOTE 2 If third party certification is involved, the certification body is expected to be compliant with either EN ISO/IEC 17065 [2] or EN ISO/IEC 17021-series [3], as applicable.
NOTE 3 In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1401-1, this document is applicable to piping systems made of unplasticized poly(vinyl chloride) (PVC-U) intended for non-pressure underground drainage and sewerage:
- buried in ground outside the building structure (application area code "U");
- both buried in ground within the building structure and outside the building structure (application area code "UD").

Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -leitungen - Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 2: Empfehlungen für die Beurteilung der Konformität

Dieses Dokument enthält Anforderungen und Empfehlungen für die Bewertung der Konformität von Zusammensetzungen, Erzeugnissen und Bauteilkombinationen nach EN1401-1, die als Teil des Qualitäts
managementsystems im Qualitätssicherungsplan des Herstellers und für die Einführung von Verfahren zur Drittstellenzertifizierung vorgesehen sind.
ANMERKUNG1 Es wird davon ausgegangen, dass das Qualitätsmanagementsystem ENISO9001[1] oder mindestens ebenso strengen Anforderungen entspricht.
ANMERKUNG2 Bei Drittstellenzertifizierung wird davon ausgegangen, dass die Zertifizierungsstelle in Abhängigkeit der Anwendung entweder ENISO/IEC17065[2] oder der NormenreiheENISO/IEC17021[3] entspricht.
ANMERKUNG3 Zur Unterstützung des Lesers enthält AnhangA einen Überblick über das Prüfsystem.
Dieses Dokument gilt in Verbindung mit EN1401-1 für Rohrleitungssysteme aus weichmacherfreiem Polyvi
nylchlorid (PVC-U) für Abwasserkanäle und -leitungen, die für erdverlegte Schwerkraftentwässerungssysteme vorgesehen sind,
- erdverlegt außerhalb der Gebäudestruktur (Anwendungskennzeichen U);
- sowohl erdverlegt innerhalb der Gebäudestruktur als auch außerhalb der Gebäudestruktur (Anwendungskennzeichen UD).

Systèmes de canalisations en plastique pour les branchements et les collecteurs d'assainissement enterrés sans pression - Poly(chlorure de vinyle) non plastifié (PVC-U) - Partie 2 : Guide pour l'évaluation de la conformité

Cevni sistemi iz polimernih materialov za odpadno vodo in kanalizacijo, ki delujejo po težnostnem principu in so položeni v zemljo - Nemehčan polivinilklorid (PVC-U) - 2. del: Navodilo za ugotavljanje skladnosti

General Information

• Status: Not Published
• Publication Date: 03-Sep-2025
• ICS: 23.040.01 - Pipeline components and pipelines in general
• Technical Committee: CEN/TC 155 - Plastics piping systems and ducting systems
• Drafting Committee: CEN/TC 155/WG 13 - Systems with structured-wall pipes for non-pressure drainage and sewerage - PE, PP, PVC-U
• Current Stage: 5020 - Submission to Vote - Formal Approval
• Start Date: 17-Apr-2025
• Due Date: 06-Oct-2025
• Completion Date: 17-Apr-2025
• Ref Project: kSIST-TS FprCEN/TS 1401-2:2025 - Plastics piping systems for non-pressure underground drainage and sewerage - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity

Relations

• Revises: CEN/TS 1401-2:2020 - Plastics piping systems for non-pressure underground drainage and sewerage - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity
• Effective Date: 10-Jul-2024

Standards Content (Sample)

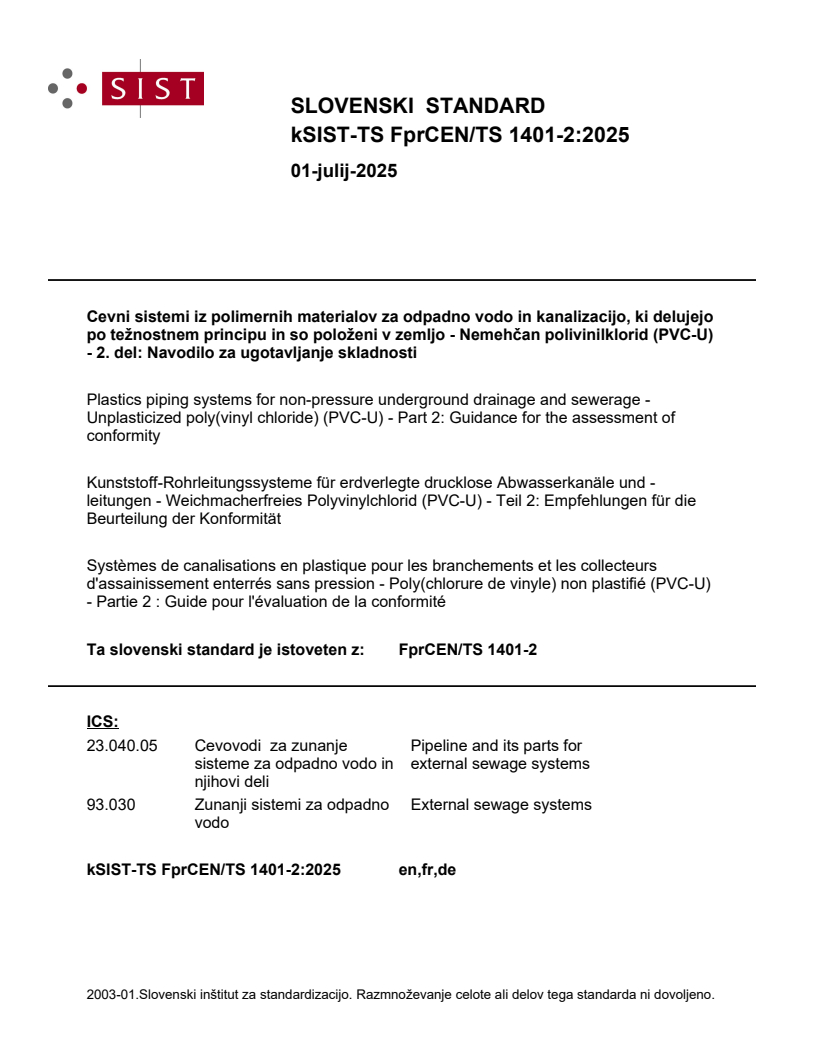

SLOVENSKI STANDARD
01-julij-2025
Cevni sistemi iz polimernih materialov za odpadno vodo in kanalizacijo, ki delujejo
po težnostnem principu in so položeni v zemljo - Nemehčan polivinilklorid (PVC-U)
- 2. del: Navodilo za ugotavljanje skladnosti
Plastics piping systems for non-pressure underground drainage and sewerage -
Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of
conformity
Kunststoff-Rohrleitungssysteme für erdverlegte drucklose Abwasserkanäle und -
leitungen - Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 2: Empfehlungen für die
Beurteilung der Konformität
Systèmes de canalisations en plastique pour les branchements et les collecteurs
d'assainissement enterrés sans pression - Poly(chlorure de vinyle) non plastifié (PVC-U)
- Partie 2 : Guide pour l'évaluation de la conformité
Ta slovenski standard je istoveten z: FprCEN/TS 1401-2
ICS:
23.040.05 Cevovodi za zunanje Pipeline and its parts for
sisteme za odpadno vodo in external sewage systems
njihovi deli
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

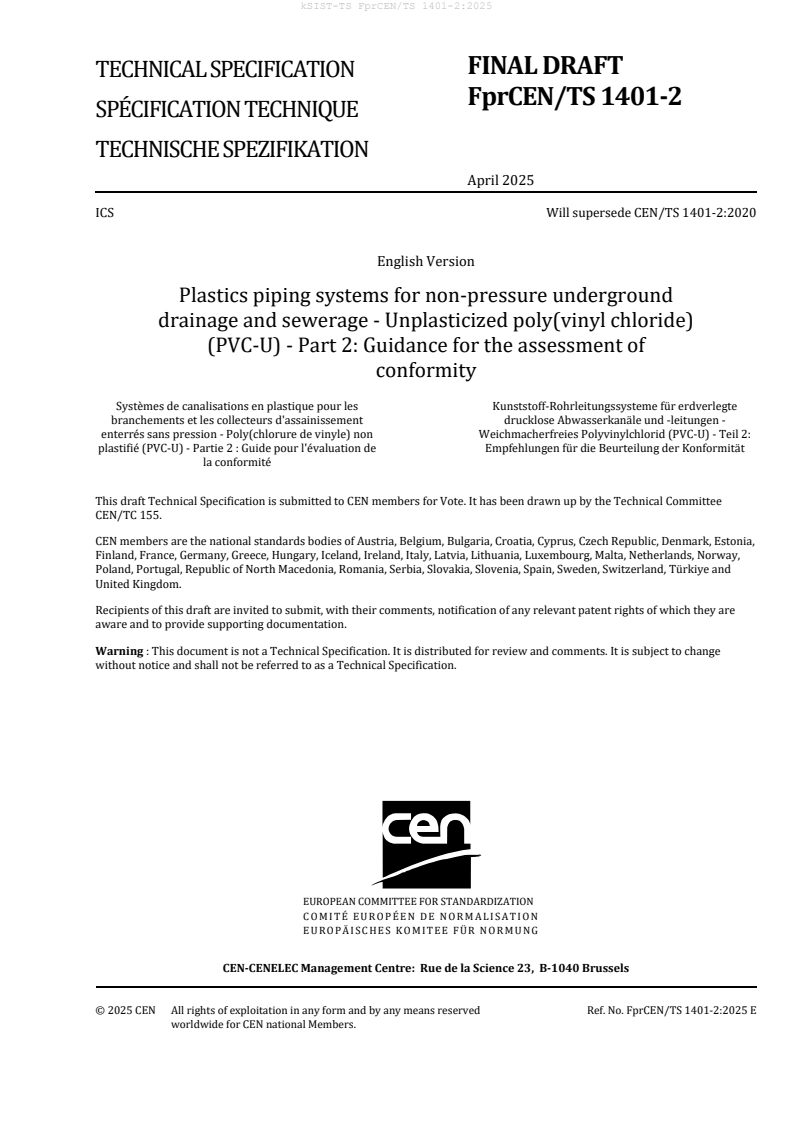

FINAL DRAFT
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
April 2025
ICS Will supersede CEN/TS 1401-2:2020
English Version
Plastics piping systems for non-pressure underground
drainage and sewerage - Unplasticized poly(vinyl chloride)
(PVC-U) - Part 2: Guidance for the assessment of
conformity
Systèmes de canalisations en plastique pour les Kunststoff-Rohrleitungssysteme für erdverlegte
branchements et les collecteurs d'assainissement drucklose Abwasserkanäle und -leitungen -
enterrés sans pression - Poly(chlorure de vinyle) non Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 2:
plastifié (PVC-U) - Partie 2 : Guide pour l'évaluation de Empfehlungen für die Beurteilung der Konformität
la conformité
This draft Technical Specification is submitted to CEN members for Vote. It has been drawn up by the Technical Committee
CEN/TC 155.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a Technical Specification. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a Technical Specification.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprCEN/TS 1401-2:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Abbreviated terms . 9
5 General . 9
6 Testing and inspection . 10
6.1 Material specification . 10
6.2 Grouping . 11
6.2.1 General . 11
6.2.2 Size groups . 11
6.2.3 Fitting groups . 11
6.3 Type testing . 12
6.4 Batch release tests . 15
6.5 Process verification tests . 18
6.6 Audit tests . 19
6.7 Indirect tests . 21
6.8 Test records . 21
Annex A (informative) Basic test matrix . 22
Bibliography . 23

European foreword
This document (FprCEN/TS 1401-2:2025 has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
This document is currently submitted to the Vote on TS.
This document will supersede CEN/TS 1401-2:2020.
Compared with CEN/TS 1401-2:2020 the following changes have been made:
— Update of normative references to EN 1401-1:2019+A1:2023
EN 1401, Plastics piping systems for non-pressure underground drainage and sewerage — Unplasticized
poly(vinyl chloride) (PVC-U), consists of the following Parts:
— Part 1: Specifications for pipes, fittings and the system;
— Part 2: Guidance for the assessment of conformity.
Introduction
This revision of the EN 1401 series is proposed in order to improve the 'level of sustainability' and the
'environmental impact' of PVC piping systems, whilst improving the recommendations and safe use of
recycled material. Recycled material is categorized as non-virgin material in this document.
Regarding this specific target, more focus was given to the control of applied material formulation and to
the final characteristics and performance of products.
This document is based on the template prepared in CEN/TC 155/WG21 version V.5.
Figures 1 and 2 are intended to provide general information on the concept of testing and organization
of those tests used for the purpose of the assessment of conformity. This document details the applicable
characteristics to be assessed as well as the frequency and sampling of testing for each type of test, i.e.
type testing (TT), batch release test (BRT), process verification test (PVT) and audit test (AT).
A typical scheme for the assessment of conformity of formulations pipes, fittings, assemblies by
manufacturers is given in Figure 1.

Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of formulations, pipes, fittings, assemblies by
manufacturers, including a third-party certification, is given in Figure 2.
Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including a
third party certification
1 Scope
This document gives requirements and guidance for the assessment of conformity of formulations,
products and assemblies in accordance with EN 1401-1 intended to be included in the manufacturer’s
quality plan as part of the quality management system and for the establishment of third-party
certification procedures.
NOTE 1 The quality management system is expected to conform to or is no less stringent than the relevant
requirements to EN ISO 9001 [1].
NOTE 2 If third party certification is involved, the certification body is expected to be compliant with either
EN ISO/IEC 17065 [2] or EN ISO/IEC 17021-series [3], as applicable.
NOTE 3 In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1401-1, this document is applicable to piping systems made of unplasticized
poly(vinyl chloride) (PVC-U) intended for non-pressure underground drainage and sewerage:
— buried in ground outside the building structure (application area code “U”);
— both buried in ground within the building structure and outside the building structure (application
area code “UD”).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1401-1:2019+A1:2023, Plastics piping systems for non-pressure underground drainage and sewerage
— Unplasticized poly(vinyl chloride) (PVC-U) — Part 1: Specifications for pipes, fittings and the system
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1401-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence and
responsibility to carry out certification of conformity according to given rules of procedure and
management
Note 1 to entry: A certification body is preferably compliant with EN ISO/IEC 17065 [2].
3.2
inspection body
body, that performs inspection
Note 1 to entry: An inspection body can be an organization or a part of an organization.
Note 2 to entry: An inspection body is preferably compliant with EN ISO/IEC 17020 [4].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise determines the characteristics of the
performance of materials and products
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing, batch
release testing, process verification testing, audit testing and/or witness testing, as applicable.
Note 2 to entry: A testing laboratory is preferably compliant with EN ISO/IEC 17025 [5].
3.4
quality management system
part of a management system with regard to quality
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [1].
[SOURCE: EN ISO 9000:2015 [6], definition 3.5.4]
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
testing performed to prove that the formulation, product, joint or assembly is capable of conforming to
the requirements given in the relevant standard
Note 1 to entry: The type test results remain valid until there is a change in the formulation or product or
assembly provided that the process verification tests are done regularly.
3.7
batch release test
BRT
test performed by or on behalf of the manufacturer on a batch of materials or products, which has to be
satisfactorily completed before the batch can be released
3.8
process verification test
PVT
test performed by or on behalf of the manufacturer on formulation, products, joints or assemblies at
specific intervals to confirm that the process continues to be capable of producing products which
conform to the requirements given in the relevant standard
Note 1 to entry: Such tests are not required to release batches of formulation or products; but they are carried
out as a measure of process control.
3.9
audit test
AT
test performed by a test laboratory on behalf of an inspection body or certification body to confirm that
the formulation, product, joint or assembly continues to conform to the requirements given in the
relevant standard and to provide information to assess the effectiveness of the quality management
system
3.10
indirect test
IT
test performed by or on behalf of the manufacturer, different from that specified test for that particular
cha
...
