EN 15319:2007

General principles of design of fibrous (gypsum) plaster works

This European Standard defines the principles for the design of works carried out using fibrous (gypsum) plaster products as defined in EN 13815.
Fibrous (gypsum) plaster casts from the three categories of production below (see Clause 4 of
EN 13815:2006) should be involved:
a)   ”cpp” allowing regulatory marking CE;
b)   “cppv” allowing regulatory marking CE;
c)   “ipp” either when CE marking is required;
or without CE marking (see Annex D – Note 2 of EN 13815:2006).
This European Standard applies to both new constructions and to the refurbishment, restructuring or conversion of existing buildings.
The common fields of application of fibrous plaster are as set out in Table 1 below.
Table 1 — Common fields of application of fibrous plaster
Fields of application   Examples
Architectural effects      decorating: cornices, pilasters, columns (see exception vii below);
   on the ceiling: flat or shaped ceilings (included suspended ceilings), coffered ceilings, vaults, domes;
   in a vertical position : flat or shaped surfaces (partitions, linings);
   encasements, casings;
   embellishments for direct or concealed lighting;
   structures to improve acoustical performance (insulation, absorption, diffusion).
Technical functions      shafts and ducts for ventilation, air conditioning, smoke extraction;
   ceiling voids and chambers for pressurization;
   structures to enhance fire safety.
NOTE 1   This classification is not exclusive, as the same fibrous plaster work can have several functions.
NOTE 2   Table 1 does not mention the use of fibrous plaster externally; as it can only be used under certain conditions (see 4.3.1.2).
Fibrous plastering work should be capable of having the usual finishes applied directly to them (e.g. paint, wallpaper) subject to the normal preparatory work applicable for the type of finish.

Allgemeine Grundsätze der Planung von Arbeiten aus Formteilen aus faserverstärktem Gips

Diese Europäische Norm legt die Grundsätze für die Planung von Arbeiten fest, die unter Verwendung der in  EN 13815 beschriebenen Produkte aus faserverstärktem Gips ausgeführt werden.
Formteile aus faserverstärktem Gips aus den nachstehenden drei Produktionsgattungen (siehe Abschnitt 4 der EN 13815:2006) sollten einbegriffen sein:
a)   cpp ermöglicht die geregelte CE-Kennzeichnung;
b)   cppv ermöglicht die geregelte CE-Kennzeichnung;
c)   ipp beide, wenn CE-Kennzeichnung erforderlich ist;
oder ohne CE-Kennzeichnung (siehe Anhang D  Anmerkung 2 von EN 13815:2006).
Diese Norm gilt sowohl für Neubauten als auch für Modernisierung, Sanierung oder Umbau von bestehenden Gebäuden.
Die üblichen Anwendungsbereiche für Formteile aus faserverstärktem Gips sind nachstehend in Tabelle 1 aufgeführt.
Tabelle 1  Übliche Anwendungsbereiche für Formteile aus faserverstärktem Gips
Anwendungsbereich   Beispiel
Architektonische Wirkungen      dekorativ: Gesimse, Wandpfeiler, Säulen (siehe nachstehende Ausnahme);
   an der Decke: glatte oder profilierte Decken (einschließlich abge¬hängter Decken), Kassettendecken, Gewölbe, Kuppeln;
   vertikal angeordnet: glatte oder profilierte Flächen (Trennwände, Bekleidungen);
   Ummantelungen, Bekleidungen;
   Zierteile für direkte oder indirekte Beleuchtung;
   Konstruktionen zur Verbesserung der akustischen Raumeigenschaften (Dämmung, Absorption, Ausbreitung).
Technische Funktionen      Schächte und Kanäle für Lüftung, Klimatisierung, Rauchabzug;
   Deckenzwischenräume und Druckkammern;
   Konstruktionen zur Erhöhung der Brandsicherheit.
ANMERKUNG 1   Diese Klassifizierung ist nicht ausschließend, weil die gleiche Arbeit aus Formteilen aus faserverstärktem Gips verschiedene Funktionen haben kann.
ANMERKUNG 2   In Tabelle 1 ist die Außenanwendung von Produkten aus faserverstärktem Gips nicht erwähnt, weil diese nur unter bestimmten Bedingungen angewendet werden können (siehe 4.3.1.2).

Principes généraux de conception des ouvrages en staff

La présente Norme Européenne détermine les principes généraux de conception des ouvrages à réaliser à l'aide des produits en staff définis par l’EN 13815.
Les éléments en staff des trois catégories de production indiquées ci-dessous (voir article 4 de l’EN 13815:2006) sont concernés :
a)   « cpp » justifiant le marquage réglementaire CE ;
b)   « cppv » justifiant le marquage réglementaire CE ;
c)   « ipp » lorsque le marquage CE est nécessaire ;
ou sans marquage CE (voir l’Annexe D  Note 2 de l’EN 13815:2006).
La présente Norme s’applique à des ouvrages à réaliser dans des bâtiments neufs ou existants, en construction, réhabilitation, restructuration ou réaménagement.
Les domaines courants d’application du staff sont désignés dans le Tableau 1 ci-dessous :
Tableau 1  Domaines courants d’application du staffDomaine d'application   Exemples
Ouvrages d'architecture intérieure    Décoration : corniches, pilastres, colonnes (voir exclusion ci-après) ;
Plafonds : plafonds plans ou en forme (plafonds suspendus inclus), plafonds à caissons, voûtes, coupoles ;
Parois verticales planes ou en forme (par exemple,  cloisons, contre-cloisons) ;
Coffrages et habillages divers ;
Ouvrages pour éclairage direct ou indirect ;
Ouvrages de traitement acoustique pour isolation, absorption et diffusion ;
Ouvrages à fonction technique    Conduits de ventilation, de traitement d'air, d'évacuation des fumées ;
Plénums et gaines techniques ;
Ouvrages de protection contre les risques d'incendie (par exemple, compartimentation au feu, protection contre le feu d'éléments structurels de la construction).
NOTE 1   Cette classification n'est pas formelle, un même ouvrage en staff pouvant avoir plusieurs fonctions.

Splošna načela za projektiranje in vgradnjo mavčnih odlitkov, ojačanih z vlakni

General Information

• Status: Published
• Publication Date: 03-Jul-2007
• ICS: 91.100.10 - Cement. Gypsum. Lime. Mortar
• Technical Committee: CEN/TC 241 - Gypsum and gypsum based products
• Drafting Committee: CEN/TC 241/WG 4 - Application for dry lining and partitioning using gypsum
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 02-Sep-2018
• Completion Date: 02-Sep-2018
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 15319:2007 - General principles of design of fibrous (gypsum) plaster works

Overview - EN 15319:2007 (fibrous gypsum plaster design principles)

EN 15319:2007, published by CEN, defines the general principles for design of fibrous (gypsum) plaster works (products as defined in EN 13815). It applies to fibrous plaster casts from the production categories “cpp”, “cppv” and “ipp” (CE‑marked where required) and is intended for both new construction and refurbishment, restructuring or conversion of existing buildings. Typical uses include architectural decoration (cornices, mouldings, coffered ceilings) and technical functions (ducts, ceiling plenum, fire‑protection structures).

Key topics and technical requirements

EN 15319 sets out the design framework rather than prescriptive product details. Major topics covered include:

• Design principles for installation and integration of fibrous plaster casts (thin reinforced gypsum mouldings).
• Functions - architectural effects (ceilings, mouldings, linings) and technical functions (ventilation shafts, ceiling voids, fire enhancement).
• Technical requirements for fixings, anchors, hangers, intermediate frameworks, sealed and screwed systems, and handling on site.
• Essential requirements and performance considerations (fire classification, acoustics, thermal behaviour referenced to relevant standards).
• Site arrangements - preparatory conditions before installation, materials, equipment and accessories (wads, fibrous ropes, anchors).
• Characteristics of completed works - surface appearance, flatness, verticality, suitability for direct finishes (paint, wallpaper) after normal preparation.
• Maintenance and repair guidance and informative annexes covering separations at abutments, thermal conductivity design values and painting works.

The standard also lists what it does not cover (e.g., fibre‑reinforced gypsum sheet products covered by prEN 15283, certain suspended ceilings covered by EN 14246, run‑moulded in‑situ plaster, external use under limited conditions).

Practical applications and who uses EN 15319

EN 15319 is practical for:

• Architects and interior designers specifying decorative plaster elements (domes, coffers, pilasters).
• Structural and MEP designers coordinating ceiling voids, ducts and service plenums.
• Contractors and installers selecting fixings and implementing sealed or screwed installation systems.
• Manufacturer and product specifiers ensuring conformity with EN 13815 categories and CE marking rules.
• Fire, acoustics and building performance consultants referencing complementary standards for classification and testing.

Using EN 15319 helps ensure fibrous plaster works are designed for durability, finish quality and integration with building services and safety requirements.

Related standards (for compliance and testing)

• EN 13815 (fibrous gypsum plaster casts definitions, requirements, test methods)
• EN 13279-1, EN 13501-1/2 (fire classification)
• EN 20140-9, EN ISO 140-3, EN ISO 717-1, EN ISO 354 (acoustics)
• EN ISO 6946, EN ISO 10456 (thermal)
• prEN 15283, EN 14246 (related product/ceiling standards)
• European Technical Report: installation rules for fibrous plaster works

Keywords: EN 15319:2007, fibrous gypsum plaster, fibrous plaster design, EN 13815, CE marking, suspended ceilings, GRG, PMGRG, architectural plaster.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.General principles of design of fibrous (gypsum) plaster worksPrincipes généraux de conception des ouvrages en staffAllgemeine Grundsätze der Planung von Arbeiten aus Formteilen aus faserverstärktem GipsTa slovenski standard je istoveten z:EN 15319:2007SIST EN 15319:2007en91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:SLOVENSKI
STANDARDSIST EN 15319:200701-december-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15319July 2007ICS 91.100.10 English VersionGeneral principles of design of fibrous (gypsum) plaster worksPrincipes généraux de conception des ouvrages en staffAllgemeine Grundsätze der Planung von Arbeiten ausFormteilen aus faserverstärktem GipsThis European Standard was approved by CEN on 7 June 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15319:2007: E

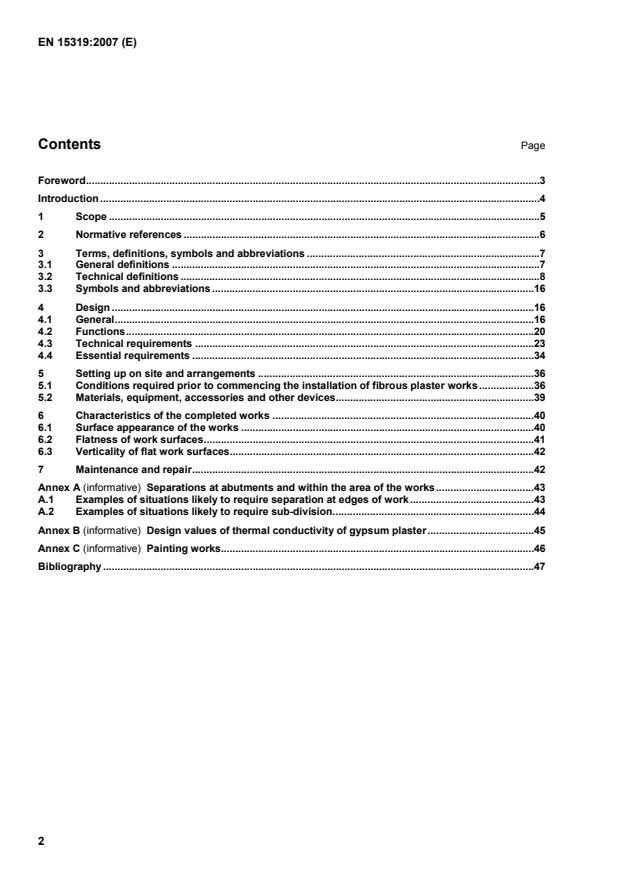

Separations at abutments and within the area of the works.43 A.1 Examples of situations likely to require separation at edges of work.43 A.2 Examples of situations likely to require sub-division.44 Annex B (informative)
Design values of thermal conductivity of gypsum plaster.45 Annex C (informative)
Painting works.46 Bibliography.47

According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EN 13815:2006) should be involved: a) ”cpp” allowing regulatory marking CE; b) “cppv” allowing regulatory marking CE; c) “ipp” either when CE marking is required; or without CE marking (see Annex D – Note 2 of EN 13815:2006). This European Standard applies to both new constructions and to the refurbishment, restructuring or conversion of existing buildings. The common fields of application of fibrous plaster are as set out in Table 1 below. Table 1 — Common fields of application of fibrous plaster Fields of application Examples Architectural effects  decorating: cornices, pilasters, columns (see exception below);  on the ceiling: flat or shaped ceilings (included suspended ceilings), coffered ceilings, vaults, domes;  in a vertical position : flat or shaped surfaces (partitions, linings);  encasements, casings;  embellishments for direct or concealed lighting;  structures to improve acoustical performance (insulation, absorption, diffusion). Technical functions  shafts and ducts for ventilation, air conditioning, smoke extraction;  ceiling voids and chambers for pressurization;  structures to enhance fire safety. NOTE 1 This classification is not exclusive, as the same fibrous plaster work can have several functions. NOTE 2 Table 1 does not mention the use of fibrous plaster externally; as it can only be used under certain conditions (see 4.3.1.2). Fibrous plastering work should be capable of having the usual finishes applied directly to them (e.g. paint, wallpaper) subject to the normal preparatory work applicable for the type of finish.

Key Background 1 timber Anchors - fixings 2a 2b screws + corner plate 2 nails driven in diagonally + securing wads Hangers 3 threaded rod - round wire Intermediate framework 4a 4b 4c 4d primary: U section secondary: U section fibrous plastered collar fastening primary to hanger fibrous plastered collar fastening secondary to primary Attachment 5 wad Cast 6a ceiling Figure 1 a) — Example of diagrams for the installation of fibrous plaster suspended ceilings (sealed system)

Key Background 1 metal Fixings 2a 2b crocodile clip wad Hangers 3 threaded rod - round wire Intermediate framework 4a 4b 4c 4d 4e 4f primary: U section secondary: U section fibrous plastered collar fastening primary to hanger fibrous plastered collar fastening secondary to primary round wire fibrous plastered collar fastening round wire to secondary Attachment 5 wad Casts 6 shaped ceiling Figure 1 b) — Example of diagrams for the installation of fibrous plaster shaped ceilings (sealed system)

Key Background 1 reinforced concrete Fixings 2 threaded bolt Hangers 3 threaded rod Intermediate framework 4a 4b 4c 4d primary channel secondary: furring channel bridle stirrup Attachment 5 screw Casts 6 ceiling Figure 1 c) — Example of diagrams for the installation of fibrous plaster suspended ceilings (screwed system)

Key Background 1a 1b masonry reinforced concrete Anchors 2a 2b 2 nails driven in diagonally anchor Supporting lug 3 threaded rod or bracket Intermediate framework 4a 4b 4c 4d primary : U section secondary: U section fibrous plastered collar fastening primary to hanger fibrous plastered collar fastening secondary to primary Fixing Attachment 5a 5b wad wad Casts 6 wall linings Figure 1 d) — Example of diagrams for the installation of fibrous plaster wall linings (sealed system)

Key Background 1 reinforced concrete Anchors - Fixing 2 threaded bolt + angle bracket Hanger 3 threaded rod Framework 4 U section Casts 5 shaft Figure 2 — Example of diagrams of the installation of fibrous plaster shaft for smoke extraction

p) Lighting of work Checking the lighting conditions, natural and/or artificial, on the site and the appearance of the completed work e.g. angle of illumination. See 5.1.4 To liaise between concerned trades. q) Durability and maintenance In normal temperature, humidity and conditions of use, fibrous plaster is as durable as other building materials e.g. masonry. See Clause 7 r) Safety in case of fire Consideration of the regulatory requirements, according to the type and position of the fibrous plaster casts and the use of the building e.g. PB, HRB:  Euroclass;  fixed protection, fire compartimentation, specific ducts etc.
s) Protection against noise Consideration of the acoustic requirements of the work taking consideration of the use of the surrounding spaces. See 4.4.5 t) Treatment of the acoustics In areas which the purpose requires a faultless acoustics e.g. recording studio, concert hall: Definition of the objects of the work. See 4.4.5 To liaise with acoustic engineer if necessary. u) Energy economy and heat retention Definition for the work the consequences of contractual requirements in accordance to its purpose. See 4.4.6 v) Seismic risks Determination of the risk. Definition of the particular arrangements especially about the reinforcement and the installation system. See 4.3.2.5 w) Site inspection Considering whether a site inspection is necessary when undertaking work is an existing building.
4.1.2 Programme for fibrous plastering works 4.1.2.1 Stages for carrying out a fibrous plastering work Once the fibrous plastering contractor has been notified of the agreement of the contract and the drawings and working details have been submitted to him, the work of the fibrous plasterer is likely to consist of the phases existed in Table 3 below.

 analysis of the project by those responsible for manufacture and installation, in consultation with the estimator;
 if required: request for additional information;
 planning of the project in consultation with the Master of works and the trades affected;
 if required: preparation of additional working details not shown in the tender documents and seeking of the Master of works approval;
 technical organisation of the installation work;
 if required: preparation of the site organisation chart;
 site inspection (suitability and progress) 4 16 2 Fibrous plastering models and fibrous plastering moulds:
 preparation of special models and moulds required for manufacture 2 8 3 Manufacture:
 casting of the fibrous plaster casts in the contractor's workshop, or in a temporary workshop on site, and drying 2 12 4 Site installation:
 setting up on site and arrangements; — —
 if required: erection of scaffolding; — 3
 installation of the fibrous plaster work; 4 12
 if required: dismantling of scaffolding; — —
 drying natural or artificial (to a temperature less than 50 °C); 2 4 5  total period (allowing for possible overlap of tasks) 10 to 12 40 to 50 NOTE 1 The assumed periods of time shown in Table 3 are hypothetical; these periods should be defined for each project, depending on the complexity of the works and the conditions of execution. NOTE 2 The erection and dismantling of large scaffolds, together with the supply of related plant, may be included in the work to be carried out by the fibrous plaster contractor or may be covered in a special contract with a qualified contractor. 4.1.2.2 Conditions required before undertaking the installation of fibrous plaster work (see 5.1) 4.1.2.3 Programme content and work periods The work programme for the fibrous plastering works will form part of the general building programme for the whole project. It should be agreed with the fibrous plastering contractor and the other trades affected before any work starts. If appropriate, the work programme for fibrous plastering should be provided by the fibrous plastering contractor.

c) start date (start of the installation of the fibrous plaster works); See 5.1.3
5.1.4
5.1.5 d) distribution, according to time and location, of the installation of the fibrous plaster works (e.g. by phases, areas, parts of the work etc.);
e) date of handover of the fibrous plaster work;
f) final dates for clearance of plant from site and release of the areas used for welfare, storage and manufacture.
NOTE The contractual dates set out in Table 4 may be provisional. They should be confirmed in the written instruction to start work to be sent to the fibrous plastering contractor at least two weeks before the start of the period of preparation. 4.2 Functions Table 5 below sets out the main (#) and secondary (+) functions and properties of fibrous plastering works depending on their common field of application (see Table 1).

Comments a b c d e f g h Decorating In style or modern # + +
+ +
Building fabric and framework covering Ceilings, suspended ceilings, vaults, domes, soffits, wall linings, independent wall linings
# # # + +
+ Spaces creation Suspended ceilings, partition
# #
Partitioning Partitions
#
Fire protection Reaction to fire (Euroclass A1) # # # # # # # #
Compartimentation of voids and protection of structural elements
+ + +
#
Smoke extraction
# Protection against noise Direct airborne sound insulation +
+
# +
Impact sound insulation
#
+
# +
Acoustic absorption
#
Acoustics Participation in acoustics improvement + # +
#
Thermal insulation Participation in thermal insulation by insulating material combination
+ +
Natural and artificial lighting Skylights to provide lighting from directly overhead, chandeliers, and ceilings lights, cornices and troughs for indirect lighting, seatings and inserts for lighting modules + +
#
Heating Radiant heating ceilings
+
Air conditioning Shafts, ducts, ceiling voids
+
#
Hiding and imitating Capacity to hide (e.g.: pipes, technical equipments) and to imitate (e.g.: imitation beams, improvement of aesthetic defects) +
#
NOTE The column a "Decorating" concerns works consisting of casts set forward from background or supporting structure (see 3.1.16 and Figure 4). This European Standard should not apply to works consisting of casts and embellishments when they are to be applied directly to either new or existing wall or ceiling surfaces, for purely decorative applications (see scope-exclusion 7 and Figures 3 and 4).

Key 1 ceiling centre piece 2 cornice 3 moulding 4 background (continued surface) Figure 3 — Examples of casts applied and fixed directly to wall and ceiling surfaces
Key 1 applied on suspended ceiling 2 spaced cornice 3 applied on wall lining 4 background or supporting structure Figure 4 — Examples of casts applied and fixed directly to surfaces and works spaced from the background or supporting structure (see Table 5 - column a)

Key 1 Starter bar 2 Threated insert 3 Rail insert Figure 5 — Examples of anchor devices built into solid reinforced concrete flooring e) Prestressed backgrounds: For prestressed units yet to be cast, it is advisable to allow for anchoring devices for the spaced fixing accessories to be built in during manufacture (see paragraph d) above).

f) Backgrounds consisting of existing ceilings: The use of these old ceilings or of their frame as a background should only be permitted, after investigation and testing, depending on their construction and provided that they are stable. Examples of such ceilings include:  reinforced in situ plaster ceilings; NOTE 1 These are ceilings formed from in situ plaster applied to elements fixed by nailing or stapling to a background or to elements which may be: - timber or reed laths - metal mesh or laths.  fibrous plaster ceilings;  plasterboard ceilings (cardboard faced boards). NOTE 2 In general, these old ceilings should only be retained in cases such as:  structural need;  need or choice to contribute to thermal resistance;  reasons of architectural and/or know-how preservation. g) Backgrounds not to be used: The use as a background of the following three types of old ceilings, including their framework, is not allowed:  suspended ceilings formed from terra cotta units;  suspended ceilings formed from plaster panels or tiles, laid dry in a special frame;  suspended ceilings in materials of mineral or vegetable origin or metallic or artificial materials. 4.3.2 Particular construction requirements 4.3.2.1 Passage of services equipment The contract documents, together with the working drawings and details should indicate where services equipment (e.g. ducts, lines, cables, pipework) pass through voids in the fibrous plaster work. The information relating to this equipment shall be given to the fibrous plastering contractor in tender documents and shall contain:  nature of the equipment;  size;  method of fixing;  location;  characteristics (e.g. temperature);
...
