EN 13068-1:1999

(Main)

Non-destructive testing - Radioscopic testing - Part 1: Quantitative measurement of imaging properties

Non-destructive testing - Radioscopic testing - Part 1: Quantitative measurement of imaging properties

The procedures given in this standard can be applied to all radioscopic systems which provide an electronic signal to a display unit or an automated image interpretation system. The radioscopic system is analysed for the response to well defined test specimen. The measurement should be performed by a sufficiently equipped and experienced laboratory. From the results, the specifications of the imaging system regarding image properties can be derived. This standard so far does not include imaging properties under moving conditions.

Zerstörungsfreie Prüfung - Radioskopische Prüfung - Teil 1: Quantitative Messung der bildgebenden Eigenschaften

Die Verfahren, die in dieser Norm beschrieben werden, können auf alle radioskopischen Systeme angewendet werden, die ein elektronisches Signal an einen Bildschirm oder an ein automatisches Bildauswertesystem übertragen. Die Antwort des radioskopischen Systems auf genau definierte Prüfkörper wird gemessen. Die Messung sollte von einem ausreichend ausgestatteten Labor ausgeführt werden. Von den Ergebnissen können Spezifikationen der bildgebenden Systeme bezüglich ihrer Bildeigenschaften abgeleitet werden. DieseNorm behandelt nicht die bildgebenden Eigenschaften bei Prüfung in Bewegung.

Essais non destructifs - Contrôle par radioscopie - Partie 1: Mesure quantitative des caractéristiques d'image

Les modes opératoires donnés dans cette norme peuvent être appliqués à tous les systèmes radioscopiques émettant un signal électronique en direction d'un dispositif de visualisation ou d'un système automatique d'interprétation de l'image. La réponse du système radioscopique à des test spécifiques bien définis est analysée. Il convient que les mesures soient effectués par un laboratoire disposant d'un matériel suffisant. On peut déduire des résultats obtenus les spécifications du dispositif d'imagerie en ce qui concerne les caractéristiques de l'image.L

Neporušitveno preskušanje - Radioskopski pregled - 1. del: Kvantitativna meritev lastnosti slike

General Information

Status
Published
Publication Date
07-Dec-1999
ICS
19.100 - Non-destructive testing
Technical Committee
CEN/TC 138 - Non-destructive testing
Drafting Committee
CEN/TC 138/WG 1 - Ionizing radiation testing
Current Stage
9020 - Submission to 2 Year Review Enquiry - Review Enquiry
Start Date
15-Jul-2024
Completion Date
15-Jul-2024
Directive
97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
Mandate
M/071 - Mandate to CEN for standardization in the field of Pressure equipment
Ref Project
SIST EN 13068-1:2000 - Non-destructive testing - Radioscopic testing - Part 1: Quantitative measurement of imaging properties

Buy Standard

EN 13068-1:2000EN 13068-1:2000
PreviousNext
Standard
EN 13068-1:2000
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

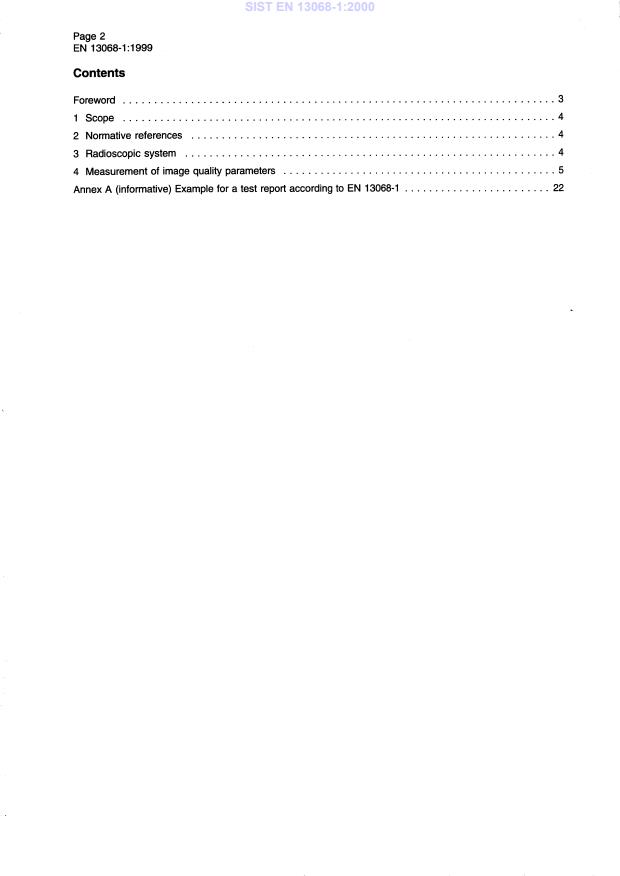

Standards Content (Sample)
