SLOVENSKI STANDARD
01-november-2018
Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz fenolne pene (PF) -
Specifikacija
Thermal insulation products for buildings - Factory made phenolic foam (PF) products -
Specification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus
Phenolharzschaum (PF) - Spezifikation
Produits isolants thermiques pour le bâtiment - Produits manufacturés en mousse
phénolique (PF) - Spécification
Ta slovenski standard je istoveten z: EN 13166:2012+A2:2016/prA3
ICS:
91.100.60 0DWHULDOL]DWRSORWQRLQ Thermal and sound insulating
]YRþQRL]RODFLMR materials
SIST EN en,fr,de
13166:2013+A2:2016/oprA3:2018
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
EN 13166:2012+A2:2016
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA3
September 2018
ICS 91.100.60
English Version
Thermal insulation products for buildings - Factory made
phenolic foam (PF) products - Specification
Produits isolants thermiques pour le bâtiment - Wärmedämmstoffe für Gebäude - Werkmäßig
Produits manufacturés en mousse phénolique (PF) - hergestellte Produkte aus Phenolharzschaum (PF) -
Spécification Spezifikation
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 88.
This draft amendment A3, if approved, will modify the European Standard EN 13166:2012+A2:2016. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13166:2012+A2:2016/prA3:2018 E
worldwide for CEN national Members.
EN 13166:2012+A2:2016/ prA3:2018 (E)

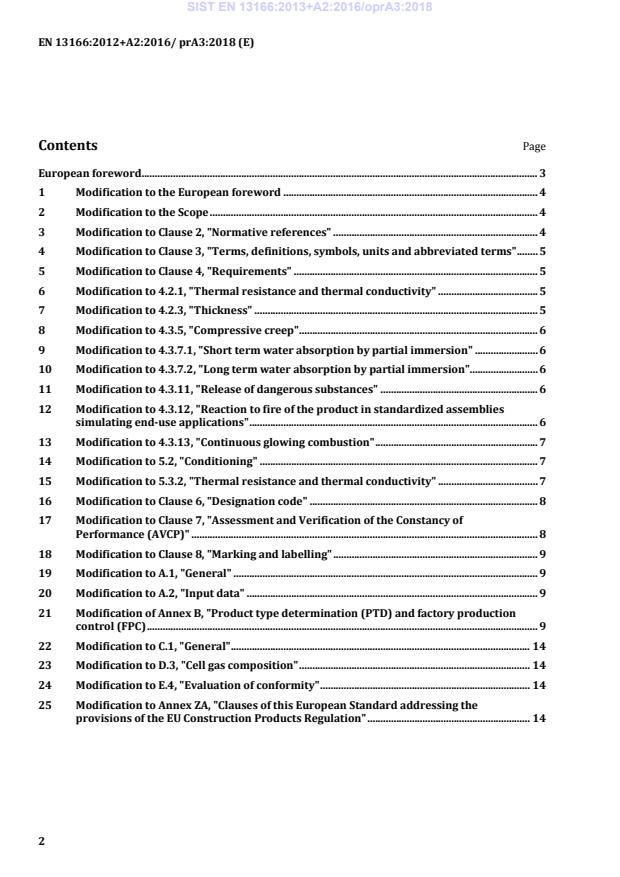

Contents Page
European foreword . 3
1 Modification to the European foreword . 4
2 Modification to the Scope . 4
3 Modification to Clause 2, "Normative references" . 4
4 Modification to Clause 3, "Terms, definitions, symbols, units and abbreviated terms" . 5
5 Modification to Clause 4, "Requirements" . 5
6 Modification to 4.2.1, "Thermal resistance and thermal conductivity" . 5
7 Modification to 4.2.3, "Thickness" . 5
8 Modification to 4.3.5, "Compressive creep" . 6
9 Modification to 4.3.7.1, "Short term water absorption by partial immersion" . 6
10 Modification to 4.3.7.2, "Long term water absorption by partial immersion". 6
11 Modification to 4.3.11, "Release of dangerous substances" . 6
12 Modification to 4.3.12, "Reaction to fire of the product in standardized assemblies
simulating end-use applications" . 6
13 Modification to 4.3.13, "Continuous glowing combustion" . 7
14 Modification to 5.2, "Conditioning" . 7
15 Modification to 5.3.2, "Thermal resistance and thermal conductivity" . 7
16 Modification to Clause 6, "Designation code" . 8
17 Modification to Clause 7, "Assessment and Verification of the Constancy of
Performance (AVCP)" . 8
18 Modification to Clause 8, "Marking and labelling" . 9
19 Modification to A.1, "General" . 9
20 Modification to A.2, "Input data" . 9
21 Modification of Annex B, "Product type determination (PTD) and factory production
control (FPC) . 9
22 Modification to C.1, "General" . 14
23 Modification to D.3, "Cell gas composition" . 14
24 Modification to E.4, "Evaluation of conformity" . 14
25 Modification to Annex ZA, "Clauses of this European Standard addressing the
provisions of the EU Construction Products Regulation" . 14
European foreword
This document (EN 13166:2012+A2:2016/prA3:2018) has been prepared by Technical Committee
CEN/TC 88 “Thermal insulation materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
For relationship with EU Regulations, see informative Annex ZA which is an integral part of this
document.
EN 13166:2012+A2:2016/ prA3:2018 (E)
1 Modification to the European foreword
In the seventh paragraph, delete ", and supports essential requirements of EU Directive(s)."
Delete the ninth paragraph (list of changes) and replace the tenth and eleventh paragraph with the
following:
"Amendment A3 modifies EN 13166:2012 together with its A1 and A2 amendments. This amendment
introduces or corrects:
a) Corrects a mistake in Table 2 - Classes for thickness tolerances, to provide alignment with the test
standard EN 823, specifically rounding up of results to the nearest mm;
b) Modifications to align with the CPR e.g. The term PTD has been replaced by TT;
c) Modifications to 4.3.11 ”Release of dangerous substances”;
d) Removal of 4.3.13 relating to “Continuous Glowing (smouldering) Combustion”;
e) Modifications to Annex ZA."
Delete the twelfth paragraph (list of changes).
In the fifteenth paragraph, add the following standard to the end of the list of standards:
"EN 16069, Thermal insulation products for buildings — Factory made products of polyethylene foam
(PEF) — Specification".
2 Modification to the Scope
Replace the first sentence with:
"This European Standard specifies the characteristics for factory made phenolic foam products, with or
without facings or coatings, which are used for the thermal insulation of buildings. The products are
manufactured in the form of boards and laminates.".
Replace the third paragraph with:
"This standard describes product characteristics and includes procedures for testing, assessment and
verification of constancy of performance (AVCP), marking and labelling.".
Replace the fifth paragraph with:
"Products with a measured thermal resistance lower than 0,40 m ⋅K/W or a measured thermal
conductivity greater than 0,050 W/(m⋅K) at 10 °C are not covered by this standard.".
Replace the sixth paragraph with:
"This standard does not cover in-situ thermal insulation products or products intended to be used for
the thermal insulation of building equipment and industrial installations (covered by EN 14314 [3]).".
3 Modification to Clause 2, "Normative references"
Replace the dated reference to "EN 13172:2012" with an undated reference "EN 13172".
Add the following references:
"EN 16516, Construction products – Assessment of release of dangerous substances – Determination of
emissions into indoor air"
and
"EN ISO 52016-1, Energy performance of buildings – Energy needs for heating and cooling, internal
temperatures and sensible and latent heat loads – Part 1: Calculation procedures (ISO 52016-1)".
4 Modification to Clause 3, "Terms, definitions, symbols, units and abbreviated
terms"
Delete the term and definition for "3.1.6 level" and "3.1.7 class" and modify the numbers of the remaining
terms accordingly.
Replace the term "3.1.8 composite thermal insulation product" with the following:
"3.1.6
composite thermal insulation product
product which can be faced or coated; made from two or more layers bonded together by chemical or
physical adhesion and consisting of at least one factory made thermal insulation material layer
Note 1 to entry: The specification of composite insulation products consisting of two or more layers of
insulation, both covered by an EN insulation product standard, is under consideration by CEN TC88 (see
document prEN 16491).".
Delete the following abbreviated terms:
PTD is Product Type Determination (previously named ITT for Initial Type Test)
VCP is Verification of Constancy of Performance (previously named evaluation of conformity)
Add the following abbreviated term:
"
TT is Type Testing
".
5 Modification to Clause 4, "Requirements"
In the title of the clause, replace the term “Requirements” with “Characteristics”.
6 Modification to 4.2.1, "Thermal resistance and thermal conductivity"
Replace the second paragraph with the following:
"The thermal resistance and thermal conductivity shall be determined in accordance with Annex A and
Annex C and declared according to the following:"
7 Modification to 4.2.3, "Thickness"
Replace the Table 2 with the following:
EN 13166:2012+A2:2016/ prA3:2018 (E)
"Table 2 — Classes for thickness tolerances
Dimensions in millimetres
Tolerances
Nominal
thickness
T1 T2
< 50 ± 2,0 ± 2.0
–2,0
50 to 100 ± 2.0
+3,0
–2,0
> 100 ± 2.0
+5,0
".
8 Modification to 4.3.5, "Compressive creep"
Add the following number and title to the table after the NOTE and renumber the remaining tables in the
document accordingly:
"Table 7 — Testing periods for compressive creep"
9 Modification to 4.3.7.1, "Short term water absorption by partial immersion"
Replace the current title of the clause with "Short term water absorption by partial immersion".
10 Modification to 4.3.7.2, "Long term water absorption by partial immersion"
Replace the first paragraph with the following:
"Long term water absorption by partial immersion, W , shall be determined in accordance with
lp
EN 12087 Method 1. No test result shall exceed the value given in Table 8 for the declared level.".
11 Modification to 4.3.11, "Release of dangerous substances"
Replace the text in the clause with the following:
"If the release of dangerous substances into indoor air is tested, this shall be done according to
EN 16516.
NOTE An informative database covering European and national provisions on dangerous substances is
available at the Construction web site on EUROPA accessed through: http://ec.europa.eu/growth/tools-
databases/cp-ds.".
12 Modification to 4.3.12, "Reaction to fire of the product in standardized
assemblies simulating end-use applications"
Replace the third paragraph with the following:
"The number of the selected test configuration of assembly (Table 5 of EN 15715:2009) which is used in
the test shall be quoted with the Euroclass.".
1 See for reference the LCI list of the European Commission "Agreed EU-LCI values"
(http://ec.europa.eu/growth/sectors/construction/eu-lci/values_en).
13 Modification to 4.3.13, "Continuous glowing combustion"
Delete the whole clause.
14 Modification to 5.2, "Conditioning"
Replace the first sentence with the following:
"No special conditioning of the test specimens is needed unless otherwise specified in the test standard
except for the determination of initial thermal conductivity, compressive creep and apparent density.
...
