Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for "Sonnenbrand basalt"

Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for "Sonnenbrand basalt"

Scope
This European Standard specifies methods for the determination of the presence of signs of "Sonnenbrand" in basalt and the disintegration of aggregate produced from basalt showing such signs.
The test is applicable to pieces of rock, and graded basalt coarse aggregates.

Prüfverfahren für thermische Eigenschaften und Verwitterungsbeständigkeit von Gesteinskörnungen - Teil 3 : Kochversuch für Sonnenbrand-Basalt

Anwendungsbereich
Diese Europäische Norm legt Verfahren für den Nachweis von Anzeichen eines "Sonnenbrandes" in
Basalt und für die Bestimmung des Zerfalls von Gesteinskörnungen aus Basalt fest, der derartige
Anzeichen aufweist.
Die Prüfung ist auf Gesteinsstücke und abgestufte grobe Basalt-Gesteinskörnungen anwendbar.

Essais pour déterminer les propriétés thermiques et l'altérabilité des granulats - Partie 3 : Essai d'ébullition pour les basaltes coup de soleil

La présente Norme européenne spécifie les méthodes permettant de déterminer la présence de signes de "coup de soleil" dans le basalte et la désintégration des granulats produits à partir de basalte présentant de tels signes.
L'essai est applicable aux morceaux de roche brute et aux granulats de basalte grossiers calibrés.

Preskusi lastnosti agregatov zaradi termičnih in vremenskih vplivov - 3. del: Preskus s kuhanjem zaradi vpliva sonca na bazald, metoda »Sonnenbrand bazalt«

General Information

Status
Published
Publication Date
20-Mar-2001
Withdrawal Date
30-Nov-2003
ICS
91.100.15 - Mineral materials and products
Technical Committee
CEN/TC 154 - Aggregates
Drafting Committee
CEN/TC 154/SC 6 - Test methods
Current Stage
9060 - Closure of 2 Year Review Enquiry - Review Enquiry
Start Date
02-Dec-2022
Completion Date
02-Dec-2022
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/125 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on aggregates
Ref Project
SIST EN 1367-3:2002 - Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for "Sonnenbrand basalt"

Relations

Corrected By
EN 1367-3:2001/AC:2004 - Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for Sonnenbrand basalt
Effective Date
22-Dec-2008
Parent
EN 1367-4:1998 - Tests for thermal and weathering properties of aggregates - Part 4: Determination of drying shrinkage
Effective Date
22-Dec-2008

Buy Standard

EN 1367-3:2002EN 1367-3:2002
PreviousNext
Standard
EN 1367-3:2002
English language
8 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2002
3UHVNXVLODVWQRVWLDJUHJDWRY]DUDGLWHUPLþQLKLQYUHPHQVNLKYSOLYRYGHO
3UHVNXVVNXKDQMHP]DUDGLYSOLYDVRQFDQDED]DOGPHWRGDª6RQQHQEUDQGED]DOW©
Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for
"Sonnenbrand basalt"
Prüfverfahren für thermische Eigenschaften und Verwitterungsbeständigkeit von
Gesteinskörnungen - Teil 3 : Kochversuch für Sonnenbrand-Basalt
Essais pour déterminer les propriétés thermiques et l'altérabilité des granulats - Partie 3 :
Essai d'ébullition pour les basaltes coup de soleil
Ta slovenski standard je istoveten z: EN 1367-3:2001
ICS:
91.100.15 Mineralni materiali in izdelki Mineral materials and
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 1367-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2001
ICS 91.100.15
English version
Tests for thermal and weathering properties of aggregates - Part
3 : Boiling test for “Sonnenbrand basalt”
Essais pour déterminer les propriétés thermiques et Prüfverfahren für thermische Eigenschaften und
l'altérabilité des granulats - Partie 3 : Essai d'ébullition pour Verwitterungsbeständigkeit von Gesteinskörnungen - Teil 3
les basaltes coup de soleil : Kochversuch für Sonnenbrand-Basalt
This European Standard was approved by CEN on 19 January 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1367-3:2001 E
worldwide for CEN national Members.

Page 2

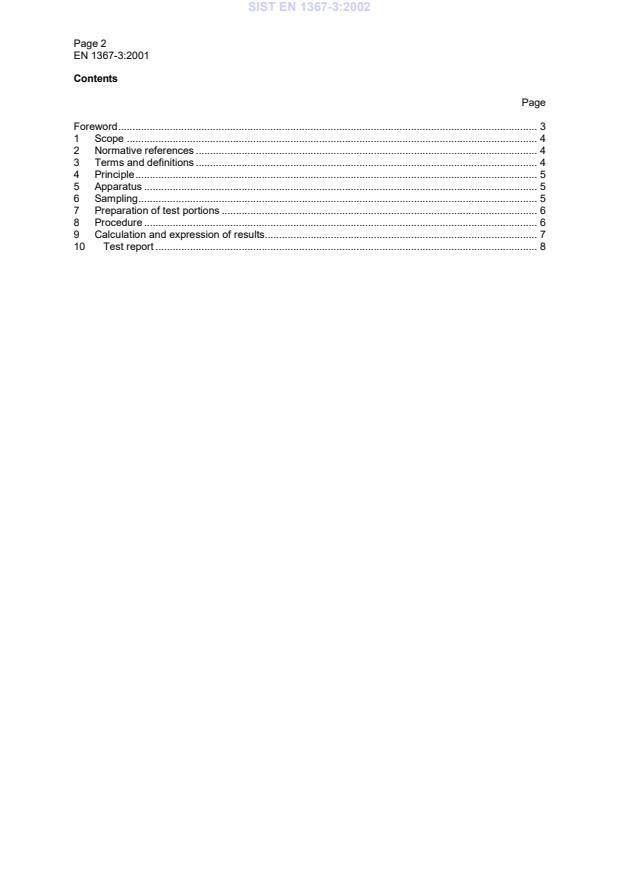

Contents
Page
Foreword. 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Principle. 5
5 Apparatus . 5
6 Sampling. 5
7 Preparation of test portions . 6
8 Procedure. 6
9 Calculation and expression of results. 7
10 Test report . 8

Page 3
EN 1367-3: 2001
Foreword
This European Standard has been prepared by Technical Committee CEN/TC 154, "Aggregates", the
secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2001, and conflicting national standards
shall be withdrawn at the latest by December 2003.
This European Standard forms part of a series of tests for thermal and weathering properties of
aggregates. Test methods for other properties of aggregates will be covered by Parts of the following
European Standards:
EN 932 Tests for general properties of aggregates
EN 933 Tests for geometrical properties of aggregates
EN 1097 Tests for mechanical and physical properties of aggregates
EN 1744 Tests for chemical properties of aggregates
EN 13179 Tests for filler aggregate used in bituminous mixtures
The other Parts of EN 1367 will be:
Part 1: Determination of resistance to freezing and thawing
Part 2: Magnesium sulfate test
Part 4: Determination of drying shrinkage
Part 5: Determination of resistance to thermal shock
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.

Page 4
1 Scope
This European Standard specifies methods for the determination of the presence of signs of
"Sonnenbrand" in basalt and the disintegration of aggregate produced from basalt showing such
signs.
The test is applicable to pieces of rock, and graded basalt coarse aggregates.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references, the latest edition of the publication referred to applies (including
amendments).
EN 932-1 Tests for general properties of aggregates - Part 1:Methods for sampling
EN 932-2 Tests for general properties of aggregates - Part 2: Methods for reducing laboratory
samples
EN 932-5 Tests for general properties of aggregates - Part 5: Common equipment and
calibration
EN 933-1 Tests for geometrical properties of aggregates - Part 1: Determination of partical size
distribution - Sieving method
EN 933-2 Tests for geometrical properties of aggregates - Part 2: Determination of particle size
distribution - Test sieves, nominal size of apertures
EN 1097-2 Tests for mechanical and physical properties of aggregates - Part 2: Methods for the
determination of resistance to fragmentation
3 Terms and definitions
For the purposes of this European Standard, the following terms and definitions apply.
3.1
Sonnenbrand
type of rock decay that may be present in some basalts and which manifests itself under the influence
of atmospheric conditions
NOTE Sonnenbrand starts with the appearance of grey/white star-shaped spots. Usually
hairline cracks are generated radiating out from the spots and interconnecting them. This
reduces the strength of the mineral fabric, and as a result the rock decays to small particles.
Depending on the source this process
...
