Standards Content (Sample)

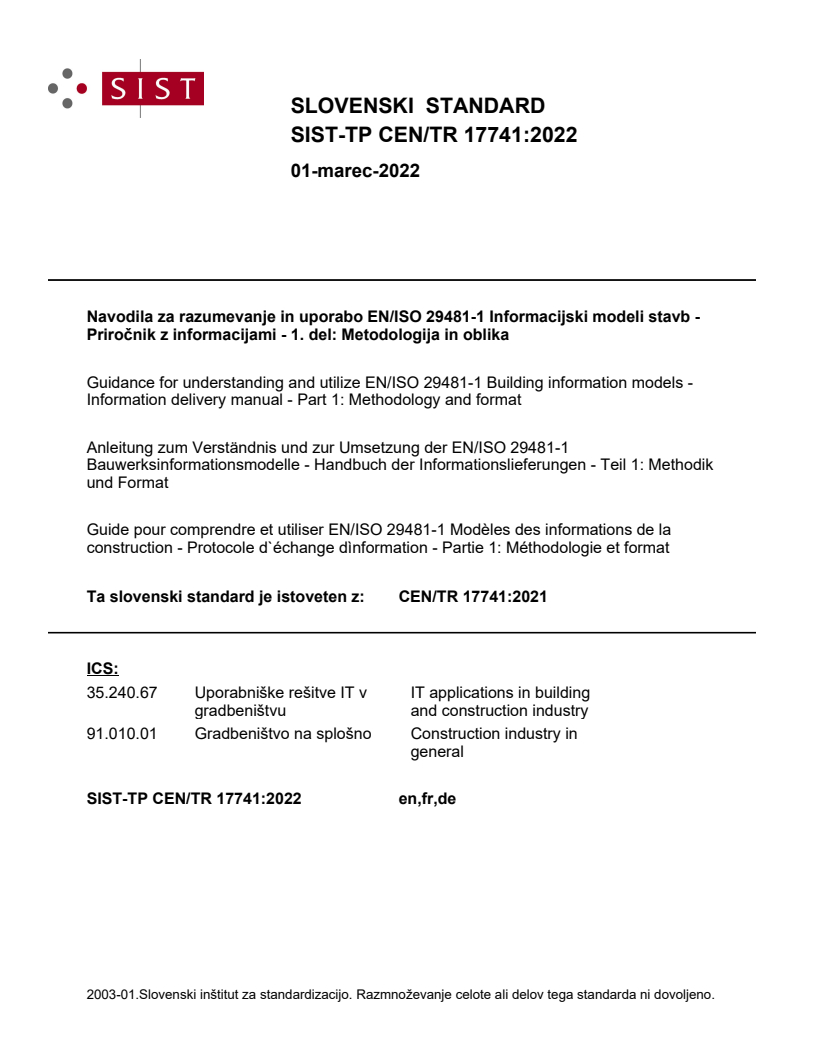

SLOVENSKI STANDARD
01-marec-2022
Navodila za razumevanje in uporabo EN/ISO 29481-1 Informacijski modeli stavb -
Priročnik z informacijami - 1. del: Metodologija in oblika
Guidance for understanding and utilize EN/ISO 29481-1 Building information models -
Information delivery manual - Part 1: Methodology and format
Anleitung zum Verständnis und zur Umsetzung der EN/ISO 29481-1
Bauwerksinformationsmodelle - Handbuch der Informationslieferungen - Teil 1: Methodik
und Format
Guide pour comprendre et utiliser EN/ISO 29481-1 Modèles des informations de la
construction - Protocole d`échange dìnformation - Partie 1: Méthodologie et format
Ta slovenski standard je istoveten z: CEN/TR 17741:2021
ICS:
35.240.67 Uporabniške rešitve IT v IT applications in building
gradbeništvu and construction industry
91.010.01 Gradbeništvo na splošno Construction industry in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

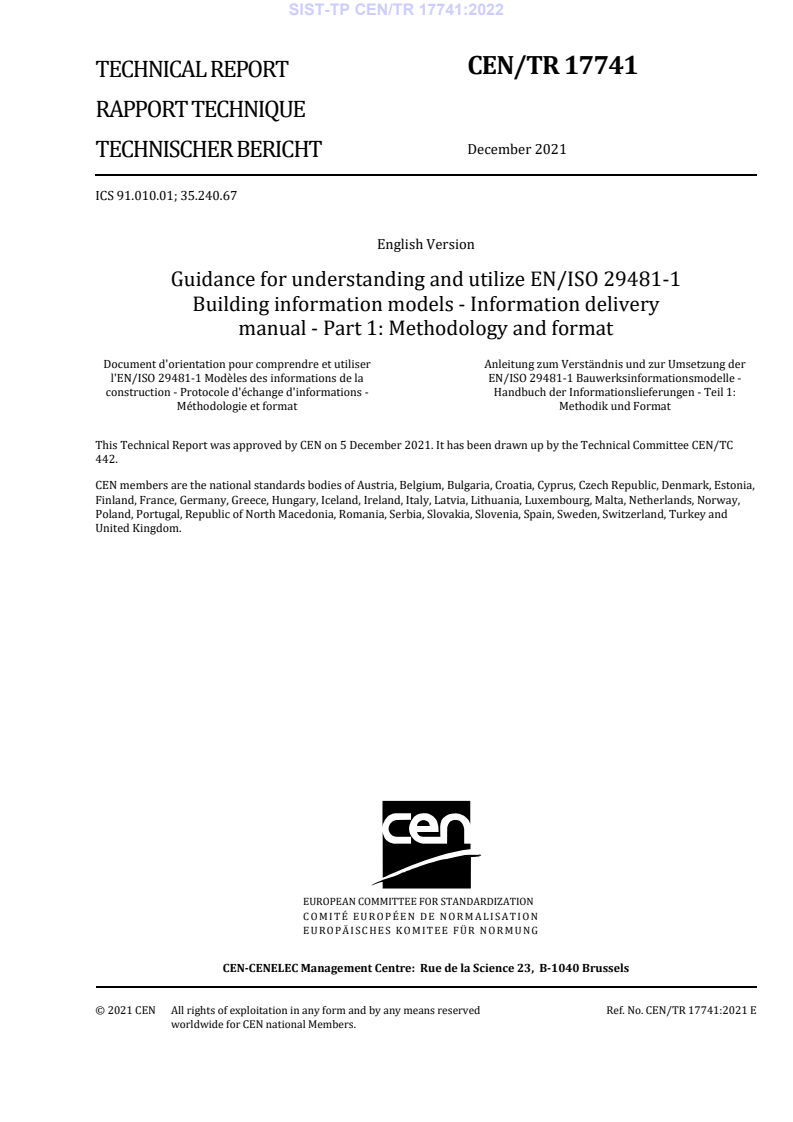

CEN/TR 17741
TECHNICAL REPORT
RAPPORT TECHNIQUE
December 2021
TECHNISCHER BERICHT
ICS 91.010.01; 35.240.67
English Version
Guidance for understanding and utilize EN/ISO 29481-1
Building information models - Information delivery
manual - Part 1: Methodology and format
Document d'orientation pour comprendre et utiliser Anleitung zum Verständnis und zur Umsetzung der
l'EN/ISO 29481-1 Modèles des informations de la EN/ISO 29481-1 Bauwerksinformationsmodelle -
construction - Protocole d'échange d'informations - Handbuch der Informationslieferungen - Teil 1:
Méthodologie et format Methodik und Format
This Technical Report was approved by CEN on 5 December 2021. It has been drawn up by the Technical Committee CEN/TC
442.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 17741:2021 E
worldwide for CEN national Members.

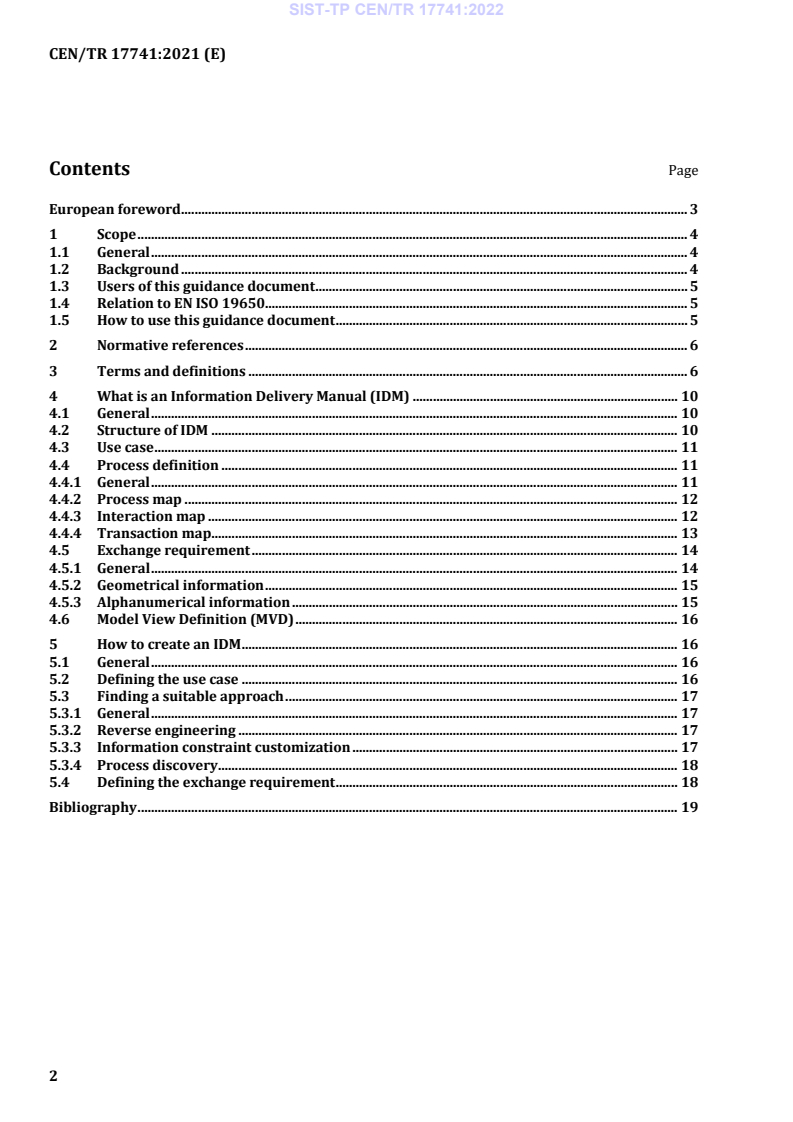

Contents Page
European foreword . 3
1 Scope . 4
1.1 General . 4
1.2 Background . 4
1.3 Users of this guidance document . 5
1.4 Relation to EN ISO 19650. 5
1.5 How to use this guidance document . 5
2 Normative references . 6
3 Terms and definitions . 6
4 What is an Information Delivery Manual (IDM) . 10
4.1 General . 10
4.2 Structure of IDM . 10
4.3 Use case . 11
4.4 Process definition . 11
4.4.1 General . 11
4.4.2 Process map . 12
4.4.3 Interaction map . 12
4.4.4 Transaction map . 13
4.5 Exchange requirement . 14
4.5.1 General . 14
4.5.2 Geometrical information . 15
4.5.3 Alphanumerical information . 15
4.6 Model View Definition (MVD) . 16
5 How to create an IDM . 16
5.1 General . 16
5.2 Defining the use case . 16
5.3 Finding a suitable approach . 17
5.3.1 General . 17
5.3.2 Reverse engineering . 17
5.3.3 Information constraint customization . 17
5.3.4 Process discovery . 18
5.4 Defining the exchange requirement . 18
Bibliography . 19
European foreword
This document (CEN/TR 17741:2021) has been prepared by Technical Committee CEN/TC 442 “Building
Information Modeling”, the secretariat of which is held by SN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
1 Scope
1.1 General
This document provides guidance on how to develop an information delivery manual (IDM) in
compliance with EN ISO 29481-1 hereafter referred to as the “IDM standard”. This document explains the
core components and development process of the IDM methodology in non-technical terms. This
document aims to help users and software vendors understand and utilize the IDM standard in defining
information requirements and deliverables.
The technical implementation of IDM in a data model, model view definition (MVD), is excluded from
this document’s scope. IDM standard introduces the MVD concept but does not specify it in detail.
This document also utilizes some transaction framework concepts introduced in EN ISO 29481-2. The
technical XML- and XSD-schema definitions supporting the software solutions are excluded from this
document.
1.2 Background
This document primary reference is the IDM standard part 1 (EN ISO 29481-1:2017) (hereafter referred
to as IDM standard). This document helps in understanding and using the IDM standard to describe
information delivery. This document also uses some concepts described in part 2 of the IDM standard
series (EN ISO 29481-2:2016). Considerable efforts have been made to align this document with the
terminology and concepts introduced in EN ISO 19650-1 and EN ISO 19650-2.
Information delivery manual specification (hereafter referred to as the IDM specification) provides help
in getting the full benefit from building information modelling (BIM). When the required information is
available using BIM to support a construction process or use case, and the quality of information is
satisfactory, the process itself is much improved. The IDM standard provides a method to create the
specification.
A complete IDM specification should support two perspectives: user requirements and technical
solutions. User requirements describe the needed information delivery and the overall process in which
information exchange occurs. The technical solution defines an exchange requirement model using a
harmonized data schema.
EN ISO 29481-1 provides a methodology and a harmonized format to specify information requirements.
It offers a framework and method to determine the needed information delivery with process maps and
exchange requirements.
EN ISO 29481-2 specifies an interaction framework and format to describe “coordination acts” between
actors or parties within an appointment. It facilitates interoperability between software applications
used in the construction process to promote digital collaboration between actors in the building
construction process. Also, it provides a basis for accurate, reliable, repeatable, and high-quality
information exchange.
An MVD defines a data model or a subset of an existing data model that is necessary to support one or many specific data
exchange requirements. MVDs are used in software development and should have a machine-readable representation. An MVD
that is dedicated to a single IDM can be used to filter information in software tools to a specific exchange requirement. [SOURCE:
EN ISO 29481-1:2017, 5.6.4].
1.3 Users of this guidance document
This document is intended for clients, architects, engineers, contractors, surveyors, authorities, and other
parties who need to specify or implement information delivery. Originally, the IDM standard was focused
on defining model-based deliverables, but the possible application of the standard is much broader. It can
be used to specify any requirement for information delivery.
Although software developers and technology adapters are not the primary audiences of this document,
it may help them better understand existing IDMs and develop their own IDMs.
1.4 Relation to EN ISO 19650
The IDM standard is a process-oriented methodology used to describe the information exchange
requirements for a particular purpose which may complement the information-management approach
outlined in the EN ISO 19650 series. Simultaneously, the IDM standard pre-dates EN ISO 19650 and has
a broader scope of application beyond model-based information exchanges.
Figure 1 — IDM specifications can support the definition of the information requirements and to
verify the information deliverables
The scope of EN ISO 19650-1 stipulates that information deliverables “should be described clearly within
the OIR, PIR, AIR or EIR”. Figure 1 depicts how IDMs can support the definition of information
deliverables for these requirements. The figure also shows how the IDM standard can be applied to use
cases outside of the EN ISO 19650 series scope. These use cases may include information requirements
for regulatory processes or other common demands such as national information standards. In addition,
Figure 1 presents how the IDM that is used to specify the exchange requirement can be used to verify the
information delivery.
1.5 How to use this guidance document
This document is split into two sections:
— The first section explains the IDM components and can be used to get a better understanding of the
IDM structure.
— The second section gives and overview of the IDM methodology and steps through how to create an
IDM.
In both sections the IDM standard can be used in parallel to this document.
Several similar terms are used in this document, the following list helps clarify these terms:
— IDM standard: this is the EN ISO 29481-1 standard itself (as indicated in 1.2 above);
— IDM specification: this is information delivery manual specification (as indicated in 1.2 above); and
— IDM method: This is the general method of developing an IDM.
As noted above, this document has references to part 2 of the IDM standard series (EN ISO 29481-2). To
avoid confusion, in these cases the standard code is mentioned in its full length i.e. EN ISO 29481-2.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 29481-1, Building information models — Information delivery manual — Part 1: Methodology and
format (ISO 29481-1)
EN ISO 29481-2, Building information models — Information delivery manual — Part 2: Interaction
framework (ISO 29481)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 29481-1 and
EN ISO 29481-2 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
activities
tasks that are needed to complete deliverables
[SOURCE: EN 15221-5:2011, 3.1]
3.2
actor
person, organization or organizational unit involved in a construction process
Note 1 to entry: Organizational units include, but are not limited to, departments, teams.
Note 2 to entry: In the context of this document, construction processes take place during the delivery phase and
the operational phase.
[SOURCE: EN ISO 29481-1:2017, 3.1, as modified by EN ISO 19650-1:2018, 3.2.1: The words “such as a
department, team, etc.” have been removed; Note 1 and 2 to entry have been added.]
3.3
appointment
agreed instruction for the provision of information concerning works, goods or services
Note 1 to entry: This term is used whether or not there is a formal appointment between the parties.
[SOURCE: EN ISO 19650-1:2018, 3.2.2]
3.4
asset
item, thing or entity that has potential or actual value to an organization
[SOURCE: ISO 55000:2014, 3.2.1, as modified by EN ISO 19650-1:2017, 3.2.8: Note 1, 2 and 3 to entry
have been removed.]
3.5
business process
partially ordered set of enterprise activities that can be executed to achieve some desired end-result in
pursuit of a given objective of an organization
[SOURCE: ISO/IEC/IEEE 24765:2017, 3.445]
3.6
BIM execution plan
plan that specifies in detail how the information management aspects of the appointment will be carried
out by the delivery team
Note 1 to entry: The pre-appointment BIM execution plan focuses on the delivery team’s proposed approach to
information management, and their capability and capacity to manage information.
[SOURCE: EN ISO 19650-2:2018, 3.1.3.1]
3.7
end user
person receiving facility services
Note 1 to entry: A visitor could also be an end user.
[SOURCE: EN 15221-5:2011, 3.4]
3.8
exchange information requirements
EIR
information requirements in relation to an appointment
[SOURCE: EN ISO 19650-1:2018, 3.3.6]
3.9
Industry Foundation Classes
IFC
conceptual data schema and exchange file format for building information modelling (BIM) data
Note 1 to entry: See EN ISO 16739-1:2020.
3.10
information
interpretable representation of data in a formalized manner suitable for communication, interpretation
or processing
Note 1 to entry: Information can be processed by human or automatic means.
[SOURCE: EN ISO 19650-1:2018, 3.3.1]
3.11
information requirement
IR
specification for what, when, how and for whom information is to be produced
[SOURCE: EN ISO 19650-1:2018, 3.3.2]
3.12
level of information need
framework which defines the extent and granularity of information
[SOURCE: EN ISO 19650-1:2018, 3.3.16]
3.13
process
set of interrelated or interacting activities that use inputs to deliver an intended result
Note 1 to entry: Whether the “intended result” of a process is called output, product or service depends on the
context of the reference.
Note 2 to entry: Inputs to a process are generally the outputs of other processes and outputs of a process are
generally the inputs to other processes.
Note 3 to entry: Two or more interrelated and interacting processes in series can also be referred to as a process.
Note 4 to entry: Processes in an organization are generally planned and carried out under controlled conditions
to add value.
Note 5 to entry: A process where the conformity of the resulting output cannot be readily or economically
validated is frequently referred to as a “special process”.
Note 6 to entry: This constitutes one of the common terms and core definitions for ISO management system
standards given in Annex SL of the Consolidated ISO Supplement to the ISO/IEC Directives, Part 1. The original
definition has been modified to prevent circularity between process and output and Notes 1 to 5 to entry have been
added.
[SOURCE: EN ISO 9000:2015, 3.4.1]
3.14
business process model and notation
BPMN
graphical representation for specifying dynamic business processes in a business process model
[SOURCE: ISO/IEC 19510:2013]
3.15
project information requirements
PIR
information requirements in relation to the delivery of an asset
[SOURCE: EN ISO 19650-1:2018, 3.3.5]
3.16
purpose
context and conditions of data/record use at a specific point in time, and within a specific setting
[SOURCE: ISO/TS 21089:2018, 3.117.1]
3.17
organization information requirements
OIR
information requirements in relation to organizational objectives
[SOURCE: ISO 19650-1:2018, 3.3.3]
3.18
requirement
need or expectation that is stated, generally implied or obligatory
Note 1 to entry: “Generally implied” means that it is custom or common practice for the organization and
interested parties that the need or expectation under consideration is implied.
Note 2 to entry: A specified requirement is one that is stated, for example in documented information.
[SOURCE: ISO/IEC 27000:2018, 3.56]
3.19
reverse engineering
design process that consists in analysing the shape, dimensions and function of a finished part or
prototype and using this information to produce a similar product
[SOURCE: ISO/TS 14253-4:2010, 3.1]
3.20
specification
document stating requirements
EXAMPLE Quality manual, quality plan, technical drawing, procedure document, work instruction.
Note 1 to entry: A specification can be related to activities (e.g. procedure document, process specification and
test specification), or products (e.g. product specification, performance specification and drawing).
Note 2 to entry: It can be that, by stating requirements, a specification additionally is stating results achieved by
design and development and thus in some cases can be used as a record.
[SOURCE: EN ISO 9000:2015, 3.8.7]
3.21
use case
textual and graphical depiction of the actors and operations that address information
exchange in the context of a set of specific tasks for a workflow performed by different systems or devices
[SOURCE: ISO/TR 28380-1:2014, 2.13]
3.22
use case
typical application stated at a high level for the purposes of extracting
technical considerations or comparing usages across fields
[SOURCE: ISO/IEC TR 20547-2:2018, 3.2.1]
4 What is an information delivery manual (IDM)
4.1 General
The term IDM is used both for the standardized method that describes information requirements for a
specific purpose, and the actual specification that is the outcome of
...
Das Dokument CEN/TR 17741:2021 bietet eine umfassende Leitlinie zur Entwicklung eines Information Delivery Manuals (IDM), das den Anforderungen des IDM-Standards gemäß EN ISO 29481-1 entspricht. Es ist besonders wertvoll für Benutzer und Softwareanbieter, die den IDM-Standard zur Definition von Informationsanforderungen und -lieferungen verstehen und anwenden möchten. Ein zentraler Stärke des Dokuments ist die klare und verständliche Erklärung der Kernkomponenten sowie des Entwicklungsprozesses der IDM-Methodologie. Dies ermöglicht es auch Nicht-Technikern, relevante Aspekte der IDM-Standardisierung leichter zu erfassen und anzuwenden. Die Verwendung nicht-technischer Begriffe fördert die Zugänglichkeit und Anwendung des Standards in unterschiedlichen Kontexten, wodurch das Dokument als praktisches Werkzeug für alle Interessierten dient. Ein weiterer wichtiger Aspekt ist, dass das Dokument einige Konzepte des Transaktionsrahmens aus EN ISO 29481-2 integriert. Dies zeigt die Relevanz und Vernetzung des IDM-Standards mit anderen Normen im Bereich der Gebäudedatenmodellierung und fördert ein ganzheitliches Verständnis für die Anwendung und Integration in bestehende Systeme. Es ist allerdings zu beachten, dass die technische Umsetzung des IDM in einem Datenmodell, einschließlich der Definition des Model View Definition (MVD), nicht Teil des Umfangs dieses Dokuments ist. Das Dokument setzt zwar den MVD-Konzeptansatz in Bezug auf den IDM-Standard voraus, geht jedoch nicht ins Detail über deren spezifische technische Anforderungen oder Definitionen. Insgesamt stellt CEN/TR 17741:2021 eine bedeutende Ressource dar, die den Zugang zum IDM-Standard erleichtert und dessen Nutzung fördert. Die Stärkung des Verständnisses und die praktische Anwendbarkeit des IDM-Standards sind von hoher Relevanz für die Verbesserung der Qualität und Konsistenz von Informationsanforderungen und -lieferungen im Bereich Building Information Modeling (BIM).
SIST-TP CEN/TR 17741:2022は、EN/ISO 29481-1に基づく情報配信マニュアル（IDM）の開発方法についてのガイダンスを提供しています。特に、この標準は、IDM標準の核心コンポーネントと開発プロセスを非技術的な用語で説明している点が大きな特徴です。これにより、ユーザーやソフトウェアベンダーがIDM標準を活用し、情報要件や成果物を定義する手助けをします。 この文書の強みは、IDM標準の理解を深めるための明確な指針を提供し、複雑な技術情報を排除していることです。また、EN ISO 29481-2で導入された取引フレームワークの概念も活用されており、これにより関連するプロセスやコンセプトがより明確になります。特に、IDM標準がモデルビュー定義（MVD）の概念を導入していることも重要であり、ユーザーがその利点を理解する助けとなります。 ただし、技術的な実装やXML、XSDスキーマの詳細は文書の範囲外であるため、実際の実装には別途リソースが必要となります。しかし、この文書はIDM標準を活用するための基本的な理解を提供するため、広範なユーザーにとって非常に有益です。 要するに、CEN/TR 17741:2021は、IDM標準の核心を把握するための重要なリソースであり、その範囲と強みは、建設業界における情報管理の効率化に寄与するものです。ユーザーにとって、実践的かつ実用的な情報を提供する本標準は、情報配信マニュアルの開発に必須の指針となるでしょう。
CEN/TR 17741:2021 표준 문서는 EN ISO 29481-1 정보 전달 매뉴얼(IDM 표준)에 대한 개발 가이드를 제공합니다. 이 문서는 IDM 방법론의 핵심 요소 및 개발 프로세스를 비기술적인 용어로 설명하여, 사용자가 IDM 표준을 이해하고 활용할 수 있도록 돕는 것을 목표로 하고 있습니다. 표준의 주요 강점은 IDM 표준에 대한 명확한 가이드를 제공함으로써, 사용자와 소프트웨어 공급업체가 정보 요구사항 및 산출물을 정의하는 데 있어서 일관된 접근 방식을 유지할 수 있도록 지원한다는 점입니다. 또한, IDM 방법론의 개발 과정에 대한 체계적인 설명을 통해 관련 분야의 비전문가들도 쉽게 이해하고 적용할 수 있는 기반을 제공합니다. 이 문서는 또한 EN ISO 29481-2에서 소개된 일부 거래 프레임워크 개념을 활용하고 있으며, IDM의 기술적 구현인 데이터 모델과 모델 뷰 정의(MVD)에 대해서는 범위에서 제외하고 있습니다. 이는 사용자들이 IDM 표준에 대한 이론적 이해를 돕는 데 집중하고 있음을 의미하며, 실제 적용에 있어 기술적 세부 사항은 다른 문서에서 참조해야 함을 시사합니다. 결과적으로, CEN/TR 17741:2021 문서는 IDM 표준을 활용하고자 하는 모든 이해관계자들에게 중요한 자원이 될 것이며, 정보 전달 매뉴얼 개발을 위한 체계적인 접근 방식을 제공함으로써 건축 정보 모델링 분야에 기여할 것으로 기대됩니다.
The CEN/TR 17741:2021 standard entitled "Guidance for understanding and utilize EN/ISO 29481-1 Building information models - Information delivery manual - Part 1: Methodology and format" offers substantial insights into the development of an information delivery manual (IDM) compliant with the IDM standard. It effectively demystifies the IDM methodology by presenting its core components and the development process in accessible, non-technical terms. This aspect ensures that both users and software vendors can grasp and apply the IDM standard confidently, enhancing their capability to define information requirements and deliverables effectively. One of the significant strengths of this document is its practical orientation, making it a pertinent resource for stakeholders involved in the construction and building information modeling (BIM) sectors. The guidance provided is particularly relevant given the increasing complexity of projects and the need for precise information management. By utilizing the IDM standard, professionals can streamline communication, mitigate misunderstandings, and ensure that information exchanges meet established requirements, thereby improving project outcomes. Moreover, the document highlights the integration of transaction framework concepts introduced in EN ISO 29481-2, which further enriches the context for users looking to implement the IDM in their workflows. Although it deliberately excludes technical implementation details such as XML- and XSD-schema definitions, this exclusion serves to focus on the core methodologies and formats that underpin the IDM standard. By doing so, the CEN/TR 17741:2021 document maintains a clear scope that allows users to concentrate on the foundational elements necessary for effectively utilizing the IDM. In conclusion, the CEN/TR 17741:2021 serves as a vital resource for anyone looking to understand and utilize the IDM standard in their projects. Its concise and practical approach ensures that users can navigate the complexities of building information modeling while applying the principles of the IDM standard effectively.
La norme CEN/TR 17741:2021, intitulée "Lignes directrices pour comprendre et utiliser EN/ISO 29481-1 modèles d'information de bâtiment - Manuel de livraison d'information - Partie 1 : Méthodologie et format", offre un cadre essentiel pour le développement d'un manuel de livraison d'information (IDM) conformément à la norme IDM citée. Son objectif principal est de simplifier la compréhension et l'application de la norme IDM pour les utilisateurs et les fournisseurs de logiciels, ce qui en fait un document crucial dans le domaine de la modélisation des informations de bâtiment. L'une des forces de cette norme réside dans sa capacité à présenter des composants clés et le processus de développement de la méthodologie IDM dans des termes non techniques. Cette approche permet d'abattre les barrières linguistiques souvent associées à des normes techniques complexes, rendant ainsi la norme IDM plus accessible à un large éventail de professionnels du secteur, allant des concepteurs aux entrepreneurs en passant par les gestionnaires de projet. En outre, la norme intègre des concepts de transaction introduits dans la norme EN ISO 29481-2, augmentant ainsi sa pertinence pour les utilisateurs qui souhaitent établir des exigences d'information et des livrables clairs. Bien que cette norme ne traite pas de la mise en œuvre technique de l'IDM dans un modèle de données ou de la définition de la vue de modèle (MVD), elle fournit néanmoins une base solide pour la compréhension des principes fondamentaux nécessaires à la mise en œuvre efficace de la norme IDM. La norme CEN/TR 17741:2021 s'avère donc être un outil précieux pour tous les acteurs impliqués dans la création et la gestion de modèles d'information de bâtiment, garantissant un meilleur alignement des exigences et facilitant la coopération entre les différents participants. En favorisant une compréhension claire de la norme IDM, ce document contribue à l'optimisation des processus dans le domaine du bâtiment et des infrastructures.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
