EN 17235:2024
(Main)Permanent anchor devices and safety hooks
Permanent anchor devices and safety hooks
This document specifies assessment of characteristics for anchor devices and safety hooks intended to be used with personal fall protection systems to prevent persons from falling and arrest falls, both permanently fixed on or into buildings and civil engineering works.
The safety hooks covered under this standard are also intended to for the attachment of mobile roof ladders or work platforms and have an opening of not less than 80 mm and not more than 150 mm, see Figure 2. The height h of the hook is at least 120 mm.
NOTE The personal fall protection systems are used according to EN 363:2018.
This standard also covers the fastening kits used to secure the anchor devices or safety hooks on or into the load bearing structure.
It specifies essential dimensions, materials and criteria to assess the performance of representative load bearing structures.
This standard describes the methods and criteria to assess the performance and durability of the following anchor kits:
- Kit A (Anchor kit incorporating a single anchor device);
- Kit B (Anchor kit incorporating a safety hook);
- Kit C (Anchor kit incorporating a horizontal wire anchor line);
- Kit D (Anchor kit incorporating a horizontal rail anchor line).
The kits described in this standard consist usually of several components. They are intended to be evaluated as a kit in its entirety.
This standard is not applicable to:
- Temporary anchor devices according to EN 795:2012;
- Facilities for roof access according to EN 516:2006;
- Permanently fixed ladders on roofs according to EN 12951:2004.
- Permanent anchor devices and safety hooks fixed with nails.
Permanente Anschlageinrichtungen und Sicherheitsdachhaken
Dieses Dokument legt die Bewertung der Merkmale von Anschlageinrichtungen und Sicherheitsdachhaken fest, die zur Verwendung mit persönlichen Absturzschutzsystemen zur Verhinderung des Absturzes von Personen und zum Auffangen von Stürzen vorgesehen sind und die dauerhaft an oder in Gebäuden und Bauwerken angebracht sind.
Die unter dieses Dokument fallenden Sicherheitsdachhaken sind auch für die Befestigung von mobilen Dachleitern oder Arbeitsbühnen vorgesehen und verfügen über eine Öffnung von mindestens 80 mm und höchstens 150 mm, siehe Bild 2. Die Höhe h des Hakens beträgt mindestens 120 mm.
ANMERKUNG Die persönlichen Absturzschutzsysteme werden nach EN 363:2018 verwendet.
Dieses Dokument umfasst auch die Befestigungskits, die zur Befestigung der Anschlageinrichtungen oder Sicherheitsdachhaken an oder in der lasttragenden Struktur verwendet werden.
Es legt wesentliche Abmessungen, Werkstoffe und Kriterien zur Bewertung der Leistungsfähigkeit repräsentativer lasttragender Strukturen fest.
Dieses Dokument beschreibt die Verfahren und Kriterien zur Bewertung der Leistungsfähigkeit und Dauerhaftigkeit der folgenden Anschlagkits:
Kit A (Anschlagkit mit einer Einzelanschlageinrichtung);
Kit B (Anschlagkit mit einem Sicherheitsdachhaken);
Kit C (Anschlagkit mit einer horizontalen Drahtseilführung);
Kit D (Anschlagkit mit einer horizontalen Schienenführung).
Die in diesem Dokument beschriebenen Kits bestehen in der Regel aus mehreren Bestandteilen. Sie sind dazu vorgesehen, als Kit in seiner Gesamtheit bewertet zu werden.
Dieses Dokument ist nicht anwendbar für:
- abnehmbare Anschlageinrichtungen nach EN 795:2012;
- Einrichtungen zum Betreten des Daches nach EN 516:2006;
- fest installierte Dachleitern nach EN 12951:2004;
- permanente Anschlageinrichtungen und Sicherheitsdachhaken, die mit Nägeln befestigt sind.
Dispositifs d'ancrage et systèmes d'ancrage avec crochet de sécurité fixés à demeure
Le présent document spécifie l'évaluation des caractéristiques des dispositifs d'ancrage et des systèmes d'ancrage avec crochet de sécurité destinés à être utilisés avec des systèmes de protection individuelle contre les chutes afin d'empêcher les personnes de tomber et d'arrêter les chutes, fixés à demeure sur ou dans les bâtiments et les ouvrages de génie civil.
Les systèmes d'ancrage avec crochets de sécurité couverts par la présente norme sont également destinés à la fixation d'échelles de toiture mobiles ou de plateformes de travail et présentent une ouverture d'au moins 80 mm et d'au plus 150 mm, voir Figure 2. La hauteur h du crochet doit être au moins égale à 120 mm.
NOTE Les systèmes de protection individuelle contre les chutes sont utilisés conformément à l'EN 363:2018.
La présente norme couvre également les kits de fixation utilisés pour fixer les dispositifs d'ancrage ou les systèmes d'ancrage avec crochet de sécurité sur ou dans la structure porteuse.
Elle spécifie les dimensions, les matériaux et les critères essentiels pour évaluer la performance des structures porteuses représentatives.
La présente norme décrit les méthodes et les critères permettant d'évaluer la performance et la durabilité des kits d'ancrage suivants :
- le kit A (kit d'ancrage comprenant un dispositif d'ancrage unique) ;
- le kit B (kit d'ancrage intégrant un système d'ancrage avec crochet de sécurité) ;
- le kit C (kit d'ancrage comprenant un support d'assurage flexible horizontal) ;
- le kit D (le kit d'ancrage intégrant un support d'assurage rigide horizontal).
Les kits décrits dans la présente norme sont généralement constitués de plusieurs composants. Ils sont destinés à être évalués en tant que kit dans leur globalité.
Cette norme ne s'applique pas :
- aux dispositifs d'ancrage temporaires conformes à l'EN 795:2012 ;
- aux installations pour accès au toit conformes à l'EN 516:2006 ;
- aux échelles de couvreur fixées à demeure conformes à l'EN 12951:2004 ;
- aux dispositifs d'ancrage et systèmes d'ancrage avec crochet de sécurité fixés à demeure à l'aide de pointes.
Trajne sidrne naprave in varnostni kavlji
Ta dokument določa zahteve za sidrne naprave in varnostne kavlje, ki so trajno pritrjeni na stavbe in konstrukcije.
Sidrne naprave naj bi preprečile in ustavile padec oseb, do katerega lahko pride v stavbah in gradbenih objektih ter na njih. Sidrne naprave se pritrdijo tako, da so del gradbenega objekta, in so namenjene zagotavljanju varnosti pri uporabi ali obratovanju gradbenega objekta v skladu z Uredbo (EU) št. 305/2011 Evropskega parlamenta in Sveta.
Sidrne naprave so namenjene za pritrditev sistemov za osebno zaščito pred padci z višine v skladu s standardom EN 363.
Varnostni kavlji se uporabljajo kot sidrne točke, na katere so pritrjeni sistemi za osebno zaščito pred padci z višine v skladu s standardom EN 363. Varnostni kavlji so namenjeni tudi za pritrditev mobilnih strešnih lestev ali delovnih ploščadi.
Ta dokument zajema tudi pritrdilne elemente, ki se uporabljajo za pritrditev sidrnih naprav ali varnostnih kavljev v nosilno konstrukcijo.
Določa bistvene mere, materiale in zahteve glede nosilnosti.
Ta dokument vsebuje zahteve za naslednje sisteme:
– sistem z eno sidrno točko;
– sistem z varnostnim kavljem;
– sistem z žično sidrno vrvjo;
– sistem s sidrno tirnico.
V tem dokumentu so opisani sistemi, ki običajno vključujejo več komponent. Ovrednotiti jih je treba kot celoten sistem.
Ta dokument vključuje tudi zahteve za trajnost, označevanje, namestitev, sestavo, dokumentiranje, delovanje in vzdrževanje.
Ta dokument se ne uporablja za:
– začasna sidrišča v skladu s standardom EN 795;
– opremo za dostop na streho v skladu s standardom EN 516;
– trajno pritrjene strešne lestve v skladu s standardom EN 12951.
General Information
Standards Content (Sample)

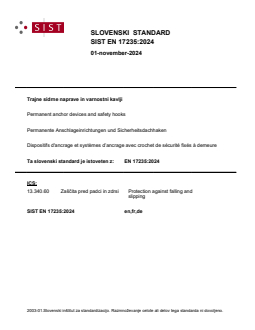

SLOVENSKI STANDARD
01-november-2024
Trajne sidrne naprave in varnostni kavlji
Permanent anchor devices and safety hooks
Permanente Anschlageinrichtungen und Sicherheitsdachhaken
Dispositifs d'ancrage et systèmes d’ancrage avec crochet de sécurité fixés à demeure
Ta slovenski standard je istoveten z: EN 17235:2024
ICS:
13.340.60 Zaščita pred padci in zdrsi Protection against falling and
slipping
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 17235
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2024
EUROPÄISCHE NORM
ICS 13.340.60
English Version
Permanent anchor devices and safety hooks
Dispositifs d'ancrage et systèmes d'ancrage avec Permanente Anschlageinrichtungen und
crochet de sécurité fixés à demeure Sicherheitsdachhaken
This European Standard was approved by CEN on 24 June 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17235:2024 E
worldwide for CEN national Members.

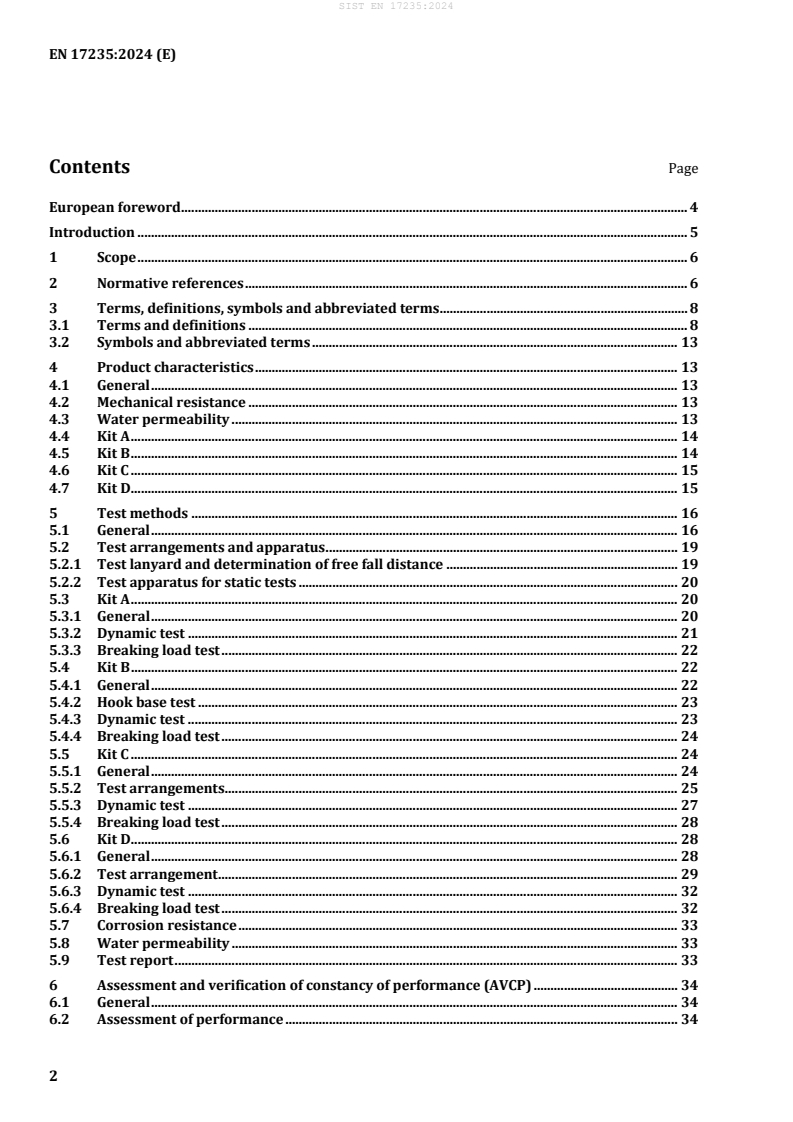

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, symbols and abbreviated terms . 8
3.1 Terms and definitions . 8
3.2 Symbols and abbreviated terms . 13
4 Product characteristics . 13
4.1 General . 13
4.2 Mechanical resistance . 13
4.3 Water permeability . 13
4.4 Kit A . 14
4.5 Kit B . 14
4.6 Kit C . 15
4.7 Kit D . 15
5 Test methods . 16
5.1 General . 16
5.2 Test arrangements and apparatus . 19
5.2.1 Test lanyard and determination of free fall distance . 19
5.2.2 Test apparatus for static tests . 20
5.3 Kit A . 20
5.3.1 General . 20
5.3.2 Dynamic test . 21
5.3.3 Breaking load test . 22
5.4 Kit B . 22
5.4.1 General . 22
5.4.2 Hook base test . 23
5.4.3 Dynamic test . 23
5.4.4 Breaking load test . 24
5.5 Kit C . 24
5.5.1 General . 24
5.5.2 Test arrangements . 25
5.5.3 Dynamic test . 27
5.5.4 Breaking load test . 28
5.6 Kit D . 28
5.6.1 General . 28
5.6.2 Test arrangement . 29
5.6.3 Dynamic test . 32
5.6.4 Breaking load test . 32
5.7 Corrosion resistance . 33
5.8 Water permeability . 33
5.9 Test report . 33
6 Assessment and verification of constancy of performance (AVCP) . 34
6.1 General . 34
6.2 Assessment of performance . 34
6.2.1 General . 34
6.2.2 Test samples, testing and assessment criteria . 35
6.3 Verification of constancy of performance . 35
6.3.1 Factory production control (FPC) . 35
6.3.2 Initial inspection of factory and of FPC . 37
6.3.3 Continuous surveillance of FPC . 37
6.3.4 Audit-testing of samples. 37
Annex ZA (informative) Relationship of this European Standard with Regulation (EU)
No. 305/2011 . 38
ZA.1 Scope and relevant characteristics . 38
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 40
ZA.3 Assignment of AVCP tasks . 40
Bibliography . 42
European foreword
This document (EN 17235:2024) has been prepared by Technical Committee CEN/TC 128 “Roof covering
products for discontinuous laying and products for wall cladding”, the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2025, and conflicting national standards shall be
withdrawn at the latest by June 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a standardization request addressed to CEN/CENELEC by the
European Commission. The Standing Committee of the EFTA States subsequently approves these
requests for its Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
A reliable anchor device and safety hook are essential components to attach any personal fall protection
equipment.
This document is intended to act as a complementary standard for existing European Standards covering
other components used in fall protection systems.
Permanent anchor devices and safety hooks intend to prevent persons from falling and to arrest falls
used in and on buildings and civil engineering works. These products meant to be secured in such a way
that they are part of the construction work and intended to ensure the safety in use or in the functioning
of a construction work.
The purpose and scope of application and the performance characteristics are based on the need that, in
the case of fall from height, anchor kits and safety hook kits bear the dynamic force peak value generated
by the mass of one or more persons, including any equipment carried.
This document is intended for the testing of new products before placing them on the market and gives
only minimum per
...
