EN 16228-5:2014/FprA1

Drilling and foundation equipment - Safety - Part 5: Diaphragm walling equipment

This European Standard, together with part 1, deals with all significant hazards for diaphragm walling equipment when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4).
The requirements of this part are complementary to the common requirements formulated in EN 16228-1:2014.
This document does not repeat the requirements from EN 16228-1, but adds or replaces the requirements for application for diaphragm walling equipment.

Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 5: Geräte für Schlitzwandarbeiten

Machines de forage et de fondation - Sécurité - Partie 5 : Machines pour parois moulées

Au 9e alinéa, deuxième tiret, remplacer le titre par ce qui suit :
« - Partie 2 : Machines mobiles de forage de génie civil et de géotechnique dans le sol ou un mélange roche et sol ».

Oprema za vrtanje in temeljenje - Varnost - 5. del: Oprema za izdelavo membranskih sten - Dopolnilo A1

General Information

• Status: Not Published
• Publication Date: 24-Apr-2022
• Withdrawal Date: 24-Jul-2022
• ICS: 93.020 - Earthworks. Excavations. Foundation construction. Underground works
• Technical Committee: CEN/TC 151 - Construction equipment and building material machines - Safety
• Drafting Committee: CEN/TC 151/WG 3 - Drilling equipment - Safety
• Current Stage: 5060 - Closure of Vote - Formal Approval
• Start Date: 21-Oct-2021
• Completion Date: 21-Oct-2021
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 16228-5:2014/kprA1:2021 - Drilling and foundation equipment - Safety - Part 5: Diaphragm walling equipment

Relations

• Merged Into: EN 16228-5:2014+A1:2021 - Drilling and foundation equipment - Safety - Part 5: Diaphragm walling equipment
• Effective Date: 03-Nov-2021
• Amends: EN 16228-5:2014 - Drilling and foundation equipment - Safety - Part 5: Diaphragm walling equipment
• Effective Date: 09-Nov-2016

Overview

EN 16228-5:2014/FprA1 is a European standard developed by CEN focusing on the safety of diaphragm walling equipment used in drilling and foundation work. This standard is a supplement to EN 16228-1:2014 and addresses the specific hazards and safety requirements associated with diaphragm walling machines throughout their entire lifecycle, including reasonable misuse scenarios anticipated by manufacturers. It ensures that the equipment meets rigorous safety criteria to protect operators and site personnel during use.

The document applies to equipment used in the construction and foundation sector, particularly machinery for creating diaphragm walls-critical structural elements in underground construction and excavation.

Key Topics

• Hazard Identification and Risk Management: The standard expands on mechanical hazards typical for diaphragm walling rigs, including mechanical strength inadequacies, the risk of overturning or roll-over, failures in pulley and drum design, rope selection issues, and the ejection of cutter teeth.
• Mechanical Safety Requirements: It outlines controls to prevent hazards such as crushing, shearing, drawing-in, and entanglement while handling grabs or milling cutters.
• Control Systems for Safety: Specific provisions address safe operation of winches, including lockable mode selectors and hold-to-run control types that limit rotation speed during rope changing, preventing accidental operation of multiple winches simultaneously.
• Free Fall Function Controls: Safety measures mandate that free fall modes on winches must include either automatic or manual deactivation, with activation requiring simultaneous actuation of two independent controls to avoid accidental releases.
• Operating and Travel Positions: Guidelines ensure machines are configured to prevent tipping or roll-over during tramming and operation. Compliance options include adherence to referenced standards such as EN 16228-1, EN 16228-4, and other related machine safety standards.
• Verification of Safety Requirements: The standard details requirements for testing and verifying compliance with protective measures, including newly added clauses around operating positions and slewing brakes.

Applications

• Construction and Civil Engineering: Ensuring safe operation of diaphragm walling rigs in large-scale underground construction projects such as tunnels, deep basements, and retaining walls.
• Foundation Engineering: Use by contractors and manufacturers involved in foundation equipment design, manufacturing, and site deployment to meet European safety regulations.
• Equipment Manufacturers: Provides design specifications and testing protocols to meet regulatory compliance for safety features on diaphragm walling machines.
• Site Safety Managers and Engineers: Helps in hazard identification, risk mitigation, and operator training focused on diaphragm walling equipment safety.
• Regulatory Compliance: Supports conformity assessment for EU machinery directives by defining essential safety requirements.

Related Standards

• EN 16228-1:2014+prA1:2019 – General safety requirements for drilling and foundation equipment.
• EN 16228-4:2014+prA1:2019 – Safety requirements for foundation equipment.
• EN 474-12:2017 – Requirements for cable excavators and earth-moving machinery safety, important for carrier machines.
• EN 474-5:2006+A3:2013 – Safety aspects of hydraulic excavators.
• EN 13000 and EN 13001 – Safety standards for mobile cranes and lifting machinery.
• ISO/IEC Safety Standards for construction equipment – General guidance on machinery safety and protective measures.

Practical Value

By implementing EN 16228-5:2014/FprA1, manufacturers and users can minimize equipment-related accidents, improve operator safety, and ensure compliance with European health and safety directives. This standard enhances operational safety by addressing unique mechanical risks and operational conditions specific to diaphragm walling machinery, contributing to safer foundation construction environments.

---

Keywords: EN 16228-5:2014, diaphragm walling equipment safety, drilling equipment safety, foundation machinery standards, mechanical hazards, winch controls, free fall safety, construction equipment safety, European standards, CEN safety standards, foundation construction machinery compliance.

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 16228-5:2014/oprA1:2019
01-julij-2019
Oprema za vrtanje in temeljenje - Varnost - 5. del: Oprema za izdelavo
membranskih sten - Dopolnilo A1
Drilling and foundation equipment - Safety - Part 5: Diaphragm walling equipment
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 5: Geräte für
Schlitzwandarbeiten
Machines de forage et de fondation - Sécurité - Partie 5 : Machines pour parois moulées
Ta slovenski standard je istoveten z: EN 16228-5:2014/prA1
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
93.020 Zemeljska dela. Izkopavanja. Earthworks. Excavations.
Gradnja temeljev. Dela pod Foundation construction.
zemljo Underground works
SIST EN 16228-5:2014/oprA1:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN 16228-5:2014/oprA1:2019

SIST EN 16228-5:2014/oprA1:2019

DRAFT
EUROPEAN STANDARD
EN 16228-5:2014
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
May 2019
ICS 93.020
English Version
Drilling and foundation equipment - Safety - Part 5:
Diaphragm walling equipment
Machines de forage et de fondation - Sécurité - Partie 5 Geräte für Bohr- und Gründungsarbeiten - Sicherheit -
: Machines pour parois moulées Teil 5: Geräte für Schlitzwandarbeiten
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 151.

This draft amendment A1, if approved, will modify the European Standard EN 16228-5:2014. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16228-5:2014/prA1:2019 E
worldwide for CEN national Members.

SIST EN 16228-5:2014/oprA1:2019
EN 16228-5:2014/prA1:2019 (E)

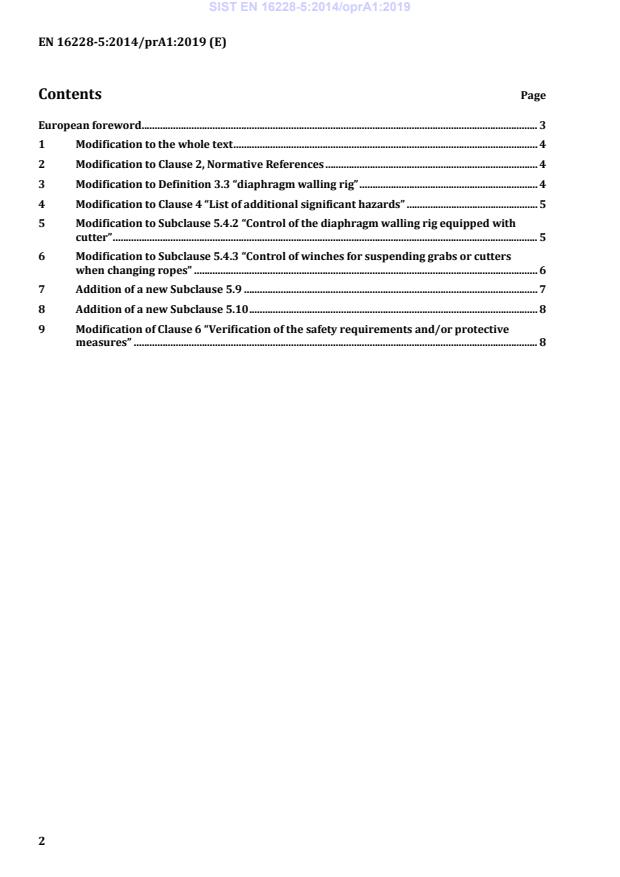

Contents Page
European foreword . 3
1 Modification to the whole text . 4
2 Modification to Clause 2, Normative References . 4
3 Modification to Definition 3.3 “diaphragm walling rig” . 4
4 Modification to Clause 4 “List of additional significant hazards” . 5
5 Modification to Subclause 5.4.2 “Control of the diaphragm walling rig equipped with
cutter” . 5
6 Modification to Subclause 5.4.3 “Control of winches for suspending grabs or cutters
when changing ropes” . 6
7 Addition of a new Subclause 5.9 . 7
8 Addition of a new Subclause 5.10 . 8
9 Modification of Clause 6 “Verification of the safety requirements and/or protective
measures” . 8

SIST EN 16228-5:2014/oprA1:2019
EN 16228-5:2014/prA1:2019 (E)
European foreword
This document (EN 16228-5:2014/prA1:2019) has been prepared by Technical Committee CEN/TC 151
“Construction equipment and building material machines - Safety”, the secretariat of which is held by
DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a standardization request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of EN
16228-5:2014.
SIST EN 16228-5:2014/oprA1:2019
EN 16228-5:2014/prA1:2019 (E)
1 Modification to the whole text
In the entire document, for all instances found:
Replace “EN 16228-1:2014” with “EN 16228-1:2014+prA1:2019”.
Replace “EN 16228-4:2014” with “EN 16228-4:2014+prA1:2019”.
Replace “EN 16228-5:2014” with “EN 16228-5:2014+prA1:2019”.
2 Modification to Clause 2, Normative References
Delete the following references
"EN 474-12:2006+A1:2008, Earth-moving machinery - Safety - Part 12: Requirements for cable excavators"
Add the following references
"EN 16228-4, Drilling and foundation equipment - Safety - Part 4: Foundation equipment
prEN 474-12:2017, Earth-moving machinery - Safety - Part 12: Requirements for cable excavators"
3 Modification to Definition 3.3 “diaphragm walling rig”
In Note 2 to Entry, second indent, delete “or EN 13001-1”.
In first indent, add, after “complete machine”,
"satisfying this part of EN 16228”.
In second indent, add, after “carrier machine”,
"able to withstand dynamic loads as specified in 5.2”.
In third indent of Note 2 to entry, add, after “EN 474 12”,
“satisfy this requirement.
NOTE 3 to entry For mobile cranes, compliance with EN 13000 alone is not sufficient to satisfy this requirement.”
In last indent, add, before “hydraulic excavator”,
“foundation
...
