FprEN 17170

Fans - Safety requirements

This document is applicable to all types of fans other than fans that are household appliances intended for household and similar purposes. The fan can be either a complete machine or a partly completed machine intended to be incorporated into/or assembled with other machinery or other partly completed machinery or equipment.
NOTE   Fans intended for household purposes are typically used on desks, ceilings, free standing or, partitions (e.g. window and wall fans) and ducts not listing here built in components for other household appliances. They are assumed to have mainly electricity related risks. These fans are in the scope of the EN 60335 series. Appliances not intended for normal household use but which nevertheless because of their similar use may be a source of danger to the public, such as appliances intended for use in shops, in light industry and on farms, are within the scope of the EN 60335 series of standards.
This document deals with all significant hazards, hazardous situations and events relevant to fans during transport, assembly and installation, commissioning and use as well as decommissioning as defined in EN ISO 12100:2010, Annex B, when they are used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer.
This document  applies to electrically driven fans and, apart from the hazards related to the drives, it also applies to fans driven from other energy sources.
Further safety measures might be required for the additional hazards due to the application.
This document  does not deal with the hazards due to the use of fans in a potentially explosive atmosphere (see e.g. EN 14986).

Ventilatoren - Sicherheitsanforderungen

Ventilateurs - Prescriptions de sécurité

Ventilatorji - Varnostne zahteve

General Information

• Status: Not Published
• Publication Date: 22-Sep-2019
• Withdrawal Date: 22-Mar-2020
• ICS: 23.120 - Ventilators. Fans. Air-conditioners
• Technical Committee: CEN/TC 156 - Ventilation for buildings
• Drafting Committee: CEN/TC 156/WG 17 - Fans
• Current Stage: 5098 - Decision to abandon - Formal Approval
• Completion Date: 21-Dec-2021
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: oSIST prEN 17170:2017 - Fans - Safety requirements

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2017
Ventilatorji - Varnostne zahteve
Fans - Safety requirements
Ventilatoren - Sicherheitsanforderungen
Ventilateurs - Prescriptions de sécurité
Ta slovenski standard je istoveten z: prEN 17170
ICS:
23.120 =UDþQLNL9HWUQLNL.OLPDWVNH Ventilators. Fans. Air-
QDSUDYH conditioners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
prEN 17170
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2017
ICS 23.120
English Version
Fans - Safety requirements
Ventilateurs - Prescriptions de sécurité Ventilatoren - Sicherheitsanforderungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 156.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17170:2017 E
worldwide for CEN national Members.

prEN 17170:2017 (E)

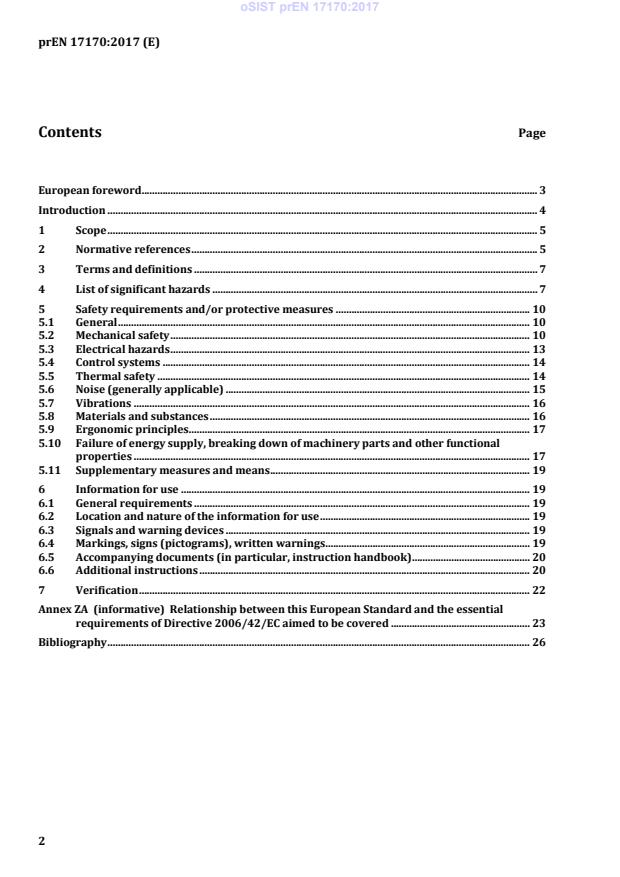

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 7
4 List of significant hazards . 7
5 Safety requirements and/or protective measures . 10
5.1 General . 10
5.2 Mechanical safety . 10
5.3 Electrical hazards . 13
5.4 Control systems . 14
5.5 Thermal safety . 14
5.6 Noise (generally applicable) . 15
5.7 Vibrations . 16
5.8 Materials and substances . 16
5.9 Ergonomic principles . 17
5.10 Failure of energy supply, breaking down of machinery parts and other functional
properties . 17
5.11 Supplementary measures and means . 19
6 Information for use . 19
6.1 General requirements . 19
6.2 Location and nature of the information for use . 19
6.3 Signals and warning devices . 19
6.4 Markings, signs (pictograms), written warnings . 19
6.5 Accompanying documents (in particular, instruction handbook) . 20
6.6 Additional instructions . 20
7 Verification . 22
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered . 23
Bibliography . 26

prEN 17170:2017 (E)
European foreword
This document (prEN 17170:2017) has been prepared by Technical Committee CEN/TC 156 “Ventilation
for buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 2006/42/EC.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
prEN 17170:2017 (E)
Introduction
This document is a type C standard as stated in EN ISO 12100:2010.
The machinery concerned and the extent to which hazards, hazardous situations and hazardous events
are covered are indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B
standards, the provisions of this type C standard take precedence over the provisions of the other
standards, for machines that have been designed and built according to the provisions of this type C
standard.
Where specific type C standards exist for particular applications of fans, the provisions of these type C
standards shall take precedence over the provisions of this standard.
In addition, machinery should comply as appropriate with EN ISO 12100:2010 for general machinery
hazards which are not covered by this standard.
prEN 17170:2017 (E)
1 Scope
This European Standard is applicable to all types of fans other than fans that are household appliances
intended for domestic use.
NOTE 1 Fans intended for household purposes are typically used on desks, ceilings, free standing or, partitions
(e.g. window and wall fans) and ducts. They are assumed to have mainly electricity related risks. These fans are in
the scope of EN 60335-2-80.
It deals with all significant hazards, hazardous situations and events relevant to fans during transport,
assembly and installation, commissioning and use as defined in EN ISO 12100:2010, Annex B, when they
are used as intended and under conditions of misuse which are reasonably foreseeable by the
manufacturer (see 3,24).
NOTE 2 This standard deals a.) with standalone fan units, ready for operation, complete with control systems
and all other features that ensure safety in use and b.) with fans for installation (e.g. in ventilation systems) or
incorporation with other equipment where control systems and all other features that ensure safety are provided
by others, (details should be provided by the fan manufacturer).
This European Standard applies to electrically driven fans and, apart from the hazards related to the
drives, it shall also apply to fans driven from other energy sources.
Further safety measures may be required for the additional hazards due to the application.
This European Standard does not deal with the hazards due to the use of fans in a potentially explosive
atmosphere (see e.g. EN ISO 14986).
This European Standard is not applicable to fans, which are manufactured before the date of its
publication.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 349, Safety of machinery; minimum gaps to avoid crushing of parts of the human body
EN ISO 14120, Safety of machinery - Guards - General requirements for the design and construction of fixed
and movable guards (ISO 14120)
EN 1037, Safety of machinery — Prevention of unexpected start-up
EN 1672-2, Food processing machinery — Basic concepts — Part 2: Hygiene requirements
EN 60204-1, Safety of machinery - Electrical equipment of machines - Part 1: General requirements
EN 61000-6-4, Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for
industrial environments
EN 61310-1:2008, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for
visual, auditory and tactile signals
EN 61511-1, Functional safety — Safety instrumented systems for the process industry sector — Part 1:
Framework, definitions, system, hardware and software requirements (IEC 61511-1)
prEN 17170:2017 (E)
EN 62061, Safety of machinery - Functional safety of safety-related electrical, electronic and programmable
electronic control systems
EN ISO 4413:2010, Hydraulic fluid power - General rules and safety requirements for systems and their
components (ISO 4413:2010)
EN ISO 4414:2010, Pneumatic fluid power - General rules and safety requirements for systems and their
components (ISO 4414:2010)
EN ISO 4414, Pneumatic fluid power - General rules and safety requirements for systems and their
components (ISO 4414)
EN ISO 4871, Acoustics - Declaration and verification of noise emission values of machinery and equipment
(ISO 4871)
EN ISO 5136, Acoustics - Determination of sound power radiated into a duct by fans and other air-moving
devices - In-duct method (ISO 5136)
EN ISO 11200, Acoustics - Noise emitted by machinery and equipment - Guidelines for the use of basic
standards for the determination of emission sound pressure levels at a work station and at other specified
positions (ISO 11200)
EN ISO 11205, Acoustics - Noise emitted by machinery and equipment - Engineering method for the
determination of emission sound pressure levels in situ at the work station and at other specified positions
using sound intensity (ISO 11205:2003)
EN ISO 11688-1, Acoustics — Recommended practice for the design of low-noise machinery and equipment,
Part 1: Planning
EN ISO 11688-2:2000, Acoustics — Recommended practice for the design of low-noise machinery and
equipment, Part 2: Introduction to the physics of low-noise design
EN ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk reduction
(ISO 12100:2010)
EN ISO 12499, Industrial fans - Mechanical safety of fans - Guarding (ISO 12499)
EN ISO 13732-1, Ergonomics of the thermal environment - Methods for the assessment of human responses
to contact with surfaces - Part 1: Hot surfaces (ISO 13732-1)
EN ISO 13732-3, Ergonomics of the thermal environment - Methods for the assessment of human responses
to contact with surfaces - Part 3: Cold surfaces (ISO 13732-3)
EN ISO 13849-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles
for design
EN ISO 13850, Safety of machinery - Emergency stop function - Principles for design (ISO 13850)
EN ISO 13857:2008, Safety of machinery - Safety distances to prevent hazard zones being reached by upper
and lower limbs (ISO 13857:2008)
EN ISO 19353:2016, Safety of machinery - Fire prevention and fire protection (ISO 19353:2015)
IEC 60417-DB, Graphical symbols for use on equipment
prEN 17170:2017 (E)
ISO 21940-11, Mechanical vibration — Rotor balancing — Part 11: Procedures and tolerances for rotors
with rigid behaviour
ISO 7000, Graphical symbols for use on equipment — Registered symbols
