EN IEC 61439-1:2021/FprAA:2025 (prAA) is a CLC draft amendment to the European/IEC standard for low‑voltage switchgear and controlgear assemblies - Part 1: General rules. The amendment updates the general rules to reflect new scope items (notably assemblies supplied from batteries or renewable energy sources) and replaces Annex J on Electromagnetic Compatibility (EMC). It is intended for manufacturers, test laboratories, specifiers and conformity bodies involved in design, verification and CE marking of LV assemblies.

Key topics and technical requirements

• Scope update: explicit inclusion of assemblies supplied from batteries or renewable energy sources.
• EMC Annex replacement (Annex J): comprehensive EMC framework aligned with IEC/CISPR references:
  • Definitions of ports (power, signal, enclosure, functional earth) to classify interfaces for EMC purposes.
  • Environment classification: two environmental conditions defined
    • Environment A - industrial (indoor/outdoor) with high electromagnetic stress (e.g., heavy loads, ISM apparatus).
    • Environment B - residential, commercial and light‑industrial (including battery-operated or DC‑powered apparatus).
  • Exemptions from EMC testing: conditions where assemblies require no further EMC tests (e.g., bespoke assemblies for fixed installations; assemblies containing only benign or a single compliant electronic device).
  • Verification requirements:
    • Assemblies not exempt must be verified for immunity and/or emissions per the Annex.
    • Immunity and emission test levels and applicable standards are specified (examples in the draft include ESD ±4 kV contact / ±8 kV air, radiated RF immunity levels, surge, EFT/burst, conducted immunity, power‑frequency magnetic field tests).
  • Performance criteria: classification of acceptable behavior during EMC tests (no change, self‑recoverable degradation, temporary loss requiring operator/system reset, etc.).
• Regulatory linkage: informative Annexes (ZZA/ZZB) map the amendment to EU legislation (EMC Directive and Low Voltage Directive).

Applications and users

This document is practical for:

• Assembly manufacturers and panel builders designing LV switchgear and controlgear assemblies (including battery/renewable‑fed systems).
• Test laboratories and conformity assessors implementing EMC verification and emission testing.
• Electrical engineers and specifiers creating project requirements and installation instructions.
• Compliance and certification bodies aligning national standards with CENELEC requirements.

Related standards

• IEC/EN standards referenced for EMC testing and limits (e.g., IEC 61000‑4‑2, IEC 61000‑4‑3, IEC 61000‑4‑4, IEC 61000‑4‑5, IEC 61000‑6‑1/2/3/4) - see Annex J for specific cross‑references.

Keywords: EN IEC 61439-1:2021, low‑voltage switchgear, controlgear assemblies, EMC, electromagnetic compatibility, environment A, environment B, immunity tests, emission tests, batteries, renewable energy, CENELEC.

Standards Content (Sample)

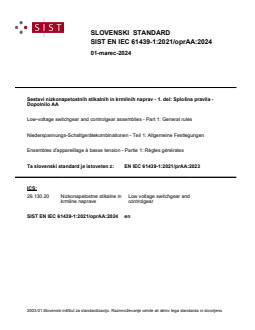

SLOVENSKI STANDARD
01-marec-2024
Sestavi nizkonapetostnih stikalnih in krmilnih naprav - 1. del: Splošna pravila -
Dopolnilo AA
Low-voltage switchgear and controlgear assemblies - Part 1: General rules
Niederspannungs-Schaltgerätekombinationen - Teil 1: Allgemeine Festlegungen
Ensembles d'appareillage à basse tension - Partie 1: Règles générales
Ta slovenski standard je istoveten z: EN IEC 61439-1:2021/prAA:2023
ICS:
29.130.20 Nizkonapetostne stikalne in Low voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

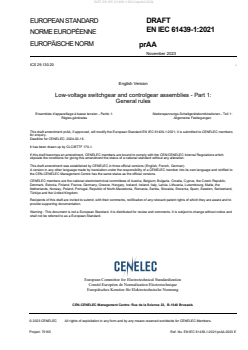

EUROPEAN STANDARD DRAFT
EN IEC 61439-1:2021
NORME EUROPÉENNE
EUROPÄISCHE NORM
prAA
November 2023
ICS 29.130.20 -
English Version
Low-voltage switchgear and controlgear assemblies - Part 1:
General rules
Ensembles d'appareillage à basse tension - Partie 1: Niederspannungs-Schaltgerätekombinationen - Teil 1:
Règles générales Allgemeine Festlegungen
This draft amendment prAA, if approved, will modify the European Standard EN IEC 61439-1:2021; it is submitted to CENELEC members
for enquiry.
Deadline for CENELEC: 2024-02-16.

It has been drawn up by CLC/BTTF 170-1.

If this draft becomes an amendment, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

This draft amendment was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 75165 Ref. No. EN IEC 61439-1:2021/prAA:2023 E

EN IEC 61439-1:2021/prAA:2023 (E)

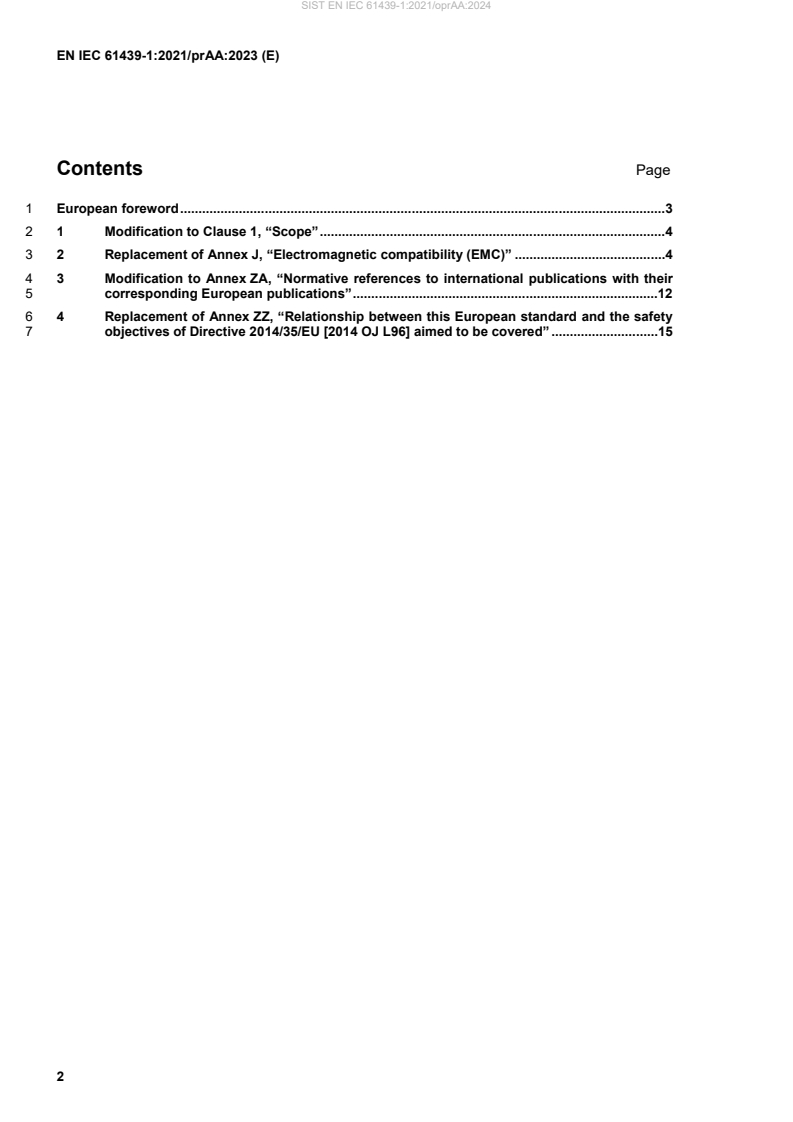

Contents Page
1 European foreword . 3
2 1 Modification to Clause 1, “Scope” . 4
3 2 Replacement of Annex J, “Electromagnetic compatibility (EMC)” . 4
4 3 Modification to Annex ZA, “Normative references to international publications with their
5 corresponding European publications” .12
6 4 Replacement of Annex ZZ, “Relationship between this European standard and the safety
7 objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be covered” .15
EN IEC 61439-1:2021/prAA:2023 (E)
8 European foreword
9 This document (EN IEC 61439-1:2021/prAA:2023) has been prepared by CLC/BTTF 170-1 “Common
10 modifications to EN IEC 61439-1:2021 and EN IEC 61439-2:2021”.
11 This document is currently submitted to the Enquiry.
12 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) dor + 36 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
13 This document will amend EN IEC 61439-1:2021.
14 This document has been prepared under a standardization request addressed to CENELEC by the European
15 Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
16 Member States.
17 For the relationship with EU Legislation, see informative Annexes ZZA and ZZB, which are an integral part of

18 this document.
EN IEC 61439-1:2021/prAA:2023 (E)
19 1 Modification to Clause 1, “Scope”
rd
20 Add the following dash in the 3 paragraph:
21 “—  Assemblies supplied from batteries or renewable energy sources”
22 2 Replacement of Annex J, “Electromagnetic compatibility (EMC)”
23 Replace Annex J with the following:
24 “
EN IEC 61439-1:2021/prAA:2023 (E)
25 Annex J
26 (normative)
28 Electromagnetic compatibility (EMC)
29 J.1 General
30 The subclause numbering within Annex J aligns with that of the body of the standard.
31 In this document, an assembly is considered to be an apparatus in the context of the EMC Directive.
32 In this document, a stationary assembly designed for a specific application is considered to be an apparatus for
33 a particular fixed installation in the context of the EMC Directive (see Article 19 of the EMC Directive) see also
34 J.9.4.2 a).
35 For other assemblies (apparatus) see J.9.4.2 b), J.9.4.3 and J.9.4.4.
36 J.3 Terms and definitions
37 For the purposes of Annex J, the following terms and definitions apply. (See Figure J.1.)
39 Figure J.1 — Examples of ports
40 J.3.8.13.1
41 port
42 particular interface of the specified apparatus with external electromagnetic environment
43 J.3.8.13.2
44 enclosure port
45 assembly port
46 physical boundary of the apparatus through which electromagnetic fields may radiate or impinge on
47 Note 1 to entry: In the case of an open-type assembly it is the external surface of the volume occupied by the assembly.
48 J.3.8.13.3
49 functional earth port
50 port other than signal, control or power port, intended for connection to earth for purposes other than electrical
51 safety
52 J.3.8.13.4
53 signal port
54 port at which a conductor or cable intended to carry signals is connected to the apparatus
55 Note 1 to entry: Examples are analogue inputs, outputs and control lines; data buses; communication networks, etc.
56 [SOURCE: IEC 61000-6-1:2016, 3.4]
EN IEC 61439-1:2021/prAA:2023 (E)
57 J.3.8.13.5
58 power port
59 control supply port
60 port at which a conductor or cable carrying the primary electrical power needed for the operation (functioning)
61 of an apparatus or associated apparatus is connected to the apparatus
62 [SOURCE: IEC 60947-1:2020, 3.9.3]
63 J.9.4 Requirements
64 J.9.4.1 General
65 Two sets of environmental conditions are considered and are referred to as environment A and environment B.
66 a) Environment A
67 Environment A relates to a power network supplied from a high or medium voltage transformer dedicated
68 to the supply of an installation feeding manufacturing or similar plant, and intended to operate in or in
69 proximity to industrial locations, as described below.
70 The environments encompassed are industrial, both indoor and outdoor.
71 Industrial locations are characterized by the existence of one or more of the following examples:
72 — industrial, scientific and medical (ISM) apparatus (as defined in CISPR 11:2015 );
73 — heavy inductive or capacitive loads are frequently switched;
74 — currents and associated magnetic fields are high.
75 NOTE 1 The generic EMC standards for electrical and electronic equipment in industrial environments are
76 IEC 61000-6 2:2016 regarding immunity and IEC 61000-6-4:2018 regarding emission. The EMC requirements for
77 assemblies in industrial environments given in this document are in line with these standards.
78 b) Environment B
79 Environment B relates to low-voltage public mains networks or apparatus connected to a dedicated DC
80 source which is intended to interface between the apparatus and the low-voltage public mains network. It
81 applies also to apparatus which is battery-operated or is powered by a non-public, but non-industrial,
82 low-voltage power distribution system.
83 The environments encompassed are residential, commercial and light-industrial locations, both indoors and
84 outdoors. The following list, although not comprehensive, gives an indication of locations which are
85 included:
86 — residential properties, for example houses, apartments;
87 — retail outlets, for example shops, supermarkets;
88 — business premises, for example offices, banks;
89 — areas of public entertainment, for example cinemas, public bars, dance halls;
90 — outdoor locations, for example petrol stations, car parks, amusement and sports centres;
91 — light-industrial locations, for example workshops, laboratories, service centres.

As impacted by CISPR 11:2015/A1:2016 and CISPR 11:2015/A2:2019.
EN IEC 61439-1:2021/prAA:2023 (E)
92 Locations which are characterized by being supplied directly at low-voltage from the public mains network
93 are considered to be residential, commercial or light-industrial.
94 NOTE 2 The generic EMC standards for electrical and electronic equipment in residential, commercial and light-industrial
95 environments are IEC 61000-6-1:2016 regarding immunity and IEC 61000-6-3:2006 regarding emission. The EMC
96 requirements for assemblies in industrial environments given in this document are in line with these standards.
97 The environmental condition (environment A and/or environment B) for which the assembly is suitable shall be
98 stated by the assembly manufacturer.
99 J.9.4.2 Assemblies exempted from EMC test
100 a) No further EMC immunity or emission tests are required on assemblies if all the following conditions are
101 fulfilled:
102 — the assembly is manufactured or assembled for incorporation into a particular installation and the
103 assembly is not otherwise available on the market;
104 — the incorporated devices and components are in conformance with the requirements for EMC for the
105 stated environment (see J.9.4.1) as required by the product standard;
106 — the internal installation and wiring is carried out in accordance with the devices and components
107 specifications and applying good engineering practices (arrangement with regard to mutual influences,
108 cable, screening, earthing, etc.).
109 b) No further EMC immunity or emission tests are required on assemblies if one of the following conditions is
110 fulfilled:
111 — the assembly is only incorporating benign devices in terms of electromagnetic compatibility e.g. wires,
112 busbars, terminals, electromechanical devices, or electronic devices in which all components are
113 passive for example diodes, resistors, varistors, capacitors, surge suppressors, inductors, RCDs
114 incorporating electronics but without continuously operating oscillator
115 — the assembly is incorporating one single electronic device in addition to benign and/or passive devices
116 in respect of electromagnetic compatibility. The single electronic device shall be in conformance with
117 its own product standard.
118 J.9.4.3 Assemblies to be verified for EMC immunity
119 Assemblies not covered by J.9.4.2 shall be verified in respect of immunity in accordance with J.10.12.2 unless
120 the incorporated devices and components are in conformance with the requirements for EMC for the stated
121 environment (see J.9.4.1) as required by the relevant product standard and the internal installation and wiring
122 is carried out in accordance with the devices and components specifications and applying good engineering
123 practices (arrangement with regard to mutual influences, cable, screening, earthing, etc.).
124 J.9.4.4 Assemblies to be verified for EMC emissions
125 Assemblies not covered by J.9.4.2 shall be verified in regards of emissions according J.10.12.3.
126 J.10.12 EMC tests
127 J.10.12.1 General
128 The emission and immunity tests shall be carried out in accordance with the relevant EMC standard according
129 J.10.12.2 and J.10.12.3.
130 J.10.12.2 Immunity tests
131 Tests shall be made according to the relevant environment A or B. The test levels are given in
132 Table J.1 and/or Table J.2.

As impacted by IEC 61000-6-3:2006/A1:2010.
EN IEC 61439-1:2021/prAA:2023 (E)
133 Performance criteria shall be derived from the assembly specifications based on the acceptance criteria in
134 Table J.3.
135 J.10.12.3 Emission tests
136 The applicable emission limits for environment A are given in IEC 61000-6-4:2018, Table 3 to Table 5.
137 The applicable emission limits for environment B are given in IEC 61000-6-3:2020, Table 3 to Table 6.
138 Table J.1 — Tests for EMC immunity for environment A (see J.10.12.2)
Performance
Type of test Test level required
c
criterion
Electrostatic discharge immunity test ±4 kV contact discharge
B
IEC 61000-4-2:2008 ±8 kV / air discharge
Radiated radio-frequency electromagnetic field
immunity test
10 V/m A
80 MHz to 1 GHz
IEC 61000-4-3:2020
Radiated radio-frequency electromagnetic field
immunity test
3 V/m A
1,4 GHz to 6 GHz
IEC 61000-4-3:2020
Electrical fast transient/burst immunity test
±2 kV/ 5 kHz on power ports ± 1 kV/ 5 kHz on
B
signal ports
IEC 61000-4-4:2012
1,2/50 μs and 8/20 μs surge immunity test
±2 kV (line to earth) on power ports ± 1 kV (line to
line) on power ports ± 1 kV (line to earth) on signal B
IEC 61000-4-5:2014 and
a
ports
IEC 61000-4-5:2014/AMD1:2017
Conducted radio-frequency immunity test
10 V (power ports)
(150 kHz to 80 MHz) A
10 V (signal ports)
IEC 61000-4-6:2013
b
Power-frequency magnetic field immunity test
30 A/m A
IEC 61000-48:2009
c, d, e c, d, e
Voltage dips immunity test
Class 2  Class 3
B
(50 Hz / 60 Hz)
0 % during 0,5 cycle and 0 % during 0,5
...
