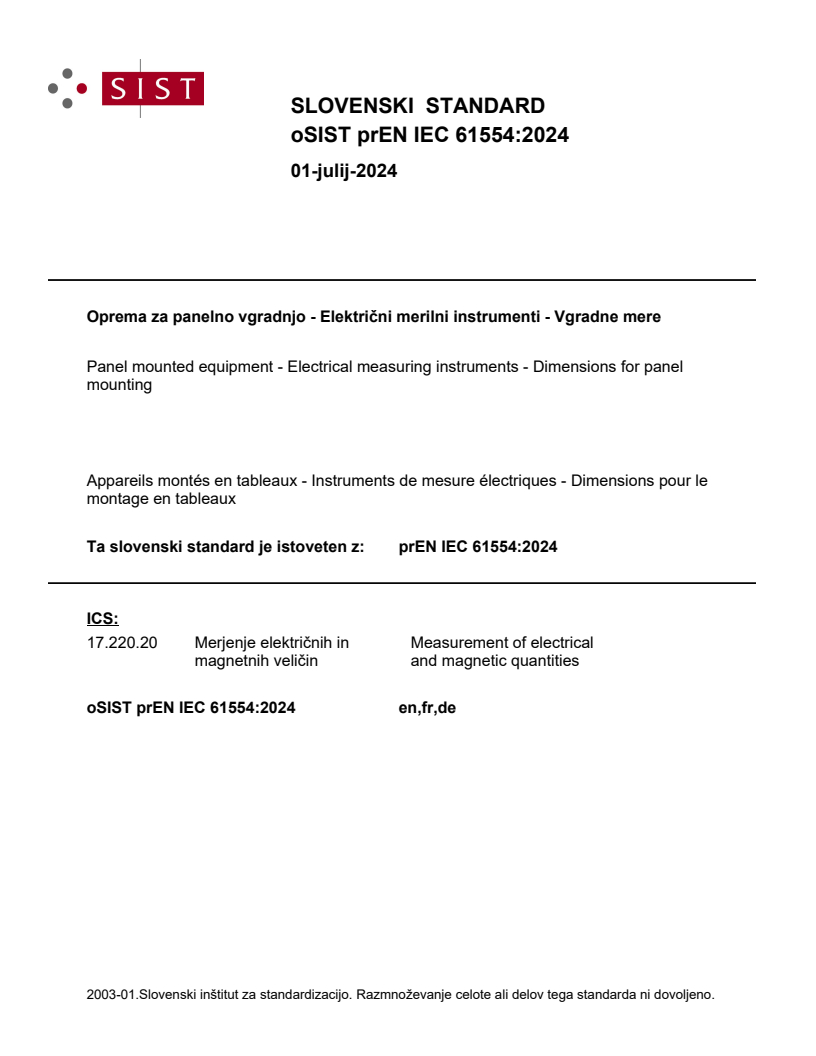

SLOVENSKI STANDARD
01-julij-2024
Oprema za panelno vgradnjo - Električni merilni instrumenti - Vgradne mere
Panel mounted equipment - Electrical measuring instruments - Dimensions for panel
mounting
Appareils montés en tableaux - Instruments de mesure électriques - Dimensions pour le
montage en tableaux
Ta slovenski standard je istoveten z: prEN IEC 61554:2024
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

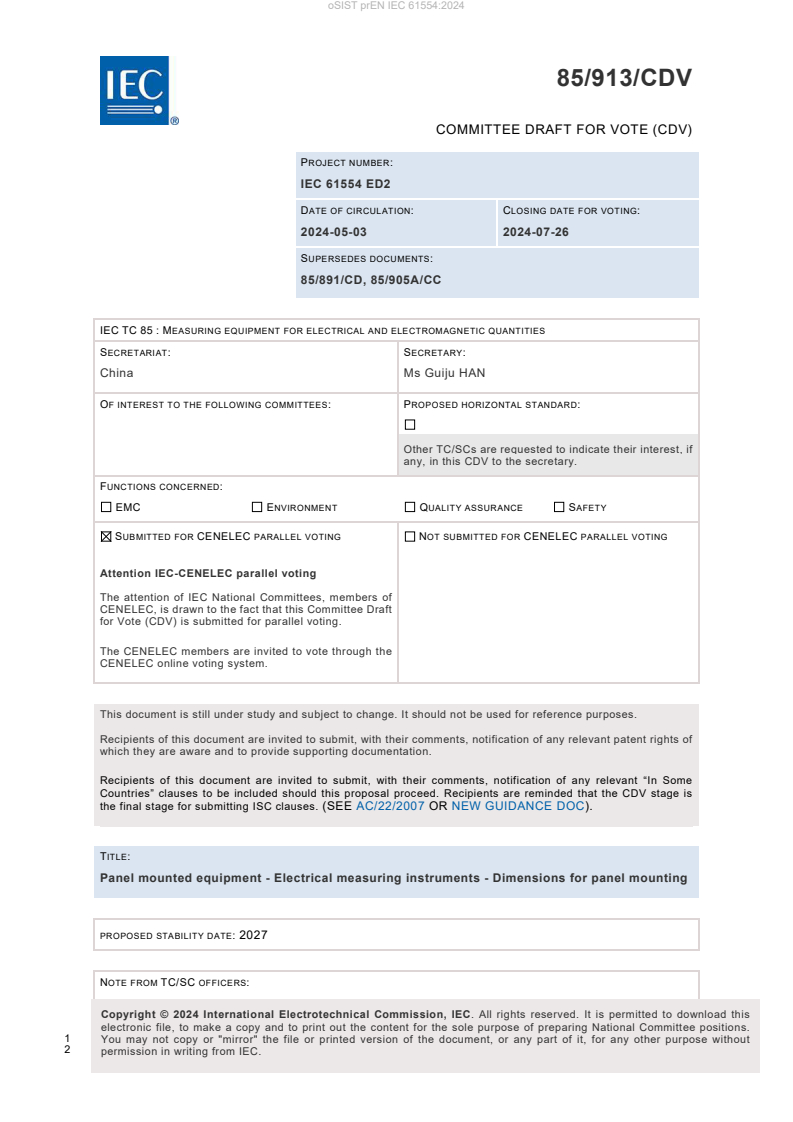

85/913/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61554 ED2
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2024-05-03 2024-07-26
SUPERSEDES DOCUMENTS:
85/891/CD, 85/905A/CC
IEC TC 85 : MEASURING EQUIPMENT FOR ELECTRICAL AND ELECTROMAGNETIC QUANTITIES
SECRETARIAT: SECRETARY:
China Ms Guiju HAN
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
Other TC/SCs are requested to indicate their interest, if
any, in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).
TITLE:
Panel mounted equipment - Electrical measuring instruments - Dimensions for panel mounting
PROPOSED STABILITY DATE: 2027
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.
IEC CDV 61554 CDV IEC:2024 – 2 – 85/913/CDV
3 CONTENTS
5 FOREWORD . 3
6 1 Scope . 5
7 2 Normative references . 5
8 3 Terms and definitions . 5
9 4 Requirements . 6
10 4.1 General . 6
11 4.2 Instrument size designation . 6
12 4.3 Dimensions of the cut-out . 6
13 4.4 Individual cut-out mounting . 6
14 4.5 Common cut-out mounting . 7
15 Annex A (normative) Dimensions for instruments with round housing . 11
16 A.1 Introduction . 11
17 A.2 Scope . 11
18 A.3 Requirements . 11
19 A.3.1 General . 11
20 A.3.2 Instrument size designation . 11
21 A.3.3 Individual cut-out mounting . 11
23 Figure 1 – Square housing . 7
24 Figure 2 – Rectangular lateral housing . 7
25 Figure 3 – Rectangular upright housing . 8
26 Figure 4 – Common cut-out mounting . 8
27 Figure A.1 – Round housing with a square bezel . 12
29 Table 1 – Sizes and tolerances . 9
30 Table A.1 – Sizes and tolerances of round housing with a square bezel . 12
31 Table A.2 – Sizes and tolerances of round housing with a rectangular bezel Type
32 1 . 13
33 Table A.3 – Sizes and tolerances of round housing with a rectangular bezel Type
34 2 . 14
IEC CDV 61554 CDV IEC:2024 – 3 – 85/913/CDV
36 INTERNATIONAL ELECTROTECHNICAL COMMISSION
37 ____________
39 PANEL MOUNTED EQUIPMENT –
40 ELECTRICAL MEASURING INSTRUMENTS –
41 DIMENSIONS FOR PANEL MOUNTING
45 FOREWORD
46 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
47 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
48 international co-operation on all questions concerning standardization in the electrical and electronic fields. To
49 this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
50 Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC
51 Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested
52 in the subject dealt with may participate in this preparatory work. International, governmental and non-
53 governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
54 with the International Organization for Standardization (ISO) in accordance with conditions determined by
55 agreement between the two organizations.
56 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
57 consensus of opinion on the relevant subjects since each technical committee has representation from all
58 interested IEC National Committees.
59 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
60 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
61 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
62 misinterpretation by any end user.
63 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
64 transparently to the maximum extent possible in their national and regional publications. Any divergence
65 between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
66 the latter.
67 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
68 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
69 services carried out by independent certification bodies.
70 6) All users should ensure that they have the latest edition of this publication.
71 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
72 members of its technical committees and IEC National Committees for any personal injury, property damage or
73 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
74 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
75 Publications.
76 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
77 indispensable for the correct application of this publication.
78 9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
79 patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
80 respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
81 which may be required to implement this document. However, implementers are cautioned that this may not
82 represent the latest information, which may be obtained from the patent database available at
83 https://patents.iec.ch or www.iso.org/patents. IEC shall not be held responsible for identifying any or all such
84 patent rights.
85 IEC 61554 has been prepared by IEC technical committee 85: Measuring equipment for
86 electrical and electromagnetic quantities.
87 This second edition cancels and replaces the first edition published in 1999.
IEC CDV 61554 CDV IEC:2024 – 4 – 85/913/CDV
88 This edition includes the following significant technical changes with respect to the previous
89 edition:
90 a) Complement more sizes and tolerances of instruments and some practical information for
91 panel mounting which were not mentioned in IEC 61554:1999;
92 b) Modify several current sizes and tolerance of instruments ;
93 c) Update the Figures in Annex A;
94 d) Change Annex A from Informative Annex into Nornative Annex.
95 The text of this International Standard is based on the following documents:
FDIS Report on voting
XXX XXX
97 Full information on the voting for its approval can be found in the report on voting indicated in
98 the above table.
99 The language used for the development of this International Standard is English.
100 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
101 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
102 at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
103 described in greater detail at www.iec.ch/standardsdev/publications.
104 The committee has decided that the contents of this document will remain unchanged until the
105 stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
106 the specific document. At this date, the document will be
107 • reconfirmed,
108 • withdrawn,
109 • replaced by a revised edition, or
110 • amended.
IEC CDV 61554 CDV IEC:2024 – 5 – 85/913/CDV
113 PANEL MOUNTED EQUIPMENT –
114 ELECTRICAL MEASURING INSTRUMENTS –
115 DIMENSIONS FOR PANEL MOUNTING
119 1 Scope
120 This International Standard defines a system of dimensions for panel mounting of equipment.
121 It is applicable to electrical and electrically operated indicating, recording and control
122 instruments.
123 It applies to the following types of instruments with protruding bezels:
124 • instruments with square housing;
125 • instruments with rectangular housing with lateral orientation;
126 • instruments with rectangular housing with upright orientation;
127 • instruments with round housing and square bezel;
128 • instruments with round housing and rectangular bezel.
129 The purpose of this standard is to establish dimensional interchangeability between instruments
130 made by different manufacturers. To fulfil this requirement, a defined set of dimensions has
131 been chosen. Using these dimensions, it should be easy to combine instruments of different
132 sizes on the same panel making good use of the available panel space and to produce a
133 satisfactory layout.
134 2 Normative references
135 There are no normative references in this document.
136 3 Terms and definitions
137 For the purposes of this document, the following terms and definitions apply.
138 ISO and IEC maintain terminology databases for use in standardization at the following
139 addresses:
140 • IEC Electropedia: available at https://www.electropedia.org/
141 • ISO Online browsing platform: available at https://www.iso.org/obp
142 3.1
143 cut-out
144 the hole in the panel into which the instrument or group of instruments is inserted
145 3.2
146 bezel
147 the front projecting surface or rim around the housing of the instrument
IEC CDV 61554 CDV IEC:2024 – 6 – 85/913/CDV
148 3.3
149 instrument size
150 the overall maximum width and height of the bezel
151 4 Requirements
152 4.1 General
153 The instrument size serves as a basis for defining the various dimensions which permit
154 interchangeability of the instrument.
155 Only positive tolerances are allowed for cut-out dimensions and only negative tolerances for
156 the instrument size.
157 The dimensions of the housings of the instruments are not specified in this standard. The only
158 exception to this is instruments with round housing which are covered in annex A.
159 Instruments that are mounted together in a common cut-out are shown as mounted without any
160 ga
...
