EN 60335-2-70:2002/A1:2007

Household and similar electrical appliances - Safety - Part 2-70: Particular requirements for milking machines

Was initially linked to the LVD (2014/35/EU), but no expertise available to draft the Common Modifications - not to be offered anymore
61H/239/RVC established on 2006-11-10: To be published without FDIS stage

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-70: Besondere Anforderungen für Melkmaschinen

Appareils électrodomestiques et analogues - Sécurité - Partie 2-70: Règles particulières pour les machines à traire

Gospodinjski in podobni električni aparati - Varnost - 2-70. del: Posebne zahteve za molzne aparate (IEC 60335-2-70:2002/A1:2007)

General Information

• Status: Published
• Publication Date: 05-Jun-2007
• Withdrawal Date: 31-Mar-2010
• ICS: 65.060.99 - Other agricultural machines and equipment
• Technical Committee: CLC/TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: IEC/SC 61H - IEC_SC_61H
• Parallel Committee: IEC/SC 61H - IEC_SC_61H
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 06-Jun-2007
• Completion Date: 23-Sep-2025
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Directive: 73/23/EEC - Electrical equipment designed for use within certain voltage limits
• Ref Project: SIST EN 60335-2-70:2003/A1:2007 - Household and similar electrical appliances - Safety -- Part 2-70: Particular requirements for milking machines

Relations

• Amends: EN 60335-2-70:2002 - Household and similar electrical appliances - Safety - Part 2-70: Particular requirements for milking machines
• Effective Date: 29-Jan-2023

Overview

EN 60335-2-70:2002/A1:2007 is a CENELEC amendment to the European adoption of IEC 60335-2-70 that defines particular safety requirements for electrically operated milking machines. It supplements EN 60335-2-70:2002 and clarifies marking, instructions and mechanical strength requirements specific to milking equipment. Note: this item was initially linked to the LVD (2014/35/EU) but no expertise was available to draft Common Modifications - it is therefore not to be offered anymore in that context.

Key topics and requirements

• Scope and hierarchy
  • This document is a product-family standard for safety of milking appliances and takes precedence over horizontal/generic standards when overlapping.
  • Where a Part 2 standard does not add requirements for a hazard, Part 1 applies.
• Marking and instructions
  • Appliances or sub-assemblies not rated IPX6 and likely to be exposed to water-jet cleaning must be marked “DO NOT HOSE” or display the ISO 7000-0073 symbol combined with the ISO 3864-1 prohibition sign (except colours).
  • If the “Do not hose” symbol is used, its meaning must be explained in the instructions.
  • Minimum text heights specified: 5 mm (headlines), 3 mm (other lettering); the “Do not hose” symbol must be at least 25 mm high and visible after installation.
• Mechanical strength
  • Impact energy requirement is increased to 1 J (modification to mechanical strength clause).
• Normative references added
  • ISO 3864-1 (safety signs), ISO 13732-1 (ergonomics - hot surfaces), and IEC 60364-7-705 (electrical installations for agricultural premises) are referenced to support marking, thermal and installation aspects.

Applications and who uses it

• Manufacturers of milking machines and milking system sub-assemblies use this standard to design safe, compliant equipment.
• Compliance engineers and test laboratories reference it for type testing, marking verification, and mechanical strength assessment.
• Farm equipment installers and operators consult the marking and instructions requirements to ensure safe installation and use (especially regarding cleaning practices).
• Standards bodies and certification/inspection organizations use the amendment text when assessing conformity to the EN/IEC 60335 series.

Related standards

• EN/IEC 60335-1 (General requirements for household and similar electrical appliances)
• IEC 60364-7-705 / HD 60364-7-705 (agricultural electrical installations)
• ISO 3864-1 (safety signs) and ISO 13732-1 (hot surface assessment)

Keywords: EN 60335-2-70, IEC 60335-2-70, milking machines safety, milking equipment standard, electrical safety, “Do not hose” symbol, IPX6, mechanical strength.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2007
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH
]DPRO]QHDSDUDWH,(&$
Household and similar electrical appliances - Safety -- Part 2-70: Particular requirements
for milking machines
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-70:
Besondere Anforderungen für Melkmaschinen
Appareils électrodomestiques et analogues - Sécurité - Partie 2-70: Regles particulieres
pour les machines a traire
Ta slovenski standard je istoveten z: EN 60335-2-70:2002/A1:2007
ICS:
65.040.10 Poslopja, naprave in oprema Livestock buildings,
za živino installations and equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-70/A1
NORME EUROPÉENNE
June 2007
EUROPÄISCHE NORM
ICS 65.060.99
English version
Household and similar electrical appliances -
Safety -
Part 2-70: Particular requirements for milking machines
(IEC 60335-2-70:2002/A1:2007)
Appareils électrodomestiques  Sicherheit elektrischer Geräte
et analogues - für den Hausgebrauch
Sécurité - und ähnliche Zwecke -
Partie 2-70: Règles particulières Teil 2-70: Besondere Anforderungen
pour les machines à traire für Melkmaschinen
(CEI 60335-2-70:2002/A1:2007) (IEC 60335-2-70:2002/A1:2007)

This amendment A1 modifies the European Standard EN 60335-2-70:2002; it was approved by CENELEC
on 2007-04-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this amendment the status of a national standard without any
alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia,
Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-70:2002/A1:2007 E

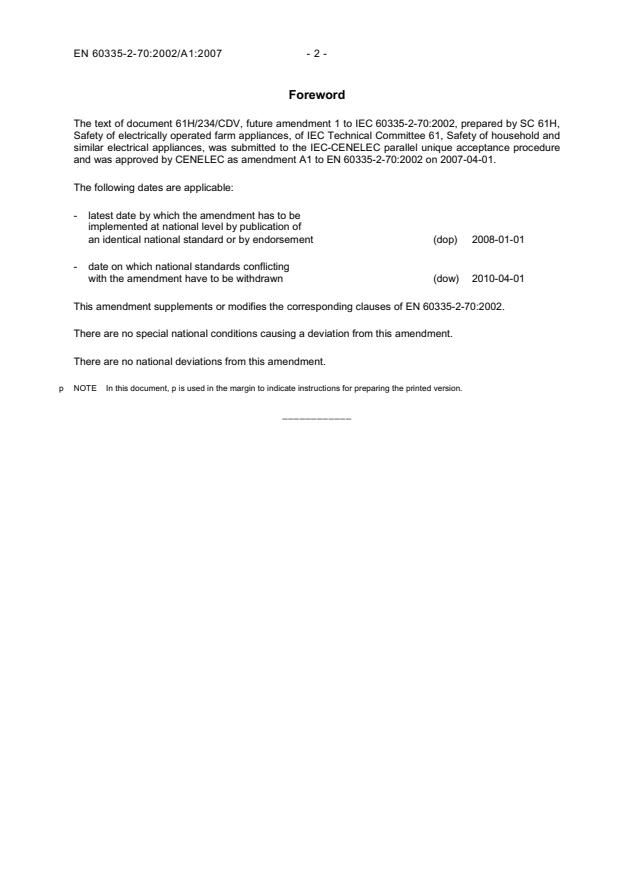

Foreword
The text of document 61H/234/CDV, future amendment 1 to IEC 60335-2-70:2002, prepared by SC 61H,
Safety of electrically operated farm appliances, of IEC Technical Committee 61, Safety of household and
similar electrical appliances, was submitted to the IEC-CENELEC parallel unique acceptance procedure
and was approved by CENELEC as amendment A1 to EN 60335-2-70:2002 on 2007-04-01.
The following dates are applicable:
- latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2008-01-01
- date on which national standards conflicting
with the amendment have to be withdrawn (dow) 2010-04-01
This amendment supplements or modifies the corresponding clauses of EN 60335-2-70:2002.
There are no special national conditions causing a deviation from this amendment.
There are no national deviations from this amendment.
p NOTE  In this document, p is used in the margin to indicate instructions for preparing the printed version.
____________
- 3 - EN 60335-2-70:2002/A1:2007
Endorsement notice
The text of amendment 1:2007 to the International Standard IEC 60335-2-70:2002 was approved by
CENELEC as an amendment to the European Standard without any modification.
p In the Bibliography, add the following notes to the standards mentioned:
IEC 60364-7-705 NOTE Harmonized as HD 60364-7-705:2007 (modified).
ISO 13732-1 NOTE Harmonized as EN ISO 13732-1:2006 (not modified).
____________
p Add:
Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
Addition:
Publication Year Title EN/HD Year
1)
ISO 3864-1 – Graphical symbols – Safety colours and – –
safety signs –
Part 1: Design principles for safety signs
in workplaces and public areas
____________
1)
undated reference
NORME CEI
INTERNATIONALE
IEC
60335-2-70
INTERNATIONAL
STANDARD
AMENDEME
...
