EN 50085-2-1:2006/A1:2011

Cable trunking systems and cable ducting systems for electrical installations - Part 2-1: Cable trunking systems and cable ducting systems intended for mounting on walls and ceilings

Publication editing allocated to [e-mail]
2021: CLC legacy converted by DCLab NISOSTS

Elektroinstallationskanalsysteme für elektrische Installationen - Teil 2-1: Besondere Anforderungen für Elektroinstallationskanalsysteme für Wand und Decke

Systèmes de goulottes et systèmes de conduits-profilés pour installations électriques - Partie 2-1: Systèmes de goulottes et systèmes de conduits-profilés prévus pour être montés sur les murs et les plafonds

Sistemi kabelskih korit in sistemi kabelskih cevi za električne inštalacije - 2-1. del: Sistemi kabelskih korit in sistemi kabelskih cevi za montažo na stene in strope

Ta evropski standard določa zahteve in preskuse za sisteme kabelskih korit (CTS) in sisteme kabelskih cevi (CDS), ki so namenjeni namestitvi in po potrebi električnemu zaščitnemu ločevanju izoliranih prevodnikov, kablov in morda druge električne opreme v inštalacijah električnih in/ali komunikacijskih sistemih. Maksimalna napetost teh inštalacij je 1000 V izmeničnega toka in 1500 V enosmernega toka. Ti sistemi so namenjeni montaži na stene in/ali strope. Lahko so vdelani, pritrjeni v vgreznem ali polvgreznem stanju, pritrjeni na površino ali od nje z uporabo pritrditvenih naprav. Ta standard ne velja za sisteme napeljav, sisteme kabelskih polic, sisteme kabelskih lestev, tirne sisteme za električno napeljavo ali opremo, ki jo zajemajo drugi standardi. Ta standard se uporablja skupaj z EN 50085-1:2005: Sistemi kabelskih korit in sistemi kabelskih cevi za električne inštalacije; 1. del Splošne zahteve, ki je naveden v tem dokumentu kot 1. del.

General Information

• Status: Published
• Publication Date: 20-Oct-2011
• Withdrawal Date: 09-Oct-2014
• ICS: 29.120.10 - Conduits for electrical purposes
• Technical Committee: CLC/TC 213 - Cable management systems
• Drafting Committee: CLC/TC 213 - Cable management systems
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 21-Oct-2011
• Completion Date: 21-Oct-2011
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Directive: 2014/53/EU - Directive 2014/53/EU of The European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC
• Ref Project: SIST EN 50085-2-1:2007/A1:2012 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-1: Cable trunking systems and cable ducting systems intended for mounting on walls and ceilings

Relations

• Replaced By: EN IEC 61084-2-1:2024 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-1: Particular requirements - Cable trunking systems and cable ducting systems intended for mounting on walls and ceilings
• Effective Date: 23-Jan-2023
• Amends: EN 50085-2-1:2006 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-1: Cable trunking systems and cable ducting systems intended for mounting on walls and ceilings
• Effective Date: 28-Jan-2023

Overview

EN 50085-2-1:2006/A1:2011 (CENELEC) is an amendment to the European standard for cable trunking systems and cable ducting systems intended for mounting on walls and ceilings in electrical installations. It updates Part 2-1 of the EN 50085 series with clarified test requirements and adds a normative annex on compliance checks. The amendment was approved by CENELEC in October 2011 and applies alongside EN 50085-2-1:2006.

Key topics and technical requirements

• Scope: Covers requirements specific to cable trunking and cable ducting systems designed for wall- and ceiling-mounted installation in electrical systems.
• Compression test for cable ducting systems (CDS): A formalized test procedure is added:
  • Test sample: duct length (250 ± 5) mm mounted on a flat steel support in the most unfavourable stable position.
  • Loading element: a steel cube of (50 ± 0.5) mm with an edge radius ≈ 1 mm placed mid-length.
  • Measurements: record distance D1 (before load), D2 (under load after defined ramp and dwell times), and D3 (after removal and recovery).
  • Acceptance limits: difference D1–D2 shall not exceed 25% of D1; difference D1–D3 shall not exceed 10% of D1. The sample must show no visible cracks after the test.
  • Timing: force is applied within the timing windows specified in the amendment (ramp and dwell times are included).
  • Note: the applied force value is referenced to clause 6.104 of the base standard-consult the full standard for the exact force magnitude and tolerances.
• Annex D (normative): Defines which compliance checks are required when a system already complies with EN 50085-2-1:2006. It clarifies that the compression test is required for cable ducting systems only and that the amendment is not applicable to cable trunking systems.

Applications and users

• Manufacturers of cable trunking and ducting systems use this standard to design products that meet European safety and mechanical performance expectations for wall- and ceiling-mounted installations.
• Test laboratories and QA teams apply the specified compression test and compliance checks during type testing and production verification.
• Specifiers, electrical contractors and installers reference the standard to select suitable cable management systems and ensure conformity with national adoptions of CENELEC standards.
• Regulators and certification bodies use the standard as a benchmark for product approval and conformity assessment in the EU market.

Related standards

• EN 50085 series (other parts) - consult the EN 50085 family for general requirements, additional parts and guidance on cable management systems and conduit systems.
• Refer to the full EN 50085-2-1:2006 and clause 6.104 for complete test force details and full normative requirements.

Keywords: EN 50085-2-1, cable trunking, cable ducting, cable management systems, wall-mounted, ceiling-mounted, compression test, CENELEC, compliance checks.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2012
6LVWHPLNDEHOVNLKNRULWLQVLVWHPLNDEHOVNLKFHYL]DHOHNWULþQHLQãWDODFLMHGHO
6LVWHPLNDEHOVNLKNRULWLQVLVWHPLNDEHOVNLKFHYL]DPRQWDåRQDVWHQHLQVWURSH
Cable trunking systems and cable ducting systems for electrical installations - Part 2-1:
Cable trunking systems and cable ducting systems intended for mounting on walls and
ceilings
Elektroinstallationskanalsysteme für elektrische Installationen - Teil 2-1: Besondere
Anforderungen für Elektroinstallationskanalsysteme für Wand und Decke
Systèmes de goulottes et systèmes de conduits-profilés pour installations électriques -
Partie 2-1: Systèmes de goulottes et systèmes de conduits-profilés prévus pour être
montés sur les murs et les plafonds
Ta slovenski standard je istoveten z: EN 50085-2-1:2006/A1:2011
ICS:
29.120.10 ,QãWDODFLMVNHFHYL]D Conduits for electrical
HOHNWULþQHQDPHQH purposes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50085-2-1/A1
NORME EUROPÉENNE
October 2011
EUROPÄISCHE NORM
ICS 29.120.10
English version
Cable trunking systems and cable ducting systems for electrical
installations -
Part 2-1: Cable trunking systems and cable ducting systems intended for
mounting on walls and ceilings

Systèmes de goulottes et systèmes de Elektroinstallationskanalsysteme für
conduits-profilés pour installations elektrische Installationen -
électriques - Teil 2-1: Besondere Anforderungen für
Partie 2-1: Systèmes de goulottes et Elektroinstallationskanalsysteme für Wand
systèmes de conduits-profilés prévus pour und Decke
être montés sur les murs et les plafonds

This amendment A1 modifies the European Standard EN 50085-2-1:2006; it was approved by CENELEC on
2011-10-10. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50085-2-1:2006/A1:2011 E

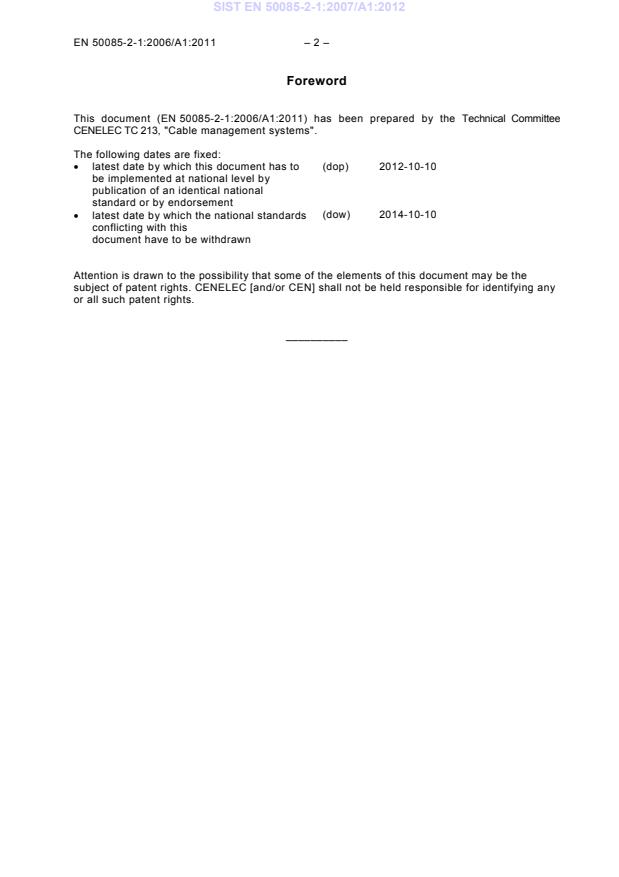

Foreword
