EN IEC 60794-1-211:2021

Optical fibre cables - Part 1-211: Generic specification - Basic optical cable test procedures - Environmental test methods - Sheath shrinkage, method F11

This part of IEC 60794 defines test procedures to measure the shrinkage of the sheath due to thermal exposure of cables. A first test method, F11A, is included for cables where the fibre or buffered fibre and the sheath of the cable are intended to be fully terminated into a connector at one or both cable ends. A second test method, F11B, is included in this document for sheath shrinkage testing for general purpose. See IEC 60794-1-2 for a reference guide to test methods of all types and for general requirements.

Lichtwellenleiterkabel - Teil 1-211: Fachgrundspezifikation - Grundlegende Prüfverfahren für Lichtwellenleiterkabel - Umweltprüfverfahren - Schrumpfung des Mantels, Verfahren F11

Câbles à fibres optiques - Partie 1-211: Spécification générique - Procédures fondamentales d’essais des câbles optiques - Méthodes d’essais d’environnement - Rétraction de la gaine, méthode F11

IEC 60794-1-211:2021 définit des procédures d’essai pour mesurer la rétraction de la gaine due à l’exposition thermique des câbles. Une première méthode d’essai, F11A, est incluse pour les câbles où la fibre ou la fibre sous revêtement protecteur et la gaine du câble sont destinées à être entièrement équipées d’un connecteur à l’une ou aux deux extrémités du câble. Une deuxième méthode d’essai, F11B, est incluse dans le présent document pour les essais de rétraction de la gaine des câbles destinés à un usage général. Voir l’IEC 60794-1-2 pour un guide de référence des méthodes d’essai de tous types et pour les exigences générales.

Optični kabli - 1-211. del: Splošna specifikacija - Osnovni preskusni postopki za optične kable - Okoljske preskusne metode - Krčenje plašča, metoda F11 (IEC 60794-1-211:2021)

General Information

• Status: Published
• Publication Date: 25-Mar-2021
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: CLC/TC 86A - Optical fibres and optical fibre cables
• Drafting Committee: IEC/SC 86A - IEC_SC_86A
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 26-Mar-2021
• Completion Date: 26-Mar-2021
• Ref Project: SIST EN IEC 60794-1-211:2021 - Optical fibre cables - Part 1-211: Generic specification - Basic optical cable test procedures - Environmental test methods - Sheath shrinkage, method F11 (IEC 60794-1-211:2021)

Relations

• Replaces: EN IEC 60794-1-22:2018 - Optical fibre cables - Part 1-22: Generic specification - Basic optical cable test procedures - Environmental test methods
• Effective Date: 07-Jun-2022

Overview

EN IEC 60794-1-211:2021 - “Optical fibre cables - Part 1-211: Generic specification - Basic optical cable test procedures - Environmental test methods - Sheath shrinkage, method F11” - defines standardized procedures to measure sheath shrinkage of optical fibre cables caused by thermal exposure. The document splits the test into two targeted methods: F11A for cables intended to be terminated with connectors (patch-cord style) and F11B for general-purpose sheath shrinkage testing.

Key topics and requirements

• Scope: Measurement of sheath shrinkage due to thermal exposure; methods cover both connector-terminated and general-purpose cable types.
• Method F11A: Designed for cables where the fibre or buffered fibre and sheath are intended to be fully terminated into connectors. Thermal exposure uses temperature cycling (per IEC 60794-1-22 method F1). Results are reported as maximum sheath shrinkage, which shall not exceed values specified in the relevant detail specification. Test cycles are a fixed number as specified (no open-ended cycling).
• Method F11B: A general-purpose test procedure adapted from ANSI/TIA-455-86-A, intended for broader sheath shrinkage assessment.
• Sample preparation and measurement: The standard permits either measuring length between sheath ends on intact samples or using cut samples and measuring the distance between cut sheath ends. Figures and procedural steps detail sample preparation, apparatus, and reporting requirements.
• Reporting: Test details to be specified and reported (sample type, test temperatures/cycling, measured shrinkage, and conformance to specified limits).

Applications

• Used by optical fibre cable manufacturers for product qualification and production testing.
• Employed by independent test laboratories evaluating cable durability under thermal conditions.
• Referenced by system designers, procurement/specification engineers, and installers to ensure cables maintain termination integrity and connector compatibility after thermal exposure.
• Valuable for assessing risk of sheath retraction that could expose fibres or affect connectorization in indoor patch cords, outdoor assemblies, or mixed-use cable products.

Related standards

• IEC 60794 series (optical fibre cables), especially IEC 60794-1-2 (guide to test methods) and the now‑superseded IEC 60794-1-22.
• ANSI/TIA-455-86-A (source for F11B adaptation).
• IEC TR 62959 (cable shrinkage characterisation guidance) and IEC 60811-503 (sheath shrinkage method for electric/optical cables).

EN IEC 60794-1-211:2021 provides a focused, harmonized approach to quantify sheath shrinkage and ensure cables meet thermal performance expectations critical to connectorization and long-term reliability. Keywords: EN IEC 60794-1-211:2021, sheath shrinkage, optical fibre cables, test method F11, F11A, F11B, environmental test methods, cable testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2021
Nadomešča:
SIST EN IEC 60794-1-22:2018
Optični kabli - 1-211. del: Splošna specifikacija - Osnovni preskusni postopki za
optične kable - Okoljske preskusne metode - Krčenje plašča, metoda F11 (IEC
60794-1-211:2021)
Optical fibre cables - Part 1-211: Generic specification - Basic optical cable test
procedures - Environmental test methods - Sheath shrinkage, method F11 (IEC 60794-1-
211:2021)
Lichtwellenleiterkabel – Teil 1-211: Allgemeine Spezifikation – Grundlegende
Prüfverfahren für Lichtwellenleiterkabel – Verfahren zum Prüfen der Umwelteinflüsse –
Mantelschrumpf, Methode F11 (IEC 60794-1-211:2021)
Câbles à fibres optiques - Partie 1-211: Spécification générique - Modes opératoires de
base applicables aux essais des câbles optiques - Méthodes d’essais d’environnement -
Rétreint de la gaine, méthode F11 (IEC 60794-1-211:2021)
Ta slovenski standard je istoveten z: EN IEC 60794-1-211:2021
ICS:
33.180.10 (Optična) vlakna in kabli Fibres and cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60794-1-211

NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2021
ICS 33.180.10 Supersedes EN IEC 60794-1-22:2018 and all of its
amendments and corrigenda (if any)
English Version
Optical fibre cables - Part 1-211: Generic specification - Basic
optical cable test procedures - Environmental test methods -
Sheath shrinkage, method F11
(IEC 60794-1-211:2021)
Câbles à fibres optiques - Partie 1-211: Spécification Lichtwellenleiterkabel - Teil 1-211: Fachgrundspezifikation -
générique - Procédures fondamentales d'essais des câbles Grundlegende Prüfverfahren für Lichtwellenleiterkabel -
optiques - Méthodes d'essais d'environnement - Rétraction Umweltprüfverfahren - Mantelschrumpf, Methode F11
de la gaine, méthode F11 (IEC 60794-1-211:2021)
(IEC 60794-1-211:2021)
This European Standard was approved by CENELEC on 2021-03-25. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60794-1-211:2021 E

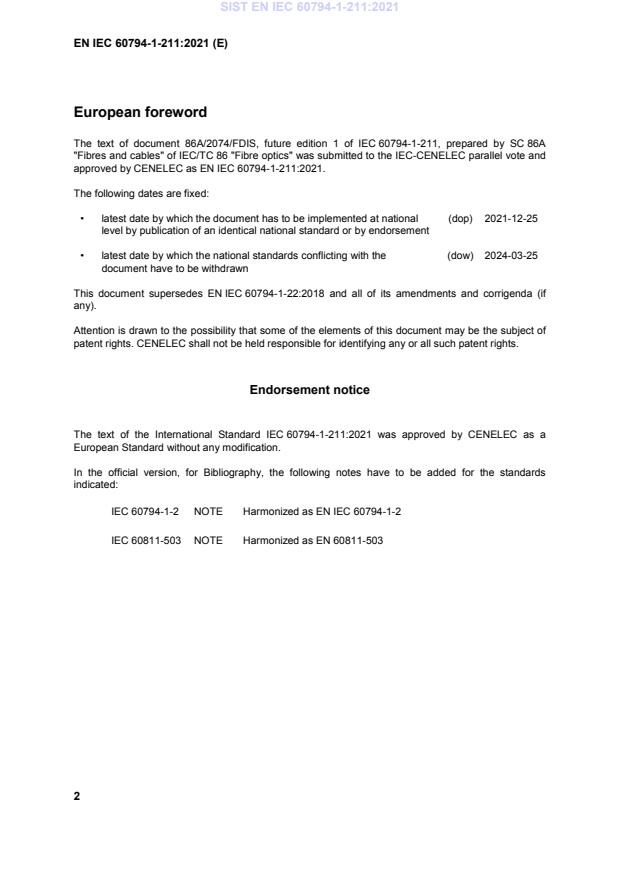

European foreword
