EN 50173-20:2022
(Main)Information technology - Generic cabling systems - Part 20: Alternative cabling configurations
Information technology - Generic cabling systems - Part 20: Alternative cabling configurations
This document specifies: a) configurations of cabling which use components meeting the requirements of EN 50173-1 but do not conform to the structure of generic cabling specified in the premises-specific documents EN 50173-2 to EN 50173-6; b) channel transmission and environmental performance requirements including those by reference to EN 50173-1. NOTE The configurations of this document do not replace the generic cabling solutions of EN 50173-2, EN 50173-3, EN 50173-4, EN 50173-5 and EN 50173-6. Test procedures to verify conformance of the balanced cabling configurations to the cabling transmission performance requirements of this document are provided in EN 50697. Safety and electromagnetic compatibility (EMC) requirements are outside the scope of this document and are covered by other standards and regulations.
Informationstechnik - Anwendungsneutrale Kommunikationskabelanlagen - Teil 20: Alternative Verkabelungskonfigurationen
Technologies de l'information - Systèmes de câblage générique - Partie 20: Configurations alternatives de câblage
Le présent document spécifie: a) les configurations de câblage qui utilisent des composants satisfaisant aux exigences de l'EN 50173-1 mais qui ne sont pas conformes à la structure du câblage générique spécifié dans les documents spécifiques aux locaux des EN 50173-2 à EN 50173-6; b) les exigences de transmission de canaux et de performances d’environnement, y compris celles incluses en faisant référence à l'EN 50173-1. NOTE Les configurations du présent document ne remplacent pas les solutions de câblage générique des EN 50173-2, EN 50173-3, EN 50173-4, EN 50173-5 et EN 50173-6. Les procédures d’essai visant à vérifier la conformité des configurations de câblage à paires symétriques aux exigences de performances de transmission du câblage, données dans le présent document, sont détaillées dans l'EN 50697. Les exigences relatives à la sécurité et à la compatibilité électromagnétique (CEM) ne relèvent pas du domaine d’application du présent document et sont couvertes par d’autres normes et réglementations.
Informacijska tehnologija - Generični kabelski sistemi - 20. del: Alternativne kabelske konfiguracije
Ta dokument določa:
a) kabelske konfiguracije s komponentami, ki izpolnjujejo zahteve standarda EN 50173-1, vendar niso v skladu s strukturo generičnih kablov, določenih v delih standarda EN 50173-X, ki se navezujejo na prostore;
b) zahteve za kanalni prenos in okoljske lastnosti, vključno s tistimi, ki se sklicujejo na standard EN 50173-1.
Preskusni postopki za preverjanje skladnosti uravnoteženih kabelskih konfiguracij z zahtevami glede zmogljivosti kabelskega prenosa iz tega dokumenta so navedeni v predlogu standarda prEN 50697.
Varnostne zahteve in zahteve za elektromagnetno združljivost (EMC) ne spadajo na področje uporabe tega dokumenta ter so obravnavane v drugih standardih in predpisih. Vendar so lahko informacije iz tega dokumenta v pomoč pri izpolnjevanju teh standardov in predpisov.
1.2 Skladnost
Za napeljavo kablov v skladu s tem dokumentom velja naslednje:
a) Konfiguracija in struktura kablov je v skladu z zahtevami iz točke 4.
b) Okoljske lastnosti izpolnjujejo zahteve iz točke 5.1.
c) Zmogljivost prenosa izpolnjuje zahteve iz točke 5.2.
Za uravnotežene kable so preskusne metode za oceno skladnosti z zahtevami glede zmogljivosti prenosa določene v predlogu standarda prEN 50697.
Za optične kable so preskusne metode za oceno skladnosti z zahtevami glede zmogljivosti prenosa določene v dodatkih A, B in C.
d) Izpolnjene so zahteve skupine standardov EN 50174 in EN 50310.
Ta dokument podaja zahteve in priporočila za preskušanje, medtem ko so zahteve za ravni vzorčenja navedene v dodatku F standarda EN 50174-1:2018.
Preskusni parametri, ki jih je treba izmeriti, ravni vzorčenja in obdelava rezultatov meritev, ki se uporabljajo za določeno inštalacijo, so opredeljeni v specifikaciji naprave in načrtih kakovosti za to inštalacijo, pripravljenih v skladu s standardom EN 50174-1.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2023
Informacijska tehnologija - Generični kabelski sistemi - 20. del: Alternativne
kabelske konfiguracije
Information technology - Generic cabling systems - Part 20: Alternative cabling
configurations
Informationstechnik - Anwendungsneutrale Kommunikationskabelanlagen - Teil 20:
Alternative Verkabelungskonfigurationen
Technologies de l'information - Systèmes de câblage générique - Partie 20:
Configurations alternatives de câblage
Ta slovenski standard je istoveten z: EN 50173-20:2022
ICS:
33.040.50 Vodi, zveze in tokokrogi Lines, connections and
circuits
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 50173-20
NORME EUROPÉENNE
EUROPÄISCHE NORM October 2022
ICS 35.110
English Version
Information technology - Generic cabling systems - Part 20:
Alternative cabling configurations
Technologies de l'information - Systèmes de câblage Informationstechnik - Anwendungsneutrale
générique - Partie 20: Configurations alternatives de Kommunikationskabelanlagen - Teil 20: Alternative
câblage Verkabelungskonfigurationen
This European Standard was approved by CENELEC on 2022-10-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50173-20:2022 E

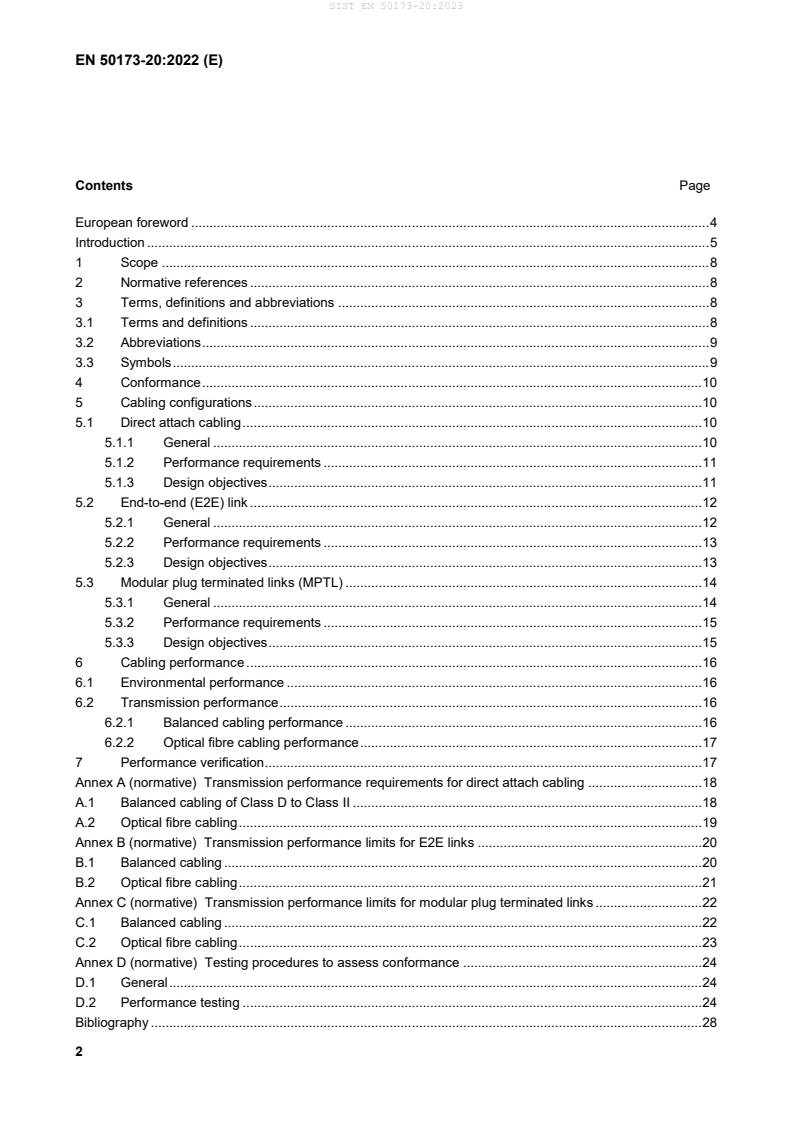

Contents Page
