Magnetic materials - Part 1: Classification

IEC 60404-1:2016 is available as IEC 60404-1:2016 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition. IEC 60404-1:2016(E) is intended to classify commercially available magnetic materials. The term "magnetic materials" denotes substances where the application requires the existence of ferromagnetic or ferrimagnetic properties. The classification of magnetic materials is based upon the generally recognized existence of two main groups of products: - soft magnetic materials (coercivity less than or equal to 1 000 A/m); - hard magnetic materials (coercivity greater than 1 000 A/m). This edition includes the following significant technical changes with respect to the previous edition: a) Removal of all tables and values describing typical properties of the material to be consistent with the aim of the document to be a classification and not a specification. b) Enlargement of the Ni content for the classes E1 and E3. c) Enlargement of the Co content for the classes F3. d) Addition of a new class: U5 bonded rare earth-iron-nitrogen magnets.

Magnetische Werkstoffe - Teil 1: Einteilung

Matériaux magnétiques - Partie 1: Classification

L'IEC 60404-1:2016 a pour objet la classification des matériaux magnétiques disponibles commercialement. Le terme "matériaux magnétiques" décrit les substances dont l'application exige l'existence de propriétés ferromagnétiques ou ferrimagnétiques. Dans le présent document, la classification des matériaux magnétiques est basée sur l'existence généralement reconnue de deux groupes principaux de produits: - les matériaux magnétiques doux (coercitivité ≤ 1 000 A/m); - les matériaux magnétiques durs (coercitivité >1 000 A/m). Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) Suppression de l'ensemble des tableaux et valeurs décrivant les propriétés types du matériau dans un souci de cohérence avec l'objectif du document visant à établir une classification et non une spécification. b) Augmentation de la teneur en Ni pour les classes E1 et E3. c) Augmentation de la teneur en Co pour les classes F3. d) Ajout d'une nouvelle classe: classe U5 - aimants agglomérés terres rares-fer-azote.

Magnetni materiali - 1. del: Razvrstitev (IEC 60404-1:2016)

Ta del standarda IEC 60404 je namenjen razvrstiti komercialnih magnetnih materialov. Izraz "magnetni materiali" označuje snovi, za uporabo katerih se zahteva prisotnost feromagnetnih ali ferimagnetnih lastnosti.
V tem dokumentu razvrstitev magnetnih materialov temelji na splošno priznanem obstoju dveh glavnih skupin izdelkov:
• mehkih magnetnih materialov (koercivnost ≤1000 A/m);
• trdih magnetnih materialov (koercivnost > 1000 A/m).
Znotraj teh glavnih skupin razvrstitev upošteva naslednje značilnosti, kjer je to potrebno:
• glavni legirni element in metalurško stanje ter fizične lastnosti materiala;
• če je mogoče in priročno, razvrstitev upošteva razmerje med temi značilnostmi.
Razvrstitve po posebnih področjih uporabe ni mogoče uporabiti za vse materiale, ker se različni materiali lahko zelo pogosto uporabljajo za isti namen, odvisno od zahtevanih značilnosti.

General Information

Status
Published
Publication Date
26-Jan-2017
Current Stage
6060 - Document made available
Due Date
17-Oct-2017

Buy Standard

Standard
EN 60404-1:2017
English language
48 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 60404-1:2017
01-april-2017
Magnetni materiali - 1. del: Razvrstitev (IEC 60404-1:2016)
Magnetic materials - Part 1: Classification (IEC 60404-1:2016)
Ta slovenski standard je istoveten z: EN 60404-1:2017
ICS:
29.100.10 Magnetne komponente Magnetic components
SIST EN 60404-1:2017 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 60404-1:2017
---------------------- Page: 2 ----------------------
SIST EN 60404-1:2017
EUROPEAN STANDARD EN 60404-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2017
ICS 29.030
English Version
Magnetic materials - Part 1: Classification
(IEC 60404-1:2016)

Matériaux magnétiques - Partie 1: Classification Magnetische Werkstoffe - Teil 1: Klassifizierung

(IEC 60404-1:2016) (IEC 60404-1:2016)

This European Standard was approved by CENELEC on 2016-11-28. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 60404-1:2017 E
---------------------- Page: 3 ----------------------
SIST EN 60404-1:2017
EN 60404-1:2017

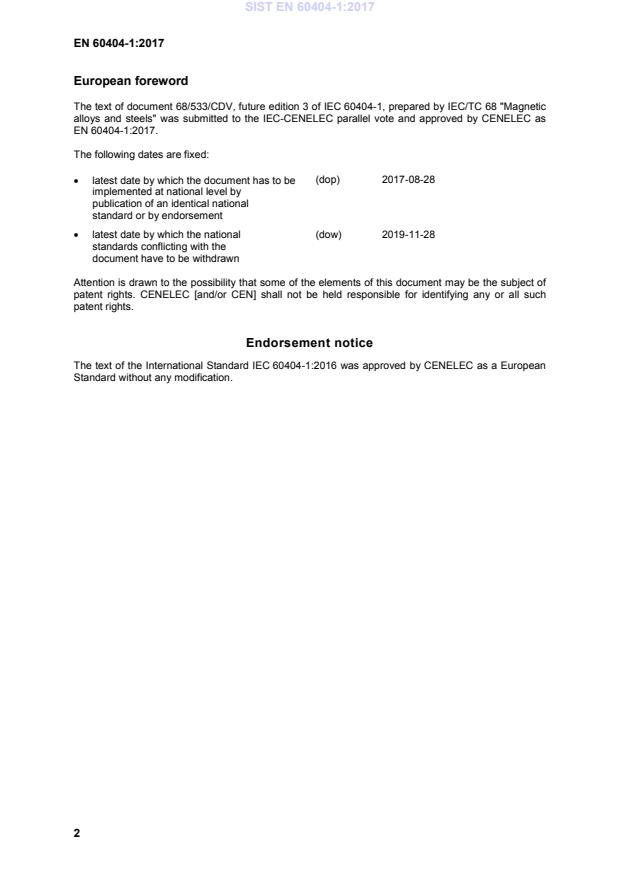

European foreword
