EN 61753-031-3:2015

Fibre optic interconnecting devices and passive components - Performance standard - Part 031-3: Non-connectorized single-mode 1×N and 2×N non-wavelength-selective branching devices for Category U - Uncontrolled environment

IEC 61753-031-2:2014(E) contains the minimum initial tests and measurement requirements and severities which a non-wavelength selective branching device (NWBD) should satisfy in order to be categorized as meeting the requirement of this IEC standard. The requirements cover balanced bidirectional non-connectorized single-mode 1xN and 2xN non wavelength-selective branching devices for use in an IEC Category C environment (N is the number of branching ports), especially but not exclusively used for PON application. For balanced NWBD two attenuation and uniformity performance classes are considered: - class A (premium class) which meets more restrictive requirements (i.e. for extended reach PON application) and - class B (standard class) for standard application (i.e. normal reach PON application). The requirements also cover unbalanced bidirectional non-connectorized single-mode, non-wavelength-selective branching devices; however, the specifications of unbalanced branching devices are limited to 1x2 and 2x2 devices because they are the most commonly used. Keywords: non-wavelength selective branching device (NWBD), IEC Category C environment

Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil 031-3: Nicht mit Steckverbindern versehene wellenlängenunabhängige Einmoden - 1xN und 2xN - Verzweiger für die Kategorie U - Unkontrollierte Umgebung

Dispositifs d'interconnexion et composants passifs à fibres optiques - Norme de performance - Partie 031-3: Dispositifs de couplage indépendants de la longueur d’onde 1xN et 2xN en unimodal, non-connectorisés, pour catégorie U - Environnement non contrôlé

L'IEC 61753-031-3:2014 contient les exigences et les sévérités initiales minimales d'essais et de mesures auxquelles il convient qu'un dispositif de couplage indépendant de la longueur d'onde (NWBD) satisfasse afin d'être classé comme conforme à la présente norme. Ces exigences couvrent les dispositifs de couplage 1xN et 2xN en unimodal, non connectorisés, bidirectionnels symétriques destinés à être utilisés dans un environnement de catégorie U selon l'IEC (N correspond au nombre de ports de connexion), utilisés en particulier, mais pas de manière exclusive, pour les applications PON. Dans le cas des NWBD symétriques, deux classes d'affaiblissement et d'uniformité sont prises en compte: - La classe A (classe de première qualité) qui satisfait aux exigences les plus restrictives (à savoir pour les applications PON étendues) et - la classe B (classe normale) pour les applications normales (à savoir par exemple les applications PON d'étendue normale). Ces exigences couvrent aussi les dispositifs de couplage indépendants de la longueur d'onde en unimodal non-connectorisés bidirectionnels asymétriques; toutefois les spécifications des dispositifs de couplage asymétriques sont limitées aux dispositifs 1 x 2 et 2 x 2 car ce sont eux qui sont les plus couramment utilisés. Cette deuxième édition de l'IEC 61753-031-3 annule et remplace la première édition parue en 2009 et constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - domaine d'application mis à jour et étendu pour rendre compte de l'introduction de deux classes de performances d'affaiblissement et d'uniformité pour les NWBD symétriques à la place des technologies des dispositifs de couplage du marché; - liste des références normatives mise à jour; - introduction simplifiée aux deux types de bandes spectrales; - Article 5, Exigences de performances, mis à jour et étendu pour rendre compte de l'introduction de deux classes de performances d'affaiblissement et d'uniformité pour les NWBD symétriques; - simplification des essais pour exclure les essais de chaleur humide (état continu) et de chocs pour les exigences de performances; - modification de l'Annexe A pour introduire les exigences calculées et minimales pour l'affaiblissement et l'uniformité; - mise à jour de l'Annexe B pour rendre compte de la révision des exigences de performances. Mots clés: dispositif de couplage indépendant de la longueur d'onde (NWBD), environnement de catégorie U de l'IEC

Optični spojni elementi in pasivne komponente - Tehnični standard - 031-3. del: Enorodni 1xN in 2xN nevalovno dolžinski selektivni optični sklopniki brez konektorjev za kategorijo U - Nenadzorovano okolje (IEC 61753-031-3:2014)

Ta del standarda IEC 61753 zajema najmanjše začetne zahteve in stopnje zahtevnosti za preskuse in meritve, ki jih mora izpolnjevati valovnodolžinsko neodvisni selektivni razvejilni element (NWBD), da ustreza zahtevam tega standarda.
Zahteve zajemajo uravnotežene dvosmerne enorodne valovnodolžinsko neodvisne selektivne razvejilne elemente 1 × N in
2 × N brez konektorjev za uporabo v okolju kategorije IEC U
(N je število razvejilnih vrat), ki se še posebej uporabljajo za PON, vendar ne izključno.
Za uravnotežene nevalovno dolžinske selektivne optične sklopnike sta obravnavana dva kakovostna razreda slabljenja in enotnosti:
razred A (premium razred), ki izpolnjuje strožje zahteve (tj. PON
z razširjenim dosegom), in razred B (standardni razred) za standardno uporabo (tj. PON
z običajnim dosegom).
Zahteve zajemajo tudi neuravnotežene dvosmerne enorodne nevalovno dolžinske
selektivne optične sklopnike; vendar so specifikacije neuravnoteženih optičnih
sklopnikov omejene na naprave 1 × 2 in 2 × 2, ker se uporabljajo najpogosteje.

General Information

• Status: Published
• Publication Date: 12-Mar-2015
• Withdrawal Date: 19-Jan-2016
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: CLC/TC 86BXA - Fibre optic interconnect, passive and connectorised components
• Drafting Committee: IEC/SC 86B - IEC_SC_86B
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 13-Mar-2015
• Completion Date: 13-Mar-2015
• Ref Project: SIST EN 61753-031-3:2015 - Fibre optic interconnecting devices and passive components - Performance standard - Part 031-3: Non-connectorised single-mode 1xN and 2xN non-wavelength-selective branching devices for Category U - Uncontrolled environment (IEC 61753-031-3:2014)

Relations

• Replaces: EN 61753-031-3:2009 - Fibre optic interconnecting devices and passive components performance standard - Part 031-3: Non-connectorized single-mode 1xN and 2xN non-wavelength-selective branching devices (NWBD) for Category U - Uncontrolled environment
• Effective Date: 29-Jan-2023

Overview

EN 61753-031-3:2015 (IEC 61753-031-3:2014) is a performance standard for non-connectorized single‑mode 1×N and 2×N non‑wavelength‑selective branching devices (NWBD) intended for Category U - Uncontrolled environment. The standard defines the minimum initial tests, measurement requirements, sample sizes and reporting needed to verify device performance, with a focus on balanced and unbalanced bidirectional NWBDs commonly used in passive optical networks (PON) and access networks.

Key topics and requirements

• Scope and device types: Covers non‑connectorized single‑mode NWBDs in 1×N and 2×N configurations. Balanced bidirectional NWBDs have two performance classes; unbalanced devices are covered specifically for 1×2 and 2×2 configurations.
• Performance classes:
  • Class A (premium) - more restrictive attenuation and uniformity for extended‑reach PON.
  • Class B (standard) - for normal‑reach PON applications.
• Measured parameters: Attenuation, uniformity (port‑to‑port variation), directivity, return loss and transient loss are among the documented performance metrics.
• Test procedures referenced: The standard uses methods from the IEC 61300 series (vibration, shock, temperature cycling, damp heat cyclic, fibre/cable retention, polarization‑dependent loss, return loss, directivity, transient loss, etc.) and other normative references such as IEC 60793‑2‑50 for single‑mode fibre characteristics.
• Test structure and deliverables: Specifies sample size, test sequences, pass/fail criteria, dimensional checks and required content for the test report.
• Environment: Tailored for Category U - devices expected to operate in uncontrolled or outdoor environments where environmental stresses are variable.

Applications and who uses it

• Primary applications: Passive Optical Network (PON) splits and branching implementations, access networks, and other fibre distribution systems requiring non‑connectorized branching devices.
• Primary users:
  • Component and device manufacturers (design verification and production qualification)
  • Test laboratories and certification bodies (conformance testing to EN/IEC requirements)
  • Network operators and specifiers (procurement and acceptance criteria)
  • System integrators and R&D teams (product selection and system design)

Related standards

• IEC 61753 series (general performance standards for fibre optic interconnects)
• IEC 61300 series (basic test and measurement procedures)
• IEC 60793‑2‑50 (single‑mode fibre product specification)
• EN 61753‑031‑2 / other parts of IEC 61753 for complementary requirements and environmental categories

EN 61753‑031‑3:2015 is essential reading when specifying, testing or procuring NWBDs for uncontrolled environments and when ensuring consistent attenuation, uniformity and reliability across PON deployments.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2015
2SWLþQLVSRMQLHOHPHQWLLQSDVLYQHNRPSRQHQWH7HKQLþQLVWDQGDUGGHO
(QRURGQL[1LQ[1QHYDORYQRGROåLQVNLVHOHNWLYQLRSWLþQLVNORSQLNLEUH]
NRQHNWRUMHY]DNDWHJRULMR81HQDG]RURYDQRRNROMH,(&
Fibre optic interconnecting devices and passive components - Performance standard -
Part 031-3: Non-connectorised single-mode 1xN and 2xN non-wavelength-selective
branching devices for Category U - Uncontrolled environment (IEC 61753-031-3:2014)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
031-3: Nicht mit Steckverbindern versehene wellenlängenunabhängige Einmoden - 1xN
und 2xN - Verzweiger für die Kategorie U - Unkontrollierte Umgebung (IEC 61753-031-
3:2014)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Norme de
performance - Partie 031-3: Dispositifs de couplage indépendants de la longueur d'onde
1xN et 2xN en unimodal, non-connectorisés, pour catégorie U - Environnement non
contrôlé (IEC 61753-031-3:2014)
Ta slovenski standard je istoveten z: EN 61753-031-3:2015
ICS:
33.180.10 2SWLþQDYODNQDLQNDEOL Fibres and cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61753-031-3

NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2015
ICS 33.180.10 Supersedes EN 61753-031-3:2009
English Version
Fibre optic interconnecting devices and passive components -
Performance standard - Part 031-3: Non-connectorized single-
mode 1×N and 2×N non-wavelength-selective branching devices
for Category U - Uncontrolled environment
(IEC 61753-031-3:2014)
Dispositifs d'interconnexion et composants passifs à fibres Lichtwellenleiter - Verbindungselemente und passive
optiques - Norme de performance - Partie 031-3: Dispositifs Bauteile - Betriebsverhalten - Teil 031-3: Nicht mit
de couplage indépendants de la longueur d'onde 1xN et Steckverbindern versehene wellenlängenunabhängige
2xN en unimodal, non-connectorisés, pour catégorie U - Einmoden - 1xN und 2xN - Verzweiger für die Kategorie U -
Environnement non contrôlé Unkontrollierte Umgebung
(IEC 61753-031-3:2014) (IEC 61753-031-3:2014)
This European Standard was approved by CENELEC on 2015-01-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61753-031-3:2015 E

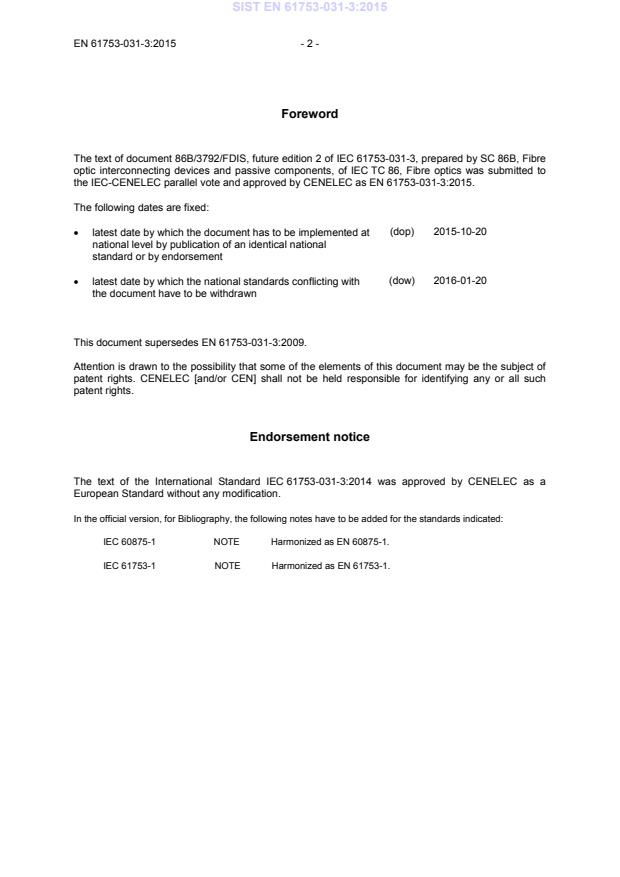

Foreword
