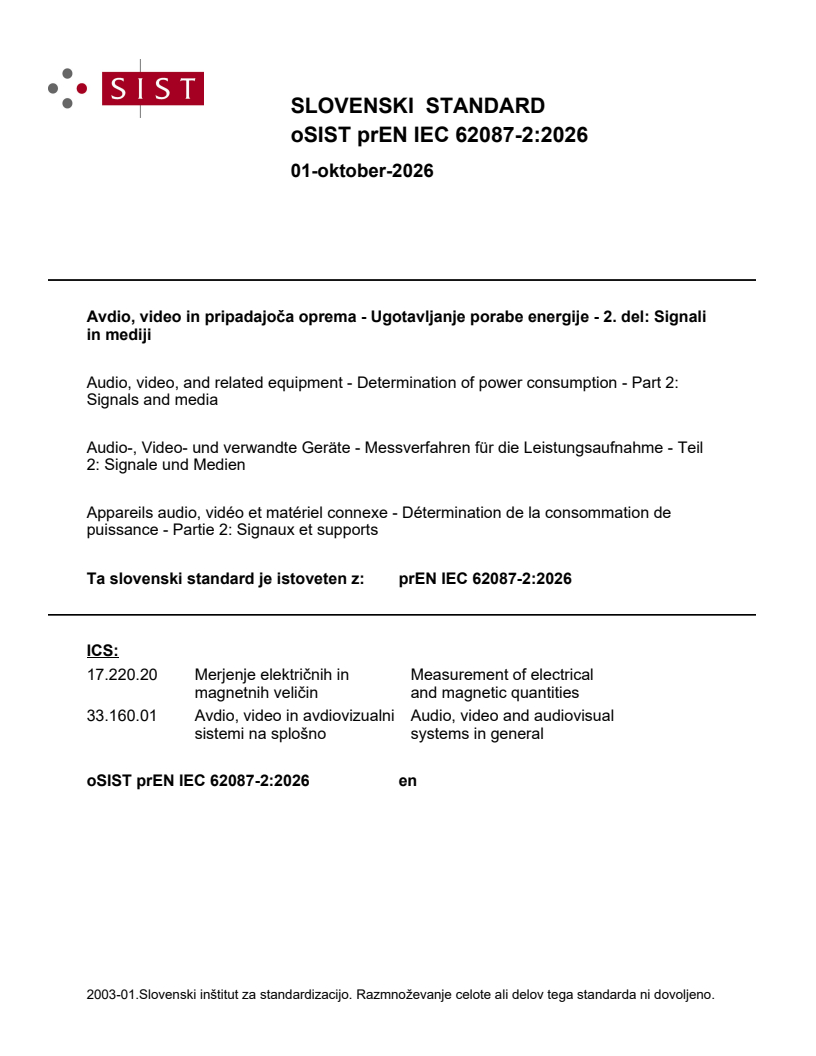

SLOVENSKI STANDARD
01-oktober-2026
Avdio, video in pripadajoča oprema - Ugotavljanje porabe energije - 2. del: Signali
in mediji
Audio, video, and related equipment - Determination of power consumption - Part 2:
Signals and media
Audio-, Video- und verwandte Geräte - Messverfahren für die Leistungsaufnahme - Teil
2: Signale und Medien
Appareils audio, vidéo et matériel connexe - Détermination de la consommation de
puissance - Partie 2: Signaux et supports
Ta slovenski standard je istoveten z: prEN IEC 62087-2:2026
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
33.160.01 Avdio, video in avdiovizualni Audio, video and audiovisual
sistemi na splošno systems in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

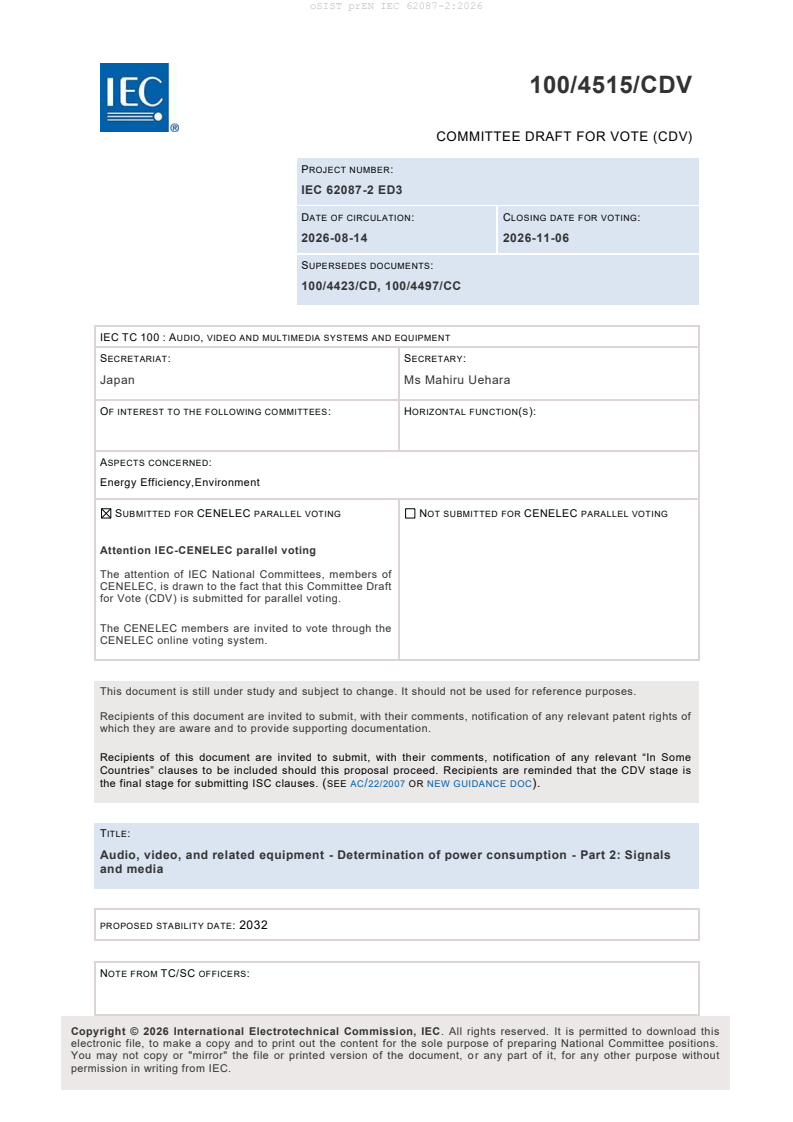

100/4515/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62087-2 ED3
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2026-08-14 2026-11-06
SUPERSEDES DOCUMENTS:
100/4423/CD, 100/4497/CC
IEC TC 100 : AUDIO, VIDEO AND MULTIMEDIA SYSTEMS AND EQUIPMENT
SECRETARIAT: SECRETARY:
Japan Ms Mahiru Uehara
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
Energy Efficiency,Environment
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Audio, video, and related equipment - Determination of power consumption - Part 2: Signals
and media
PROPOSED STABILITY DATE: 2032
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without

permission in writing from IEC.

IEC CDV 62087-2 © IEC 2026

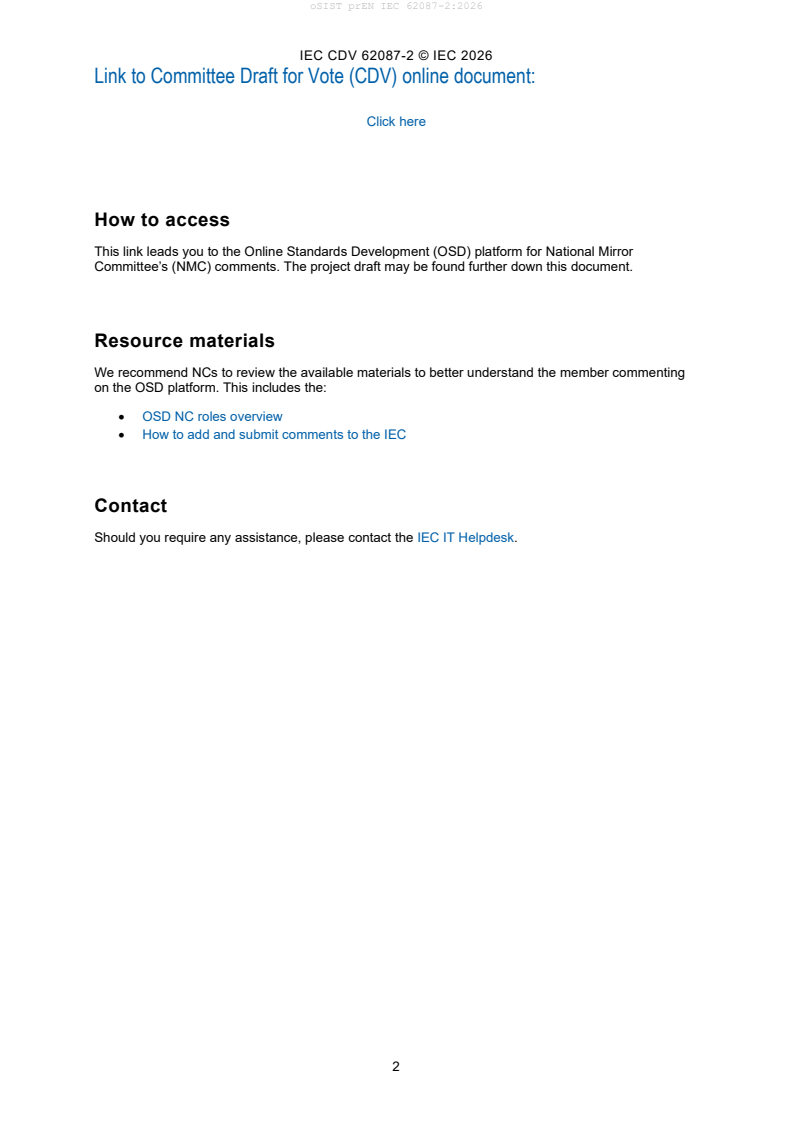

Link to Committee Draft for Vote (CDV) online document:
Click here
How to access
This link leads you to the Online Standards Development (OSD) platform for National Mirror
Committee’s (NMC) comments. The project draft may be found further down this document.

Resource materials
We recommend NCs to review the available materials to better understand the member commenting
on the OSD platform. This includes the:
• OSD NC roles overview
• How to add and submit comments to the IEC

Contact
Should you require any assistance, please contact the IEC IT Helpdesk.
CONTENTS
CONTENTS . 1
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, and abbreviated terms . 6
3.1 Terms and definitions. 6
3.1.1 Video signal related terms and definitions . 7
3.1.2 Interface related terms and definitions . 8
3.2 Abbreviated terms . 9
4 Signals . 11
4.1 Audio-visual signals used for the determination of power consumption . 11
4.1.1 Overview . 11
4.1.2 Audio signal associated with video signals. 11
4.1.3 Test patterns . 11
4.1.4 Broadcast content based test media . 13
4.2 Audio signals used for determination of audio power consumption . 13
4.2.1 Audio signals . 13
4.2.2 Signal levels . 14
5 Media . 15
5.1 Online repository . 15
5.2 Incompatibility of test signals with previous packaged media . 15
6 Signal provision . 15
6.1 General . 15
6.2 Signal provision equipment . 16
6.2.1 USB stick media . 16
6.2.2 External audio-visual equipment . 16
6.2.3 Service provider network equipment . 17
6.2.4 Audio signal generator . 17
6.3 EUT interfaces . 17
6.3.1 USB . 17
6.3.2 HDMI® . 17
6.3.3 DisplayPort . 17
6.3.4 Component analogue video . 17
6.3.5 S-Video . 18
6.3.6 Composite analogue video . 18
6.3.7 Analogue terrestrial interface . 18
6.3.8 Cable television interface . 18
6.3.9 Digital terrestrial interface. 18
6.3.10 Satellite interface . 18
6.3.11 Network interfaces . 18
6.3.12 Other interfaces . 19
6.4 Accuracy of video signal levels . 19
Annex A (informative) Description of video signals . 20
A.1 Black, white and color static test patterns . 20
A.2 Three-bar static pattern . 20
A.3 SDR broadcast content . 20
IEC CDV 62087-2 © IEC 2026
A.4 HDR broadcast content . 21
A.5 Internet static pattern sequence . 21
A.6 Box and outline dynamic pattern . 23
Annex B (informative) Video signals used for the determination of power consumption . 24
B.1 Source of test media (video signals) . 24
B.2 Test media (video signals) available for download from the IEC 62087-2
online repository . 24
Bibliography . 41

Figure 1 – Occurrence of linear and non-linear signal encodings in context of a typical
display processing pipeline for computing APL and APL′ . 8
Figure 2 – Dynamic box and outline video signal (L20PeakLumMotion). 12
Figure A.1 – Internet-content video signal APL′ . 22

Table 1 – Dynamic box and outline video signal naming . 12
Table A.1 – Example of MediaInfo for 50 fps HD version of test clip . 20
Table A.2 – Internet-content data . 22
Table B.1 – 50p (50Hz) SDR SD video signals used for the determination of power or
luminance . 25
Table B.2 – 50p (50Hz) SDR HD video signals used for the determination of power or
luminance . 27
Table B.3 – 50p (50Hz) SDR 4K UHD video signals used for the determination of
power or luminance. 29
Table B.4 – 50p (50Hz) HDR HD video signals used for the determination of power or
luminance . 31
Table B.5 – 50p (50Hz) HDR 4K UHD video signals used for the determination of
power or luminance. 32
Table B.6 – 59.94p (60Hz) SDR SD video signals used for the determination of power
or luminance . 33
Table B.7 – 59.94p (60Hz) SDR HD video signals used for the determination of power
or luminance . 35
Table B.8 – 59.94p (60Hz) SDR 4K UHD video signals used for the determination of
power or luminance. 37
Table B.9 – 59.94p (60Hz) HDR HD video signals used for the determination of power
or luminance . 39
Table B.10 – 59.94p (60Hz) HDR 4K UHD video signals used for the determination of
power or luminance. 40

IEC CDV 62087-2 © IEC 2026
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Audio, video, and related equipment - Determination of power
consumption -
Part 2: Signals and media
FOREWORD
a) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical
Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt
with may participate in this preparatory work. International, governmental and non-governmental organizations
liaising with the IEC also participate in this preparation. IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two
organizations.
b) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
c) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
d) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
e) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
f) All users should ensure that they have the latest edition of this publication.
g) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
h) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
i) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62087-2 has been prepared by technical area 19: Environmental and energy aspects for
multimedia systems and equipment, of IEC technical committee 100: Audio, video and
multimedia systems and equipment. It is an International Standard.
The first edition of IEC 62087-2, together with IEC 62087-1 and IEC 62087-3 to IEC 62087-6
canceled and replaced IEC 62087:2011 [1] in its entirety.
IEC 62087-2:2015 (first edition) separated signals and media that are to be used for determining
power consumption and related characteristics into a dedicated part. The three original video
signal sets (static, dynamic broadcast-content, and Internet-content) were not changed. Signals
for the purpose of determining the peak luminance ratio that is sometimes associated with
television set power consumption measurement programs had been added.
The second edition of IEC 62087-2 added HDR and UHD video test signals and dynamic box
and outline test signals for TV power consumption testing. All test signals were made available
IEC CDV 62087-2 © IEC 2026
from a specified IEC online repository for download, replacing the former physical media
distribution.
This third edition of IEC 62087-2 cancels and replaces the second edition published in 2023.
This edition constitutes a technical revision and includes the following significant technical
changes with respect to the previous edition:
– SDR video signals have been updated.
The text of this International Standard is based on the following documents:
Draft Report on voting
100/xxxx/CDV 100/xxxx/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 62087 series, published under the general title Audio, video, and
related equipment - Determination of power consumption, can be found on the IEC website.
This publication contains multiple test signals downloadable from a specified IEC online
repository, available at https://www.iec.ch/tc100/supportingdocuments. These files form an
integral part of this standard.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
WARNING The "colour inside" logo on the cover page of this document indicates that it contains colours
which are considered to be useful for the correct understanding of its contents. Users should therefore print
this document using a colour printer.
IEC CDV 62087-2 © IEC 2026
INTRODUCTION
This document identifies test signals to be used to determine power consumption and related
characteristics specified in some other parts of the IEC 62087 series.
This third edition of IEC 62087-2 replaces the SDR broadcast video clips with new SDR
broadcast video clips identical in content, scene cuts and length to the IEC HDR test clips with
a few excpetions. It also incorporates numerous minor changes such as replacing "video signal"
with "static pattern," where appropriate, replacing "unit under test" with "equipment under test"
for consistency, etc.
All test signals are available for download from an IEC online repository.
IEC 62087 series currently consists of the following published parts:
– Part 1: General
– Part 2: Signals and media
– Part 3: Television sets
– Part 4: Video recording equipment
– Part 5: Set-top boxes
– Part 6: Audio equipment
– Part 7: Computer monitors
– Part 8: Small network equipment
IEC CDV 62087-2 © IEC 2026
1 Scope
This part of IEC 62087 specifies the signals used to determine the power consumption and
related characteristics of audio, video, and related equipment, such as television sets and
computer monitors. In addition, this part specifies equipment, interfaces, and accuracy related
to signal generation.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60107-1:1997, Methods of measurement on receivers for television broadcast trans-
missions - Part 1: General conditions - Measurements at radio and video frequencies
IEC 60268-1, Sound system equipment - Part 1: General
IEC 60315-1:1988, Methods of measurement on radio receivers for various classes of emission.
Part 1: General considerations and methods of measurement, including audio-frequency
measurements
IEC 60315-3, Methods of measurement on radio receivers for various classes of emission - Part
3: Receivers for amplitude-modulated sound-broadcasting emissions
IEC 60315-4:1997, Methods of measurement on radio receivers for various classes of emission
- Part 4: Receivers for frequency-modulated sound broadcasting emissions
IEC 60958-1, Digital audio interface - Part 1: General
IEC 60958-3, Digital audio interface - Part 3: Consumer applications
IEC 61938, Multimedia systems - Guide to the recommended characteristics of analogue
interfaces to achieve interoperability (GMT)
IEC 62087-1, Audio, video, and related equipment - Determination of power consumption - Part
1: General
IEC 62216, Digital terrestrial television receivers for the DVB-T system
Recommendation ITU-R BT.2100-2, Image parameter values for high dynamic range television
for use in production and international programme exchange
3 Terms, definitions, and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62087 -1 as well as
in the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
IEC CDV 62087-2 © IEC 2026
3.1.1 Video signal related terms and definitions
3.1.1.1
standard definition
SD
spatial video resolution ranging from 640 × 360 to 1 280 × 720
3.1.1.2
high definition
HD
spatial video resolution ranging from 1 280 × 720 to 1 920 × 1 080
3.1.1.3
ultra-high definition
UHD
Ultra HD
spatial video resolution above 1 920 × 1 080
3.1.1.4
average picture level
APL
average level of all the pixels of a single video signal frame or a group thereof in the linear
luminance domain
Note 1 to entry: This note applies to the French language only.
Note 2 to entry: APL is a measure of the linear signal that might be available inside of some display equipment and
delivered to the display device. The properties and their differences of the external and internal video signals are
shown in Figure 1.
Note 3 to entry: There are other standards that use the terms "pre-gamma" and "post-gamma" to describe APL' and
APL, respectively.
3.1.1.5
average picture level based on non-linear input signal
APL′
average level of all pixels of a single video signal frame or a group thereof in the non -linear
luminance domain
EXAMPLE Display equipment such as television sets or computer monitor receive input signals that encode
luminance or brightness in a non-linear way. Examples for such non-linear encoding are PQ (absolute luminance) or
HLG (3.1.1.8)(brightness) EOTFs (ITU-R BT.2100-2).
Note 1 to entry: APL' (3.1.1.5)is defined as a percentage of the range between reference black and reference white
level.
Note 2 to entry: This is not a measure of the linear signal that might be available inside of some display equipment
and delivered to the display device. The properties and their differences of the external and internal video signals
are shown in Figure 1.
Figure 1 – Occurrence of linear and non-linear signal encodings in context of a typical
display processing pipeline for computing APL and APL′
Note 3 to entry: There are other standards that use the terms ‘pre-gamma’ and ‘post-gamma’ to describe APL' and
APL, respectively.
IEC CDV 62087-2 © IEC 2026
3.1.1.6
standard dynamic range video
SDR video
capability of components in a video pipeline to capture, process, transport or display luminance
levels and tone gradations that can be characterized by the dynamic range, colour rendering
and tone gradation capabilities essentially compatible with cathode ray tube (CRT) displays
EXAMPLE BT.709/BT.1886 and IEC 62966-2-1 (sRGB)
Note 1 to entry: This note applies to the French language only.
3.1.1.7
high dynamic range video
HDR video
capability of components in a video pipeline to capture, process, transport or display luminance
levels and tone gradations that exceed capabilities of conventional SDR imaging pipeline
components
EXAMPLE An HDR video signal typically uses a greater bit depth, luminance and colour volume than standard
dynamic range (SDR) video. It also typically utilizes different tone curves such as perceptual quantizer (PQ) or hybrid
log gamma (HLG (3.1.1.8)) as specified in ITU-R BT.2100 instead of gamma, as used with SDR. When the HDR
video signal is rendered on an HDR display, it is possible to see greater luminance ranges and wider colour gamut
Note 1 to entry: HDR video can provide an enhanced viewer experience and can more accurately reproduce scenes
that include, within the same image, deep dark areas, and bright highlights, such as emissive light sources and
reflections.
Note 2 to entry: This note applies to the French language only.
3.1.1.8
hybrid log-gamma
HLG
one set of transfer functions offering a degree of backwards compatibility by more closely
matching the previously established electronic display transfer curves
Note 1 to entry: Sets of transfer functions related to HDR signals are specified in Rec. ITU-R BT.2100
Note 2 to entry: HLG (3.1.1.8)is used both as a description of a dedicated transfer function and as a video format
name.
3.1.2 Interface related terms and definitions
3.1.2.1
component analogue video
baseband analogue video interface that carries a standard or high-definition colour video signal
over three signal lines
Note 1 to entry: See CTA-770.3-E S-2022.
3.1.2.2
composite analogue video
baseband analogue video interface that carries a standard-definition colour video signal over a
single signal line
Note 1 to entry: See SMPTE ST 170M:2004 for the 59,94 Hz version and ITU-R BT.470-5 for the 50 Hz version.
3.1.2.3
S-video
baseband analogue video interface that carries a standard definition colour video signal using
two signal lines
Note 1 to entry: See IEC 60933-5.
3.1.2.4
digital visual interface
DVI
IEC CDV 62087-2 © IEC 2026
video interface that can carry analogue or digital uncompressed video
Note 1 to entry: This note applies to the French language only.
3.1.2.5
DisplayPort
digital display interface developed by the Video Electronics Standards Association
3.1.2.6
High-Definition Multimedia Interface
HDMI®
audio-visual interface capable of carrying uncompressed video data, compressed or
uncompressed digital audio data, and other information
Note 1 to entry: See HDMI® specification.
Note 2 to entry: This note applies to the French language only.
3.1.2.7
Universal Serial Bus
USB
digital interface that can be used to connect storage media and peripherals to digital devices
like computers and TVs
Note 1 to entry: See USB specification.
Note 2 to entry: This note applies to the French language only.
3.1.3
emissive display
display that generates light directly from each sub-pixel
EXAMPLE OLED display
3.2 Abbreviated terms
´ prime (noting that the signal is non-linear, for example APL')
AM amplitude modulation
APL average picture level
APL' average picture level based on non-linear input signal
AV audio-visual
BD
Blu-ray Disc™
BER bit error rate
C/N carrier-to-noise ratio
DAB digital audio broadcast
dB decibel
DVD digital versatile disc
DVI digital visual interface
EMF electromotive force
EPA United States Environmental Protection Agency
EUT equipment under test
FM frequency modulation
Hz hertz
___________
Blu-ray Disc™ is a trademark of the Blu-Ray Disc Association. This information is given for the convenience of
users of this document and does not constitute an endorsement by IEC of the product named. Equivalent products
may be used if they can be shown to lead to the same results.
IEC CDV 62087-2 © IEC 2026
High Definition Multimedia Interface
HDMI®
HD high definition
HDR high dynamic range
HLG hybrid log-gamma
IDMS Information Display Measurements Standard
JEITA Japan Electronics and Information Technology industries Association
kb/s kilobits per second
LCD liquid crystal display
LAN local area network
Mb/s megabits per second
mW milliwatt
μW microwatt
NTSC National Television Standards Committee
OLED organic light-emitting diode
OOI acoustic onset of impairment
PAL phase alternating line
pW picowatt
RF radio frequency
RMS root mean square
SD standard definition
SDR standard dynamic range
SECAM séquentiel couleur à mémoire (Sequential colour with memory)
SMPTE Society of Motion Picture and Television Engineers
UHD ultra high definition
Universal Serial Bus
USB
4 Signals
4.1 Audio-visual signals used for the determination of power consumption
4.1.1 Overview
Video signals are divided into test patterns and broadcast content. The broadcast content is
intended to represent typical broadcast or streamed, SDR or HDR, dynamic video content.
In this document, all references to '60 Hz media' technically refer to 59,94 Hz coded video
content; similarly, '24 Hz media' refers to 23,976 Hz media .
A general description of the video signals is provided in Annex A.
All video signals shall be downloaded from the specified IEC online repository referenced in
5.1.
___________
HDMI® and HDMI® High-Definition Multimedia Interface are registered trademarks of HDMI Licensing
Administrator, Inc. This information is given for the convenience of users of this document and does not constitute
an endorsement by IEC of the product named. Equivalent products may be used if they can be shown to lead to
the same results.
USB Implementers Forum, Inc. takes the position that the terms "USB" and "Universal Serial Bus" are generic
terms. This information is given for the convenience of users of this document and does not constitute an
endorsement by IEC of the product named. Equivalent products may be used if they can be shown to lead to the
same results.
IEC CDV 62087-2 © IEC 2026
4.1.2 Audio signal associated with video signals
Sine-wave signals at a frequency of 1 kHz or, if 1 kHz cannot be used, signals at the centre
frequency of the transfer range specified by the manufacturer of the EUT shall be used. For
digital inputs, the level of the signal shall be 18 dB below full scale. For analogue inputs, the
signal shall be 20 dB below the reference level or greater with a suggested signal level of 500
mV RMS.
The video signals described in 4.1.3, 4.1.4, and 4.1.3.5 are encoded with an accompanying 1
kHz tone with a level of 18 dB below full scale.
4.1.3 Test patterns
4.1.3.1 Black level static pattern
The entire part of the signal representing the active picture shall be black (0 %), as defined in
IEC 60107-1:1997, 3.2.1.5. This is an SDR signal. Reference to the signal online repository is
provided in 5.1 .
4.1.3.2 White level static pattern
The entire part of the signal representing the active picture shall be white (100 %), as defined
in IEC 60107-1:1997, 3.2.1.5. This is an SDR signal. Reference to the signal online repository
is provided in 5.1 .
4.1.3.3 Colour bar static pattern
The active part of the signal shall be a full field colour bar SDR signal. For 50 Hz systems, the
(100/0/75/0) colour bar signal for PAL and SECAM receivers as defined in IEC 60107-1:1997,
3.2.1.2 shall be used. In the case of a 60 Hz system, the top section of the (75/0/75/0) colour
bar signal for NTSC defined in IEC 60107-1:1997, 3.2.1.2 shall be used and shall cover the full
field of the display. Reference to the signal online repository is provided in 5.1 .
NOTE The 50 Hz signal has eight bars (including black), and the 60 Hz signal has seven bars (white, yellow, cyan,
green, magenta, red and blue, in this order).
4.1.3.4 Three-bar static pattern
The active picture area of the signal shall be three bars of white (100 %) over a black (0 %)
background as defined in IEC 60107-1:1997, 3.2.1.3. This is an SDR signal. Reference to the
signal online repository is provided in 5.1.
4.1.3.5 Internet static pattern sequence
The media includes an Internet-content video signal. This is an SDR signal. Reference to the
signal online repository is provided in 5.1.
Additional information is available in Clause A.5.
4.1.3.6 Box and outline dynamic pattern
The set of two box and outline dynamic video signals includes a white (100 %) rectangle on a
grey (34 %) background, with a black (0 %) border near the outer part of the picture. This border
includes a moving pattern comprising black (0 %) and white (100 %) segments. Each corner
contains a 1 % coverage full-field colour bar pattern. The dimensions of the central white
(100 %) rectangle of the two signals correspond to the defined L20 and L40 static test patterns
[IDMS v1.1a, Appendix A12]. The signal with the corresponding larger white rectangle may be
used when measuring smaller screens in order to provide sufficient white coverage as required
by screen luminance contact probes. An example of L20PeakLumMotion is shown in Figure 2.
IEC CDV 62087-2 © IEC 2026
Figure 2 – Dynamic box and outline video signal (L20PeakLumMotion)
The two dynamic video signals as listed in Table 1 below are in SDR, rendered in SD, HD and
UHD formats and are available in 50Hz (50p) and 59,94Hz (5994p). The selection of signal
format shall be based on the one which most closely resembles the highest supported screen
resolution of the EUT. The central white area in L40PeakLumMotion is greater than that in
L20PeakLumMotion. Reference to the signal online repository is provided in 5.1 .
Table 1 – Dynamic box and outline video signal naming
SD HD UHD
L10PeakLumMotionS L10PeakLumMotionH L10PeakLumMotionU
D50p D50p HD50p
L20PeakLumMotionS L20PeakLumMotionH L20PeakLumMotionU
D50p D50p HD50p
L30PeakLumMotionS L30PeakLumMotionH L30PeakLumMotionU
D50p D50p HD50p
L40PeakLumMotionS L40PeakLumMotionH L40PeakLumMotionU
D50p D50p HD50p
L50PeakLumMotionS L50PeakLumMotionH L50PeakLumMotionU
D50p D50p HD50p
L60PeakLumMotionS L60PeakLumMotionH L60PeakLumMotionU
D50p D50p HD50p
L70PeakLumMotionS L70PeakLumMotionH L70PeakLumMotionU
D50p D50p HD50p
L80PeakLumMotionS L80PeakLumMotionH L80PeakLumMotionU
D50p D50p HD50p
L10PeakLumMotionS L10PeakLumMotionH L10PeakLumMotionU
D5994p D5994p HD5994p
L20PeakLumMotionS L20PeakLumMotionH L20PeakLumMotionU
D5994p D5994p HD5994p
L30PeakLumMotionS L30PeakLumMotionH L30PeakLumMotionU
D5994p D5994p HD5994p
L40PeakLumMotionS L40PeakLumMotionH L40PeakLumMotionU
D5994p D5994p HD5994p
L50PeakLumMotionS L50PeakLumMotionH L50PeakLumMotionU
D5994p D5994p HD5994p
L60PeakLumMotionS L60PeakLumMotionH L60PeakLumMotionU
D5994p D5994p HD5994p
L70PeakLumMotionS L70PeakLumMotionH L70PeakLumMotionU
D5994p D5994p HD5994p
L80PeakLumMotionS L80PeakLumMotionH L80PeakLumMotionU
D5994p D5994p HD5994p
IEC CDV 62087-2 © IEC 2026
4.1.4 Broadcast content based test media
4.1.4.1 SDR broadcast content based test media
For SDR-only capable television sets, suitable SDR test media are available in appropriate
resolutions and progressive scan formats. The duration of the SDR audio-visual signal is 5 min.
The standard dynamic range dynamic video signals shall be downloaded from the specified IEC
online repository; see 5.1 .
4.1.4.2 HDR broadcast content based test media
High dynamic range (HDR) video has gained increasing importance throughout the entire video
ecosystem from capture, production and processing, through to distribution and presentation.
HDR television sets potentially have higher peak luminance level capabilities in comparison to
SDR TVs or SDR TV modes. For HDR-capable television sets, suitable HDR test media are
available in appropriate codecs, resolutions, and progressive scan formats. All HDR video
signals in HDR10 format contain static metadata. The duration of the HDR audio-visual signal
in both HLG and HDR10 formats is 5 min.
The high dynamic range dynamic video signals shall be downloaded from the specified IEC
online repository; see 5.1 .
4.2 Audio signals used for determination of audio power consumption
4.2.1 Audio signals
4.2.1.1 Sine wave signal
The signal shall be a sine-wave at a frequency of 1 kHz or, if 1 kHz cannot be used, the sine
wave frequency shall be at the centre of the frequency range specified by the manufacturer.
The analogue and digital 1 kHz sine wave signals are not included in the media supplied in
Clause 5.
4.2.1.2 Simulated programme signal
A simulated programme signal shall have a mean power spectral density that closely resembles
the average of mean power spectral densities of a wide range of programme material, in
accordance with IEC 60268-1.
Such a signal may be obtained from pink noise, band-limited by a filter whose response
conforms to that given in IEC 60268-1. The crest factor of a noise source should fall between 3
and 4 to avoid clipping of amplifiers.
The simulated programme signal is not included in the media supplied in Clause 5.
4.2.2 Signal levels
4.2.2.1 Audio signal level, analogue
For baseband analogue inputs, the input signal shall be at a level of 500 mV RMS, according
to the rated source EMF of IEC 61938.
4.2.2.2 Audio signal level, digital
For digital inputs, the input signal shall be at a level of 12 dB below reference full scale, in
accordance with IEC 61938, IEC 60958-1 and IEC 60958-3.
IEC CDV 62087-2 © IEC 2026
4.2.2.3 Audio signal level, RF
For FM radio tuners, the input signal shall be applied to an aerial input terminal at a level of 40
dB (pW). The deviation shall be 40 kHz.
For AM radio tuners with an antenna input terminal, the input signal shall be an EMF of 1 mV
from a 50 Ω source. The modulation factor shall be 30 %.
For non-detachable antennas (rod antennas for FM and magnetic antennas for AM), the RF
signal level for FM and AM shall be large enough to produce an audio signal-to-noise ratio of
36 dB for FM at 75 kHz deviation and 26 dB for AM at 30 % modulation. Signal-to-noise ratios
shall be measured as specified in IEC 60315-1:1988, 6.1.
For AM receivers, the method of measurement with an analogue electromagnetic field generator
is described in IEC 60315-3 and IEC 60315-1.
For FM receivers with rod antennas, refer to IEC 60315-4:1997, Clause 7.
For DAB and DAB+, the OOI point is sharply defined as the receiver's C/N (carrier-to-noise
ratio) degrades and BER increases, so this may be used as a means to assess the signal
requirement of the receiver. The OOI method may be implemented so that it is equivalent to a
−4
BER of 10 . The method involves monitoring (by a human observer or, if available, automated
equipment) of an encoded 1 kHz audio sinewave from the audio output source (speaker,
headphone, etc) and setting the RF signal level where the onset of audio defects (dropouts,
burbles, "chirps", etc.) can just be heard in the sinewave in a 10-second listening period. This
RF level is the OOI threshold for sensitivity.
In the case of a non-detachable aerial antenna, the RF signal level shall be high enough to
reproduce an audibly defect-free audio signal for DAB and DAB+.
The AM, FM and DAB test signals are not included in the media supplied in Clause 5.
NOTE ETSI EN 300 401, Clause 7 and ETSI TS 102 563 provide additional information about DAB and DAB+.
5 Media
5.1 Online repository
All the SDR and HDR video signals referenced by this document can be downloaded from the
publicly accessible IEC online repository at https://www.iec.ch/tc100/supportingdocuments. The
test media can be downloaded individually.
NOTE 1 For file download, you might have to use specific download functions or windows in your browser.
The test media shall be downloaded and provided for the test as described in Clause 6. The
test media may be updated and only the version of the video signals provided in the online
repository shall be used. The notation for minor and major revisions of the test media made
available in the IEC online repository is as follows:
a) Major revision (substantial update or change to the respective test media): part of a
maintenance action resulting in a new edition of IEC 62087-2. A major revision of a test
media shall be indicated by a new major version number. The original test media h as the
major version number one preceded with 'v' (v1-0).
EXAMPLE 1 IEC_Broadcast_UHD_50p_HLG_HEVC_AAC_v1-0.MP4
b) Minor revision (small or editorial update or change to the respective test media):
maintenance action taken independently of a new edition of the standard. A minor revision
of a test media shall be indicated by an increase of the minor version number. The original
test media has the minor version number zero preceded by a hyphen (v1-0).
EXAMPLE 2 IEC_Broadcast_UHD_50p_HLG_HEVC_AAC_v1-1.MP4
IEC CDV 62087-2 © IEC 2026
c) Change log: for the traceability of the history of revisions, a description of the change, the
reason, and the date of the release of a new (sub-)version of a test media will be recorded
in the overview document of IEC 62087-2 video signals in the IEC online repository.
Annex B provides an informative overview of the test media and their versions available at the
time of release of this document.
