SLOVENSKI STANDARD
SIST EN 50642:2018
01-julij-2018
Sistemi za urejanje okablenja - Metoda za preskušanje vsebnosti halogenov
Cable management systems - Test method for content of halogens

Systèmes de gestion de câblage - Méthode d'essai relative à la teneur en halogènes

Ta slovenski standard je istoveten z: EN 50642:2018
ICS:
29.060.20 Kabli Cables
SIST EN 50642:2018 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50642:2018
---------------------- Page: 2 ----------------------
SIST EN 50642:2018
EUROPEAN STANDARD EN 50642
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2018
ICS 29.120.10
English Version
Cable management systems - Test method for content of
halogens

Systèmes de gestion de câblage - Méthode d'essai relative Kabelführungssysteme - Prüfverfahren für Halogengehalt

à la teneur en halogènes

This European Standard was approved by CENELEC on 2018-03-26. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 50642:2018 E
---------------------- Page: 3 ----------------------
SIST EN 50642:2018
EN 50642:2018 (E)

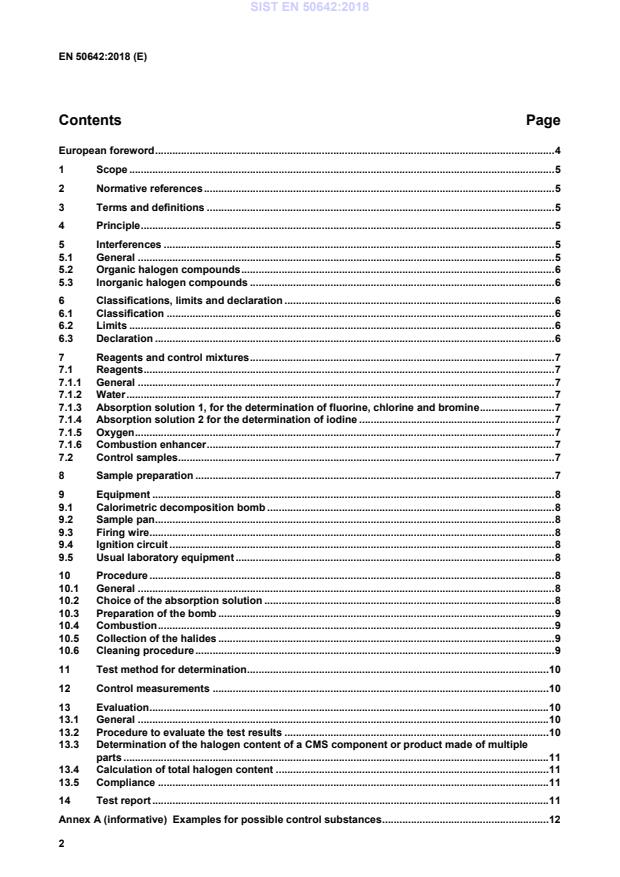

Contents Page

European foreword ........................................................................................................................................... 4

1 Scope .................................................................................................................................................... 5

2 Normative references .......................................................................................................................... 5

3 Terms and definitions ......................................................................................................................... 5

4 Principle ................................................................................................................................................ 5

5 Interferences ........................................................................................................................................ 5

5.1 General ................................................................................................................................................. 5

5.2 Organic halogen compounds ............................................................................................................. 6

5.3 Inorganic halogen compounds .......................................................................................................... 6

6 Classifications, limits and declaration .............................................................................................. 6

6.1 Classification ....................................................................................................................................... 6

6.2 Limits .................................................................................................................................................... 6

6.3 Declaration ........................................................................................................................................... 6

7 Reagents and control mixtures .......................................................................................................... 7

7.1 Reagents ............................................................................................................................................... 7

7.1.1 General ................................................................................................................................................. 7

7.1.2 Water ..................................................................................................................................................... 7

7.1.3 Absorption solution 1, for the determination of fluorine, chlorine and bromine .......................... 7

7.1.4 Absorption solution 2 for the determination of iodine .................................................................... 7

7.1.5 Oxygen .................................................................................................................................................. 7

7.1.6 Combustion enhancer ......................................................................................................................... 7

7.2 Control samples ................................................................................................................................... 7

8 Sample preparation ............................................................................................................................. 7

9 Equipment ............................................................................................................................................ 8

9.1 Calorimetric decomposition bomb .................................................................................................... 8

9.2 Sample pan ........................................................................................................................................... 8

9.3 Firing wire ............................................................................................................................................. 8

9.4 Ignition circuit ...................................................................................................................................... 8

9.5 Usual laboratory equipment ............................................................................................................... 8

10 Procedure ............................................................................................................................................. 8

10.1 General ................................................................................................................................................. 8

10.2 Choice of the absorption solution ..................................................................................................... 8

10.3 Preparation of the bomb ..................................................................................................................... 9

10.4 Combustion .......................................................................................................................................... 9

10.5 Collection of the halides ..................................................................................................................... 9

10.6 Cleaning procedure ............................................................................................................................. 9

11 Test method for determination ......................................................................................................... 10

12 Control measurements ..................................................................................................................... 10

13 Evaluation ........................................................................................................................................... 10

13.1 General ............................................................................................................................................... 10

13.2 Procedure to evaluate the test results ............................................................................................ 10

13.3 Determination of the halogen content of a CMS component or product made of multiple

parts .................................................................................................................................................... 11

13.4 Calculation of total halogen content ............................................................................................... 11

13.5 Compliance ........................................................................................................................................ 11

14 Test report .......................................................................................................................................... 11

Annex A (informative) Examples for possible control substances .......................................................... 12

---------------------- Page: 4 ----------------------
SIST EN 50642:2018
EN 50642:2018 (E)

Table A.1 — Examples for possible control substances ............................................................................ 12

Bibliography .................................................................................................................................................... 13

---------------------- Page: 5 ----------------------
SIST EN 50642:2018
EN 50642:2018 (E)
European foreword

This document (EN 50642:2018) has been prepared by CLC/TC 213 “Cable management systems”.

The following dates are fixed:
• latest date by which this document has (dop) 2019-03-26
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2021-03-26
standards conflicting with this document
have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

---------------------- Page: 6 ----------------------
SIST EN 50642:2018
EN 50642:2018 (E)
1 Scope

This European Standard specifies a method for the determination of the content of halogens in Cable

Management System (CMS) components or products made of polymeric material(s). The determination is

made by combustion and subsequent analysis of the combustion product by Ion Chromatography. This

standard specifies how CMS components or products can be declared as halogen free.

This European Standard is for environmental performance only.

Compliance with this standard does not imply the absence of toxicity, corrosivity or opacity of produced smoke,

or other reaction to fire characteristics. If any of these characteristics are to be evaluated, the appropriate

standards can be used.

The detection limit of this test method is typically 0,025 g of halogen per kg (0,002 5 %).

Halides insoluble in aqueous solution present in the original sample or produced during the combustion step

are not determined by this method.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content constitutes

requirements of this document. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

EN ISO 3696, Water for analytical laboratory use - Specification and test methods (ISO 3696)

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
halogen content

content of fluorine, chlorine, bromine and iodine as organic and inorganic compounds that can be converted

to halides (fluoride, chloride, bromide, iodide) by combustion and then absorbed or dissolved in an aqueous

solution

Note 1 to entry: The above definition is valid for this European Standard only and does not strictly comply with scientific

definition of halogen content.
4 Principle

The test sample is oxidized by combustion in a closed system containing oxygen under pressure using a

calorimetric decomposition bomb (bomb).

Nearly all of the halogens in compounds are converted to halides (fluoride, chloride, bromide and iodide), and

nearly all of these (see Clause 5) are dissolved in an absorption solution.

The detection limit of this test method is typically 0,025 g of halogen per kg (0,002 5 %). It may be used for

poorly burning samples, therefore a combustion enhancer may be used.
5 Interferences
5.1 General

Inorganic halides insoluble in aqueous solution present in the original samples or produced during the

combustion step are not determined by the method described here. 5.2 and 5.3 show the differences that

occur between the determination of the content of organic halogenated compounds and inorganic halogen

---------------------- Page: 7 ----------------------
SIST EN 50642:2018
EN 50642:2018 (E)

compounds. The inorganic halogen compounds in the material can have its origin as an additive deliberately

added to the material or as an impurity.
5.2 Organic halogen compounds

Organic compounds containing halogens are known under several names. Different expressions are used like

organohalogens, halogenated compounds, halocarbons or organic halides. They are all substances in which

one or more carbon atoms are linked by covalent bonds to one or more halogen atoms.

Among the organohalogens, some of them are efficient flame retardants. Chlorinated, brominated and

fluorinated organohalogens are used separately or in combination. Organohalogens will be converted into

inorganic halides by combustion and will then be absorbed or dissolved in an aqueous solution. This allows

the subsequent analysis of halogen content.
5.3 Inorganic halogen compounds

Inorganic compounds containing halogens are known as inorganic halides. Inorganic halides used as additives

are salts between a halogen and a metal linked together with an ionic bond, for example magnesium chloride

(MgCl2), potassium bromide (KBr) or sodium fluoride (NaF). These salts may have varying degrees of solubility

in water.

However, this limitation is considered as not significant as no example has been found where inorganic halides

have been used in CMS products.

Impurities containing inorganic halides will occur in several additives used in polymers. They can occur as

impurities in, for example, fillers (like CaCl2 in CaCO3), pigments (like TiCl4 in TiO2) or other inorganic additives

(like AlCl3 in Al(OH)3). These inorganic halides can have more or less solubility in water, but they will only be

measured if they dissolve in the aqueous solution. Investigations have shown that the content of each halogen

in impurities in inorganic additives for CMS products is low and therefore does not significantly contribute to

the total content of each halogen. Insoluble inorganic halides will not be considered and will not be measured

by the method described here. Examples of insoluble inorganic halides are halide salts of silver and barium

(AgCl, AgBr and BaCl2). Soluble inorganic halides will be dissolved in the aqueous solution and will be

measured together with halides coming from the combustion of the
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
