EN IEC 63006:2019
(Main)Wireless power transfer (WPT) - Glossary of terms
Wireless power transfer (WPT) - Glossary of terms
IEC 63006:2019 specifies terminology and definitions related to wireless power transfer (WPT) technologies below 30 MHz to promote global harmonization of wireless power transfer terminology. This document does not address terminology of wireless power transfer outside the scope of IEC TC 100 (Audio, video and multimedia systems and equipment), such as human exposure or safety.
Drahtlose Energieübertragung (WPT) - Glossar
Transfert d'énergie sans fil (WPT) - Glossaire des termes
L'IEC 63006:2019 spécifie la terminologie et les définitions relatives aux technologies de transfert d'énergie sans fil (WPT - Wireless Power Transfer) au-dessous de 30 MHz, afin de promouvoir l'harmonisation globale de la terminologie du transfert d'énergie sans fil. La présente norme ne traite pas de la terminologie du transfert d'énergie sans fil en dehors du domaine d'application du TC 100 de l'IEC (Systèmes et équipements audio, vidéo et services de données), notamment en ce qui concerne l'exposition humaine ou la sécurité.
Brezžični prenos moči (WPT) - Slovar izrazov (IEC 63006:2019)
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2020
Brezžični prenos moči (WPT) - Slovar izrazov (IEC 63006:2019)
Wireless power transfer (WPT) - Glossary of terms (IEC 63006:2019)
Drahtlose Energieübertragung (WPT) - Glossar (IEC 63006:2019)
Transfert d'énergie sans fil (WPT) - Glossaire des termes (IEC 63006:2019)
Ta slovenski standard je istoveten z: EN IEC 63006:2019
ICS:
01.040.33 Telekomunikacije. Avdio in Telecommunications. Audio
video tehnika (Slovarji) and video engineering
(Vocabularies)
33.020 Telekomunikacije na splošno Telecommunications in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 63006
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2019
ICS 29.240.99
English Version
Wireless power transfer (WPT) - Glossary of terms
(IEC 63006:2019)
Transfert d'énergie sans fil (WPT) - Glossaire des termes Drahtlose Energieübertragung (WPT) - Glossar
(IEC 63006:2019) (IEC 63006:2019)
This European Standard was approved by CENELEC on 2019-11-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63006:2019 E

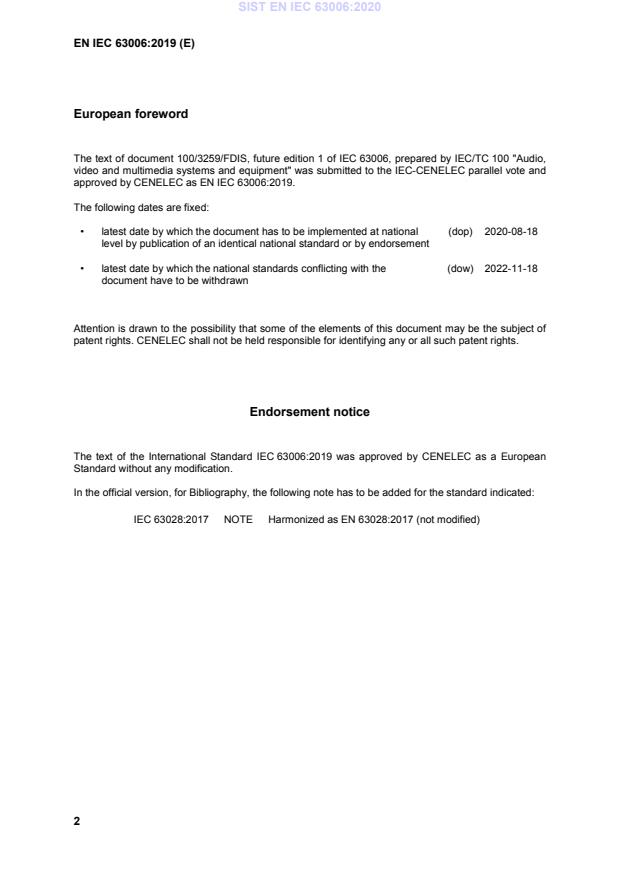

European foreword
The text of document 100/3259/FDIS, future edition 1 of IEC 63006, prepared by IEC/TC 100 "Audio,
video and multimedia systems and equipment" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 63006:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2020-08-18
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-11-18
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 63006:2019 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 63028:2017 NOTE Harmonized as EN 63028:2017 (not modified)
IEC 63006 ®
Edition 1.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Wireless power transfer (WPT) – Glossary of terms
Transfert d'énergie sans fil (WPT) – Glossaire des termes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.240.99 ISBN 978-2-8322-7462-0
– 2 – IEC 63006:2019 © IEC 2019
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
Bibliography . 14
IEC 63006:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
WIRELESS POWER TRANSFER (WPT) –
GLOSSARY OF TERMS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63006 has been prepared by technical area 15: Wireless Power
Transfer (WPT), of IEC technical committee 100: Audio, video and multimedia systems and
equipment.
The text of this International Standard is based on the following documents:
FDIS Report on voting
100/3259/FDIS 100/3312/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
– 4 – IEC 63006:2019 © IEC 2019
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 63006:2019 © IEC 2019 – 5 –
INTRODUCTION
IEC TC 100 published a technical report, IEC TR 62869, Activities and considerations related
to wireless power transfer (WPT) for audio, video and multimedia systems and equipment, at
which point it was determined that the international community is lacking globally harmonized
usage of terminology related to wireless power transfer technology.
This document provides common terminology to be used in wireless power transfer technology
technical reports and standards.
– 6 – IEC 63006:2019 © IEC 2019
WIRELESS POWER TRANSFER (WPT) –
GLOSSARY OF TERMS
1 Scope
This document specifies terminology and definitions related to wireless power transfer (WPT)
technologies below 30 MHz to promote global harmonization of wireless power transfer
terminology.
This document does not address terminology of wireless power transfer outside the scope of
IEC TC 100 (Audio, video and multimedia systems and equipment), such as human exposure
or safety.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
accessory receiver
back cover
receiver that physically mates to the exterior of a device for the purpose of powering or charging
that device, but is physically separable
Note 1 to entry: The device does not otherwise have the ability to be powered or charged wirelessly without the use
of the accessory receiver.
[SOURCE: ANSI/CTA-2042.1-B]
3.2
alignment aid
method of positioning a receiver relative to a transmitter that provides the user with feedback
to properly align the active area of the receiver to the active area of the transmitter
[SOURCE: ANSI/CTA-2042.1-B]
3.3
authentication
tamper-resistant process of a receiver verifying the identity of a transmitter, and/or a transmitter
verifying the identity of a receiver
[SOURCE: ANSI/CTA-2042.1-B]
IEC 63006:2019 © IEC 2019 – 7 –
3.4
battery management system
BMS
system of circuits (which may be integrated with a battery into a battery pack) to monitor key
operational parameters of a battery during charging and discharging
Note 1 to entry: Examples of such key parameters are voltages, currents, internal temperature of the battery,
ambient temperature.
Note 2 to entry: The monitoring circuits may provide inputs to protection devices, which would generate alarms or
disconnect the battery from the load or charger should any of the parameters become out of limits.
Note 3 to entry: This note applies to the French language only.
[SOURCE: ANSI/CTA-2042.1-B]
3.5
capacitive coupling
electric field coupling
coupling between electric circuit elements, by which a voltage between the terminals of one of
them gives rise to an electric charge in another element
[SOURCE: IEC 60050-131:2002, 131-12-31]
3.6
charging region
active area
charge area
area from where power is made available to receivers
Note 1 to entry: A charging pad is one example of a charging region.
[SOURCE: ANSI/CTA-2042.1-B]
3.7
conductive wireless power system
wireless power system that provides a conductive surface to which receivers are connected
through direct electrical contacts
Note 1 to entry: Such systems allow wire-free power delivery.
[SOURCE: ANSI/CTA-2042.1-B]
3.8
control capability
capability of either modulating or demodulating a control signal via an impedance network (i.e.
in-band communication) or by an out-of-band communication channel to achieve the
appropriate power transfer, including identifying valid devices and fault conditions.
[SOURCE: ANSI/CTA-2042.1-B]
3.9
coupling coefficient
k
measure of the magnetic linkage between the transmitter and the receiver coils, and defined as
M
k=
LL×
• where M is the mutual inductance, and
– 8 – IEC 63006:2019 © IEC 2019
• L and L are the inductance of transmitter and receiver coil, respectively
1 2
3.10
device detection
process by which a transmitter identifies that a receiver is within proximity of the transmitter
[SOURCE: ANSI/CTA-2042.1-B]
3.11
electromagnetic, adj
pertaining to electromagnetism
[SOURCE: IEC 60050-151:2001,
...
