Audio, video, and related equipment - Determination of power consumption - Part 3: Television sets

IEC 62087-3:2023 is available as IEC 62087-3:2023 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 62087-3:2023 specifies the determination of the power consumption and related characteristics of television sets. Television sets include, but are not limited to, those with LCD, OLED, or projection technologies. The operating modes and functions, as they specifically apply to television sets, are defined in detail in this part of IEC 62087. This document is limited to television sets that can be connected to an external power source. Television sets that include a non-removable, main battery are not covered by this document. Television sets can include any number of auxiliary batteries. The measuring conditions in this document represent the normal use of the equipment and can differ from specific conditions, for example as specified in safety standards. IEC 62087-3:2023 cancels and replaces the first edition published in 2015. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: a) it introduces measuring procedures for the determination of power consumption in the On mode while viewing static metadata HDR video content; b) all tests for On mode power determination are performed with MDD disabled; c) only progressive video signals are used for testing; d) a dimmable LED reflector lamp is used as a light source for illuminating the ABC sensor to achieve specific illuminance levels; e) a dynamic box and outline video signal is used for determining the ratio of peak luminance.

Audio-, Video- und verwandte Geräte - Messverfahren für die Leistungsaufnahme - Teil 3: Fernsehgeräte

Appareils audio, vidéo et matériel connexe - Détermination de la consommation de puissance - Partie 3: Téléviseurs

IEC 62087-3:2023 est disponible sous forme de IEC 62087-3:2023 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 62087-3:2023 spécifie la détermination de la consommation de puissance et des caractéristiques associées des téléviseurs. Les téléviseurs comprennent notamment ceux qui utilisent les technologies LCD (Liquid-Crystal Display), OLED (Organic Light-Emitting Diode) ou de projection. Les modes de fonctionnement et les fonctions, dans la mesure où ils s'appliquent de façon spécifique à des téléviseurs, sont définis en détail dans la présente partie de l'IEC 62087. Le présent document est limité aux téléviseurs qui peuvent être connectés à une source d'alimentation externe. Les téléviseurs qui comportent une batterie principale non amovible ne sont pas couverts par le présent document. Les téléviseurs peuvent comporter un nombre quelconque de batteries auxiliaires. Les conditions de mesure du présent document sont représentatives de l'usage normal du matériel et peuvent différer des conditions particulières, comme celles spécifiées dans les normes de sécurité. L'IEC 62087-3:2023 annule et remplace la première édition parue en 2015. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: a) elle inclut des procédures de mesure pour déterminer la consommation de puissance en mode Marche lors du visionnage d'un contenu vidéo HDR qui utilise des métadonnées statiques; b) la fonction MDD est désactivée lors de tous les essais de détermination de la puissance en mode Marche; c) seuls des signaux vidéo progressifs sont utilisés pour les essais; d) une lampe à réflecteur LED à intensité réglable est utilisée comme source de lumière pour éclairer le capteur ABC afin d'obtenir des niveaux d'éclairement spécifiques; e) des signaux vidéo de boîte et de contour dynamiques sont utilisés pour déterminer le rapport de luminance de crête.

Avdio, video in pripadajoča oprema - Ugotavljanje porabe energije - 3. del: Televizijski sprejemnik (IEC 62087-3:2023)

Standard IEC 62087-3:2023 je na voljo kot IEC 62087-3:2023 RLV, ki vsebuje mednarodni standard in njegovo različico z revizijami, ki prikazujejo vse spremembe tehnične vsebine v primerjavi s prejšnjo izdajo. Standard IEC 62087-3:2023 določa ugotavljanje porabe energije in sorodnih značilnosti televizijskih sprejemnikov. Televizijski sprejemniki med drugim zajemajo sprejemnike s katodno cevjo (LCD), zaslonom s tekočimi kristali (OLED) ali projekcijskimi tehnologijami. Načini delovanja in funkcije, ki se uporabljajo izključno za televizijske sprejemnike, so podrobno opredeljeni v tem delu standarda IEC 62087. Ta dokument je omejen na televizijske sprejemnike, ki se lahko povežejo z zunanjim virom napajanja. Televizijski sprejemniki, ki vključujejo neodstranljivo glavno baterijo, niso obravnavani v tem dokumentu. Televizijski sprejemniki lahko vključujejo poljubno število pomožnih baterij. Merilni pogoji iz tega dokumenta se navezujejo na običajno uporabo opreme in se lahko razlikujejo od posebnih pogojev, kot so npr. določeni v varnostnih standardih. Standard IEC 62087-3:2023 razveljavlja in nadomešča prvo izdajo, objavljeno leta 2015. Ta izdaja je tehnično popravljena izdaja. Ta izdaja v primerjavi s prejšnjo vključuje naslednje pomembne tehnične spremembe:
a) uvaja merilne postopke za ugotavljanje porabe energije v vklopljenem načinu med ogledovanjem statičnih metapodatkov video vsebin HDR;
b) vsi preskusi za ugotavljanje energije v vklopljenem načinu se izvajajo z onemogočenim MDD;
c) za testiranje se uporabljajo samo progresivni video signali;
d) za doseganje določenih ravni osvetljenosti se kot vir svetlobe za osvetlitev senzorja ABC uporablja zatemnitvena reflektorska sijalka LED;
e) dinamični video signal polja in orisa se uporablja za določanje razmerja najvišje svetilnosti.

General Information

Status
Published
Publication Date
30-Mar-2023
Current Stage
6060 - Document made available - Publishing
Start Date
31-Mar-2023
Due Date
22-Apr-2022
Completion Date
31-Mar-2023

Relations

Buy Standard

Standard
EN IEC 62087-3:2023 - BARVE
English language
53 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-oktober-2023
Avdio, video in pripadajoča oprema - Ugotavljanje porabe energije - 3. del:
Televizijski sprejemnik (IEC 62087-3:2023)
Audio, video, and related equipment - Determination of power consumption - Part 3:
Television sets (IEC 62087-3:2023)
Audio-, Video- und verwandte Geräte - Messverfahren für die Leistungsaufnahme - Teil
3: Fernsehgeräte (IEC 62087-3:2023)
Appareils audio, vidéo et matériel connexe - Détermination de la consommation de
puissance - Partie 3: Téléviseurs (IEC 62087-3:2023)
Ta slovenski standard je istoveten z: EN IEC 62087-3:2023
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
33.160.25 Televizijski sprejemniki Television receivers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62087-3

NORME EUROPÉENNE
EUROPÄISCHE NORM March 2023
ICS 33.160.10 Supersedes EN 62087-3:2016
English Version
Audio, video, and related equipment - Determination of power
consumption - Part 3: Television sets
(IEC 62087-3:2023)
Appareils audio, vidéo et matériel connexe - Détermination Audio-, Video- und verwandte Geräte - Messverfahren für
de la consommation de puissance - Partie 3: Téléviseurs die Leistungsaufnahme - Teil 3: Fernsehgeräte
(IEC 62087-3:2023) (IEC 62087-3:2023)
This European Standard was approved by CENELEC on 2023-03-24. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62087-3:2023 E

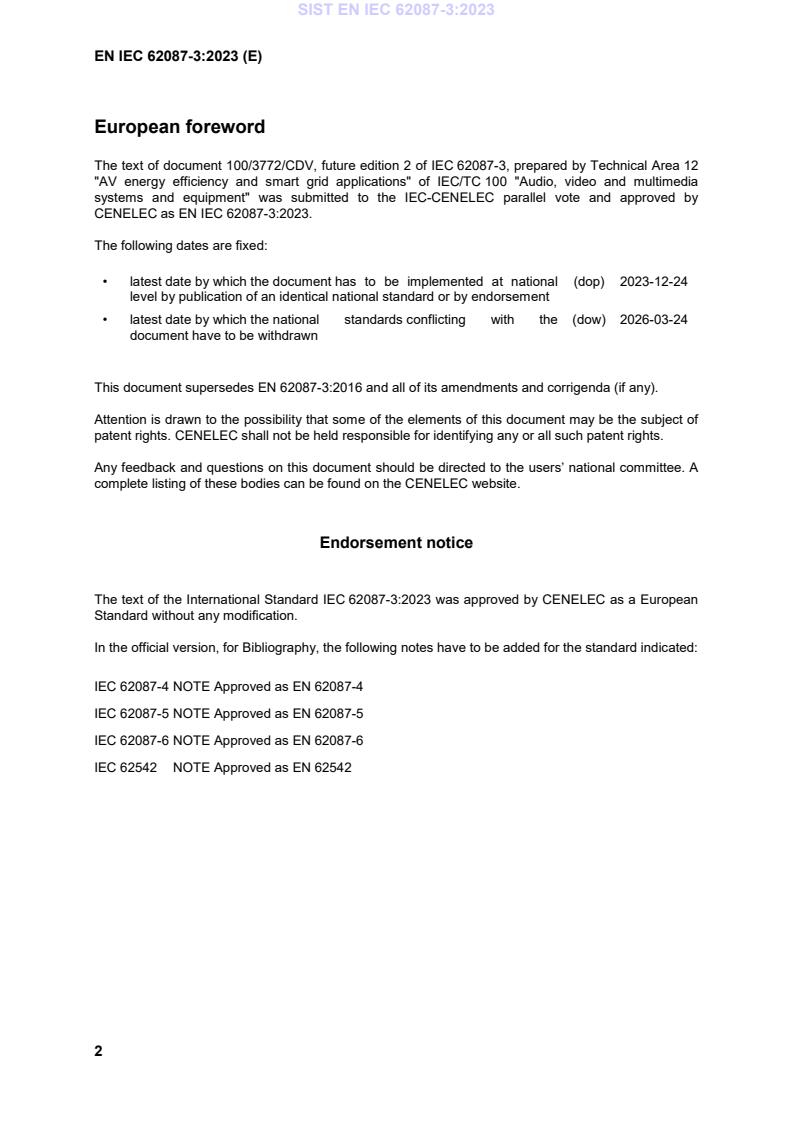

European foreword
The text of document 100/3772/CDV, future edition 2 of IEC 62087-3, prepared by Technical Area 12
"AV energy efficiency and smart grid applications" of IEC/TC 100 "Audio, video and multimedia
systems and equipment" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62087-3:2023.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-12-24
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2026-03-24
document have to be withdrawn
This document supersedes EN 62087-3:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62087-3:2023 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 62087-4 NOTE Approved as EN 62087-4
IEC 62087-5 NOTE Approved as EN 62087-5
IEC 62087-6 NOTE Approved as EN 62087-6
IEC 62542 NOTE Approved as EN 62542
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 62087-1 2015 Audio, video, and related equipment - EN 62087-1 2016
Determination of power consumption - Part
1: General
IEC 62087-2 2023 Audio, video, and related equipment - EN IEC 62087-2 2023
Determination of power consumption - Part
2: Signals and media
IEC 62301 - Household electrical appliances - EN 50564 -
Measurement of standby power
IEC 62087-3 ®
Edition 2.0 2023-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Audio, video, and related equipment – Determination of power consumption –

Part 3: Television sets
Appareils audio, vidéo et matériel connexe – Détermination de la consommation

de puissance –
Partie 3: Téléviseurs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.10 ISBN 978-2-8322-6478-2

– 2 – IEC 62087-3:2023 © IEC 2023
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions, and abbreviated terms . 8
3.1 Terms and definitions. 9
3.2 Abbreviated terms . 11
4 Specification of operating modes and functions . 12
4.1 Table of operating modes and functions . 12
4.2 Configurations and picture settings . 13
4.2.1 Conceptual framework . 13
4.2.2 Selection of normal configuration . 14
4.2.3 Selection of retail configuration . 14
5 Measurement conditions . 15
5.1 General . 15
5.2 Power source . 15
5.3 Environmental conditions . 15
5.4 Ambient light conditions . 15
5.5 Measuring equipment . 15
5.5.1 Power measuring instrument . 15
5.5.2 Luminance measuring device . 15
5.5.3 Illuminance measuring instrument . 15
5.6 Signal generation . 15
5.6.1 Equipment . 15
5.6.2 Interfaces . 15
5.6.3 Accuracy . 15
5.6.4 Light source for specific illuminance levels . 16
5.6.5 Light source for disabling the ABC feature . 16
5.6.6 Test table surface material . 16
6 Procedures . 17
6.1 Order of activities . 17
6.2 Preparation . 18
6.2.1 Measuring plan . 18
6.2.2 Power source voltage and frequency . 19
6.2.3 Test signal input terminals . 19
6.2.4 Video signal, On mode power consumption procedure . 19
6.2.5 Video signal, peak luminance ratio determination . 19
6.2.6 Video format . 20
6.2.7 Automatic brightness control capabilities . 21
6.2.8 Automatic brightness control levels . 21
6.2.9 Motion-based Dynamic Dimming . 21
6.2.10 Network connection selection . 21
6.3 Initial activities . 22
6.3.1 Order of initial activities . 22
6.3.2 Main batteries . 23
6.3.3 Plug-in module . 23

IEC 62087-3:2023 © IEC 2023 – 3 –
6.3.4 Installation . 23
6.3.5 Application of input signals . 24
6.3.6 Luminance measuring device setup . 24
6.3.7 Light source setup . 24
6.3.8 Power on . 27
6.3.9 UUT firmware update . 27
6.3.10 TV settings . 27
6.4 Determination of power consumption, On mode . 28
6.4.1 Order of activities . 28
6.4.2 Stabilization . 29
6.4.3 Television sets without automatic brightness control enabled by default . 30
6.4.4 Television sets with automatic brightness control enabled by default . 30
6.4.5 Power measurement . 30
6.5 Determination of peak luminance ratio and power factor . 32
6.5.1 General . 32
6.5.2 Activities for peak luminance ratio and power factor determination . 33
6.6 Determination of power consumption, Partial On mode . 36
6.6.1 General . 36
6.6.2 Order of activities . 36
6.6.3 AV input
...
