prEN 61300-2-19:2025

Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-19: Tests - Damp heat (steady state)

Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und Messverfahren - Teil 2-19: Prüfungen - Feuchte Wärme (konstant)

Dispositifs d'interconnexion et composants passifs fibroniques - Procédures fondamentales d'essais et de mesures - Partie 2-19: Essais - Chaleur humide (essai continu)

Optični spojni elementi in pasivne komponente - Osnovni preskusni in merilni postopki - 2-19. del: Preskusi - Pregreta para (ustaljeno stanje)

General Information

• Status: Not Published
• Publication Date: 22-Feb-2027
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: CLC/TC 86BXA - Fibre optic interconnect, passive and connectorised components
• Current Stage: 4060 - Enquiry results established and sent to TC, SR, BTTF - Enquiry
• Start Date: 24-Oct-2025
• Completion Date: 24-Oct-2025
• Ref Project: oSIST prEN 61300-2-19:2025 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-19: Tests - Damp heat (steady state)

Relations

• Revises: EN 61300-2-19:2013 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-19: Tests - Damp heat (steady state)
• Effective Date: 31-Jan-2023
• Revises: EN 61300-2-19:2013/AC:2020-04 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-19: Tests - Damp heat (steady state)
• Effective Date: 31-Jan-2023

Overview

prEN 61300-2-19:2025 defines a steady-state damp heat test method for fibre optic interconnecting devices and passive components. The procedure evaluates how high humidity at a constant elevated temperature influences materials and optical performance (absorption, swelling, mechanical degradation and optical attenuation). The method is based on IEC 60068-2-78 and is prepared by IEC SC86B as a Committee Draft for Vote with a proposed stability date of 2033.

Key Topics

• Purpose: Assess suitability of devices to withstand prolonged exposure to high humidity and temperature without condensation on the device under test (DUT).
• Chamber requirements: The environmental chamber shall comply with IEC 60068-3-6 and be capable of producing and maintaining the specified temperature and relative humidity. Key points:
  • Chamber volume at least five times the specimen volume.
  • Temperature tolerance: ±2 °C; humidity tolerance: ±5 %.
  • To maintain humidity tolerance, temperature differences in the working space must be limited (short-term differences < 1,5 °C).
  • Condensation must not form on the specimen; condensed water must be drained and not reused unless purified.
  • Injected moisture must be remote from the specimen and not directed onto it.
• Humidification media: Use steam or distilled/demineralized/deionized water with resistivity ≥ 50 MΩ·m at 23 °C; chamber internals cleaned before use to avoid contamination.
• Mounting and fixturing: Mounting devices must have low thermal conductivity and minimal influence on heat and humidity exchange; specimens must be thermally isolated from radiant heat sources.
• Measurements and monitoring: Optical monitoring (attenuation and return loss) shall follow IEC 61300-3-3. If requested, in-test optical measurements are typically performed at intervals up to 1 hour.
• Preconditioning and sequence: Precondition per IEC 61300-1 (minimum 2 h for connectors/passive components, 4 h for closures). Perform initial examinations per the relevant IEC 61753 performance standard or IEC 62005 reliability documents, condition in the chamber for the specified duration, allow recovery, then perform final examinations and measurements.

Applications

• Design verification and material selection for connectors, closures and passive fibre components.
• Qualification testing for storage, transport and tropical/humid environments.
• Manufacturing quality assurance and reliability assessment focused on moisture-related degradation.
• R&D benchmarking of moisture absorption and its impact on optical performance.

Related Standards

• IEC 60068-2-78 - Test Cab: Damp heat (steady state)
• IEC 60068-3-6 - Chamber performance confirmation
• IEC 61300-1 - General guidance for basic test and measurement procedures
• IEC 61300-3-1 - Visual examination
• IEC 61300-3-3 - Active monitoring of attenuation and return loss
• IEC 61753 / IEC 62005 - Performance and reliability documents
• IEC TR 62627-01 - Cleaning guidance

This standard provides practical test requirements for assessing moisture effects on fibre optic devices and components, enabling engineers and test labs to apply consistent environmental test methods and produce comparable, actionable results.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2025
Optični spojni elementi in pasivne komponente - Osnovni preskusni in merilni
postopki - 2-19. del: Preskusi - Pregreta para (ustaljeno stanje)
Fibre optic interconnecting devices and passive components - Basic test and
measurement procedures - Part 2-19: Tests - Damp heat (steady state)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und
Messverfahren - Teil 2-19: Prüfungen - Feuchte Wärme (konstant)
Dispositifs d'interconnexion et composants passifs fibroniques - Procédures
fondamentales d'essais et de mesures - Partie 2-19: Essais - Chaleur humide (essai
continu)
Ta slovenski standard je istoveten z: prEN 61300-2-19:2025
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

86B/5081/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61300-2-19 ED4
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-08-01 2025-10-24
SUPERSEDES DOCUMENTS:
86B/4729/CD, 86B/4758A/CC
IEC SC 86B : FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS
SECRETARIAT: SECRETARY:
Japan Mr Ryo Koyama
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Fibre optic interconnecting devices and passive components - Basic test and measurement
procedures - Part 2-19: Tests - Damp heat (steady state)

PROPOSED STABILITY DATE: 2033
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

IEC CDV 61300-2-19 © IEC 2025

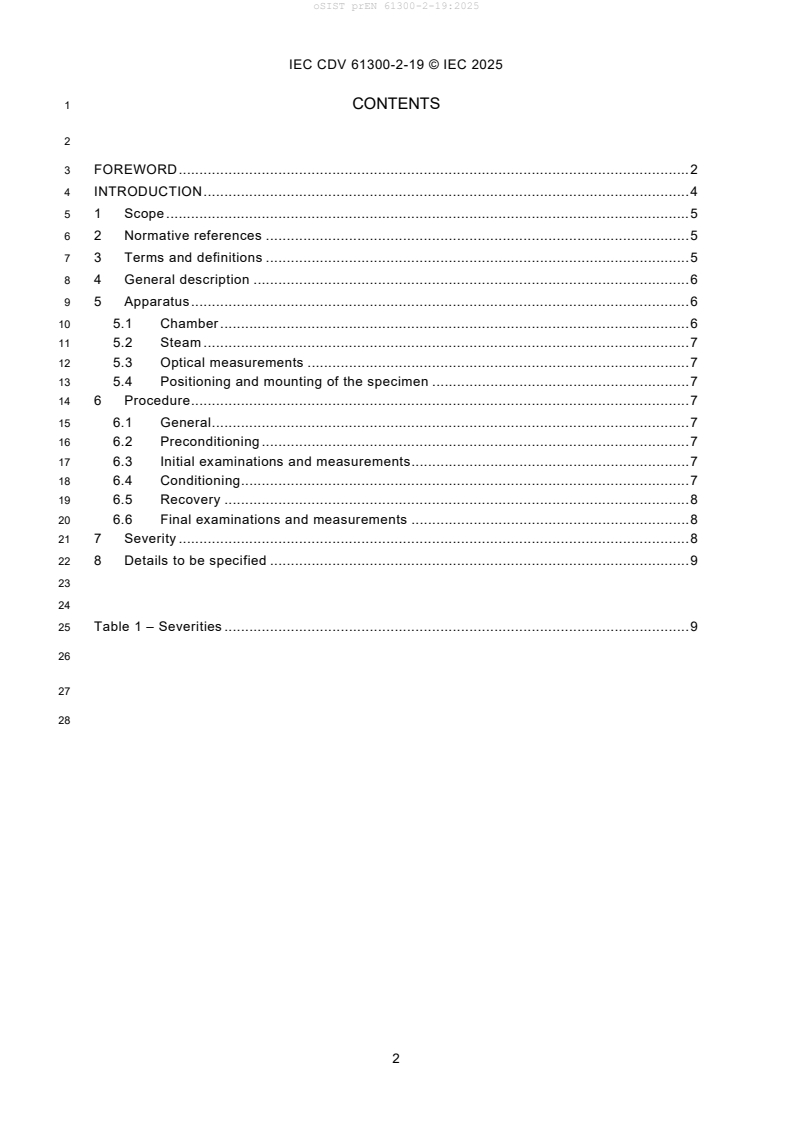

1 CONTENTS
3 FOREWORD . 2
4 INTRODUCTION . 4
5 1 Scope . 5
6 2 Normative references . 5
7 3 Terms and definitions . 5
8 4 General description . 6
9 5 Apparatus . 6
10 5.1 Chamber . 6
11 5.2 Steam . 7
12 5.3 Optical measurements . 7
13 5.4 Positioning and mounting of the specimen . 7
14 6 Procedure . 7
15 6.1 General . 7
16 6.2 Preconditioning . 7
17 6.3 Initial examinations and measurements . 7
18 6.4 Conditioning . 7
19 6.5 Recovery . 8
20 6.6 Final examinations and measurements . 8
21 7 Severity . 8
22 8 Details to be specified . 9
24 Es konnten keine Einträge für ein Abbildungsverzeichnis gefunden werden.
25 Table 1 – Severities . 9
IEC CDV 61300-2-19 © IEC 2025
29 INTERNATIONAL ELECTROTECHNICAL COMMISSION
30 ____________
32 FIBRE OPTIC INTERCONNECTING DEVICES
33 AND PASSIVE COMPONENTS –
34 BASIC TEST AND MEASUREMENT PROCEDURES
36 Part 2-19: Tests – Damp heat (steady state)
39 FOREWORD
40 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
41 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
42 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
43 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
44 Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
45 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
46 may participate in this preparatory work. International, governmental and non-governmental organizations liaising
47 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
48 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
49 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
50 consensus of opinion on the relevant subjects since each technical committee has representation from all
51 interested IEC National Committees.
52 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
53 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
54 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
55 misinterpretation by any end user.
56 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
57 transparently to the maximum extent possible in their national and regional publications. Any divergence between
58 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
59 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
60 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
61 services carried out by independent certification bodies.
62 6) All users should ensure that they have the latest edition of this publication.
63 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
64 members of its technical committees and IEC National Committees for any personal injury, property damage or
65 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
66 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
67 Publications.
68 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
69 indispensable for the correct application of this publication.
70 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
71 rights. IEC shall not be held responsible for identifying any or all such patent rights.
72 IEC 61300-2-19 has been prepared by subcommittee SC86B: Fibre optic interconnecting
73 devices and passive components, of IEC technical committee 86: Fibre optics. It is an
74 International Standard.
75 This fourth edition cancels and replaces the third edition published in 2012. This edition
76 constitutes a technical revision.
77 This edition includes the following significant technical changes with respect to the previous
78 edition:
79 a) Adoption of the information from IEC 60068-2-78
80 The text of this International Standard is based on the following documents:
Draft Report on voting
IEC CDV 61300-2-19 © IEC 2025
XX/XX/FDIS XX/XX/RVD
82 Full information on the voting for its approval can be found in the report on voting indicated in
83 the above table.
84 The language used for the development of this International Standard is English.
85 This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
86 accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
87 at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
88 described in greater detail at www.iec.ch/publications.
89 The committee has decided that the contents of this document will remain unchanged until the
90 stability date indicated on the IEC website under webstore.iec.ch in the data related to the
91 specific document. At this date, the document will be
92 • reconfirmed,
93 • withdrawn,
94 • replaced by a revised edition, or
95 • amended.
IEC CDV 61300-2-19 © IEC 2025
97 INTRODUCTION
98 This part of IEC 61300 provides a test method of high humidity at constant temperature without
99 condensation on the DUT over a prescribed period. This test is performed to evaluate the
100 specimen as it is influenced by the absorption and diffusion of moisture and moisture vapour.
IEC CDV 61300-2-19 © IEC 2025
102 FIBRE OPTIC INTERCONNECTING DEVICES
103 AND PASSIVE COMPONENTS –
104 BASIC TEST AND MEASUREMENT PROCEDURES
106 Part 2-19: Tests – Damp heat (steady state)
110 1 Scope
111 This part of IEC 61300 details a procedure for determining the suitability of a fibre optic device
112 to withstand the environmental condition of high humidity and high temperature which can occur
113 in actual use, storage and/or transport. The test is primarily intended to permit the observation
114 of effects of high humidity at constant temperature over a given period. Absorption of moisture
115 may result in swelling that would destroy functional utility, cause loss of physical strength, and
116 cause chan
...
