EN IEC 62288:2022/A1:2024 is an amendment to IEC 62288 (Edition 3.0) that updates requirements for the presentation of navigation-related information on shipborne navigational displays. Published and approved by CENELEC in December 2024, this amendment clarifies bit-encoding interpretations for AIS AtoN status reporting, corrects inconsistencies with IALA Rec.R-0126:2021, and updates presentation symbols and colours in the normative and informative annexes.

This standard applies to maritime navigation and radiocommunication equipment and systems used for displaying navigation data on ships, and supports consistent human-machine interfaces, interoperability and navigational safety.

Key Topics

• General requirements for display of navigation-related information on shipborne navigational displays.
• Methods of testing and required test results to demonstrate compliance with presentation and performance criteria.
• AIS AtoN status field updates: Amendment 1 updates the interpretation of bit encoding used for reporting AtoN errors or failures to align with IALA R-0126 Ed.2 (Dec 2021) and corrects inconsistencies between Table L.1 and related IALA figures.
• Annex A (normative): Revisions to presentation colours and symbol graphics (for example, corrections in Table A.1 relating to RACON and light error symbol encodings as specified in the amendment).
• Annex L (informative): Updates to Table L.1 outlining the use of AIS AtoN status field bits, including revised mappings for direction-of-movement and RACON/mobile AtoN bit orders.

Applications

This amendment and the base standard are relevant for:

• Manufacturers of shipborne navigational displays and integrated bridge systems who must ensure their human-machine interfaces meet harmonised presentation requirements.
• Test laboratories and conformity assessment bodies performing type approval, factory acceptance tests (FAT) and site acceptance tests (SAT) for display performance and presentation accuracy.
• Shipowners, shipyards and system integrators implementing display systems to achieve consistent presentation of AIS AtoN status, symbols and colours across equipment from different vendors.
• Regulatory and classification bodies referencing harmonised test methods and pass/fail criteria to verify equipment compliance and support safe navigation.

Benefits include improved interoperability between vendor equipment, clearer representation of AtoN status and failures, and reduced ambiguity in display encoding and symbol usage - all contributing to navigational safety.

Related Standards

• IEC 62288 (Edition 3.0) - base standard for presentation of navigation-related information on shipborne displays.
• IALA Rec. R-0126 (Ed.2) - referenced for AIS AtoN status field interpretation and bit encoding.

For implementation, note the CENELEC timelines for national adoption and withdrawal of conflicting standards. Consult the full EN IEC 62288:2022/A1:2024 text and national committee guidance for complete normative references and exact test procedures.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2025
Oprema in sistemi za pomorsko navigacijo in radiokomunikacije - Predstavljanje
podatkov o plovbi na ladijskih navigacijskih prikazovalnikih - Splošne zahteve,
merilne metode in pričakovani rezultati preskušanja - Dopolnilo A1 (IEC
62288:2021/AMD1:2024)
Maritime navigation and radiocommunication equipment and systems - Presentation of
navigation-related information on shipborne navigational displays - General
requirements, methods of testing and required test results (IEC 62288:2021/AMD1:2024)
Navigations- und Funkkommunikationsgeräte und -systeme für die Seeschifffahrt -
Darstellung von navigationsbezogenen Informationen auf Navigationsanzeigen für
Schiffe - Allgemeine Anforderungen, Prüfverfahren und geforderte Prüfergebnisse (IEC
62288:2021/AMD1:2024)
Matériels et systèmes de navigation et de radiocommunication maritimes - Présentation
des informations relatives à la navigation sur des affichages de navigation de bord -
Exigences générales, méthodes d'essai et résultats d'essai exigés (IEC
62288:2021/AMD1:2024)
Ta slovenski standard je istoveten z: EN IEC 62288:2022/A1:2024
ICS:
47.020.70 Navigacijska in krmilna Navigation and control
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62288:2022/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM December 2024
ICS 47.020.70
English Version
Maritime navigation and radiocommunication equipment and
systems - Presentation of navigation-related information on
shipborne navigational displays - General requirements,
methods of testing and required test results
(IEC 62288:2021/AMD1:2024)
Matériels et systèmes de navigation et de Navigations- und Funkkommunikationsgeräte und -systeme
radiocommunication maritimes - Présentation des für die Seeschifffahrt - Darstellung von
informations relatives à la navigation sur des affichages de navigationsbezogenen Informationen auf
navigation de bord - Exigences générales, méthodes Navigationsanzeigen für Schiffe - Allgemeine
d'essai et résultats d'essai exigés Anforderungen, Prüfverfahren und geforderte
(IEC 62288:2021/AMD1:2024) Prüfergebnisse
(IEC 62288:2021/AMD1:2024)
This amendment A1 modifies the European Standard EN IEC 62288:2022; it was approved by CENELEC on 2024-12-12. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62288:2022/A1:2024 E

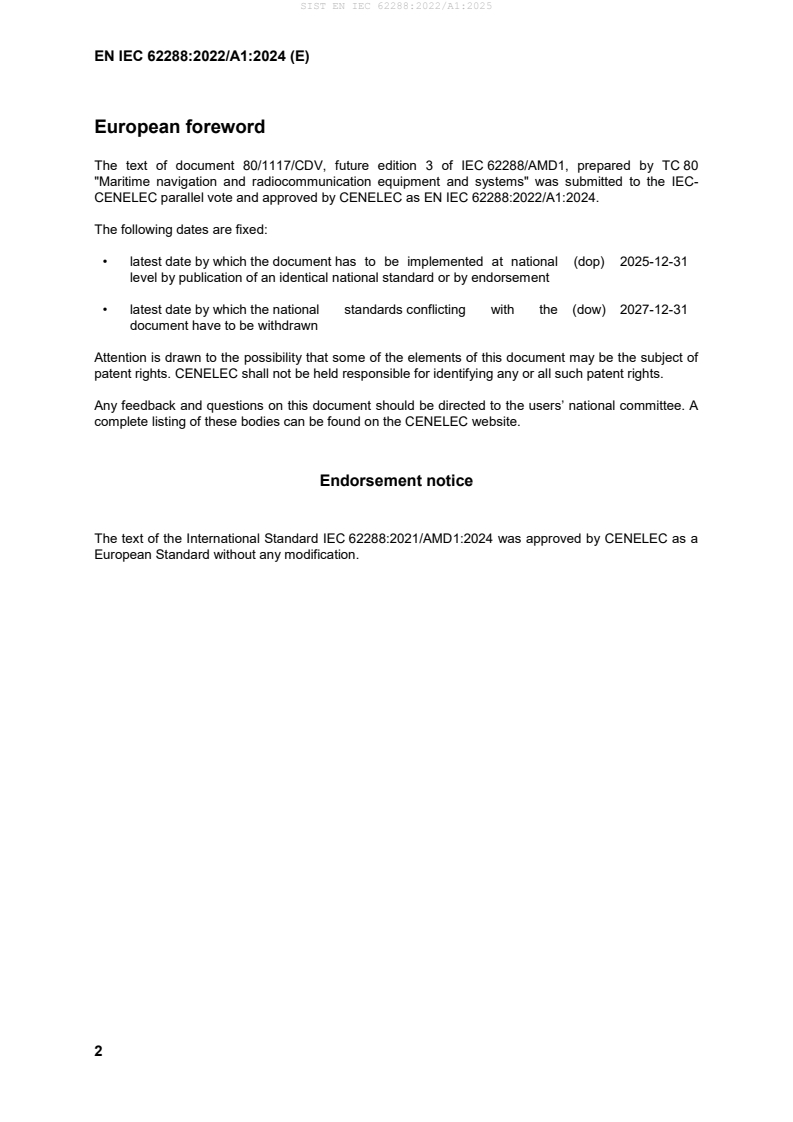

European foreword
The text of document 80/1117/CDV, future edition 3 of IEC 62288/AMD1, prepared by TC 80
"Maritime navigation and radiocommunication equipment and systems" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN IEC 62288:2022/A1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-12-31
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-12-31
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62288:2021/AMD1:2024 was approved by CENELEC as a
European Standard without any modification.

IEC 62288 ®
Edition 3.0 2024-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 1
AMENDEMENT 1
Maritime navigation and radiocommunication equipment and systems –

Presentation of navigation-related information on shipborne navigational

displays – General requirements, methods of testing and required test results

Matériels et systèmes de navigation et de radiocommunication maritimes –

Présentation des informations relatives à la navigation sur des affichages de

navigation de bord – Exigences générales, méthodes d'essai et résultats d'essai

exigés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 47.020.70  ISBN 978-2-8322-4197-4

– 2 – IEC 62288:2021/AMD1:2024
© IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MARITIME NAVIGATION AND RADIOCOMMUNICATION EQUIPMENT AND
SYSTEMS – PR
...
