Heat shrinkable low and medium voltage moulded shapes - Part 1: General requirements

IEC 62677-1:2017 is applicable to heat shrinkable low and medium voltage moulded shapes in a range of configurations and materials suitable for insulation, environmental sealing, mechanical protection, electrical conductance, anti-tracking and strain relief for power cable terminations, joints and stop ends. It specifies the test methods and material requirements. The most commonly available shapes are as shown in the Annex A. Materials which conform to this document meet established levels of performance. However, the selection of a material by a user for a specific application will be based on the actual requirements necessary for adequate performance in that application and will not be based on this document alone. These moulded shapes are designed to be used in low and medium voltage cable accessories and as such electrical performance will be proven as part of the assembly. Examples of this are described in EN 50393, HD 629.1 and IEC 60502-4.

Wärmeschrumpfende Nieder- und Mittelspannungsformteile – Teil 1: Allgemeine Anforderungen

Profilés thermorétractables basse et moyenne tensions - Partie 1: Exigences générales

IEC 62677-1:2017 est applicable aux profilés thermorétractables basse et moyenne tensions dans une gamme de configurations et de matériaux adaptés à l’isolement, aux éléments d’étanchéité contre les intempéries, à la protection mécanique, à la conductance électrique, aux dispositifs anticheminement et dispositifs compensateurs de traction pour extrémités de câbles de puissance, aux joints et aux extrémités d'arrêt. Elle stipule les méthodes d'essai et les exigences de matériaux. Les profilés d'emploi courant sont présentés à l'Annexe A. Les matériaux conformes à ce document satisfont à des niveaux établis de performance. Cependant, le choix d’un matériau par un utilisateur, pour une application spécifique, sera fondé sur les exigences réelles nécessaires pour obtenir une performance adéquate pour l'application concernée, et ne sera pas fondé sur ce seul document. Ces profilés thermorétractables sont conçus pour être utilisés dans des accessoires de câbles basse et moyenne tensions et, à ce titre, la performance électrique sera prouvée dans le cadre de l'assemblage. Des exemples sont développés dans l'EN 50393, le HD 629.1 et l'IEC 60502-4. Mots clés: profilés thermorétractables basse et moyenne tensions

Toplotno skrčljive nizko- in srednjenapetostne ulite forme - 1. del: Splošne zahteve (IEC 62677-1:2017)

Ta dokument se nanaša na toplotno skrčljive nizko- in srednjenapetostne oblikovance v različnih konfiguracijah in iz različnih materialov, primernih za izolacijo, zaščito pred okoljskimi vplivi, mehansko zaščito, električno prevodnost, preprečevanje sledenja in razbremenitev za ozemljitve napajalnih kablov, spojk in slepih končnikov. Določa preskusne metode in zahteve za material. Oblike, ki so najpogosteje na voljo, so prikazane v dodatku A.
Materiali, ki so skladni s tem dokumentom, ustrezajo določenim ravnem delovanja. Vendar bo uporabnik material za določeno uporabo izbral glede na dejanske zahteve, ki omogočajo ustrezno delovanje pri tej uporabi, in ne samo na podlagi te specifikacije.
Ti oblikovanci so zasnovani za uporabo z nizko- in srednjenapetostnimi kabli, zato se kot del sestava preverja tudi električna zmogljivost. Primeri tega so opisani v standardih EN 50393, HD 629.1 in IEC 60502-4.

General Information

Status
Published
Publication Date
01-Feb-2018
Withdrawal Date
14-Nov-2020
Drafting Committee
Current Stage
6060 - Document made available - Publishing
Start Date
02-Feb-2018
Completion Date
02-Feb-2018

Buy Standard

Standard
EN IEC 62677-1:2018
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-maj-2018
7RSORWQRVNUþOMLYHQL]NRLQVUHGQMHQDSHWRVWQHXOLWHIRUPHGHO6SORãQH]DKWHYH
,(&
Heat shrinkable low and medium voltage moulded shapes - Part 1: General requirements
(IEC 62677-1:2017)
Ta slovenski standard je istoveten z: EN IEC 62677-1:2018
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 62677-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2018
ICS 29.035.01; 29.035.20
English Version
Heat shrinkable low and medium voltage moulded shapes - Part
1: General requirements
(IEC 62677-1:2017)
Profilés thermorétractables basse et moyenne tensions - Wärmeschrumpfende Nieder- und Mittelspannungsformteile
Partie 1: Exigences générales - Teil 1: Allgemeine Anforderungen
(IEC 62677-1:2017) (IEC 62677-1:2017)
This European Standard was approved by CENELEC on 2017-11-15. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62677-1:2018 E

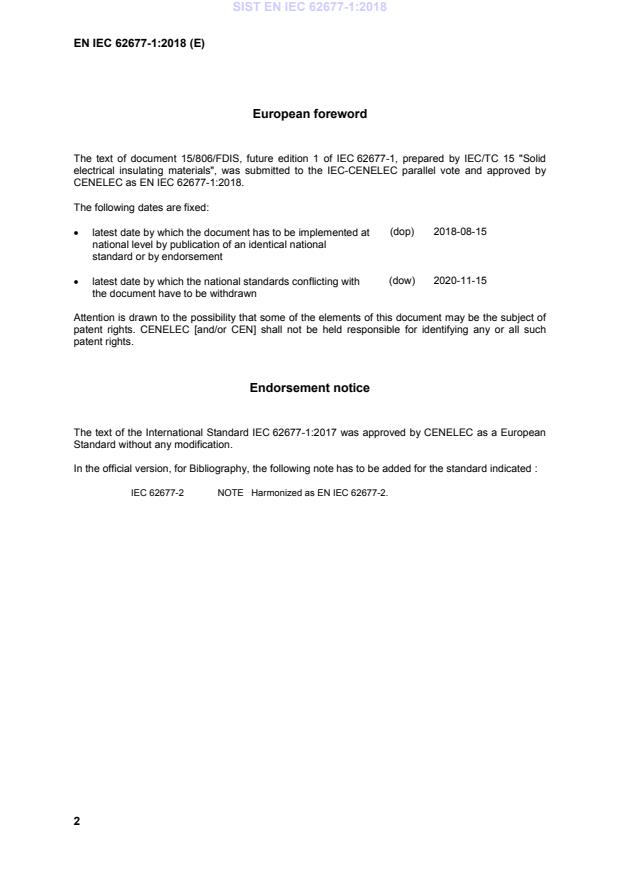

European foreword
The text of document 15/806/FDIS, future edition 1 of IEC 62677-1, prepared by IEC/TC 15 "Solid
electrical insulating materials", was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62677-1:2018.
The following dates are fixed:
(dop) 2018-08-15
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2020-11-15
• latest date by which the national standards conflicting with
the document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62677-1:2017 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated :
IEC 62677-2 NOTE  Harmonized as EN IEC 62677-2.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050 series International electrotechnical vocabulary - series
IEC 60050-212 2010 International Electrotechnical Vocabulary - - -
AMD 1 2015 Part-212: Electrical insulating solids, liquids
AMD 2 2015 and gases
IEC 62677-1 ®
Edition 1.0 2017-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Heat shrinkable low and medium voltage moulded shapes –

Part 1: General requirements
Profilés thermorétractables basse et moyenne tensions –

Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.035.20; 29.035.01 ISBN 978-2-8322-4868-3

– 2 – IEC 62677-1:2017 © IEC 2017
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions. 6
4 Moulded shape material specimens . 7
5 Classification . 7
6 Ordering . 7
7 Dimensions . 7
8 Colour . 7
9 Finish . 7
10 Packaging . 7
11 Labelling . 8
12 Qualification approval requirements . 8
13 Consignment tests . 8
Annex A (informative) Heat shrinkable moulded parts (typical configuration) . 9
Bibliography . 10

Figure A.1 – Typical configuration of heat shrinkable moulded parts . 9

IEC 62677-1:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HEAT SHRINKABLE LOW AND MEDIUM
VOLTAGE MOULDED SHAPES –
Part 1: General requirements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62677-1 has been prepared by IEC technical committee 15: Solid
electrical insulating materials.
The text of this standard is based on the following documents:
FDIS Report on voting
15/806/FDIS 15/810/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62677-1:2017 © IEC 2017
A list of all parts in the IEC 62677 series, published under the general title Heat shrinkable low
and medium voltage moulded shapes, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 62677-1:2017 © IEC 2017 – 5 –
INTRODUCTION
This part of IEC 62677 is one of a series which deals with heat shrinkable low and medium
voltage moulded shapes. The series consists of three parts:
Part 1: General requirements (IEC 62677-1)
Part 2: Methods of test (IEC 62677-2 )
2 3 4
Part 3: Material requirements (IEC 62677-3-101 , IEC 62677-3-102 and IEC 62677-3-103 )
___________
Under preparation. Stage at the time of publication: IEC RFDIS IEC 62677-2:2017.
Under preparation. Stage at the time of publication: IEC AFDIS IEC 62677-3-101:2017.
Under preparation. Stage at the time of publication: IEC AFDIS IEC 62677-3-102:2017.
Under preparation. Stage at the time of publication: IEC ACDV IEC 62677-3-103:2017.

– 6 – IEC 62677-1:2017 © IEC 2017
HEAT SHRINKABLE LOW AND MEDIUM
VOLTAGE MOULDED SHAPES –
Part 1: General requirements
1 Scope
This document is applicable to heat shrinkable low and medium voltage moulded shapes in a
range of configurations and materials suitable for insulation, environmental sealing, mechanical
protection, electrical conductance, anti-tracking and strain relief for power cable terminations,
joints and stop ends. It specifies the test methods and material requirements. The most
commonly available shapes are as shown in the Annex A.
Materials which conform to this document meet established levels of performance. However,
the selection of a material by a user for a specific application will be based on the actual
requirements necessary for adequate performance in that application and will not be based on
this document alone.
These moulded shapes are designed to be used in low and medium voltage cable accessories
...
