EN IEC 60794-6-10:2020

Optical fibre cables - Part 6-10: Indoor-outdoor cables - Family specification for universal indoor-outdoor cables

IEC 60794-6-10:2020 is a family specification covering features of optical fibre cables applicable to outdoor as well as indoor environments, called "universal indoor-outdoor cables". These cables generally possess the characteristics associated with outdoor cable designs (according to IEC 60794-3, however typically less stringent, and typically "non armoured") having the thermal and mechanical robustness that makes them suitable for use in the outside plant, while simultaneously being flexible enough, compact and lightweight and exhibiting the fire performance required in indoor premises. A typical application is for example the centralized cabling in central office and the premises or local area network where the same cable design is used for the entire length of the cabling link including both the indoor as well as the outdoor portions.

Lichtwellenleiterkabel - Teil 6-10: Innen-/Außenkabel - Familienspezifikation für Universal-Innen-/Außenkabel

Câbles à fibres optiques - Partie 6-10 : Câbles intérieurs/extérieurs - Spécification de famille pour les câbles intérieurs/extérieurs universels

IEC 60794-6-10:2020 est une spécification de famille qui couvre les fonctionnalités des câbles à fibres optiques destinés aussi bien aux environnements extérieurs qu'aux environnements intérieurs, ci-après désignés "câbles intérieurs/extérieurs universels". Ces câbles possèdent généralement les caractéristiques associées à des conceptions de câbles extérieurs (conformément à l'IEC 60794-3, appliquée cependant habituellement de manière moins rigoureuse, et en général "non armés"), présentant la robustesse thermique et mécanique qui les rend appropriés pour une utilisation dans les environnements d'usine extérieurs, tout en restant suffisamment souples, compacts et légers, et en présentant le comportement au feu exigé à l'intérieur des locaux. Une application type est par exemple la réalisation d'un câblage centralisé dans le bureau central et les locaux ou le réseau local exploitant la même conception de câble sur toute la longueur des liaisons de câblage, englobant les portions en intérieur ainsi que les portions en extérieur.

Optični kabli - 6-10. del: Notranji ali zunanji kabli - Skupinska specifikacija za univerzalne notranje ali zunanje kable (IEC 60794-6-10:2020)

General Information

• Status: Published
• Publication Date: 12-Nov-2020
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: CLC/TC 86A - Optical fibres and optical fibre cables
• Drafting Committee: IEC/SC 86A - IEC_SC_86A
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 13-Nov-2020
• Completion Date: 13-Nov-2020
• Ref Project: SIST EN IEC 60794-6-10:2021 - Optical fibre cables - Part 6-10: Indoor-outdoor cables - Family specification for universal indoor-outdoor cables (IEC 60794-6-10:2020)

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2021
Optični kabli - 6-10. del: Notranji ali zunanji kabli - Skupinska specifikacija za
univerzalne notranje ali zunanje kable (IEC 60794-6-10:2020)
Optical fibre cables - Part 6-10: Indoor-outdoor cables - Family specification for universal
indoor-outdoor cables (IEC 60794-6-10:2020)
Lichtwellenleiterkabel - Teil 6-10: Innen-/Außenkabel - Familienspezifikation für
Universal-Innen-/Außenkabel (IEC 60794-6-10:2020)
Câbles à fibres optiques - Partie 6-10 : Câbles intérieurs/extérieurs - Spécification de
famille pour les câbles intérieurs/extérieurs universels (IEC 60794-6-10:2020)
Ta slovenski standard je istoveten z: EN IEC 60794-6-10:2020
ICS:
33.180.10 (Optična) vlakna in kabli Fibres and cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60794-6-10

NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2020
ICS 33.180.10
English Version
Optical fibre cables - Part 6-10: Indoor-outdoor cables - Family
specification for universal indoor-outdoor cables
(IEC 60794-6-10:2020)
Câbles à fibres optiques - Partie 6-10 : Câbles Lichtwellenleiterkabel - Teil 6-10: Innen-/Außenkabel -
intérieurs/extérieurs - Spécification de famille pour les Familienspezifikation für ein universelles Innen-
câbles intérieurs/extérieurs universels /Außenkabel
(IEC 60794-6-10:2020) (IEC 60794-6-10:2020)
This European Standard was approved by CENELEC on 2020-11-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60794-6-10:2020 E

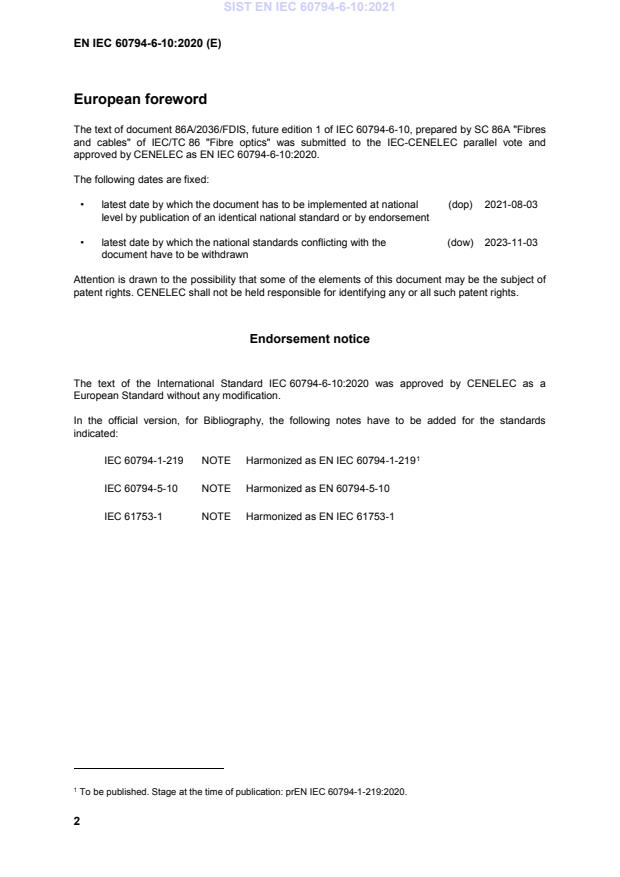

European foreword
The text of document 86A/2036/FDIS, future edition 1 of IEC 60794-6-10, prepared by SC 86A "Fibres
and cables" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC parallel vote and
approved by CENELEC as EN IEC 60794-6-10:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-08-03
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-11-03
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 60794-6-10:2020 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60794-1-219 NOTE Harmonized as EN IEC 60794-1-219
IEC 60794-5-10 NOTE Harmonized as EN 60794-5-10
IEC 61753-1 NOTE Harmonized as EN IEC 61753-1

To be published. Stage at the time of publication: prEN IEC 60794-1-219:2020.
Annex ZA
(normative)
Normative references to international publications with their
corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60332-1 series Tests on electric and optical fibre cables EN 60332-1 series
under fire conditions - Part 1:Test for
vertical flame propagation for a single
insulated wire or cable
IEC 60332-3 series Tests on electric and optical fibre cables EN IEC 60332-3 series
under fire conditions - Part 3:Test for
vertical flame spread of vertically-
mounted bunched wires or cables
IEC 60754-2 2011 Test on gases evolved during combustion EN 60754-2 2014
of materials from cables - Part 2:
Determination of acidity (by pH
measurement) and conductivity
IEC 60793-2 - Optical fibres - Part 2: Product EN IEC 60793-2 -
specifications - General
IEC 60793-2-10 - Optical fibres - Part 2-10: Product EN IEC 60793-2-10 -
specifications - Sectional specification for
category A1 multimode fibres
IEC 60793-2-50 - Optical fibres - Part 2-50: Product EN IEC 60793-2-50 -
specifications - Sectional specification for
class B single-mode fibres
IEC 60794-1-1 - Optical fibre cables - Part 1-1: Generic EN 60794-1-1 -
specification - General
IEC 60794-1-21 - Optical fibre cables - Part 1-21: Generic EN 60794-1-21 -
specification - Basic optical cable test
procedures - Mechanical tests methods
IEC 60794-1-22 2017 Optical fibre cables - Part 1-22: Generic EN IEC 60794-1-22 2018
specification - Basic optical cable test
procedures - Environmental test methods
Publication Year Title EN/HD Year
IEC 60794-1-23 - Optical fibre cables - Part 1-23: Generic EN IEC 60794-1-23 -
specification - Basic optical cable test
procedures - Cable element test methods
IEC 60794-1-24 - Optical fibre cables - Part 1-24: Generic EN 60794-1-24 -
specification - Basic optical cable test
procedures - Electrical test methods
IEC 60794-1-31 2018 Optical fibre cables - Part 1-31: Generic EN IEC 60794-1-31 2018
specification - Optical cable elements -
Optical fibre ribbon
IEC 60794-1-215 - Optical fibre cables - Part 1-215: Generic EN IEC 60794-1-215 -
specification - Basic optical cable test
procedures - Environmental test methods
- Cable external freezing test, Method
F15
IEC 60794-2 series Optical fibre cables - Part 2: Indoor EN 60794-2 series
cables
IEC 60794-2 - Optical fibre cables - Part 2: Indoor EN 60794-2 -
cables - Sectional specification
IEC 60794-3 series Optical fibre cables - Part 3: Outdoor EN 60794-3 series
cables
IEC 60794-3-10 2015 Optical fibre cables - Part 3-10: Outdoor EN 60794-3-10 2015
cables - Family specification for duct,
directly buried and lashed aerial optical
telecommunication cables
IEC 60794-6 2020 Optical fibre cables - Part 6: Indoor- - -
outdoor cables - Sectional specification
for indoor-outdoor cables
IEC 60811-202 2012 Electric and optical fibre cables - Test EN 60811-202 2012
methods for non-metallic materials - Part
202: General tests - Measurement of
thickness of non-metallic sheath
+ A1 2017 + A1 2017
IEC 60811-203 2012 Electric and optical fibre cables - Test EN 60811-203 2012
methods for non-metallic materials - Part
203: General tests - Measurement of
overall dimensions
IEC 60811-406 - Electric and optical fibre cables - Test EN 60811-406 -
methods for non-metallic materials - Part
406: Miscellaneous tests - Resistance to
stress cracking of polyethylene and
polypropylene compounds
Publication Year Title EN/HD Year
IEC 60811-604 - Electric and optical fibre cables - Test EN 60811-604 -
methods for non-metallic materials - Part
604: Physical tests - Measurement of
absence of corrosive components in
filling compounds
IEC 61034 series Measurement of smoke density of cables EN 61034 series
burning under defined conditions
ISO 4892-2 2013 Plastics - Methods of exposure to EN ISO 4892-2 2013
laboratory light sources - Part 2: Xenon-
arc lamps
