Guide for the application of the European Standard EN 50160

The aim of this Technical Report is to provide background information and explanations on EN 50160 with regard to the history of its development as well as to its correct application.

Leitfaden zur Anwendung der Europäischen Norm EN 50160

Guide d’application de la Norme Européenne EN 50160

Vodilo za uporabo evropskega standarda EN 50160

Cilj tega tehničnega poročila je zagotavljanje obrazložitev standarda EN 50160 in dodatnih informacij glede zgodovine njegovega razvoja in njegove pravilne uporabe.

General Information

Status
Published
Publication Date
12-Sep-2013
Current Stage
6060 - Document made available
Due Date
22-Jul-2013
Completion Date
13-Sep-2013

Buy Standard

Technical report
-TP CLC/TR 50422:2014
English language
43 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TP CLC/TR 50422:2014
01-julij-2014
Vodilo za uporabo evropskega standarda EN 50160
Guide for the application of the European Standard EN 50160
Leitfaden zur Anwendung der Europäischen Norm EN 50160
Guide d’application de la Norme Européenne EN 50160
Ta slovenski standard je istoveten z: CLC/TR 50422:2013
ICS:
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
SIST-TP CLC/TR 50422:2014 en,fr

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TP CLC/TR 50422:2014
---------------------- Page: 2 ----------------------
SIST-TP CLC/TR 50422:2014
TECHNICAL REPORT
CLC/TR 50422
RAPPORT TECHNIQUE
September 2013
TECHNISCHER BERICHT
ICS 29.020 Supersedes CLC/TR 50422:2003 + corr. Jun.2005
English version
Guide for the application of the European Standard EN 50160
Guide d’application de la Norme Leitfaden zur Anwendung der
Européenne EN 50160 Europäischen Norm EN 50160
This Technical Report was approved by CENELEC on 2013-07-22.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. CLC/TR 50422:2013 E
---------------------- Page: 3 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 2 -

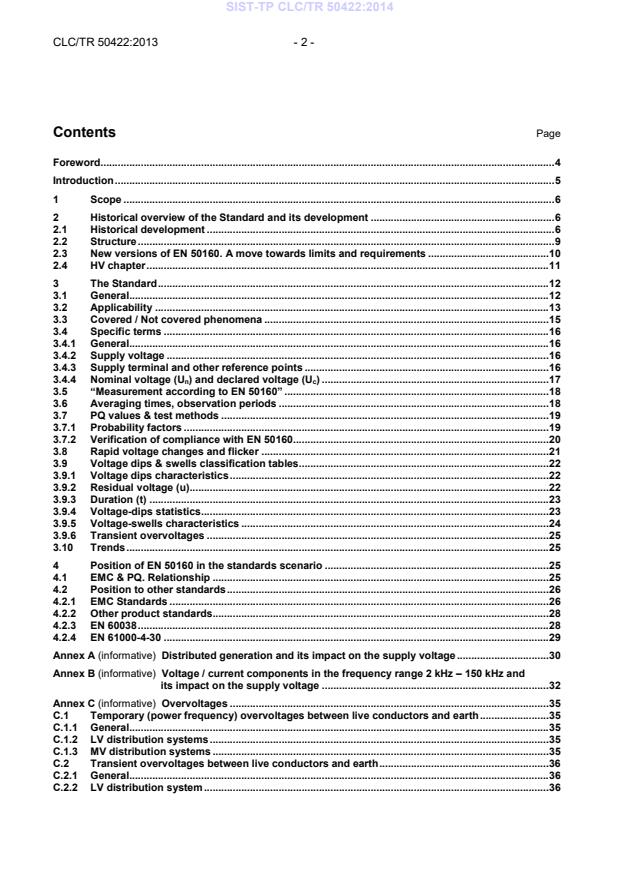

Contents Page

Foreword.............................................................................................................................................................. 4

Introduction ......................................................................................................................................................... 5

1 Scope ...................................................................................................................................................... 6

2 Historical overview of the Standard and its development ................................................................ 6

2.1 Historical development ......................................................................................................................... 6

2.2 Structure ................................................................................................................................................. 9

2.3 New versions of EN 50160. A move towards limits and requirements .......................................... 10

2.4 HV chapter ............................................................................................................................................ 11

3 The Standard ........................................................................................................................................ 12

3.1 General.................................................................................................................................................. 12

3.2 Applicability ......................................................................................................................................... 13

3.3 Covered / Not covered phenomena ................................................................................................... 15

3.4 Specific terms ...................................................................................................................................... 16

3.4.1 General.................................................................................................................................................. 16

3.4.2 Supply voltage ..................................................................................................................................... 16

3.4.3 Supply terminal and other reference points ..................................................................................... 16

3.4.4 Nominal voltage (U ) and declared voltage (U ) ............................................................................... 17

n c

3.5 “Measurement according to EN 50160” ............................................................................................ 18

3.6 Averaging times, observation periods .............................................................................................. 18

3.7 PQ values & test methods .................................................................................................................. 19

3.7.1 Probability factors ............................................................................................................................... 19

3.7.2 Verification of compliance with EN 50160......................................................................................... 20

3.8 Rapid voltage changes and flicker .................................................................................................... 21

3.9 Voltage dips & swells classification tables....................................................................................... 22

3.9.1 Voltage dips characteristics ............................................................................................................... 22

3.9.2 Residual voltage (u) ............................................................................................................................. 22

3.9.3 Duration (t) ........................................................................................................................................... 23

3.9.4 Voltage-dips statistics......................................................................................................................... 23

3.9.5 Voltage-swells characteristics ........................................................................................................... 24

3.9.6 Transient overvoltages ....................................................................................................................... 25

3.10 Trends ................................................................................................................................................... 25

4 Position of EN 50160 in the standards scenario .............................................................................. 25

4.1 EMC & PQ. Relationship ..................................................................................................................... 25

4.2 Position to other standards ................................................................................................................ 26

4.2.1 EMC Standards .................................................................................................................................... 26

4.2.2 Other product standards..................................................................................................................... 28

4.2.3 EN 60038 ............................................................................................................................................... 28

4.2.4 EN 61000-4-30 ...................................................................................................................................... 29

Annex A (informative) Distributed generation and its impact on the supply voltage ................................ 30

Annex B (informative) Voltage / current components in the frequency range 2 kHz – 150 kHz and

its impact on the supply voltage ............................................................................... 32

Annex C (informative) Overvoltages ............................................................................................................... 35

C.1 Temporary (power frequency) overvoltages between live conductors and earth ........................ 35

C.1.1 General.................................................................................................................................................. 35

C.1.2 LV distribution systems ...................................................................................................................... 35

C.1.3 MV distribution systems ..................................................................................................................... 35

C.2 Transient overvoltages between live conductors and earth ........................................................... 36

C.2.1 General.................................................................................................................................................. 36

C.2.2 LV distribution system ........................................................................................................................ 36

---------------------- Page: 4 ----------------------
SIST-TP CLC/TR 50422:2014
- 3 - CLC/TR 50422:2013

C.2.3 MV distribution systems ..................................................................................................................... 38

C.3 Temporary (power frequency) overvoltages between live conductors ......................................... 38

Annex D (informative) Abbreviations .............................................................................................................. 39

Bibliography ...................................................................................................................................................... 41

---------------------- Page: 5 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 4 -
Foreword

This document (CLC/TR 50422:2013) has been prepared by CLC/TC 8X "System aspects of electrical energy

supply".

This Technical Report, prepared by TF 8 of CLC/TC 8X/WG 1 "Physical characteristics of electrical energy", is

based on CLC/TR 50422:2003 (first edition) [4] and the development having taken place since.

This document supersedes CLC/TR 50422:2003 + corrigendum June 2005.

CLC/TR 50422:2013 includes the following significant technical changes with respect to CLC/TR 50422:2003:

this second edition has been extended, with regard to
 the inclusion of high voltage (HV) supply in the Standard,
 the relation between EN 50160 and other standards,
 the choice of power quality (PQ) values and related probabilities,

 actual trends in network use, which might lead to further development of the Standard.

For the purpose of this Technical Report, “the Standard” refers to EN 50160:2010 [8]. Likewise, “the Guide”

refers to this Application Guide, CLC/TR 50422:2013.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission and

the European Free Trade Association.
---------------------- Page: 6 ----------------------
SIST-TP CLC/TR 50422:2014
- 5 - CLC/TR 50422:2013
Introduction

By its very nature, a standard has to be concise and cannot give a comprehensive background of the subject

being dealt with. It was accordingly decided to prepare a guide providing additional information and

clarification of the Standard, whose first edition was published in 1994. The recent Application Guide

represents the 2 edition of such a guide, which considers the development of the Standard having taken

place since the publication of the 1 edition..
---------------------- Page: 7 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 6 -
1 Scope

The aim of this Technical Report is to provide background information and explanations on EN 50160 with

regard to the history of its development as well as to its correct application.
2 Historical overview of the Standard and its development
2.1 Historical development

The very first document dealing with some set of PQ characteristics – and therefore the origin of a related

European Standard some 13 years later – was an article published by the International Union of Producers

and Distributors of Electric Energy (UNIPEDE) in their magazine “Electricity Supply”, in May 1981 [32].

Experts of UNIPEDE WG “DISPERT” were commissioned “to define the different kinds of disturbances, which

can affect LV distribution voltage, caused by periodical or transient phenomena, resulting in overvoltages,

voltage dips, or other kinds of irregularities in the voltage wave”.

This document was prepared on the basis of information collected by European distributors, for the purpose of

providing information to network users fed from LV systems and to appliance designers on the actual

characteristics of the voltage distributed. It provided information about a set of characteristics:

 being recognised as representing the main irregularities in the LV supply voltage;

 being assumed as covering about 95 % of the cases;

 representing real supply voltage characteristics, to be taken into account at designing electrical and

electronic equipment with respect to their undegraded operation on mains supply;
 not intended to represent limit values, but with a view to acceptable values,
distinguished in four groups:
a) (quasi)stationary phenomena, mostly with close relation to 50 Hz:
 slow voltage variations;
 frequency variation;
 unbalance of three-phase voltages;
 harmonic voltage distortion;
 sudden voltage changes;
 DC component;
b) caused by occasional transient phenomena:
 voltage dips;
 transient voltage depressions;
 spikes originating in the operation of electrical equipment;
 surges of atmospheric origin;
---------------------- Page: 8 ----------------------
SIST-TP CLC/TR 50422:2014
- 7 - CLC/TR 50422:2013
c) ripple control signals (or similar);
d) HF signals.

The existing levels of harmonic distortion, which were later used as the basis for the voltage characteristics of

harmonics, were published in 1981 in a paper published by the International Council on Large Electric

Systems (CIGRE) [29].

Eight years later, in September 1989, UNIPEDE published document DISNORM 12 [33],

• which kept the main principles of the afore-mentioned document, in particular the consideration of a

remaining “low probability – approximately 5 % – to find the characteristics in question”,

• laying down the values of the supply voltage at the supply terminals which may reasonably be expected

under the present state of technologies,
• by grouping the considered set of characteristics into the 4 groups:
1) frequency;
2) magnitude of the voltage wave;
3) voltage waveform;
4) symmetry of the three-phase system.

In 1991, the European Commission (EC) published two Directives that subsequently led to an EC request to

CENELEC to work out (a) related standard(s):
i) Directive 85/374/EEC on the liability for defective products [41],

specifying amongst others that “the producer shall be liable for damage caused by a defect in his

product”, and that “ ‘product’ includes electricity.”
ii) Directive 89/336/EEC on the electromagnetic compatibility [42];

specifying amongst others that Member states are “responsible for ensuring that electric energy

distribution networks are protected from electromagnetic disturbance which can affect them and,

consequently, equipment fed by them”.

Additionally, two further aspects as being mentioned in the related Draft request to CENELEC as of

11 January 1991 were to be considered:

I) the development of electronic components in electrical equipment, in particular power electronics which

are bringing about a relative deterioration in the quality of “electricity” as a product, while at the same time

there is an increase in the level of network users’ requirements;

II) widely varying regulations, specifications or contracts in force in the various Member States from one to

another.
---------------------- Page: 9 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 8 -

The related Draft request to CENELEC required the preparation of (a) European Standard(s)

 giving the physical characteristics of electricity supplied by low, medium and high voltage public

distribution networks,
 on the basis of UNIPEDE DISNORM 12 [33],

 by trying to comply with international standards and in particular IEC standards as far as possible.

With involvement of manufacturers, network operators and consultants, CENELEC BT set up BTTF 68-6,

whose result, the first edition of EN 50160, was ratified on 5 July 1994 [5]. As a first step, this standard dealt

with PQ on LV and MV level (see 2.4).

According to the originally given task of describing physical characteristics of the electricity, the values given

in this first edition of EN 50160 [5] represented PQ levels, which can be expected to be present at the supply

terminals in Europe.

With the next editions [6] and [7], since the establishment of CLC/TC 8X/WG 1 by CLC/TC 8X (System

aspects of electricity supply), EN 50160 experienced some actualisation. Related development was intensified

when the Council of European Energy Regulators (CEER) joined this CENELEC work in 2006, leading to the

present edition 2010 of EN 50160 [8], which is the base of this Technical Report.

With regard to the quite complex characteristics of electricity, it was deemed necessary to provide

explanations to its background as well as to its specifications in more detail. That was done at first by

UNIPEDE, who published a first Application Guide to the European Standard EN 50160 in January 1995 [34],

followed by a related Eurelectric publication in July 1995 [30]. In 2003, CENELEC published

CLC/TR 50422:2003 (edition 1), experiencing one Corrigendum in June 2005 [4].

During a phase of further developing EN 50160, some major changes took place, which were to be

considered at related standardisation work.

 Move from the LV nominal voltage 220 V to 230 V U , for continental Europe, and from 240 V to 230 V for

the UK, according to HD 472 S1:1989 [16]. With consideration of some transition periods, this HD

specified the nominal voltage U in Europe with 230 V on from 01/01/1996 at latest; for reaching the

voltage band of U ± 10 %, finally, with corrigendum February 2002 to HD 472 S1:1989, a deadline of

01/01/2009 was specified.

 Extension of CENELEC membership from the National Committees from 18 countries in 1994 to those

of 33 countries in 2013 .

 Increase of the application of electronic components in electrical equipment and installations and

therefore of related emissions into the supply network.

 Increase of the susceptibility of electrical equipment and installations to disturbing voltage components.

 Increase of network users’ requirements on power quality.

1) Frequency, magnitude of the voltage wave (slow variations of the voltage level, rapid variations of the voltage level,

voltage dips, 50 Hz overvoltage, transient overvoltage), harmonics, unbalance, voltage interruptions, signal

transmissions through the network.
2) AT, BE, CH, DE, DK, ES, FI, FR, GB, GR, IE, IS, IT, LU, NL, NO, PT, SE

3) AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HR, HU, IE, IS, IT, LT, LU, LV, MK, MT, NL, NO, PL, PT,

RO, SE, SI, SK, TR
---------------------- Page: 10 ----------------------
SIST-TP CLC/TR 50422:2014
- 9 - CLC/TR 50422:2013

An important change in the European electricity industry has been the deregulation of the electricity market by

introducing open competition for production and sale of electricity while at the same time introducing a natural

and regulated monopoly in the form of the electricity network operators. According to European Directive

2009/72/EC [3] the role of national regulatory authorities is amongst others “setting and approving standards

and requirements for quality of supply” which has resulted in a stronger engagement of regulatory authorities

in power quality issues on national as well as on European level, for example resulting in a cooperation

between the European Energy Regulators and CENELEC.
2.2 Structure

On from the very beginning of PQ specifications, i.e. when UNIPEDE published their „Characteristics of the

Low Voltage Electricity Supply“ in 1981 [32] and their Application Guide to EN 50160 [34], it was recognised

that such specifications would deal with a quite specific product, showing particular characteristics, somehow

different from any other product (see 3.7.1). Informative Annex A of EN 50160:2010 [8] provides related

information in more detail.

Contrary to the primary perception of electricity, which might be described by parameters like continuity,

voltage magnitude and frequency, there are lots of PQ characteristics when considering electricity supply in

detail. On from the first publications by UNIPEDE, an appropriate choice out of this number of PQ

characteristics has been made for being dealt with as the main characteristics of the supply voltage.

Considering PQ phenomena, a classification can be made based on different principles, e.g. on

 the predictability of phenomena affecting the voltage, enabling the specification of definite values for the

corresponding characteristics.
That leads to a classification in definite and indicative values,

 the – more or less, to some degree given – continuity of occurrence of phenomena.

That leads to a classification in continuous phenomena and in events.

UNIPEDE started with a classification similar to the first example, which was kept for the EN 50160 editions

from 1994 to 2007. Table 1 shows the classification as it was used in the first edition of EN 50160 as of 1994.

Table 1 — Classification of PQ phenomena according to EN 50160:1994 [5] –
Definite and indicative values
Definite values Indicative values
Power frequency Supply voltage dips
Short interruptions of the supply voltage
Magnitude of the supply voltage variations
Long interruptions of the supply voltage

Rapid voltage changes including flicker severity Temporary power frequency overvoltages

Unsymmetry Transient overvoltages
Harmonic voltage Interharmonic voltage
Mains signalling voltages on the supply voltage
---------------------- Page: 11 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 10 -

After edition 2007, the classification of PQ phenomena for EN 50160 has been changed to a distinction

between

• continuous phenomena, i.e. deviations from the nominal value that occur continuously over time. Such

phenomena occur mainly due to load pattern, changes of load, non-linear loads or distributed generation,

• voltage events, i.e. sudden and significant deviations from normal or desired weave shape which typically

occur due to unpredictable events (e.g. faults) or to external causes (e.g. weather conditions, third party

actions, force majeure)

See Table 2 for the classification used in the Standard. The classification is independent of the cause of the

phenomenon, but continuous phenomena mainly occur due to load patterns, changes in load or non-linear

load whereas voltage events typically occur due to unpredictable events (e.g. faults) or to external causes

(e.g. weather conditions, third party actions, force majeure).
Table 2 — Classification of PQ phenomena according to EN 50160:2010 [8] –
Continuous phenomena and voltage events
Continuous phenomena Voltage events
Variations in power frequency Interruptions of the supply voltage
Supply voltage variations Supply voltage dips
Rapid voltage changes including those resulting in
Supply voltage swells
light flicker
Supply voltage unbalance Transient overvoltages
Harmonic voltage
Interharmonic voltage
Mains signalling voltages

EN 50160:2010 [8] gives limits for most continuous phenomena. No limits are given for single rapid voltage

changes and for interharmonics.

Only indicative values for voltage events are given in EN 50160:2010 [8] pending the gathering of additional

information from actual measurements and other investigations.
In EN 50160:2010 [8], an Informative Annex provides information about

a) indicative values currently available at a European level for some of the events defined and described in

the Standard,
b) the way of using these values,

c) recommendations for the way of collecting further measurement data, in order to allow for comparisons

between different systems and for obtaining homogeneous data at a European level.

2.3 New versions of EN 50160. A move towards limits and requirements

As explained in 2.1, the objective for EN 50160 was to establish (a) standard(s) giving the physical

characteristics of electricity energy supplied by low, medium and high voltage public distribution networks,

similar to the formerly published document DISNORM 12 of UNIPEDE, complying with inter-national

standards and in particular IEC standards as far as possible.
---------------------- Page: 12 ----------------------
SIST-TP CLC/TR 50422:2014
- 11 - CLC/TR 50422:2013

When considering the development from the very first UNIPEDE document dated 1981 to the first edition of

EN 50160, already some movement in the meaning of values – at least from the chosen terminology – can be

recognised. While, considering the cases, where values are specified, except irregularities caused by

occasional transient phenomena,

a) the 1981 UNIPEDE document uses wording like “should not differ” (e.g. slow voltage variations), “does

not vary by more” (e.g. frequency variation), “values which the distributors endeavour not to exceed” (e.g.

harmonics), “are usually …” (e.g. voltage changes)

b) UNIPEDE DISNORM 12 explicitly talks of “values” at the supply terminals, which “are” (e.g. frequency),

“is usually” (e.g. unbalance), “will generally be lower” (e.g. 50 Hz overvoltages), represent a “normal limit

which may be exceeded” (e.g. rapid variations), figure as “compatibility levels” (e.g. harmonics),

c) EN 50160:1994 – for definite values – uses a somehow more distinct wording, giving information about

values which under normal operating conditions are not exceeded with a certain probability, i.e. between

95 % and 100 % of the averaging times during an observation period (see 3.1, 3.2),

all three documents having a really describing character.
With the following versions, besides
 the extension of the scope also to HV (see 2.4) and
 the phenomena dealt with
 in principle (voltage swells on from 2010)
 in more detail (e.g. voltage dips and swells),

the standard tends to have more and more set limits, with decreasing probabilities of it being exceeded, e.g.

• frequency for systems with synchronous connection to an interconnected system,

• slow voltage variations (drop of exception for remote areas for LV, decrease of residual probability for

variations of U outside the limits of U ± 10 %),
n n

with the increasing meaning of distinct requirements the network operator shall meet.

2.4 HV chapter

HV was one of the voltage levels addressed by the European Commission (EC) in their Draft request to

CENELEC in 1991. From the practical point of view, at this time – not only but also with regard to the very

small number HV customers, compared with MV and, in particular, LV customers – HV appeared as less

important for getting a specification of PQ characteristics; following to that, the first edition of EN 50160 was

worked out for the voltage levels LV and MV only.

In the meantime, due to liberalisation and, resulting from that, the separation of distribution network operators

as well as of generating companies from transmission system operators, for regulatory as well as for

contractual purposes the specification of PQ characteristics for the interface to HV systems got some more

importance, although the number of related complaints was quite limited. The interface with HV systems

concerns different types of network users: large industrial installations, production units and distribution

networks. With regard to the lack of related EN 50160 specifications, as a first step related questions were

sometimes dealt with by referring to EN 50160 with recommending to apply it using the specifications of the

Standard for lower voltage levels, either using the same limits or with some correction made.

After edition 2007 of EN 50160, with due regard to meshed network structures of transmission systems being

somehow different from LV and MV networks, it was decided to extend the scope of EN 50160 from LV and

MV also to higher voltages. For the purpose of EN 50160, PQ should be described for the supply terminals in

---------------------- Page: 13 ----------------------
SIST-TP CLC/TR 50422:2014
CLC/TR 50422:2013 - 12 -

public networks but it was decided that single network users connected to EHV should not be covered. As a

result, the Scope of EN 50160 got extended to voltages up to 150 kV. Further work on transmission systems

and EHV systems was postponed, although being aware of the fact, that PQ in lower voltage levels is also

affected by the quality on higher voltage levels.
With regard to
 the before-mentioned differences of H
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
