IEC 60738-1-3:2008

Thermistors - Directly heated positive step-function temperature coefficient - Part 1-3: Blank detail specification - Inrush current application - Assessment level EZ

IEC 60738-1-3:2008 is a supplementary document to the generic specification and contains requirements for style and layout and minimum content of detail specifications. Detail specifications not complying with these requirements shall not be considered as being in accordance with IEC specifications nor shall they so be described. In the preparation of detail specifications the content of IEC 60738-1:2006,1.4 shall be taken into account. This edition contains changes with respect to the referenced subclauses of the revised Generic Specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1:2009.

Thermistances - Coefficient de température positif de fonction échelon à chauffage direct - Partie 1-3: Spécification particulière cadre - Application du courant d'appel - Niveau d'assurance de la qualité EZ

L'IEC 60738-1-3:2008 est un document annexe à la spécification générique qui contient des exigences pour le modèle, la disposition et le contenu minimal des spécifications particulières. Les spécifications particulières ne répondant pas à ces règles ne doivent pas être considérées conformes aux spécifications de l'IEC et ne doivent pas être déclarées comme telles. Dans la préparation de la spécification particulière, le contenu de 1.4 de l'IEC 60738-1:2006, doit être pris en compte. Cette édition contient des modifications des paragraphes référencés de la spécification générique révisée IEC 60738-1.
Cette publication doit être lue conjointement avec la CEI 60738-1:2009.

General Information

• Status: Published
• Publication Date: 12-Feb-2008
• ICS: 31.040.30 - Thermistors
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Drafting Committee: WG 43 - TC 40/WG 43
• Current Stage: PPUB - Publication issued
• Start Date: 13-Feb-2008
• Completion Date: 29-Feb-2008

Relations

• Revises: IEC 60738-1-3:1998 - Thermistors - Directly heated positive step-function temperature coefficient - Part 1-3: Blank detail specification - Inrush current application - Assessment level EZ
• Effective Date: 05-Sep-2023

Overview

IEC 60738-1-3:2008 is an IEC blank detail specification for directly heated positive step‑function PTC thermistors intended for inrush current applications (Assessment level EZ). It is a supplementary document to the generic specification and defines the required style, layout and minimum content for any detail specification addressing PTC inrush-current devices. Detail specifications that do not follow this blank are not considered compliant with IEC requirements. This edition (2.0, 2008) is to be read together with the generic IEC 60738‑1 document.

Key topics and requirements

• Scope and identification
  • Identification elements to be inserted in a detail specification (organization, reference numbers, device description, outline drawing, assessment level EZ).
• Mechanical and material data
  • Method(s) of mounting, dimensions (gauging), coating, termination types and suitability for soldering, and flammability/solvent resistance statements.
• Electrical ratings & characteristics
  • Mandatory parameters and units to be specified: operating temperatures, maximum voltage, zero‑power resistance (series/parallel), isolation/insulation values (if insulated), minimum/maximum peak‑to‑peak inrush current, and residual current.
• Marking, packaging and ordering
  • Marking requirements per IEC 60738‑1, packaging details (bulk/tape), and minimum ordering information.
• Inspection & test schedules
  • Defined lot‑by‑lot (Group A/B) and periodic (Group C) inspection tables with sampling, severities and acceptance criteria; requirements for qualification approval and quality conformance.
• Referenced test methods
  • Normative links to IEC 60738‑1, IEC 60068‑2‑58 (solderability, SMD solder heat), and IEC 60410 (sampling plans).

Applications and who uses this standard

• Manufacturers of PTC inrush current limiters: to prepare compliant detail specifications and define product datasheets.
• Design and application engineers: to ensure component selection meets required inrush limiting performance and environmental/assembly constraints.
• Quality, test and compliance teams: to implement lot inspection, qualification testing and supplier approval in accordance with IEC procedures.
• Procurement and standards officers: to reference unambiguous procurement requirements and ensure IEC conformity claims are valid.

Related standards

• IEC 60738‑1 (Generic specification - read in conjunction)
• IEC 60068‑2‑58 (Environmental testing - solderability / soldering heat)
• IEC 60410 (Sampling plans and inspection by attributes)

Keywords: IEC 60738-1-3:2008, thermistors, PTC thermistors, inrush current, blank detail specification, assessment level EZ, quality conformance, test schedule, IEC 60738-1.

Standards Content (Sample)

IEC 60738-1-3
Edition 2.0 2008-02
INTERNATIONAL
STANDARD
QC 440003
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-3: Blank detail specification – Inrush current application – Assessment
level EZ
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 60738-1-3
Edition 2.0 2008-02
INTERNATIONAL
STANDARD
QC 440003
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-3: Blank detail specification – Inrush current application – Assessment
level EZ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
M
ICS 31.040.30 ISBN 2-8318-9575-8

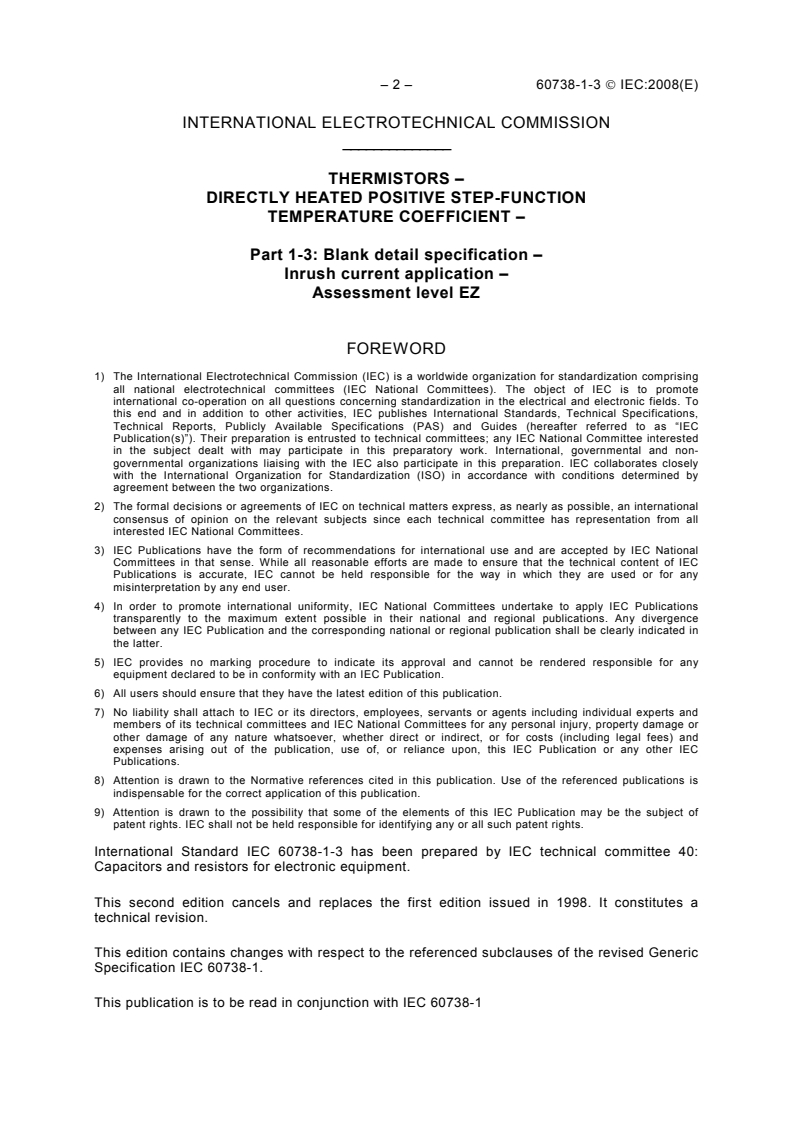

– 2 – 60738-1-3 © IEC:2008(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-3: Blank detail specification –
Inrush current application –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60738-1-3 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition issued in 1998. It constitutes a
technical revision.
This edition contains changes with respect to the referenced subclauses of the revised Generic
Specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1

60738-1-3 © IEC:2008(E) – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
40/1876/FDIS 40/1893/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The list of all parts of the IEC 60738 series, under the (new) general title Thermistors – Directly
heated positive step-function temperature coefficient, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 4 – 60738-1-3 © IEC:2008(E)
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the generic specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements shall not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of IEC 60738-1:2006,1.4 shall be taken
into account.
The numbers between brackets on the first page correspond to the following information which
shall be inserted in the position indicated.
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the thermistor
[5] A short description of the type of thermistor.
[6] Information on typical construction (if applicable).
NOTE When the thermistor is not designed for use on printed boards, this should clearly be stated in the detail
specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the various
thermistor types.
60738-1-3 © IEC:2008(E) – 5 –
[1] IEC 60738-1-3-XXX [2]
QC 440003
ELECTRONIC COMPONENTS OF ASSESSED IEC 60738-1-3 [4]
QUALITY IN ACCORDANCE WITH: QC 440003

[3] DIRECTLY HEATED POSITIVE
STEP-FUNCTION TEMPERATURE
COEFFICIENT THERMISTORS [5]
Outline drawing: [see 1.2] FOR INRUSH CURRENT
[. angle projection] APPLICATION

MODIFIED FERRO-ELECTRIC [6]
[7] CERAMIC MATERIAL
[Other shapes are permitted within the dimensions
given]
Assessment level: EZ [8]
[9]
Information on the availability of components
qualified to this detail specification is given in
the Register of Approvals.
– 6 – 60738-1-3 © IEC:2008(E)
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-3: Blank detail specification –
Inrush current application –
Assessment level EZ
1 General data
1.1 Method(s) of mounting (to be inserted)
(See IEC 60738-1:2006, 7.30).
1.2 Dimensions
(All dimensions are in millimetres or inches and millimetres; it shall be stated which dimensions
are suitable for gauging).
Dimensioned drawing(s) shall be given in the detail specification. If necessary, the dimensions
may be listed in tabular form with reference to styles or codes.
1.3 Coating
The detail specification shall state:
a) whether the thermistor is insulated or non-insulated;
b) the material;
c) the colour, if applicable.
1.4 Terminations
The detail specification shall state whether the terminations are suitable for soldering. If they
are not, suitable methods of connection shall be stated for example: welding, clamping or
crimping.
1.5 Flammability
The detail specification shall state whether the thermistor is actively or passively flammable if
applicable. The test method shall be given in the test schedule.
1.6 Resistance to solvents
The detail specification shall state whether the coating and the marking of the thermistor are
solvent resistant if applicable. The test methods shall be given in the test schedule.
1.7 Packaging
The detail specification shall give the following information (if required):
a) whether bulk packed or taped and if taped, drawing or references;
b) the dimensions of the immediate packaging and the number of thermistors packed;
c) the dimensions of the outer package and the number of immediate packages;
d) methods of disposal of the packaging material.

60738-1-3 © IEC:2008(E) – 7 –
1.8 Electrical data/Ratings and characteristics
The detail specification shall give units and
...

IEC 60738-1-3 ®
Edition 2.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-3: Blank detail specification – Inrush current application – Assessment
level EZ
Thermistances – Coefficient de température positif de fonction échelon à
chauffage direct –
Partie 1-3: Spécification particulière cadre – Application du courant d'appel –
Niveau d'assurance de la qualité EZ

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60738-1-3 ®
Edition 2.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Thermistors – Directly heated positive step-function temperature coefficient –

Part 1-3: Blank detail specification – Inrush current application – Assessment

level EZ
Thermistances – Coefficient de température positif de fonction échelon à

chauffage direct –
Partie 1-3: Spécification particulière cadre – Application du courant d'appel –

Niveau d'assurance de la qualité EZ

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 31.040.30 ISBN 978-2-8322-1318-6

– 2 – 60738-1-3  IEC:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
______________
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-3: Blank detail specification –
Inrush current application –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60738-1-3 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This second edition cancels and replaces the first edition issued in 1998. It constitutes a
technical revision.
This edition contains changes with respect to the referenced subclauses of the revised Generic
Specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1

60738-1-3  IEC:2008 – 3 –
This bilingual version (2014-01) corresponds to the monolingual English version, published in
2008-02.
The text of this standard is based on the following documents:
FDIS Report on voting
40/1876/FDIS 40/1893/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
The list of all parts of the IEC 60738 series, under the (new) general title Thermistors – Directly
heated positive step-function temperature coefficient, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – 60738-1-3  IEC:2008
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the generic specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements shall not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of IEC 60738-1:2006,1.4 shall be taken
into account.
The numbers between brackets on the first page correspond to the following information which
shall be inserted in the position indicated.
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the thermistor
[5] A short description of the type of thermistor.
[6] Information on typical construction (if applicable).
NOTE When the thermistor is not designed for use on printed boards, this should clearly be stated in the detail
specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the various
thermistor types.
60738-1-3  IEC:2008 – 5 –
[1] IEC 60738-1-3-XXX [2]
QC 440003
ELECTRONIC COMPONENTS OF ASSESSED IEC 60738-1-3 [4]
QUALITY IN ACCORDANCE WITH: QC 440003

[3] DIRECTLY HEATED POSITIVE
STEP-FUNCTION TEMPERATURE
COEFFICIENT THERMISTORS [5]
Outline drawing: [see 1.2] FOR INRUSH CURRENT
[. angle projection] APPLICATION

MODIFIED FERRO-ELECTRIC [6]
[7] CERAMIC MATERIAL
[Other shapes are permitted within the dimensions
given]
Assessment level: EZ [8]
[9]
Information on the availability of components
qualified to this detail specification is given in
the Register of Approvals.
– 6 – 60738-1-3  IEC:2008
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-3: Blank detail specification –
Inrush current application –
Assessment level EZ
1 General data
1.1 Method(s) of mounting (to be inserted)
(See IEC 60738-1:2006, 7.30).
1.2 Dimensions
(All dimensions are in millimetres or inches and millimetres; it shall be stated which dimensions
are suitable for gauging).
Dimensioned drawing(s) shall be given in the detail specification. If necessary, the dimensions
may be listed in tabular form with reference to styles or codes.
1.3 Coating
The detail specification shall state:
a) whether the thermistor is insulated or non-insulated;
b) the material;
c) the colour, if applicable.
1.4 Terminations
The detail specification shall state whether the terminations are suitable for soldering. If they
are not, suitable methods of connection shall be stated for example: welding, clamping or
crimping.
1.5 Flammability
The detail specification shall state whether the thermistor is actively or passively flammable if
applicable. The test method shall be given in the test schedule.
1.6 Resistance to solvents
The detail specification shall state whether the coating and the marking of the thermistor are
solvent resistant if applicable. The test methods shall be given in the test schedule.
1.7 Packaging
The detail specification shall give the following information (if required):
a) whether bulk packed or taped and if taped, drawing or references;
b) the dimensions of the immediate packaging and the number of thermistors packed;
c) the dimensions of the outer package and the number of immediate packages;
d) methods of disposal of the packaging material.

60738-1-3  IEC:2008 – 7 –
1.8 Electrical data/Ratings and characteristics
The detail specification shall give units and tolerances or limiting values for the following para-
meters. If necessary, electrical data may be listed in tabular form, with reference to styles and
codes.
Upper/Lower category temperatures (UCT/LCT);
Operating temperature range at maximum voltage;
Maximum voltage (U );
.
max
Zero-power resistance (R ) of series PTC;
T
) of parallel PTC;
Zero-power resistance (R
T
Isolation voltage (insulated thermistors only);
Insulation resistance (insulated thermistors only);
Minimum series impedance (coil);
Minimum peak-to-peak inrush current (I );
in pp max.
Maximum peak-to-peak inrush current (I );
in pp min.
Residual current at U (I ).
max. res
1.9 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60068-2-58, Environmental testing – Part 2-58: Tests – Test Td: Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60410:1973, Sampling plans and procedures for inspection by attributes
IEC 60738-1:2006, Thermistors – Directly heated positive step-function temperature
coefficient – Part 1: Generic specification
1.10 Marking
The marking of the thermistors and package containing the thermistors shall be in accordance
with the requirements of IEC 60738-1:2006, 5.2.
The details of the marking of the thermistors and package containing the thermistor shall be
given in full in the detail specification.
1.11 Ordering information
Orders for thermistors covered by this specification shall contain, in clear or in coded form, the
following minimum information:
a) style reference;
b) maximum continuous a.c. voltage;
c) number and issue reference of the detail specification.
1.12 Additional information (not for inspection purposes)
1.13 Additional or increased severities or requirements to those specified in the
generic sectional specification
NOTE Additions or increased requirements should be specified only when essential.

– 8 – 60738-1-3  IEC:2008
2 Inspection requirements
2.1 Procedures
2.1.1 For qualification approval, the procedures shall be in accordance with the generic
specification IEC 60738-1:2006, 6.5.
2.1.2 For quality conformance inspection, the test schedules (tables 1 and 2) include
sampling, periodicity, severities and requirements. The formation of inspection lots is covered
by IEC 60738-1:2006, 6.5.7.
The following list applies to the test schedules developed in Tables 1 and 2:
1) Subclause numbers of tests and performance requirements refer to the generic specification,
IEC 60738-1:2006, and clause 1 of this document.
2) Number to be tested: sample size as directly allotted to the code letter for IL in Table IIA of
IEC 60410:1973 (Single sampling plan for normal inspection).
3) In these tables: p is the periodicity (in months)
n is the sample size
c is the acceptance criterion (permitted number of non-conforming items)
D indicates a destructive test
ND indicates a non-destructive test
IL is the inspection level
4) The temperature at which the zero-power resistance shall be measured is the temperature
specified in the detail specification. This temperature shall be stated, where required, in the
test schedule.
5) The specimens used for this group may, at the discretion of the manufacturer, be used for
any subsequent group which is identified as being "destructive".
6) The soldering – solderability and soldering – resistance to heat tests shall only be applied
where the thermistor has terminations which are appropriate for soldering.
7) Where the terminations are stated to be suitable for printed wiring applications, the
appropriate test conditions in IEC 60068-2-58 shall apply.
8) The thermistors shall be mounted by their normal means.
9) The bump test and the shock test are alternatives. The test selected in the detail
specification shall be used.
10) The detail specification shall specify which of the endurance tests in groups C4, C5 and
D1 respectively are appropriate to the construction and application of the thermistor.
11) Any deviation from annex B of the generic specification shall be given in the detail
specification.
12) 100 % testing shall be followed by re-inspection by sampling in order to monitor outgoing
–6
quality level by non-conforming items per million (×10 ). The sampling level shall be
–6
established by the manufacturer. For the calculation of ×10 values any parametric failure
shall be counted as a non-conforming item. In case one or more non-conforming items
occur in a sample, this lot shall be rejected.

60738-1-3  IEC:2008 – 9 –
Table 1 – Test schedule for quality conformance inspection: lot-by-lot
Subclause number D Conditions of test IL n c Performance
and test or requirements
(see list item 1)
(see list item 1) ND (see list item 1)
(see list item 3)
GROUP A INSPECTION
(lot-by-lot)
ND 100 %
Subgroup A0
(see list item 12)
Temperature: . °C As in 7.5.3
7.5 Zero-power
resistance R Voltage: . V
T
Frequency: . Hz (if
applicable)
Subgroup A1 ND S-4 (See 0
item
7.4.1 Visual list 2) As in 7.4.1
examination
ND S-3 (See 0
Subgroup A2
item
7.4.2 Marking list 2) As in 7.4.2

As specified in the detail
7.4.3 Dimensions
(gauging) specification
GROUP B INSPECTION
(lot-by-lot)
Subgroup B1 ND S-2 (See 0
item
list 2)
7.29 Inrush current Series resistance: . Ω I ≥ . A
in pp min. pp
Voltage: . V
Temperature: . °C I ≤ . A
in pp max. pp
7.27 Residual current After . s
I ≤ . mA
res
Subgroup B2 ND S-2 (See 0
item
(Insulated thermistors only) list 2) As in 7.8.4
7.8 Voltage proof
Method: .
Applied voltage: . V a.c.
7.16 Solderabilty (see list item 6 and 7)  The terminations shall be
Solder bath method uniformly tinned

– 10 – 60738-1-3  IEC:2008
Table 2 – Test schedule for quantity conformance inspection: periodic
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
GROUP C INSPECTION
(periodic)
Subgroup C1A D (see list items 6 and 7) 6 5 0

Part of sample
As in 7.17.4 and 7.17.5
Temperature: . °C
7.17 Resistance to
Visual examination ∆R/R: from . % to . %
soldering heat
Zero-power resistance
(Temperature: . °C)
(Voltage: . V)
7.15 Robustness of Tensile, bending and
terminations torsion tests as appropriate

to type of terminations,
if applicable
Visual examination As in 7.15.4 and 7.15.5
Zero-power resistance ∆R/R: from . % to . %
(Temperature: . °C)
(Voltage: . V)
D 6 5
Subgroup C1B
Other part of sample
7.18 Rapid change of 2 = LCT
A
temperature 2 = UCT
B
As in 7.18
Visual examination
∆R/R: from . % to . %
Zero-power resistance
(Temperature: . °C)
(Voltage: . V)
7.19 Vibration
Frequency range:
... Hz to ... Hz
Amplitude: 0,75 mm or
acceleration: 98 m/s
(whichever is the less
severe)
Sweep endurance
Total duration: 6 h
(see list item 8)
Final measurements:
As in 7.19
Visual examination
∆R/R: from . % to . %
Zero-power resistance
(Temperature: . °C)
(Voltage: . V)
7.20 Acceleration: . m/s
Bump (or shock, Number of bumps: .
see list item 9) (see list item 8)
Visual examination As in 7.20
Zero-power resistance ∆R/R: from . % to .

(Temperature: . °C)
(Voltage: . V)
60738-1-3  IEC:2008 – 11 –
Table 2 (continued)
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
7.21 Shock (or bump, Pulse shape: half sine
see list item 9) Acceleration: . m/s
(see list item 8)
Pulse duration: . ms
Visual examination As in 7.21
Zero-power resistance
∆R/R: from . % to . %
(Temperature: . °C)
(Voltage: . V)
Subgroup C1 D 6 10
Combined sample of
specimens of
subgroups C1A and
C1B
(Low air pressure test not
applicable)
7.22 Climatic
sequence
– Dry heat
– Damp heat, cy-
clic, first cycle
– Cold
– Damp heat, cy-
clic, remaining
Visual examination As in 7.22.7
cycles
Zero-power resistance
∆R/R: from . % to . %
– Final measure-
(Temperature: . °C)
ments
(Voltage: . V)
Insulation resistance R ≥ . MΩ
(Insulated thermistors only)
Voltage proof
As in 7.22.7
(Insulated thermistors only)
ND (see list item 5) 6 10 0
Subgroup C2
As specified in the detail
7.4.4 Dimensions
specification
(detail)
Subgroup C3 ND 6 10 0
(The detail specification
7.24.3 Endurance at
maximum opera- shall describe the method
ting temperature of mounting, see 7.24.3)
and maximum
Duration: . h
voltage
Examination at 168 h and
500 h (if applicable)
Zero-power resistance
∆R/R: from . % to . %
(Temperature: . °C)
(Voltage: . V)
– 12 – 60738-1-3  IEC:2008
Table 2 (continued)
Subclause number and D Conditions of test Sample size Performance
test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
Examination at . h
Visual examination As in 7.24.3
Zero-power resistance
∆R/R: from . % to . %
(Temperature: . °C)
(Voltage: . V)
Inrush current
I . A
in ≥ pp
Residual current
I ≤ .
...
