IEC 61753-382-2:2015 is an international performance standard published by the International Electrotechnical Commission (IEC). This standard specifies minimum initial performance, test, and measurement requirements for non-connectorized single-mode bidirectional fibre optic WWDM devices designed for wide wavelength division multiplexing in Gigabit-capable Passive Optical Networks (G-PON) and Next Generation Access (NGA) systems. It covers the category C classification, which applies to devices used in controlled environments. IEC 61753-382-2:2015 ensures device reliability and performance for critical telecommunications applications, aligning with IEC 61753-1:2007 requirements.

Key Topics

• Non-connectorized WWDM Devices: The standard focuses on non-connectorized (pigtailed) single-mode bidirectional devices that combine and split G-PON upstream/downstream signals along with NGA wavelength bands.
• Category C - Controlled Environment: Devices categorized under category C are intended for environments with controlled temperature, humidity, and other parameters, as defined in IEC 61753-1 Annex A.
• Performance and Test Requirements: Defines testing procedures including vibration, shock, temperature cycling, high optical power endurance, and optical performance such as insertion loss and wavelength-dependent characteristics.
• Normative References: Relies on related IEC standards such as IEC 61300 series for basic fiber optic device testing and IEC 60793-2-50 for single-mode fiber specifications.
• Wavelength Ranges: Specifies operational wavelength ranges for WWDM devices under G-PON NGA applications consistent with ITU-T G.984.5 recommendations.
• Test Report Structure: Includes defined sample size, test methods, and detailed requirement tables to ensure conformity and reproducibility.

Applications

IEC 61753-382-2:2015 standard is essential for manufacturers and users of fibre optic components in:

• Telecommunication Networks: Particularly in the deployment and maintenance of gigabit passive optical networks requiring reliable multiplexing of G-PON and NGA signals.
• Next Generation Access (NGA) Services: Supports higher bandwidth and advanced services through NGA wavelength bands integration.
• Controlled Environment Installations: Suitable for indoor or environmentally regulated telecom equipment rooms, data centers, and network hubs.
• Passive Optical Network (PON) Components Quality Assurance: Provides criteria for product qualification, acceptance testing, and supplier compliance for non-connectorized WWDM devices.

By adhering to IEC 61753-382-2, network providers and component manufacturers ensure improved device interoperability, performance consistency, and reliability under controlled environmental conditions, critical for modern high-speed optical networks.

Related Standards

• IEC 61753-1:2007 – General performance standard categorizing environment classes including category C controlled environments.
• IEC 61300 series – Basic test and measurement procedures for fiber optic interconnecting devices and passive components.
• IEC 60793-2-50 – Specification for single-mode optical fibers used in pigtailed devices.
• ITU-T G.984.5 – Recommendation defining G-PON wavelength ranges and WWDM device structures.
• IEC 61753 series – Broader series covering various performance standards for fibre optic interconnecting devices and passive components.

Summary

IEC 61753-382-2:2015 standardizes the performance and testing of non-connectorized single-mode bidirectional G-PON-NGA WWDM devices for controlled environments. It supports network infrastructure development by ensuring these fibre optic components meet defined optical and mechanical requirements, enabling reliable and efficient wide wavelength division multiplexing in next-generation fiber optic communication systems. Implementing this standard promotes better quality assurance and interoperability in telecom equipment, particularly for bidirectional multiplexing in passive optical networks.

Standards Content (Sample)

IEC 61753-382-2 ®
Edition 1.0 2015-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 382-2: Non-connectorized single-mode bidirectional G-PON-NGA WWDM
devices for category C – Controlled environment

Dispositifs d'interconnexion et composants passifs à fibres optiques – Norme
de performance –
Partie 382-2: Dispositifs WWDM G-PON-NGA bidirectionnels unimodaux non
connectorisés pour la catégorie C – Environnement contrôlé

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61753-382-2 ®
Edition 1.0 2015-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 382-2: Non-connectorized single-mode bidirectional G-PON-NGA WWDM

devices for category C – Controlled environment

Dispositifs d'interconnexion et composants passifs à fibres optiques – Norme

de performance –
Partie 382-2: Dispositifs WWDM G-PON-NGA bidirectionnels unimodaux non

connectorisés pour la catégorie C – Environnement contrôlé

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-2997-2

– 2 – IEC 61753-382-2:2015 © IEC 2015

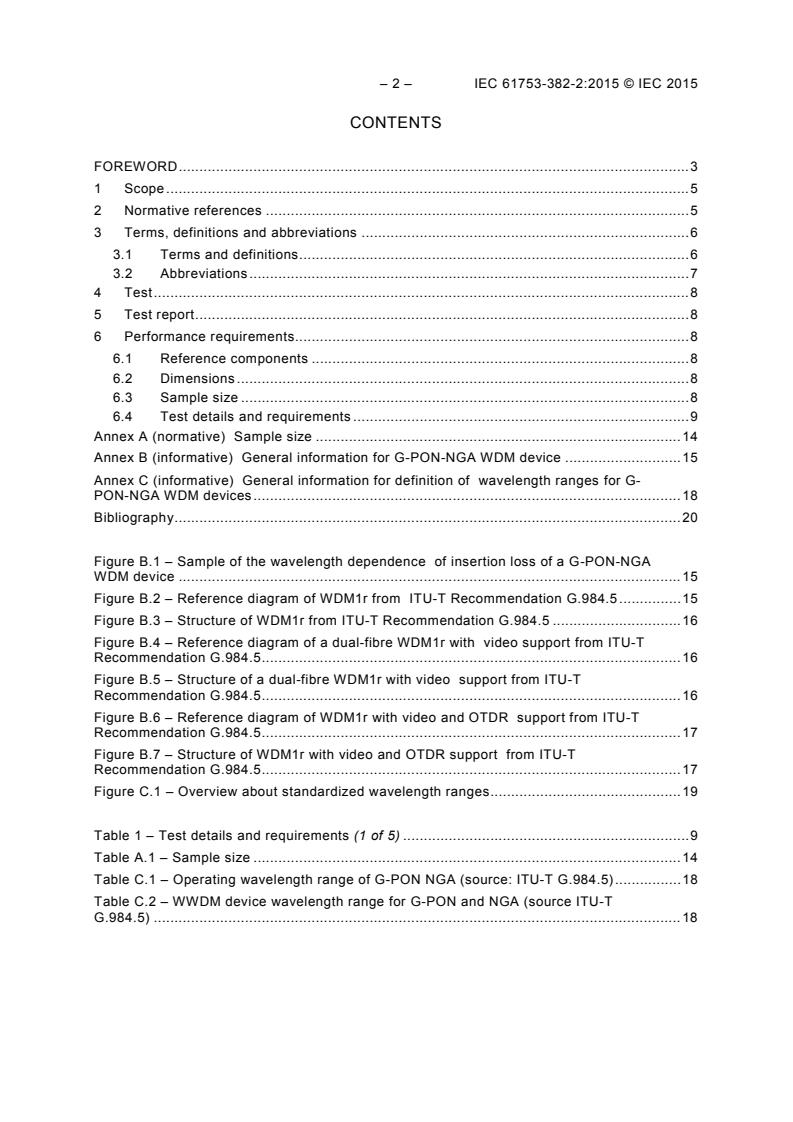

CONTENTS
