Standards Content (Sample)
IEC 61300-3-34
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 3-34: Examinations and measurements – Attenuation of random mated
connectors
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61300-3-34
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 3-34: Examinations and measurements – Attenuation of random mated
connectors
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
M
ICS 33.180.20 ISBN 978-2-88910-499-4
– 2 – 61300-3-34 © IEC:2009(E)
CONTENTS
FOREWORD.3
1 Scope.5
2 Normative references .5
3 General description .5
3.1 Test methods .5
3.2 Precautions .6
4 Apparatus.6
4.1 Source (S).6
4.2 Launch conditions (E).7
4.3 Detector (D) .7
5 Procedure .7
5.1 Method 1 .7
5.2 Method 2 .10
5.3 Analysis of results .13
6 Details to be specified .13
Figure 1 – “Reference” patchcord measurement – Method 1 .8
Figure 2 – Test patchcord measurement – Method 1.8
Figure 3 – Test matrix for measurement method 1 .10
Figure 4 – “Reference” patchcord measurement – Method 2 .11
Figure 5 – Test patchcord measurement – Method 2.11
Figure 6 – Test matrix for measurement method 2 .12
61300-3-34 © IEC:2009(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 3-34: Examinations and measurements –
Attenuation of random mated connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61300-3-34 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition published in 2001. It constitutes a
technical revision. Changes from the previous edition of the document are to reconsider
launch conditions for multimode fibres.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2767/FDIS 86B/2800/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
– 4 – 61300-3-34 © IEC:2009(E)
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61300 series, published under the general title, Fibre optic
interconnecting devices and passive components – Basic test and measurement procedures
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
61300-3-34 © IEC:2009(E) – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 3-34: Examinations and measurements –
Attenuation of random mated connectors
1 Scope
This part of IEC 61300 describes the procedure required to measure the statistical distribution
and mean attenuation for random mated optical connectors.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1: General and guidance
IEC 61300-3-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-1: Examinations and measurements – Visual examination
3 General description
3.1 Test methods
Two test methods are described for measuring the attenuation of random mated optical
connectors. Both provide an estimate of the expected average performance that a group of
patchcords (including adaptors, if applicable) selected from a batch will exhibit when utilised
in an optical system. The patchcords, and any adaptors, must be chosen at random to ensure
that the measurements provide a statistically unbiased estimate.
Method 1 describes the procedure based on the use of 10 patchcords (20 optical connectors)
and 10 adaptors. In this case all of the plugs are sequentially used as “reference” plugs and
all of the remaining plugs are tested against them. The result is based on 360 measurements
as indicated in the test matrix shown in Figure 3.
Method 1 is intended to be part of a design approval exercise that may involve one or more
suppliers. Once approval is achieved, Method 2 would be relied on to maintain process
control. However, in the event of a dispute, Method 1 shall act as the reference measurement
method.
Method 2 describes a procedure based on the measurement of 15 patchcords.
Five patchcords are selected as “reference” patchcords, with one plug on each of the
patchcords being nominated as a “reference” plug. All plugs of the remaining 10 patchcords
are then tested against each of the five “reference” plugs. This produces 100 measurements
as indicated in the test matrix shown in Figure 6.
– 6 – 61300-3-34 © IEC:2009(E)
It is recognised that the number of measurements required by Method 1 may be excessive for
day-to-day routine checking of either in-house or supplier produced products. In this case, as
indicated above, Method 2 may be used as an alternative option.
NOTE In this measurement method, the terms “reference” plug or “reference” patchcord are used to define those
components chosen at random from a batch, against which a number of comparative measurements are made. It is
not intended that the terms should imply specially chosen or manufactured components, such as those used, for
example, in screen testing.
3.2 Precautions
The following test requirements shall be met:
3.2.1
Precautions shall be taken to ensure that the cladding modes do not affect the measurement.
Cladding modes shall be stripped as a function of the fibre coating.
3.2.2
Precautions shall be taken to ensure the position of the fibres in the test remains fixed
between the measurement of P and P to avoid changes in attenuation due to bending losses.
1 2
3.2.3
The stability performance of the test equipment shall be ≤0,05 dB or 10 % of the attenuation
to be measured, whichever is the lower value. The stability shall be maintained over the
measurement time and operational temperature range. The required measurement resolution
shall be 0,01 dB for both multimode and singlemode.
3.2.4
To achieve consistent results, clean and inspect all connectors and adaptors prior to
measurement. Visual examination shall be undertaken in accordance with IEC 61300-3-1.
3.2.5
The power in the fibre shall be at a level that does not generate non-linear scattering effects.
4 Apparatus
4.1 Source (S)
The
...
IEC 61300-3-34 ®
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 3-34: Examinations and measurements – Attenuation of random mated
connectors
Dispositifs d’interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d’essais et de mesures –
Partie 3-34: Examens et mesures – Affaiblissement dû à l’accouplement
de connecteurs quelconques
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.
projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

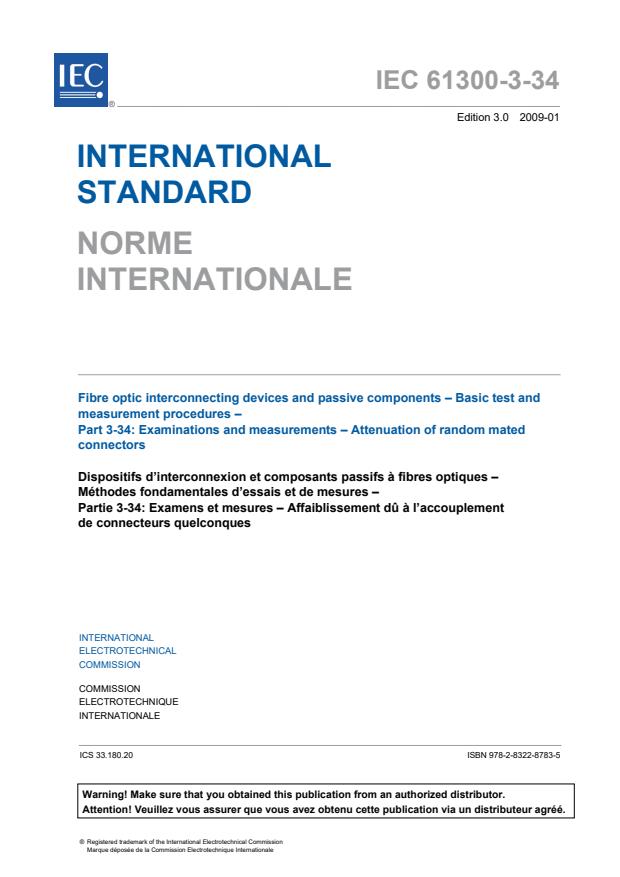

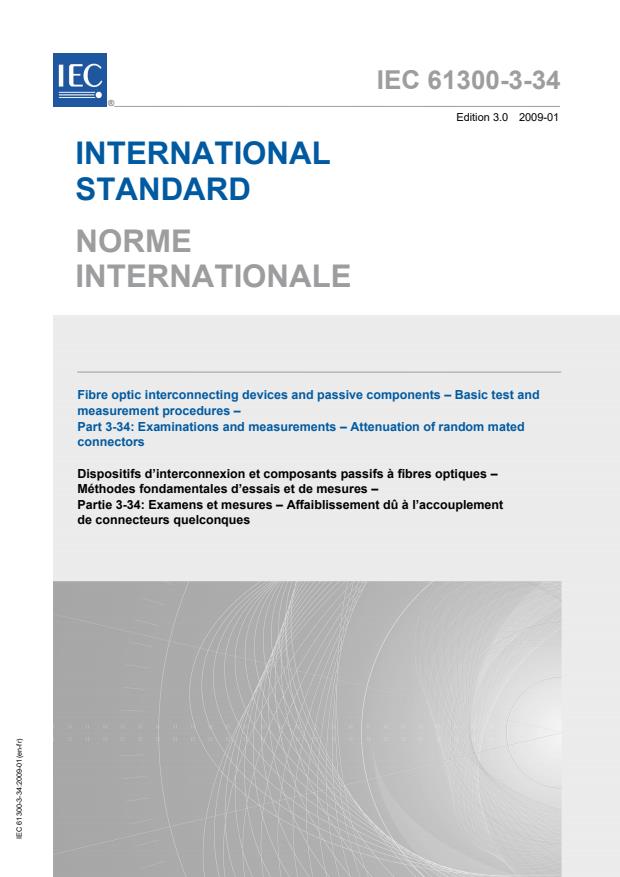

IEC 61300-3-34 ®
Edition 3.0 2009-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 3-34: Examinations and measurements – Attenuation of random mated
connectors
Dispositifs d’interconnexion et composants passifs à fibres optiques –
Méthodes fondamentales d’essais et de mesures –
Partie 3-34: Examens et mesures – Affaiblissement dû à l’accouplement
de connecteurs quelconques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-8783-5
– 2 – IEC 61300-3-34:2009 IEC 2009
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 General description . 5
3.1 Test methods . 5
3.2 Precautions . 6
4 Apparatus . 6
4.1 Source (S) . 6
4.2 Launch conditions (E) . 7
4.3 Detector (D) . 7
5 Procedure . 7
5.1 Method 1 . 7
5.2 Method 2 . 10
5.3 Analysis of results . 13
6 Details to be specified . 13
Figure 1 – “Reference” patchcord measurement – Method 1 . 8
Figure 2 – Test patchcord measurement – Method 1 . 8
Figure 3 – Test matrix for measurement method 1 . 10
Figure 4 – “Reference” patchcord measurement – Method 2 . 11
Figure 5 – Test patchcord measurement – Method 2 . 11
Figure 6 – Test matrix for measurement method 2 . 12
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 3-34: Examinations and measurements –
Attenuation of random mated connectors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61300-3-34 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition published in 2001. It constitutes a
technical revision. Changes from the previous edition of the document are to reconsider
launch conditions for multimode fibres.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/2767/FDIS 86B/2800/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
– 4 – IEC 61300-3-34:2009 IEC 2009
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61300 series, published under the general title, Fibre optic
interconnecting devices and passive components – Basic test and measurement procedures
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 3-34: Examinations and measurements –
Attenuation of random mated connectors
1 Scope
This part of IEC 61300 describes the procedure required to measure the statistical distribution
and mean attenuation for random mated optical connectors.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement p
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
