Semiconductor devices - Non-destructive recognition criteria of defects in silicon carbide homoepitaxial wafer for power devices - Part 1: Classification of defects

IEC 63068-1:2019(E) gives a classification of defects in as-grown 4H-SiC (Silicon Carbide) epitaxial layers. The defects are classified on the basis of their crystallographic structures and recognized by non-destructive detection methods including bright-field OM (optical microscopy), PL (photoluminescence), and XRT (X-ray topography) images.

General Information

Status
Published
Publication Date
29-Jan-2019
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
30-Jan-2019
Ref Project

Buy Standard

Standard
IEC 63068-1:2019 - Semiconductor devices - Non-destructive recognition criteria of defects in silicon carbide homoepitaxial wafer for power devices - Part 1: Classification of defects
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 63068-1
Edition 1.0 2019-01
INTERNATIONAL
STANDARD
Semiconductor devices – Non-destructive recognition criteria of defects in
silicon carbide homoepitaxial wafer for power devices –
Part 1: Classification of defects
IEC 63068-1:2019-01(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 63068-1
Edition 1.0 2019-01
INTERNATIONAL
STANDARD
Semiconductor devices – Non-destructive recognition criteria of defects in
silicon carbide homoepitaxial wafer for power devices –
Part 1: Classification of defects
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.080.99 ISBN 978-2-8322-6479-9

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

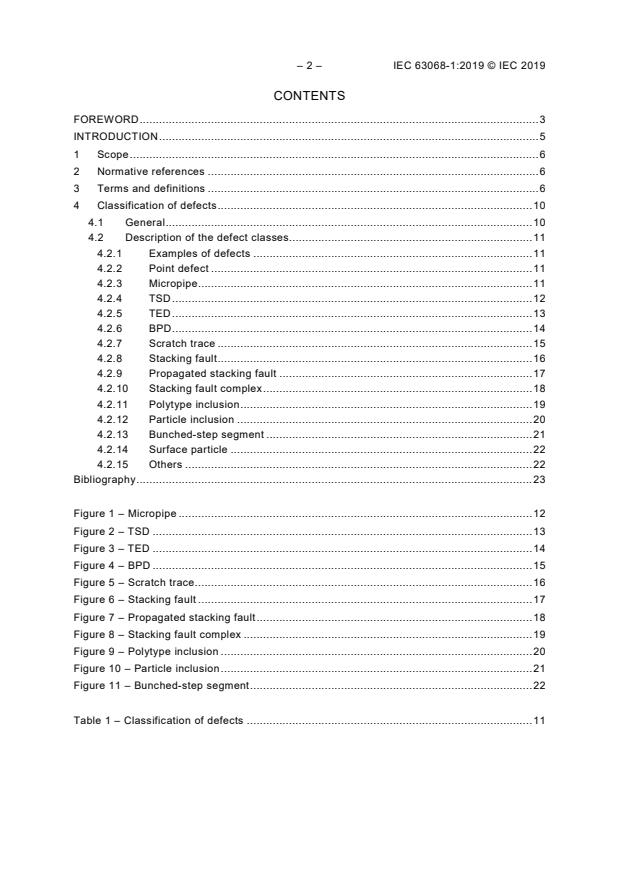

– 2 – IEC 63068-1:2019 © IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Classification of defects ................................................................................................. 10

4.1 General ................................................................................................................. 10

4.2 Description of the defect classes........................................................................... 11

4.2.1 Examples of defects ...................................................................................... 11

4.2.2 Point defect ................................................................................................... 11

4.2.3 Micropipe ....................................................................................................... 11

4.2.4 TSD ............................................................................................................... 12

4.2.5 TED ............................................................................................................... 13

4.2.6 BPD ............................................................................................................... 14

4.2.7 Scratch trace ................................................................................................. 15

4.2.8 Stacking fault ................................................................................................. 16

4.2.9 Propagated stacking fault .............................................................................. 17

4.2.10 Stacking fault complex ................................................................................... 18

4.2.11 Polytype inclusion .......................................................................................... 19

4.2.12 Particle inclusion ........................................................................................... 20

4.2.13 Bunched-step segment .................................................................................. 21

4.2.14 Surface particle ............................................................................................. 22

4.2.15 Others ........................................................................................................... 22

Bibliography .......................................................................................................................... 23

Figure 1 – Micropipe ............................................................................................................. 12

Figure 2 – TSD ..................................................................................................................... 13

Figure 3 – TED ..................................................................................................................... 14

Figure 4 – BPD ..................................................................................................................... 15

Figure 5 – Scratch trace ........................................................................................................ 16

Figure 6 – Stacking fault ....................................................................................................... 17

Figure 7 – Propagated stacking fault ..................................................................................... 18

Figure 8 – Stacking fault complex ......................................................................................... 19

Figure 9 – Polytype inclusion ................................................................................................ 20

Figure 10 – Particle inclusion ................................................................................................ 21

Figure 11 – Bunched-step segment ....................................................................................... 22

Table 1 – Classification of defects ........................................................................................ 11

---------------------- Page: 4 ----------------------
IEC 63068-1:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
NON-DESTRUCTIVE RECOGNITION CRITERIA OF DEFECTS IN SILICON
CARBIDE HOMOEPITAXIAL WAFER FOR POWER DEVICES –
Part 1: Classification of defects
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 63068-1 has been prepared by IEC technical committee 47:

Semiconductor devices.
The text of this International Standard is based on the following documents:
CDV Report on voting
47/2474/CDV 47/2521A/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 63068-1:2019 © IEC 2019

A list of all parts in the IEC 63068 series, published under the general title Semiconductor

devices – Non-destructive recognition criteria of defects in silicon carbide homoepitaxial wafer

for power devices, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
---------------------- Page: 6 ----------------------
IEC 63068-1:2019 © IEC 2019 – 5 –
INTRODUCTION

Silicon carbide (SiC) is widely used as a semiconductor material for next-generation power

semiconductor devices. SiC, as compared with silicon (Si), has superior physical properties

such as a higher breakdown electric field, higher thermal conductivity, lower thermal

generation rate, higher saturated electron drift velocity, and lower intrinsic carrier

concentration. Their attributes realize SiC-based power semiconductor devices with faster

switching speeds, lower losses, higher blocking voltages, and higher temperature operation

relative to standard Si-based power semiconductor devices.

SiC-based power semiconductor devices are not fully realized due to high costs, low yield,

and perceived reliability concerns. One of the serious issues lies in the defects existing in SiC

homoepitaxial wafers. Although an effort of decreasing defects in the SiC homoepitaxial layer

is actively implemented, there are a number of defects (approximately 1 000 defects/cm ) in

commercially available SiC homoepitaxial wafers. Therefore, it is indispensable to establish

an international standard regarding the quality assessment of SiC homoepitaxial wafers.

The IEC 63068 series of standards is planned to comprise Part 1, Part 2, and Part 3, as

detailed below. The outline of this Part 1 is to list, illustrate and provide reference for various

characteristic features and defects that are observed on SiC homoepitaxial wafers of

crystallographic polytype 4H used in high-power semiconductor device manufacturing.

Part 1: Classification of defects
Part 2: Test method for defects using optical inspection
Part 3: Test method for defects using photoluminescence
---------------------- Page: 7 ----------------------
– 6 – IEC 63068-1:2019 © IEC 2019
SEMICONDUCTOR DEVICES –
NON-DESTRUCTIVE RECOGNITION CRITERIA OF DEFECTS IN SILICON
CARBIDE HOMOEPITAXIAL WAFER FOR POWER DEVICES –
Part 1: Classification of defects
1 Scope

This part of IEC 63068 gives a classification of defects in as-grown 4H-SiC (Silicon Carbide)

epitaxial layers. The defects are classified on the basis of their crystallographic structures and

recognized by non-destructive detection methods including bright-field OM (optical

microscopy), PL (photoluminescence), and XRT (X-ray topography) images.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
silicon carbide
SiC

semiconductor crystal composed of silicon and carbon, which exhibits a large number of

polytypes such as 3C, 4H, and 6H

Note 1 to entry: A symbol like 4H gives the number of periodic stacking layers (2, 3, 4,…) and the crystal

symmetry (H = hexagonal, C = cubic) of each polytype.
3.2
3C-SiC

SiC crystal with zinc blende structure, in which three Si-C layers are periodically arranged

along the <111> direction
3.3
4H-SiC

SiC crystal showing a hexagonal symmetry, in which four Si-C layers are periodically

arranged along the crystallographic c-axis

Note 1 to entry: The crystal structure of 4H-SiC is similar to wurtzite with a unit cell having four periodical

occupied sites along the <0001> direction.
---------------------- Page: 8 ----------------------
IEC 63068-1:2019 © IEC 2019 – 7 –
3.4
6H-SiC

SiC crystal showing a hexagonal symmetry, in which six Si-C layers are periodically arranged

along the crystallographic c-axis

Note 1 to entry: The crystal structure of 6H-SiC is similar to wurtzite with a unit cell having six periodical occupied

sites along the <0001> direction.
3.5
crystal plane

plane, usually denoted as (hkl), representing the intersection of a plane with the a-, b- and c-

axes of the unit cell at distances of 1/h, 1/k and 1/l, where h, k and l are integers

Note 1 to entry: The integers h, k and l are usually referred to as the Miller indices of a crystal plane.

Note 2 to entry: In 4H-SiC showing a hexagonal symmetry, four-digit indices are frequently used for planes (hkil).

[SOURCE: ISO 24173:2009, 3.2, modified – Note 2 to entry has been entirely redrafted.]

3.6
crystal direction

direction, denoted as [uvw], representing a vector direction in multiples of the basis vectors

describing the a-, b- and c-axes

Note 1 to entry: In 4H-SiC showing a hexagonal symmetry, four-digit indices [uvtw] are frequently used for crystal

directions.

Note 2 to entry: Families of symmetrically equivalent directions are written by and for cubic and

hexagonal symmetries, respectively.

[SOURCE: ISO 24173:2009, 3.3, modified – Note 1 to entry and Note 2 to entry have been

added.]
3.7
polytypism

phenomenon where a material occurs in several structural modifications, each of which can

be regarded as built up by stacking layers of identical structure and chemical composition

3.8
polytype
one of the modifications of monocrystalline material which shows polytypism
3.9
substrate
material on which homoepitaxial layer is deposited
3.10
homoepitaxial layer

thin monocrystalline film epitaxially-formed on a substrate of the same material and

crystallographic orientation, inheriting the atomic order of the substrate
3.11
crystal
mon
...
