IEC 60745-2-12:2003+AMD1:2008 CSV

Hand-held motor-operated electric tools - Safety - Part 2-12: Particular requirements for concrete vibrators

Deals with the safety of hand-held motor-operated or magnetically driven tools, specific requirements for concrete vibrators. The rated voltage being not more than 250 V for single-phase a.c. or d.c., and 440 V for three-phase a.c. tools. This consolidated version consists of the second edition (2003) and its amendment 1 (2008). Therefore, no need to order amendment in addition to this publication.

Outils électroportatifs à moteur - Sécurité - Partie 2-12: Règles particulières pour les vibreurs à béton

s'applique aux outils portatifs à moteur électrique ou à entraînement magnétique, règles particulières pour les vibreurs à béton. La tension assignée des outils n'étant pas supérieure à 250 V pour les outils à courant monophasé alternatif ou continu et à 440 V pour les outils à courant alternatif triphasé.  Cette version consolidée comprend la deuxième édition (2003) et son amendement 1 (2008). Il n'est donc pas nécessaire de commander l'amendement avec cette publication.

General Information

• Status: Published
• Publication Date: 16-Jul-2008
• ICS: 19.040 - Environmental testing
• ICS: 25.140.20 - Electric tools
• Technical Committee: TC 116 - Safety of motor-operated electric tools
• Current Stage: PPUB - Publication issued
• Start Date: 17-Jul-2008
• Completion Date: 17-Jul-2008

Standards Content (Sample)

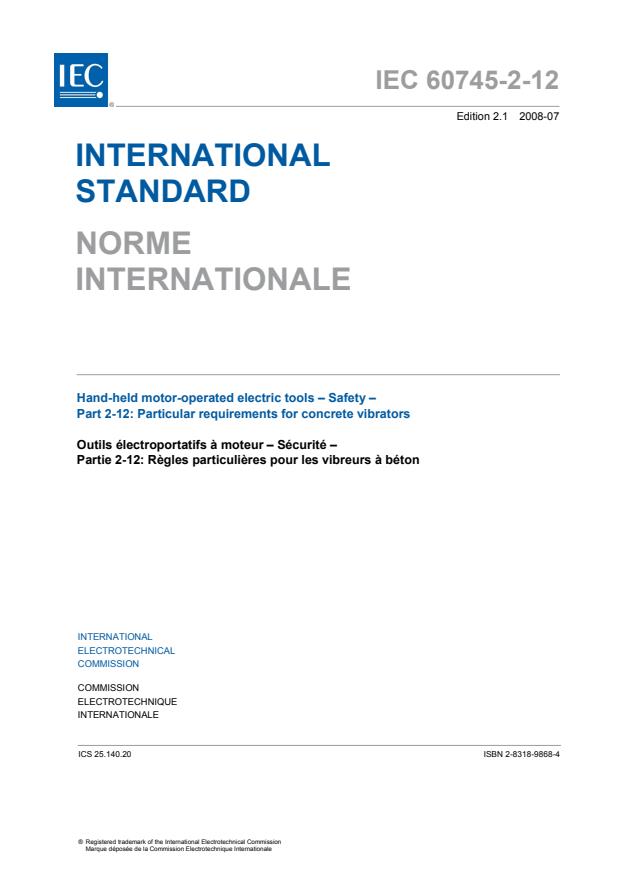

IEC 60745-2-12
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-12: Particular requirements for concrete vibrators

Outils électroportatifs à moteur – Sécurité –
Partie 2-12: Règles particulières pour les vibreurs à béton

IEC 60745-2-12:2003+A1:2008
