IEC 60738-1-1:2008

Thermistors - Directly heated positive step-function temperature coefficient - Part 1-1: Blank detail specification - Current limiting application - Assessment level EZ

IEC 60738-1-1:2008 is a supplementary document to the generic specification and contains requirements for style and layout and minimum content of detail specifications. Detail specifications not complying with these requirements shall not be considered as being in accordance with IEC specifications nor shall they so be described. This edition contains changes with respect to the referenced subclauses of the revised generic specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1:2009.

Thermistances - Coefficient de température positif de fonction échelon à chauffage direct - Partie 1-1: Spécification particulière cadre - Application de la limitation de courant - Niveau d'assurance EZ

La CEI 60738-1-1:2008 est un document annexe à la spécification générique qui contient des exigences pour le modèle, la disposition et le contenu minimal des spécifications particulières. Les spécifications particulières ne répondant pas à ces règles ne doivent pas être considérées conformes aux spécifications de la CEI et ne doivent pas être déclarées comme telles. Cette édition contient des modifications des paragraphes référencés de la spécification générique révisée CEI 60738-1.
Cette publication doit être lue conjointement avec la CEI 60738-1:2009.

General Information

• Status: Published
• Publication Date: 12-Feb-2008
• ICS: 31.040.30 - Thermistors
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Drafting Committee: WG 43 - TC 40/WG 43
• Current Stage: PPUB - Publication issued
• Start Date: 13-Feb-2008
• Completion Date: 29-Feb-2008

Relations

• Revises: IEC 60738-1-1:1998 - Thermistors - Directly heated positive step-function temperature coefficient - Part 1-1: Blank detail specification - Current limiting application - Assessment level EZ
• Effective Date: 05-Sep-2023

Overview

IEC 60738-1-1:2008 is the IEC blank detail specification for directly heated positive step‑function PTC thermistors intended for current‑limiting applications (assessment level EZ). It is a supplementary document to the IEC 60738‑1 generic specification and defines the required style, layout and minimum content for any detail specification. Detail specifications that do not follow IEC 60738‑1‑1 cannot be described as IEC‑compliant. This publication is to be read in conjunction with IEC 60738‑1 (generic specification).

Key topics and requirements

• Purpose and scope: Provides a template and mandatory content to ensure uniformity and traceability of detail specifications for PTC current‑limiting thermistors.
• Identification & drawings: Requires clear identification, short description, outline drawing (main dimensions), construction notes and assessment level (EZ).
• Mechanical & mounting data: Method(s) of mounting, dimensions (gauging), coating, and termination details (including solderability suitability).
• Electrical ratings & characteristics: Specifies items that must be given in the detail specification, such as upper/lower category temperatures (UCT/LCT), operating temperature range, maximum voltage, zero‑power resistance, tripping current, maximum non‑tripping current, residual and overload currents, and switching temperature.
• Marking, packaging & ordering: Mandatory marking requirements, packaging details and minimum ordering information (style, maximum continuous AC voltage, detail spec reference).
• Inspection & testing: Defines qualification and quality conformance procedures, including lot‑by‑lot (100% and sampled) and periodic test schedules. References sampling plans (IEC 60410), environmental and soldering tests (e.g., IEC 60068‑2‑58) and requirements for destructive vs non‑destructive testing.
• Documentation rules: Minimum content for test schedules, acceptance criteria (p, n, c values), test conditions and how to reference the generic specification.

Applications and users

Who uses IEC 60738‑1‑1:

• Manufacturers and component spec writers drafting IEC‑compliant detail specifications for PTC current‑limiting thermistors.
• Quality, test and inspection teams implementing specified lot and periodic inspection regimes.
• Purchasing and compliance personnel verifying vendor detail specifications are IEC‑compliant.
• Design engineers and system integrators specifying inrush/current‑limit components for power supplies, motor start protection, surge limiting or overcurrent protection.

Related standards

• IEC 60738‑1 (generic specification for directly heated PTC thermistors) - essential companion document.
• IEC 60068‑2‑58 (solderability/environmental tests for SMD) and IEC 60410 (sampling plans) - normative references used in test schedules.

Keywords: IEC 60738‑1‑1, thermistors, PTC thermistor, positive step‑function, current limiting, detail specification, assessment level EZ, quality conformance, sampling plan, solderability.

Standards Content (Sample)

IEC 60738-1-1
Edition 3.0 2008-02
INTERNATIONAL
STANDARD
QC 440001
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-1: Blank detail specification – Current limiting application – Assessment
level EZ
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC 60738-1-1
Edition 3.0 2008-02
INTERNATIONAL
STANDARD
QC 440001
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-1: Blank detail specification – Current limiting application – Assessment
level EZ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
N
ICS 31.040.30 ISBN 2-8318-9573-1

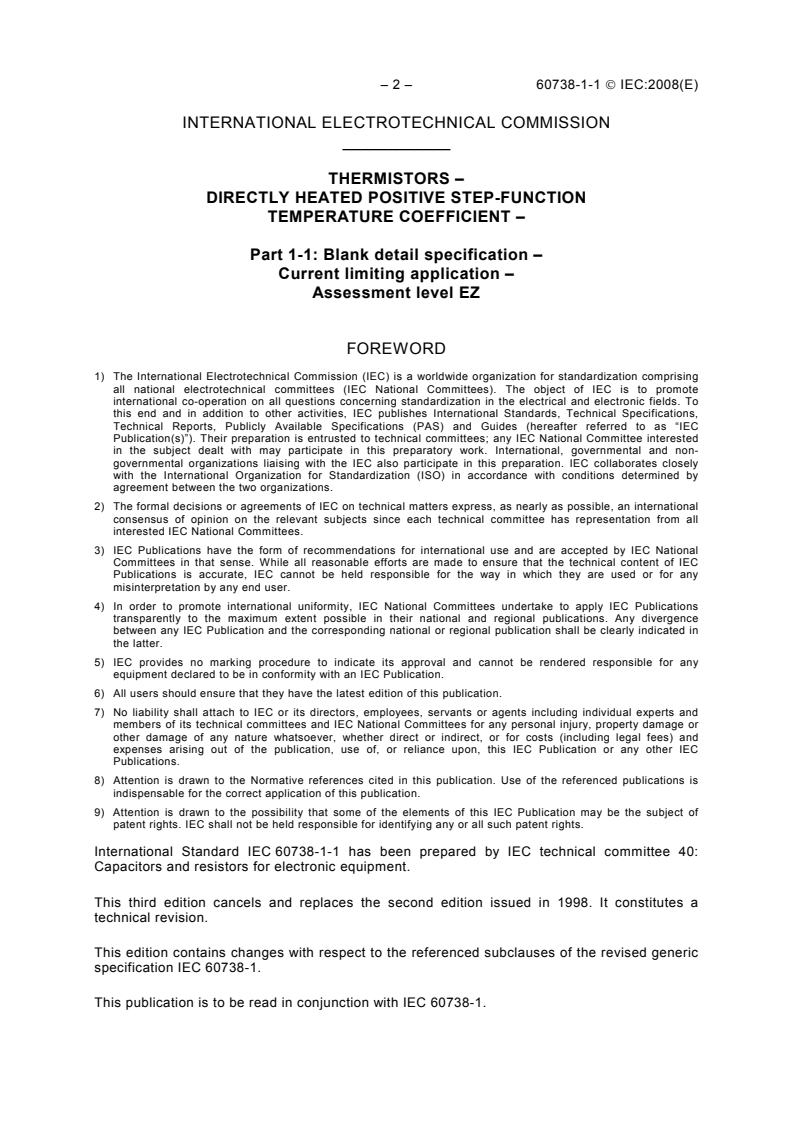

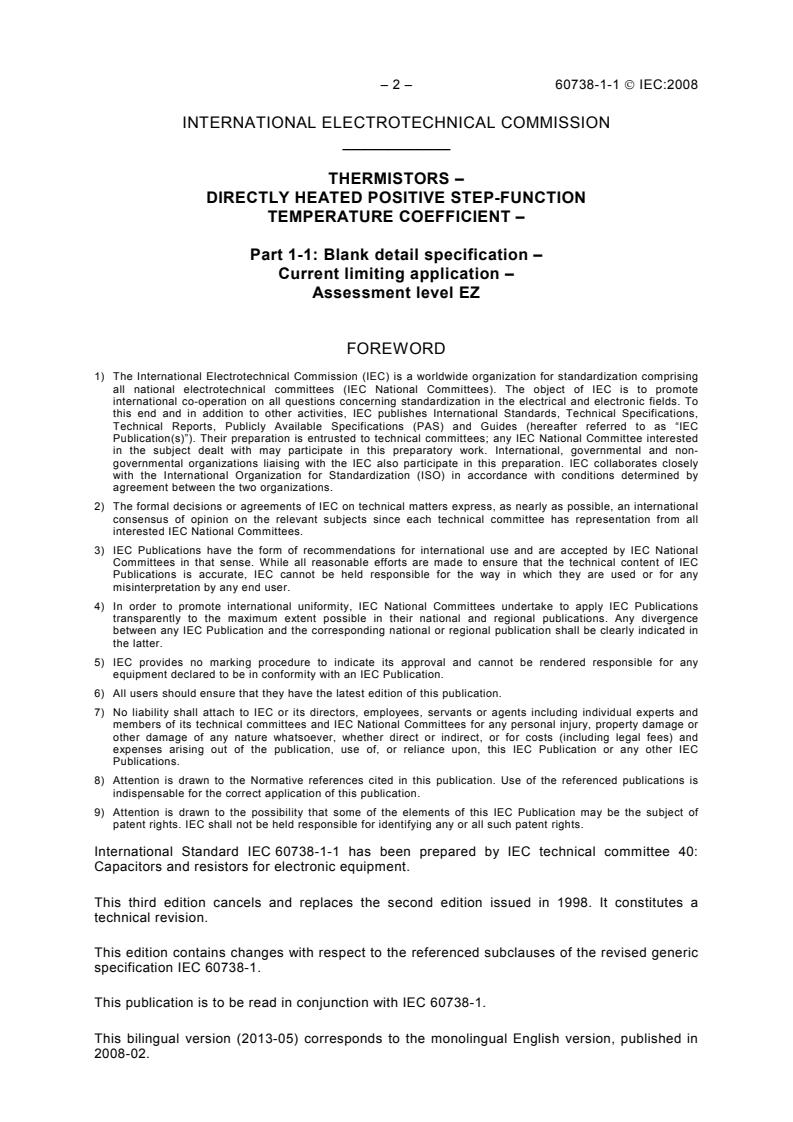

– 2 – 60738-1-1 © IEC:2008(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-1: Blank detail specification –
Current limiting application –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60738-1-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This third edition cancels and replaces the second edition issued in 1998. It constitutes a
technical revision.
This edition contains changes with respect to the referenced subclauses of the revised generic
specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1.

60738-1-1 © IEC:2008(E) – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
40/1874/FDIS 40/1891/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The list of all parts of the IEC 60738 series, under the (new) general title Thermistors – Directly
heated positive step-function temperature coefficient, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 4 – 60738-1-1 © IEC:2008(E)
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the generic specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements shall not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of IEC 60738-1:2006,1.4 shall be taken
into account.
The numbers between brackets on the first page correspond to the following information which
shall be inserted in the position indicated.
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the thermistor
[5] A short description of the type of thermistor.
[6] Information on typical construction (if applicable).
NOTE When the thermistor is not designed for use on printed boards, this should clearly be stated in the detail
specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the various
thermistor types.
60738-1-1 © IEC:2008(E) – 5 –
[1] IEC 60738-1-1-XXX [2]
QC 440001XXXXXX
ELECTRONIC COMPONENTS OF ASSESSED IEC 60738-1-1 [4]
QUALITY IN ACCORDANCE WITH: QC 440001

[3] DIRECTLY HEATED POSITIVE
STEP-FUNCTION TEMPERATURE
COEFFICIENT THERMISTORS [5]
Outline drawing: [see 1.2] FOR CURRENT LIMITING
[. angle projection] APPLICATION

MODIFIED FERRO-ELECTRIC [6]
[7] CERAMIC MATERIAL
[Other shapes are permitted within the dimensions given]
Assessment level: EZ [8]
Information on the availability of components
qualified to this detail specification is given in
the Register of Approvals. [9]

– 6 – 60738-1-1 © IEC:2008(E)
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-1: Blank detail specification –
Current limiting application –
Assessment level EZ
1 General data
1.1 Method(s) of mounting (to be inserted)
(See IEC 60738-1:2006, 7.30).
1.2 Dimensions
(All dimensions are in millimetres or inches and millimetres; it shall be stated which dimensions
are suitable for gauging).
Dimensioned drawing(s) shall be given in the detail specification. If necessary, the dimensions
may be listed in tabular form with reference to styles or codes.
1.3 Coating
The detail specification shall state
a) whether the thermistor is insulated or non-insulated,
b) the material,
c) the colour, if applicable.
1.4 Terminations
The detail specification shall state whether the terminations are suitable for soldering. If they
are not, suitable methods of connection shall be stated for example: welding, clamping or
crimping.
1.5 Flammability
The detail specification shall state whether the thermistor is actively or passively flammable if
applicable. The test method shall be given in the test schedule.
1.6 Resistance to solvents
The detail specification shall state whether the coating and the marking of the thermistor are
solvent resistant if applicable. The test methods shall be given in the test schedule.
1.7 Packaging
The detail specification shall give the following information (if required):
a) whether bulk packed or taped and if taped, drawing or references;
b) the dimensions of the immediate packaging and the number of thermistors packed;
c) the dimensions of the outer package and the number of immediate packages;

60738-1-1 © IEC:2008(E) – 7 –
d) methods of disposal of the packaging material.
1.8 Electrical data/Ratings and characteristics
The detail specification shall give units and tolerances or limiting values for the following para-
meters. If necessary, electrical data may be listed in tabular form, with reference to styles and
codes.
Upper/Lower category temperatures (UCT/LCT);
Operating temperature range at maximum voltage;
Maximum voltage (U );
.
max
Zero-power resistance (R );
T
Isolation voltage (insulated thermistors only);
Insulation resistance (insulated thermistors only);
Tripping current (I );
t
Maximum non-tripping current (I );
max. nt
Residual current at U (I );
.
max res
Maximum overload current (I );
mo
) for information only.
Switching temperature (T
b
1.
...

IEC 60738-1-1 ®
Edition 3.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Thermistors – Directly heated positive step-function temperature coefficient –
Part 1-1: Blank detail specification – Current limiting application – Assessment
level EZ
Thermistances – Coefficient de température positif de fonction échelon à
chauffage direct –
Partie 1-1: Spécification particulière cadre – Application de la limitation de
courant – Niveau d’assurance EZ

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 60738-1-1 ®
Edition 3.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Thermistors – Directly heated positive step-function temperature coefficient –

Part 1-1: Blank detail specification – Current limiting application – Assessment

level EZ
Thermistances – Coefficient de température positif de fonction échelon à

chauffage direct –
Partie 1-1: Spécification particulière cadre – Application de la limitation de

courant – Niveau d’assurance EZ

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 31.040.30 ISBN 978-2-83220-771-0

– 2 – 60738-1-1  IEC:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-1: Blank detail specification –
Current limiting application –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60738-1-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This third edition cancels and replaces the second edition issued in 1998. It constitutes a
technical revision.
This edition contains changes with respect to the referenced subclauses of the revised generic
specification IEC 60738-1.
This publication is to be read in conjunction with IEC 60738-1.
This bilingual version (2013-05) corresponds to the monolingual English version, published in
2008-02.
60738-1-1  IEC:2008 – 3 –
The text of this standard is based on the following documents:
FDIS Report on voting
40/1874/FDIS 40/1891/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
The list of all parts of the IEC 60738 series, under the (new) general title Thermistors – Directly
heated positive step-function temperature coefficient, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – 60738-1-1  IEC:2008
INTRODUCTION
Blank detail specification
A blank detail specification is a supplementary document to the generic specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements shall not be considered as being in
accordance with IEC specifications nor shall they so be described.
In the preparation of detail specifications the content of IEC 60738-1:2006,1.4 shall be taken
into account.
The numbers between brackets on the first page correspond to the following information which
shall be inserted in the position indicated.
Identification of the detail specification
[1] The "International Electrotechnical Commission" or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, date of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the thermistor
[5] A short description of the type of thermistor.
[6] Information on typical construction (if applicable).
NOTE When the thermistor is not designed for use on printed boards, this should clearly be stated in the detail
specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
[9] Reference data on the most important properties, to allow comparison between the various
thermistor types.
60738-1-1  IEC:2008 – 5 –
[1] IEC 60738-1-1-XXX [2]
QC 440001XXXXXX
ELECTRONIC COMPONENTS OF ASSESSED IEC 60738-1-1 [4]
QUALITY IN ACCORDANCE WITH: QC 440001

[3] DIRECTLY HEATED POSITIVE
STEP-FUNCTION TEMPERATURE
COEFFICIENT THERMISTORS [5]
Outline drawing: [see 1.2] FOR CURRENT LIMITING
[. angle projection] APPLICATION

MODIFIED FERRO-ELECTRIC [6]
[7] CERAMIC MATERIAL
[Other shapes are permitted within the dimensions given]
Assessment level: EZ [8]
Information on the availability of components
qualified to this detail specification is given in
the Register of Approvals. [9]

– 6 – 60738-1-1  IEC:2008
THERMISTORS –
DIRECTLY HEATED POSITIVE STEP-FUNCTION
TEMPERATURE COEFFICIENT –
Part 1-1: Blank detail specification –
Current limiting application –
Assessment level EZ
1 General data
1.1 Method(s) of mounting (to be inserted)
(See IEC 60738-1:2006, 7.30).
1.2 Dimensions
(All dimensions are in millimetres or inches and millimetres; it shall be stated which dimensions
are suitable for gauging).
Dimensioned drawing(s) shall be given in the detail specification. If necessary, the dimensions
may be listed in tabular form with reference to styles or codes.
1.3 Coating
The detail specification shall state
a) whether the thermistor is insulated or non-insulated,
b) the material,
c) the colour, if applicable.
1.4 Terminations
The detail specification shall state whether the terminations are suitable for soldering. If they
are not, suitable methods of connection shall be stated for example: welding, clamping or
crimping.
1.5 Flammability
The detail specification shall state whether the thermistor is actively or passively flammable if
applicable. The test method shall be given in the test schedule.
1.6 Resistance to solvents
The detail specification shall state whether the coating and the marking of the thermistor are
solvent resistant if applicable. The test methods shall be given in the test schedule.
1.7 Packaging
The detail specification shall give the following information (if required):
a) whether bulk packed or taped and if taped, drawing or references;
b) the dimensions of the immediate packaging and the number of thermistors packed;
c) the dimensions of the outer package and the number of immediate packages;

60738-1-1  IEC:2008 – 7 –
d) methods of disposal of the packaging material.
1.8 Electrical data/Ratings and characteristics
The detail specification shall give units and tolerances or limiting values for the following para-
meters. If necessary, electrical data may be listed in tabular form, with reference to styles and
codes.
Upper/Lower category temperatures (UCT/LCT);
Operating temperature range at maximum voltage;
Maximum voltage (U );
.
max
Zero-power resistance (R );
T
Isolation voltage (insulated thermistors only);
Insulation resistance (insulated thermistors only);
Tripping current (I );
t
Maximum non-tripping current (I );
max. nt
Residual current at U (I );
.
max res
Maximum overload current (I );
mo
Switching temperature (T ) for information only.
b
1.9 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60068-2-58, Environmental testing – Part 2-58: Tests – Test Td: Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60410:1973, Sampling plans and procedures for inspection by attributes
IEC 60738-1:2006, Thermistors – Directly heated positive step-function temperature
coefficient – Part 1: Generic specification
1.10 Marking
The marking of the thermistors and package containing the thermistors shall be in accordance
with the requirements of IEC 60738-1:2006, 5.2.
The details of the marking of the thermistors and package containing the thermistor shall be
given in full in the detail specification.
1.11 Ordering information
Orders for thermistors covered by this specification shall contain, in clear or in coded form, the
following minimum information:
a) style reference;
b) maximum continuous a.c. voltage;
c) number and issue reference of the detail specification.

– 8 – 60738-1-1  IEC:2008
1.12 Additional information (not for inspection purposes)
1.13 Additional or increased severities or requirements to those specified in the
generic sectional specification
NOTE Additions or increased requirements should be specified only when essential.
2 Inspection requirements
2.1 Procedures
2.1.1 For qualification approval, the procedures shall be in accordance with the generic
specification, IEC 60738-1:2006, 6.5.
2.1.2 For quality conformance inspection, the test schedules (tables 1 and 2) include sampling,
periodicity, severities and requirements. The formation of inspection lots is covered by the
generic specification IEC 60738-1:2006, 6.5.7.
The following list applies to the test schedules developed in tables 1 and 2:
1) Subclause numbers of tests and performance requirements refer to the generic specification,
IEC 60738-1:2006, and clause 1 of this document.
2) Number to be tested: sample size as directly allotted to the code letter for IL in Table IIA of
IEC 60410:1973 (single sampling plan for normal inspection).
3) In these tables: p is the periodicity (in months)
n is the sample size
c is the acceptance criterion (permitted number of non-conforming items)
D indicates a destructive test
ND indicates a non-destructive test
IL is the inspection level
4) The temperature at which the zero-power resistance shall be measured is the temperature
specified in the detail specification. This temperature shall be stated, where required, in the
test schedule.
5) The specimens used for this group may, at the discretion of the manufacturer, be used for
any subsequent group which is identified as being "destructive".
6) The soldering – solderability and soldering – resistance to heat tests shall only be applied
where the thermistor has terminations which are appropriate for soldering.
7) Where the terminations are stated to be suitable for printed wiring applications, the
appropriate test conditions in IEC 60068-2-58 shall apply.
8) The thermistors shall be mounted by their normal means.
9) The bump test and the shock test are alternatives. The test selected in the detail
specification shall be used.
10) The detail specification shall specify which of the endurance tests in groups C4, C5 and
D1 respectively are appropriate to the construction and application of the thermistor.
11) Any deviation from Annex B of the generic specification shall be given in the detail
specification.
12) 100 % testing shall be followed by re-inspection by sampling in order to monitor outgoing
–6
quality level by non-conforming items per million (× 10 ). The sampling level shall be
–6
established by the manufacturer. For the calculation of × 10 values any parametric failure
shall be counted as a non-conforming item. In case one or more non-conforming items
occur in a sample, this lot shall be rejected.

60738-1-1  IEC:2008 – 9 –
Table 1 – Test schedule for quality conformance inspection: lot-by-lot
Subclause number D Conditions of test IL n c Performance
and test or requirements
(see list item 1)
(see list item 1) ND (see list item 1)
(see list item 3)
GROUP A INSPECTION
(lot-by-lot)
ND 100 %
Subgroup A0
(see list item 12)
Temperature:. °C As in 7.5.3
7.5 Zero-power
resistance R Voltage:. V
T
Frequency:. Hz (if
applicable)
Subgroup A1 ND S-4 (See 0
list
7.4.1 Visual item As in 7.4.1
examination 2)
ND S-3 (See 0
Subgroup A2
list
7.4.2 Marking item As in 7.4.2
2)
As specified in the detail
7.4.3 Dimensions
(gauging) specification
GROUP B INSPECTION
(lot-by-lot)
Subgroup B1 ND S-2 (See 0
list
See detail specification item As in 7.25
7.25 Tripping current
2)
It:. mA
7.27 Residual current I ≤. mA
res
See detail specification
7.26 max. non-trip- As in 7.26
ping current (I . ):. mA
max nt
Subgroup B2 ND S-2 (See 0
list
(Insulated thermistors only)
7.8 Voltage proof item As in 7.8.4
Method:. 2)
Applied voltage:. V a.c.
7.16 Solderabilty (see list item 6 and 7)  The terminations shall be
Solder bath method uniformly tinned

– 10 – 60738-1-1  IEC:2008
Table 2 – Test schedule for quantity conformance inspection: periodic
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
GROUP C INSPECTION
(periodic)
Subgroup C1A D (see list item 6 and 7) 6 5 0

Part of sample
As in 7.17.4 and 7.17.5
Temperature:. °C
7.17 Resistance to
Visual examination ∆R/R: from. % to. %
soldering heat
Zero-power resistance
(Temperature:. °C)
(Voltage:. V)
7.15 Robustness of Tensile, bending and
terminations torsion tests as appropriate

to type of terminations,
if applicable
Visual examination As in 7.15.4 and 7.15.5
Zero-power resistance ∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
D 6 5
Subgroup C1B
Other part of sample
7.18 Rapid change of 2A= LCT
2 = LCT
temperature B
Visual examination As in 7.18
Zero-power resistance ∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
7.19 Vibration Frequency range:
... Hz to... Hz
Amplitude: 0,75 mm or
acceleration: 98 m/s
(whichever is the less
severe)
Sweep endurance
Total duration: 6 h
Number of sweep cycles:
see 5.1.3
Final measurements:
Visual examination As in 7.19
Zero-power resistance ∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
7.20  Acceleration:. m/s
Bump (or shock, Number of bumps:.
see list item 9) (see list item 8)
Visual examination As in 7.20
Zero-power resistance
∆R/R: from. % to.
(Temperature:. °C)
(Voltage:. V)
60738-1-1  IEC:2008 – 11 –
Table 2 (continued)
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
7.21 Shock (or bump, Pulse shape: halfsine
see list item 9) Acceleration:. m/s
(see list item 8)
Pulse duration:. ms
Visual examination
Zero-power resistance
As in 7.21
(Temperature:. °C)
(Voltage:. V) ∆R/R: from. % to. %
Subgroup C1 D 6 10
Combined sample of
specimens of sub-
groups C1A and C1B
(Low air pressure test not
7.22 Climatic
applicable)
sequence
- Dry heat
- Damp heat,
cyclic,
first cycle
- Cold
- Damp heat,
cyclic,
remaining
cycles
As in 7.22.7
Visual examination
- Final measure-
Zero-power resistance ∆R/R: from. % to. %
ments
(Temperature:. °C)
(Voltage:. V)
Insulation resistance
R ≥. MΩ
(Insulated thermistors only)
Voltage proof
As in 7.22.7
(Insulated thermistors only)
Subgroup C2 ND 6 10 0
7.14 Thermal time Method:. As specified in the detail
constant by T :. °C specification
cooling (if T :. °C
applicable)
Thermal time constant
Subgroup C3 ND (see list item 5) 6 10 0

7.6 Temperature
T :. °C α : (from. to.) %/K
p R
coefficient of
T :. °C
b
resistance (if
Voltage:. V
applicable)
7.4.4 Dimensions As specified in the detail

(detail) specification
7.10 Dissipation fac-
Dissipation factor As specified in the detail
tor at U (if specification
max.
specified) (see
list item 11)
– 12 – 60738-1-1  IEC:2008
Table 2 (continued)
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
Subgroup C4 D (see list item 10) 6 10 0

Duration: 1 000 h
7.24.2 Endurance at
upper category
Examination at 168 h and
temperature
500 h
Zero-power resistance
∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
Examination at 1 000 h
Visual examination As in 7.24.2
Zero-power resistance
∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
Residual current
I ≤. mA
res
Insulation resistance
R ≥. MΩ
(Insulated thermistors only)
Method:.
Subgroup C5 D (see list item 10) 6 10 0

(The detail specification
7.24.3 Endurance at
maximum opera- shall describe the method
ting temperature of mounting, see 7.24.3)
and maximum
Duration:. h
voltage
Examination at 168 h and
500 h (if applicable)
Zero-power resistance
∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
Examination at. h
Visual examination As in 7.24.3
Zero-power resistance
∆R/R: from. % to. %
(Temperature:. °C)
(Voltage:. V)
Residual current
I ≤. mA
res
Insulation resistance
R ≥. MΩ
(Insulated thermistors only)
Method:.
60738-1-1  IEC:2008 – 13 –
Table 2 (continued)
Subclause number D Conditions of test Sample size Performance
and test or and requirements
(see list item 1)
(see list item 1) ND acceptance (see list item 1)
criterion
(see list item 3)
p n c
GROUP D INSPECTION
D (see list item 10) 12 10 0
Subgroup D1
The detail specification
7.24.1 Endurance at
shall describe the method
room tempera-
of mounting (see 7.24.1)
ture (cycling)
Duration:. cycles
Applied voltage:. V
Applied current:. A
Where the detail specifica-
tion specifies that interme-
diate measurements shall
be made, they shall be
performed at the intervals
and to the limits specified
in the detail specification
Final measurements:
Visual examination As in 7.24.1
Zero-power resistance
∆R/R: from. % to. %
(Temper
...
