Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-4: Tests - Fibre or cable retention

IEC 61300-2-4:2019 is available as IEC 61300-2-4:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 61300-2-4:2019 is to ensure that the retention or attachment of the fibre, cord or cable in a fibre optic device or an enclosure This second edition cancels and replaces the first edition published in 1995. This edition includes the following significant technical changes with respect to the previous edition:
a) addition of Clause 2, Normative references;
b) clarification of the test procedures;
c) clarification of the severities;
d) modification of the whole document structure according to the latest ISO/IEC Directives.
Keywords: tensile load applied to the fibre, cord or cable

Dispositifs d'interconnexion et composants passifs fibroniques - Procédures fondamentales d'essais et de mesures - Partie 2-4: Essais - Rétention de la fibre ou du câble

IEC 61300-2-4:2019 est disponible sous forme de IEC 61300-2-4:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 61300-2-4:2019 est de vérifier la rétention ou la fixation de la fibre, du cordon ou du câble à un dispositif fibronique ou à une enveloppe. Cette deuxième édition annule et remplace la première édition parue en 1995. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) ajout de l'Article 2, Références normatives;
b) clarification des procédures d'essai;
c) clarification des sévérités;
d) modification de la structure globale du document, conformément aux dernières directives ISO/IEC.
Mots-clés: charge de traction appliquée à la fibre, au cordon ou au câble.

General Information

Status
Published
Publication Date
15-Jan-2019
Current Stage
PPUB - Publication issued
Completion Date
16-Jan-2019
Ref Project

Buy Standard

Standard
IEC 61300-2-4:2019 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 2-4: Tests - Fibre or cable retention
English and French language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 61300-2-4
Edition 2.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 2-4: Tests – Fibre or cable retention
Dispositifs d'interconnexion et composants passifs fibroniques – Procédures
fondamentales d'essais et de mesures –
Partie 2-4: Essais – Rétention de la fibre ou du câble
IEC 61300-2-4:2019-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

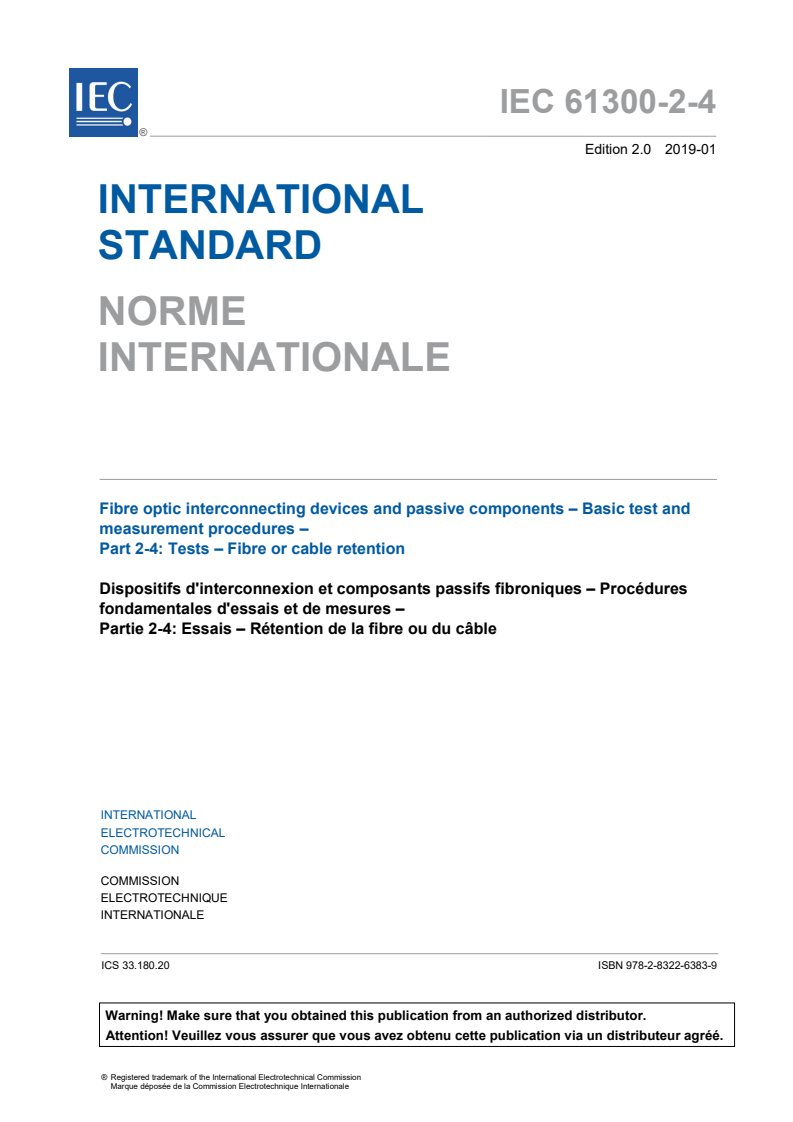

IEC 61300-2-4
Edition 2.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures –
Part 2-4: Tests – Fibre or cable retention
Dispositifs d'interconnexion et composants passifs fibroniques – Procédures
fondamentales d'essais et de mesures –
Partie 2-4: Essais – Rétention de la fibre ou du câble
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-6383-9

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 61300-2-4:2019 © IEC 2019

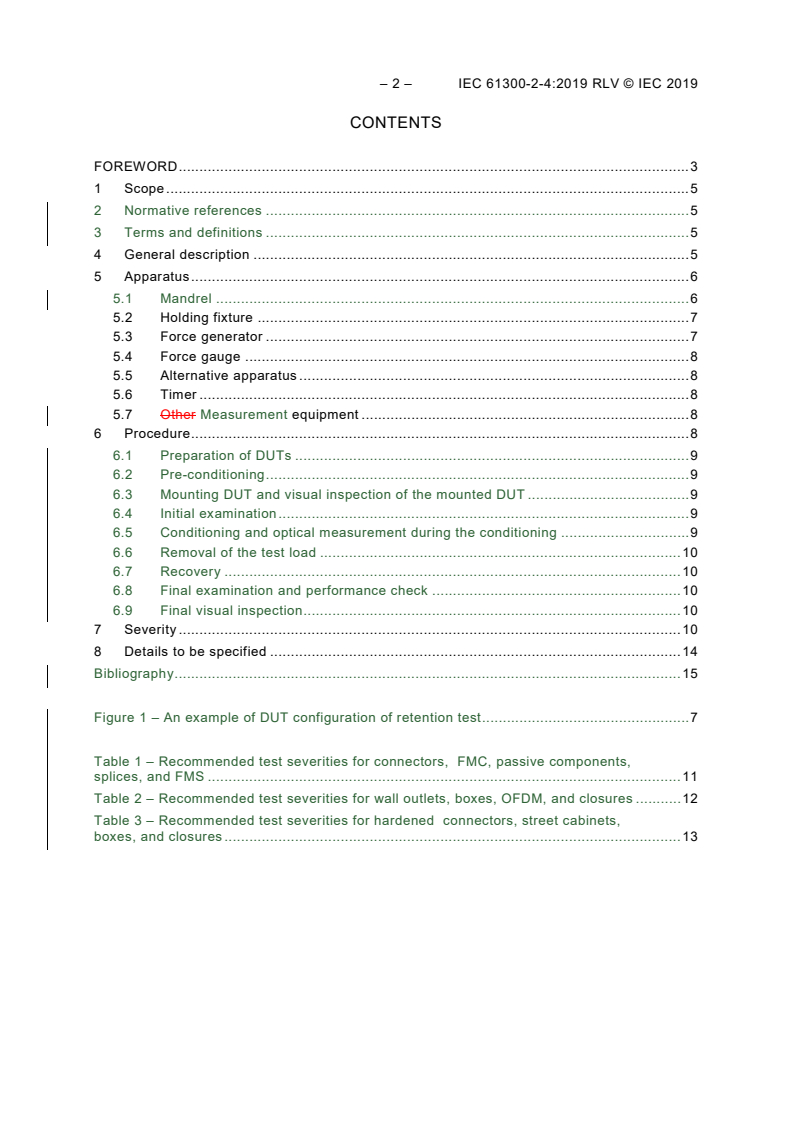

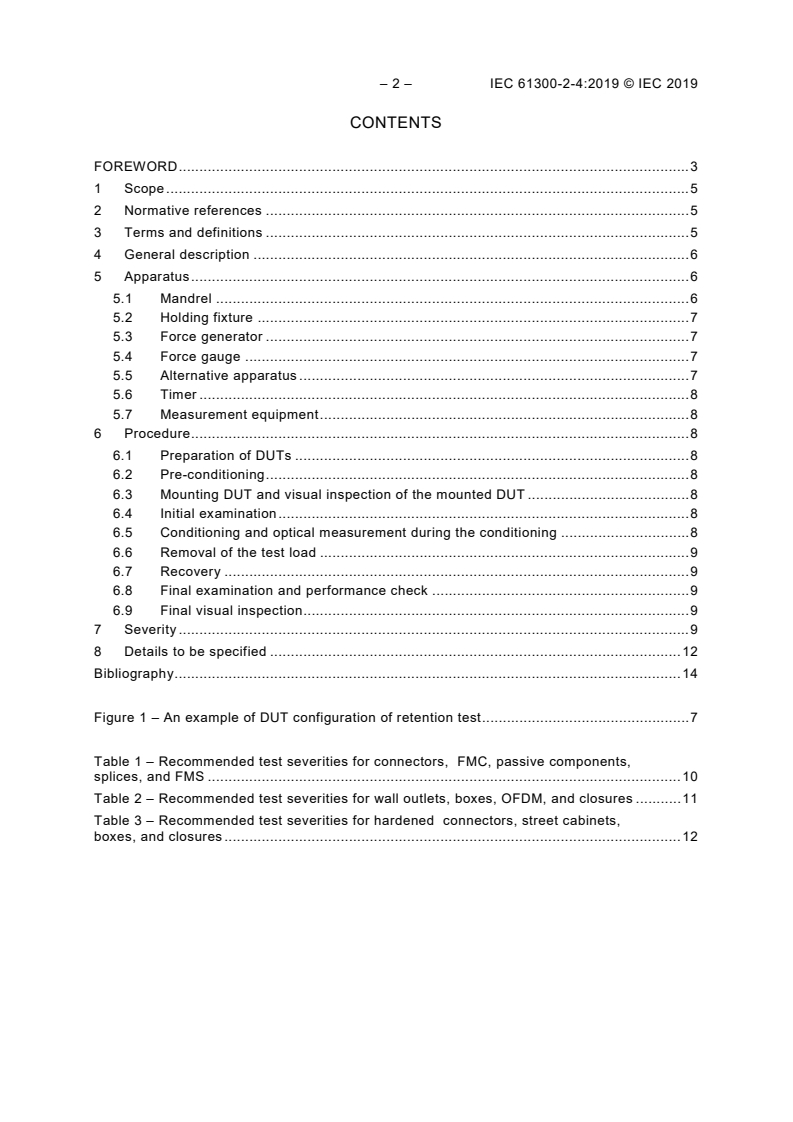

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 General description ......................................................................................................... 6

5 Apparatus ........................................................................................................................ 6

5.1 Mandrel .................................................................................................................. 6

5.2 Holding fixture ........................................................................................................ 7

5.3 Force generator ...................................................................................................... 7

5.4 Force gauge ........................................................................................................... 7

5.5 Alternative apparatus .............................................................................................. 7

5.6 Timer ...................................................................................................................... 8

5.7 Measurement equipment ......................................................................................... 8

6 Procedure ........................................................................................................................ 8

6.1 Preparation of DUTs ............................................................................................... 8

6.2 Pre-conditioning ...................................................................................................... 8

6.3 Mounting DUT and visual inspection of the mounted DUT ....................................... 8

6.4 Initial examination ................................................................................................... 8

6.5 Conditioning and optical measurement during the conditioning ............................... 8

6.6 Removal of the test load ......................................................................................... 9

6.7 Recovery ................................................................................................................ 9

6.8 Final examination and performance check .............................................................. 9

6.9 Final visual inspection ............................................................................................. 9

7 Severity ........................................................................................................................... 9

8 Details to be specified ................................................................................................... 12

Bibliography .......................................................................................................................... 14

Figure 1 – An example of DUT configuration of retention test .................................................. 7

Table 1 – Recommended test severities for connectors, FMC, passive components,

splices, and FMS .................................................................................................................. 10

Table 2 – Recommended test severities for wall outlets, boxes, OFDM, and closures ........... 11

Table 3 – Recommended test severities for hardened connectors, street cabinets,

boxes, and closures .............................................................................................................. 12

---------------------- Page: 4 ----------------------
IEC 61300-2-4:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 2-4: Tests – Fibre or cable retention
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61300-2-4 has been prepared by subcommittee 86B: Fibre optic

interconnecting devices and passive components, of IEC technical committee 86: Fibre optics.

This second edition cancels and replaces the first edition published in 1995. This edition

includes the following significant technical changes with respect to the previous edition:

a) addition of Clause 2, Normative references;
b) clarification of the test procedures;
c) clarification of the severities;

d) modification of the whole document structure according to the latest ISO/IEC Directives.

---------------------- Page: 5 ----------------------
– 4 – IEC 61300-2-4:2019 © IEC 2019
The text of this standard is based on the following documents:
FDIS Report on voting
86B/4147/FDIS 86B/4160/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 61300-2 series, published under the general title Fibre optic

interconnecting devices and passive components – Basic test and measurement procedures –

Tests, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 61300-2-4:2019 © IEC 2019 – 5 –
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 2-4: Tests – Fibre or cable retention
1 Scope

The purpose of this part of IEC 61300 is to ensure that the retention or attachment of the fibre,

cord or cable in a fibre optic device or an enclosure will withstand tensile loads likely to be

applied during normal service.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 61300-1, Fibre optic interconnecting devices and passives components − Basic test and

measurement procedures − Part 1: General and guidance

IEC 61300-2-38, Fibre optic interconnecting devices and passive components − Basic test

and measurement procedures − Part 2-38: Tests − Sealing for pressurized fibre optic closures

IEC 61300-3-1, Fibre optic interconnecting devices and passive components − Basic test and

measurement procedures − Part 3-1: Examinations and measurements − Visual examination

IEC 61300-3-3, Fibre optic interconnecting devices and passive components – Basic test and

measurement procedures – Part 3-3: Examinations and measurements – Active monitoring of

changes in attenuation and return loss

IEC 61300-3-4, Fibre optic interconnecting devices and passive components − Basic test and

measurement procedures − Part 3-4: Examinations and measurements − Attenuation

IEC 61300-3-6, Fibre optic interconnecting devices and passive components – Basic test and

measurement procedures – Part 3-6: Examinations and measurements – Return loss

IEC 61300-3-28, Fibre optic interconnecting devices and passive components – Basic test

and measurement procedures – Part 3-28: Examinations and measurements – Transient loss

3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 7 ----------------------
– 6 – IEC 61300-2-4:2019 © IEC 2019
4 General description

The device under test (DUT) is rigidly clamped to a holding fixture, which is shown in Figure 1,

and a tensile load is applied to the fibre, cord or cable. Potential failure modes for this test

include, but are not limited to:
a) cable sheath damage;
b) strength member damage;
c) fibre breakage or damage;
d) cable clamp failure;
e) cable pull-out;
f) loss of optical continuity or loss of sealing of enclosures;
g) change in optical characteristics, such as attenuation or return loss;

h) breaking, excessive movement or damage to the cable sheath, seals, cable clamps.

5 Apparatus
5.1 Mandrel

The diameter D of the mandrel is equal to the greater of 60 mm or 25 times the diameter d of

the fibre, cord or cable. Use an adequate number of turns to prevent slippage. For optical

components, the distance A between the rearmost portion of the cable fixing component of the

DUT and the mandrel tangent point shall be 200 mm ± 50 mm. For closures, the distance A

shall be the greater of 50 times the diameter d of the fibre, cord or cable or 250 mm.

---------------------- Page: 8 ----------------------
IEC 61300-2-4:2019 © IEC 2019 – 7 –
Key
D ≥ 25 d or 60 mm (min.)
Components:
A = 200 mm ± 50 mm
Closures:
A ≥ 50 d or 250 mm (min.)
Figure 1 – An example of DUT configuration of retention test
5.2 Holding fixture

The holding fixture holds the DUT and its mandrel in positions which are shown in Figure 1 for

the duration of the test. The holding method used shall not distort the DUT. Mount the DUT in

a fixed position. The holding fixture should allow the DUT to be connected to an optical

source and detector in order to monitor changes in attenuation if required by the relevant

specification.
5.3 Force generator

The force generator shall smoothly apply the specified force at the specified rate to the DUT.

5.4 Force gauge

The force gauge shall register the amount of force being exerted between the DUT and the

fibre, cord or cable. This equipment may include a device to record the rate of force

application or the total time the force is applied or both.
5.5 Alternative apparatus

Other apparatus may be used in lieu of a tensile test machine and a force indicator. For

example, the required force may be achieved by applying controlled increments of mass to

the mandrel.
---------------------- Page: 9 ----------------------
– 8 – IEC 61300-2-4:2019 © IEC 2019
5.6 Timer
A device to measure the total time while the force is applied.
5.7 Measurement equipment

Optical, sealing and other examination and measuring equipment shall be available as

required by IEC 61300-2-38, IEC 61300-3-1, IEC 61300-3-3, IEC 61300-3-4, IEC 61300-3-6 or

IEC 61300-3-28 as appropriate. Refer to the required procedure for details.
6 Procedure
6.1 Preparation of DUTs

Prepare the DUTs in accordance with the manufacturer’s instructions or as specified in the

relevant specification. DUTs shall be terminated with a sufficient length of fibre cable to

facilitate interfacing with the optical source and detector.
6.2 Pre-conditioning

Pre-condition each DUT for 2 h for connectors, splices, passive components and fibre

management systems, or for 4 h for closures at the standard atmospheric condition defined in

IEC 61300-1.
6.3 Mounting DUT and visual inspection of the mounted DUT

Securely mount the DUT and its mandrel on the holding fixtures and place in the test

apparatus.

Visually examine each DUT in accordance with IEC 61300-3-1 to ensure that the DUT has not

been damaged by inserting it into the test equipment.
6.4 Initial examination
Visually examine each DUT in accordance with IEC 61300-3-1. Complete the initial

examinations and measurements on the DUT as required by the relevant specification.

For the sealing performance of category S closures, the closure shall be pressurized at the

test temperature. The pressure will be measured at the test temperature in accordance with

test method B of IEC 61300-2-38.

For the optical evaluation, the variation of the attenuation shall be measured in accordance

with IEC 61300-3-3 or IEC 61300-3-28. If required, the attenuation will be measured in

accordance with IEC 61300-3-4.
6.5 Conditioning and optical measurement during the conditioning

Activate the test apparatus so that an axial force is gradually exerted between the DUT and

the mandrel. Apply the load smoothly so as to eliminate any impulse or impact loading effect.

If automatic equipment is used, it is recommended that the load change of the DUT be 5 N/s

for reinforced cable and 0,5 N/s for secondary and primary coated fibre, unless otherwise

specified in the relevant specification. Continue loading until the tensile load specified in the

relevant specification has been reached.

Maintain the specified load for the specified time period required by the relevant performance

specification.
---------------------- Page: 10 ----------------------
IEC 61300-2-4:2019 © IEC 2019 – 9 –

While the DUT is under load, make observations and perform optical measurements when

required by the relevant performance specification.

If required by the relevant specification, measure the change of attenuation in accordance

with IEC 61300-3-3 before, during and after the load is applied.
6.6 Removal of the test load
Remove the test load from the DUT.

For a category S closure, the pressure will be measured at the test temperature in accordance

with test method B of IEC 61300-2-38 before and after applying the load.
6.7 Recovery

Remove the DUT from the test apparatus and allow the DUT to recover under standard

atmospheric condition for 2 h for connectors, splices, passive components and fibre

management systems or for 4 h for closures, as defined in IEC 61300-1, unless otherwise

specified in the relevant specification.
6.8 Final examination and performance check

On completion of the test, perform the final measurements, as defined in the relevant

specification. The results of the final measurement shall be within the limit established in the

relevant specification.

For the sealing test of the DUTs, such as closures, the final sealing performance shall be

checked in accordance with test method A of IEC 61300-2-38.

For the optical evaluation of DUTs, the variation of the attenuation shall be measured in

accordance with IEC 61300-3-3 or IEC 61300-3-28. If required, the attenuation will be

measured in accordance with IEC 61300-3-4.
6.9 Final visual inspection

Visually examine the DUT in accordance with IEC 61300-3-1. Check for evidence of any

degradation in the DUT. This may include, for example:
• broken, loose or damaged parts or accessories, and

• excessive movement of, damage to, or broken cable sheath, seals, or cable clamps.

Repeat the procedure at another test temperature if required.
7 Severity

The severity consists of the test temperature, the magnitude of the tensile load and the time

for which it is applied. Recommended severities for connectors, FMCs (Field Mountable

Connector), passive components, splices and FMS (Fibre Management Systems) are given in

Table 1. Recommended severities for wall outlets, boxes, OFDM and closures of category C

are listed in Table 2. Recommended severities for hardened connectors, street cabinets,

boxes and closures of category S, G and A are shown in Table 3.
---------------------- Page: 11 ----------------------
– 10 – IEC 61300-2-4:2019 © IEC 2019
Table 1 – Recommended test severities for connectors,
FMC, passive components, splices, and FMS
Categories Severity
C, C Load: O,V O,V O,V
50 N for 60 s for cables with aramid yarn strength members
10 N for 60 s for tubes or cables without aramid yarn strength
members
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
Load: O,V
10 N for 60 s for cables
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
Load: O,V
10 N for 60 s for cables
5,0 N for 60 s for cable elements and tubes
OP, Load: O,V O,V O,V
OP , 70 N for 60 s for cables with aramid yarn strength members
OP+, 10 N for 60 s for tubes or cables without aramid yarn strength
members
OP+
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
Load:
O,V
10 N for 60 s for cables
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
Load: O,V
10 N for 60 s for cables
5,0 N for 60 s for cable elements or tubes
HD b
I, I Load: 100 N for 120 s on cable O,V (O,V)
E Load: O,V
100 N for 60 s for cables with diameter, d > 2 mm
70 N for 60 s for cables with diameter, d ≤ 2 mm
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
Load: (O,V)
10 N for 60 s for cables
5,0 N for 60 s for buffered fibres
2,0 N for 60 s for primary coated fibres
NOTE 1 Categories are defined in IEC 61753-1.

NOTE 2 For ribbon fibres, the severities should be the same as for secondary coated fibres.

NOTE 3 For non-round duplex cords and flat cables, the smaller diameter is used to define the severities.

If cables or cable elements (loose tubes) are not fixed to the entry ports of the fibre management system, the

test shall not be performed.

These tests shall be applicable to passive optical components that incorporate fibre or fibre cable pigtails in

their product design.
Connectors
FMC
Passive
components
Splices
FMS
---------------------- Page: 12 ----------------------
IEC 61300-2-4:2019 © IEC 2019 – 11 –

Table 2 – Recommended test severities for wall outlets, boxes, OFDM, and closures

Categories Severity
C Load: 25 N on cables or cords S,O,V S,O,V O,V
60 s load duration per cable/cord
Test conducted at +23 °C ± 3 °C
Load on cable (N): 10 x cable diameter (mm) S,O,
1 h load duration per cable
Test conducted at +23 °C ± 3 °C
NOTE 1 Categories are defined in IEC 61753-1.

NOTE 2 For non-round duplex cords and flat cables, the smaller diameter is used to define the severities.

NOTE 3 Separate test samples for sealing performance and optical performance evaluation may be used.

Wall outlet
Boxes
OFDM
Closures
---------------------- Page: 13 ----------------------
– 12 – IEC 61300-2-4:2019 © IEC 2019
Table 3 – Recommended test severities for hardened
connectors, street cabinets, boxes, and closures
Categories Severity
A Load (N): 20 × cable diameter (mm) S,O,V V S,O,V
1 h load duration per cable per test temperature
Sealing test conducted at test temperatures −15 °C and +45 °C
Optical test conducted at +23 °C ± 3 °C
Load (N): 10 × cable diameter (mm) for 1 h per feeder cable per S, O, V
test temperature
25 N for 60 s per cord and work area cable and per temperature
Sealing test conducted at test temperatures −15°C and +45°C
Optical test conducted at +23°C ± 3°C
G Load (N): 20 × cable diameter (mm) S,O,V S,O, V
1 h load duration per cable per test temperature.
Sealing test conducted at −15 °C ± 2 °C and +.45 °C ± 2 °C
Optical test conducted at +23 °C ± 3 °C
S Load (N): 20 × cable diameter (mm) S,O,V S,O, V
Duration: 1 h per cable at test temperature
Sealing test conducted at −15 °C ± 2 °C and +45 °C ± 2 °C
Optical test conducted at +23 °C ± 3 °C
NOTE 1 Categories are defined in IEC 61753-1.

NOTE 2 For non-round duplex cords and flat cables, the smaller diameter is used to define the severities.

Separate test samples for hardened connector/closure sealing performance and optical evaluation may be

used.

Test only required when product is pre-cabled and cable handling is expected when unpacking and installing

the product.

Separate test samples for sealing performance and optical performance evaluation may be used.

8 Details to be specified

The following details, as applicable, shall be specified in the relevant specification:

• quantity and description of samples required for test;
...
