IEC 60034-8:2026

Rotating electrical machines - Part 8: Terminal markings and direction of rotation

IEC 60034-8:2026 applies to AC and DC machines and specifies:
a) rules for the identification of winding connection points;
b) marking of winding terminals;
c) direction of rotation;
d) relationship between terminal markings and direction of rotation;
e) terminal marking of auxiliary devices;
f) connection diagrams of machines for common applications.
This fourth edition cancels and replaces the third edition published in 2007 and Amendment 1:2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) The inclusion of turbine-type synchronous machines in the scope.

Machines électriques tournantes - Partie 8: Marquages des bornes et sens de rotation

L'IEC 60034-8:2026 s'applique aux machines à courant alternatif et à courant continu et spécifie
a) les règles d'identification des points de couplage;
b) le marquage des bornes d'enroulement;
c) le sens de rotation;
d) la relation entre les marquages des bornes et le sens de rotation;
e) les marquages des bornes des appareils auxiliaires;
f) les schémas de connexion des machines pour applications communes.
Cette quatrième édition annule et remplace la troisième édition parue en 2007 et son Amendement 1:2014. Cette édition constitue une révision technique. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
L'inclusion des turbomachines synchrones dans le domaine d'application.

General Information

• Status: Published
• Publication Date: 01-Jun-2026
• ICS: 29.160.01 - Rotating machinery in general
• Technical Committee: TC 2 - Rotating machinery
• Drafting Committee: MT 3 - TC 2/MT 3
• Current Stage: PPUB - Publication issued
• Start Date: 02-Jun-2026
• Completion Date: 22-May-2026

Relations

• Revises: IEC 60034-8:2007/AMD1:2014 - Amendment 1 - Rotating electrical machines - Part 8: Terminal markings and direction of rotation
• Effective Date: 21-Jun-2024
• Revises: IEC 60034-8:2007 - Rotating electrical machines - Part 8: Terminal markings and direction of rotation
• Effective Date: 03-May-2024

Overview

IEC 60034-8:2026 is the latest edition of the International Electrotechnical Commission (IEC) standard addressing terminal markings and direction of rotation for rotating electrical machines. This comprehensive standard is applicable to both AC and DC machines, guiding the identification and marking of winding connection points and auxiliary device terminals, as well as defining the relationship between terminal markings and the direction of rotation.

The 2026 update marks a technical revision, most notably expanding its scope to include turbine-type synchronous machines. IEC 60034-8 aims to ensure the safe and consistent interchange and operation of electrical machines worldwide through standardized practices.

Key Topics

• Identification of Winding Connection Points: Clear rules for identifying and labeling winding connection points, critical for connection integrity and safety.
• Marking of Winding Terminals: Detailed alphanumeric systems for marking machine winding terminals, reducing confusion during installation and servicing.
• Direction of Rotation: Specifications for determining and indicating the correct direction of machine shaft rotation, essential for proper system operation.
• Relationship Between Terminal Markings and Rotation: Guidance to ensure that the connection configuration results in the correct rotational direction.
• Auxiliary Device Terminals: Standard methods for marking connections of auxiliary devices, including thermal protectors, capacitors, and switches.
• Connection Diagrams: A range of standardized diagrams for the most common machine applications, supporting correct installation and troubleshooting.
• Inclusion of Turbine-Type Synchronous Machines: Scope now covers a wider range of machine types for greater industry relevance.

Applications

IEC 60034-8:2026 provides practical value for anyone working with rotating electrical machines, including:

• Manufacturers: Enables the production of globally compatible machines with internationally recognized terminal markings, helping to meet export requirements and improve product clarity.
• Electrical Installers and Engineers: Assists in identifying correct terminal connections, minimizing the risk of errors that might cause malfunction or hazardous conditions.
• Maintenance Professionals: Facilitates efficient, accurate servicing by standardizing terminal assignments and their relationship to machine function and rotation.
• System Integrators: Ensures compatibility between machines and control/protection devices by establishing consistent marking conventions and connection diagrams.
• Standards Compliance: Simplifies regulatory compliance and inspection processes thanks to harmonized international requirements.

Related Standards

IEC 60034-8:2026 is part of the broader IEC 60034 series, which sets standards for rotating electrical machines worldwide. Other related and referenced standards include:

• IEC 60034-1 – Rotating electrical machines – Part 1: Rating and performance: The foundational standard for ratings and operational requirements.
• IEC 60034-3 – Rotating electrical machines – Specific requirements for synchronous generators driven by turbines: Covers synchronous generator specifics, which now relate to the expanded scope.
• IEC 60034-33 – Specific requirements for synchronous hydrogenerators including motor-generators: Addresses hydrogenerator and motor-generator requirements.
• IEC 60417-1 – Graphical symbols for use on equipment: Ensures consistency in the symbols used in terminal marking diagrams.
• IEC 60445 – Identification of equipment terminals and conductors: Reinforces safety and clarity for equipment markings.

For seamless operation, installation, and maintenance of rotating electrical machines, adherence to these interconnected standards supports global best practices in equipment identification, safety, and compatibility.

---

Keywords: IEC 60034-8:2026, rotating electrical machines, terminal markings, direction of rotation, AC machines, DC machines, auxiliary device marking, synchronous machines, standard electrical connections, global electrical standards, IEC compliance.

Standards Content (Sample)

IEC 60034-8 ®
Edition 4.0 2026-06
INTERNATIONAL
STANDARD
Rotating electrical machines -
Part 8: Terminal markings and direction of rotation
ICS 29.160.01 ISBN 978-2-8327-1220-7
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].

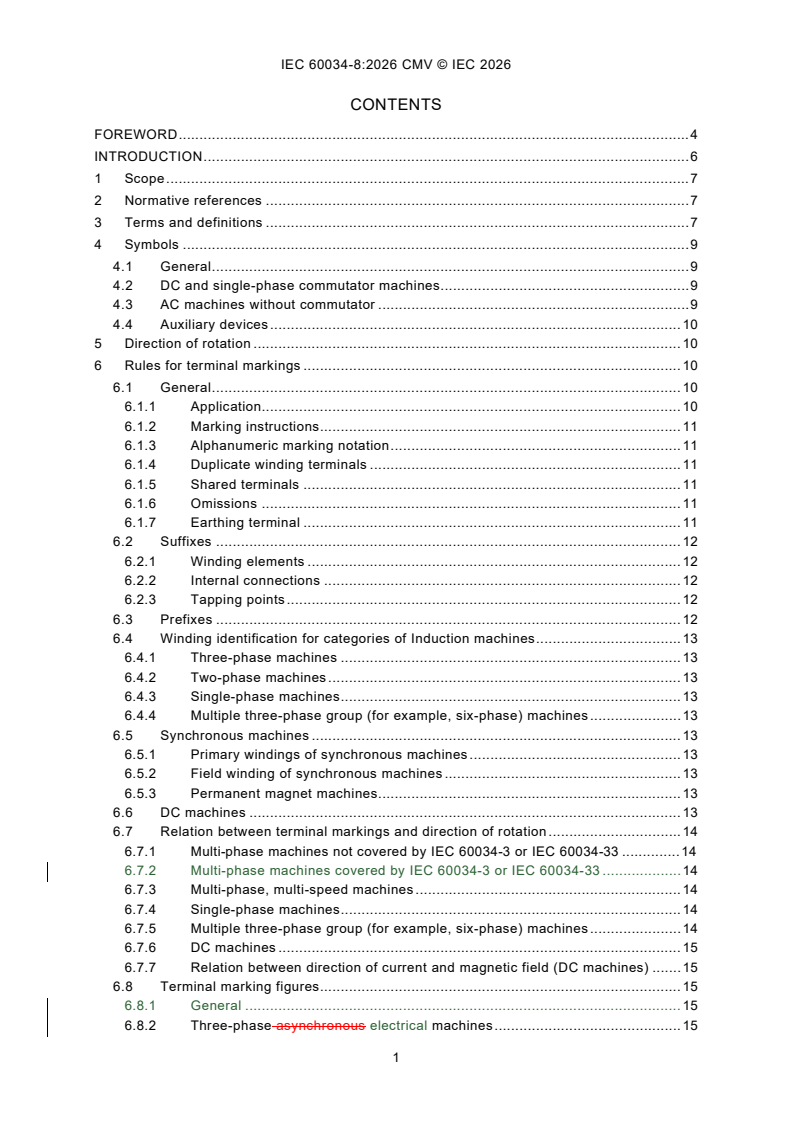

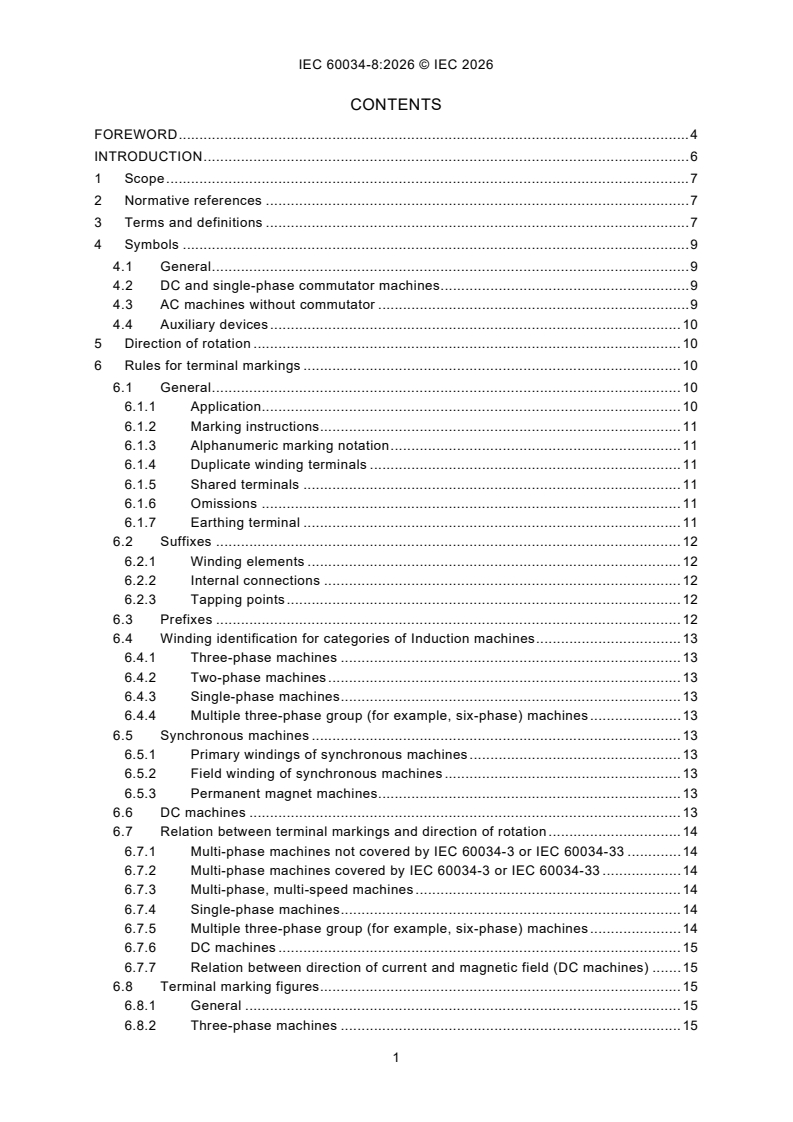

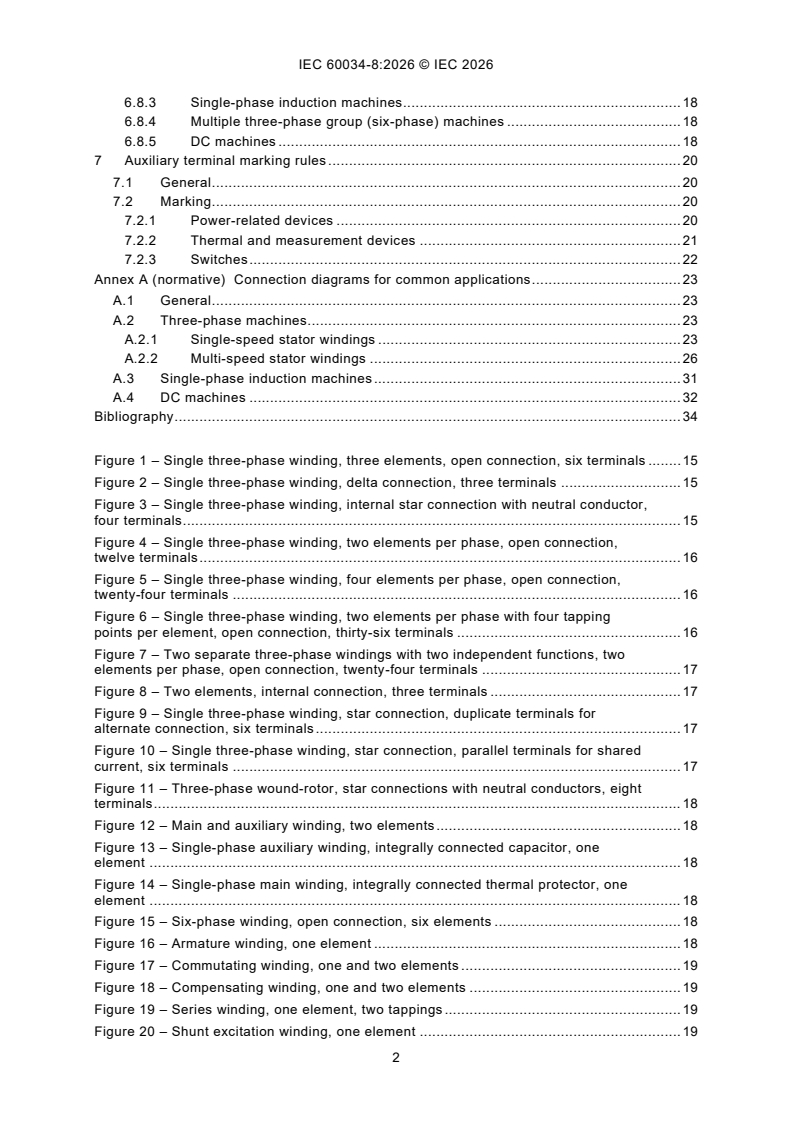

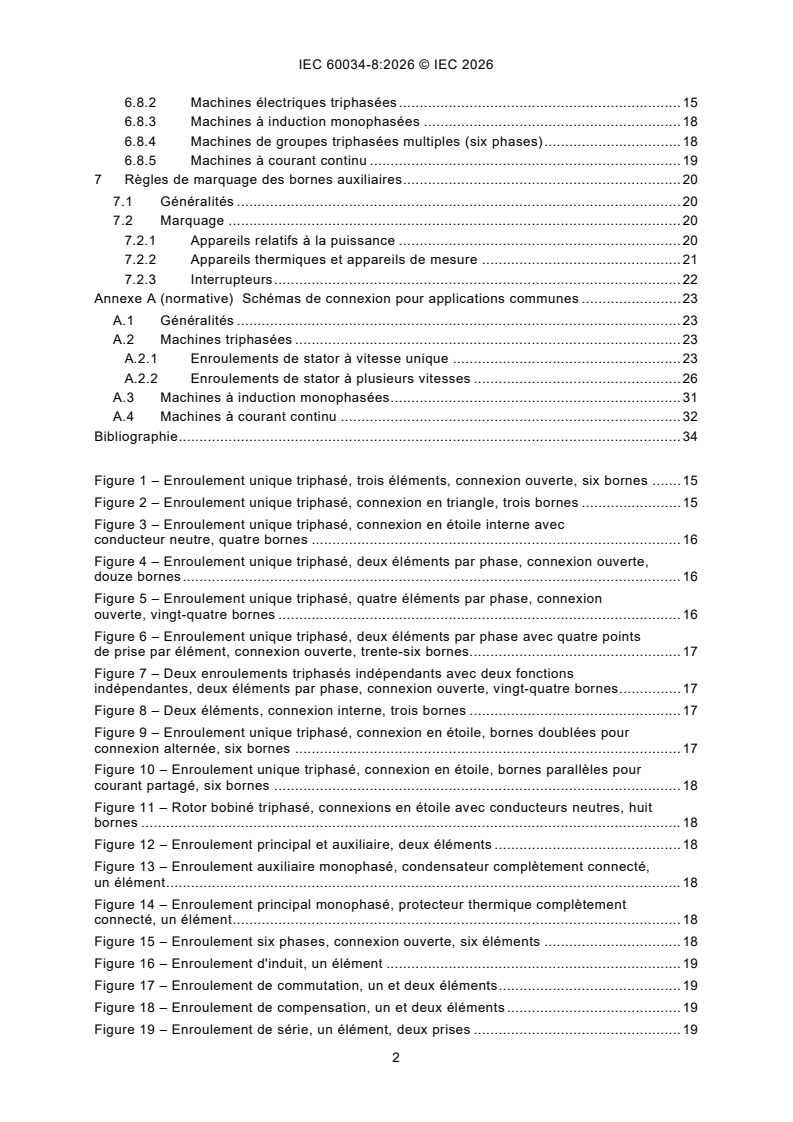

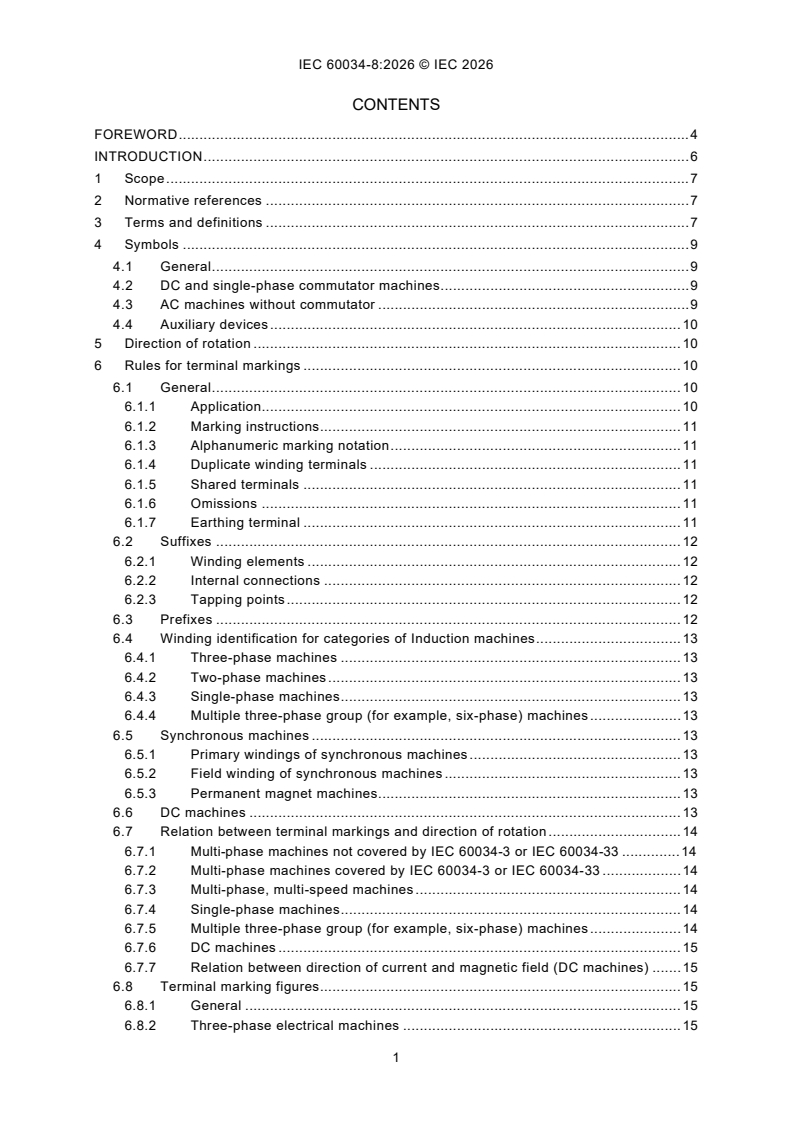

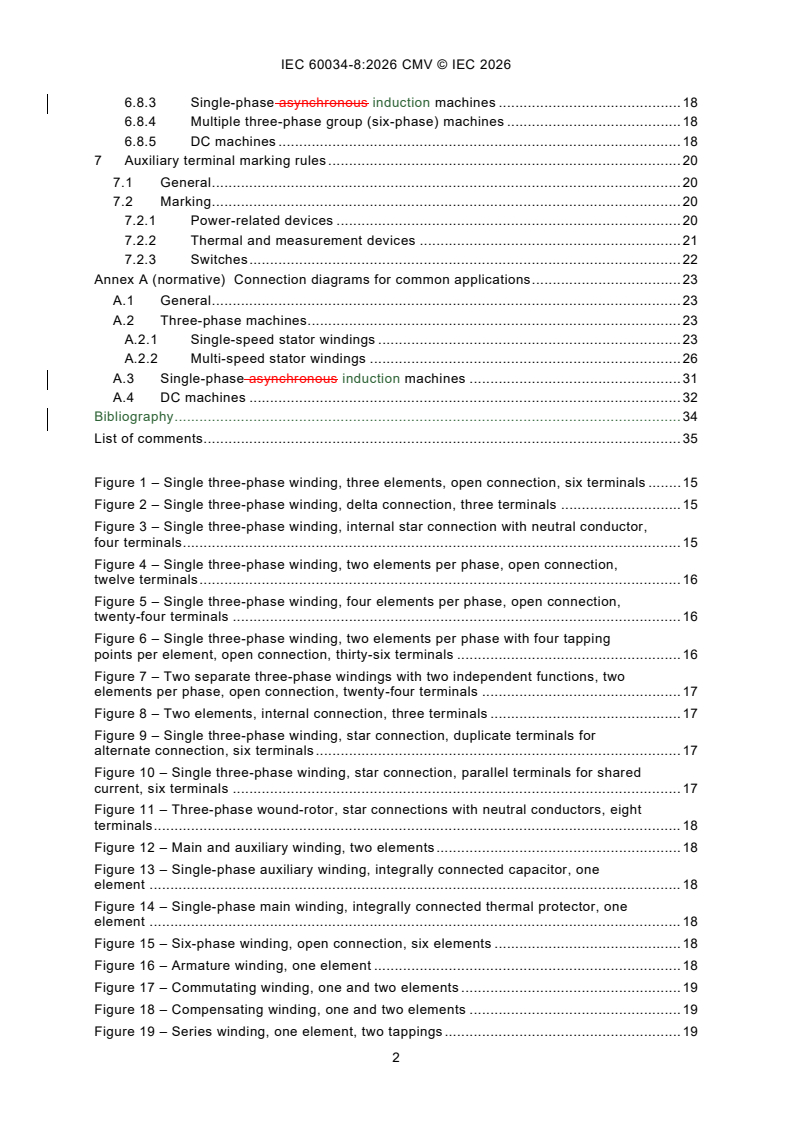

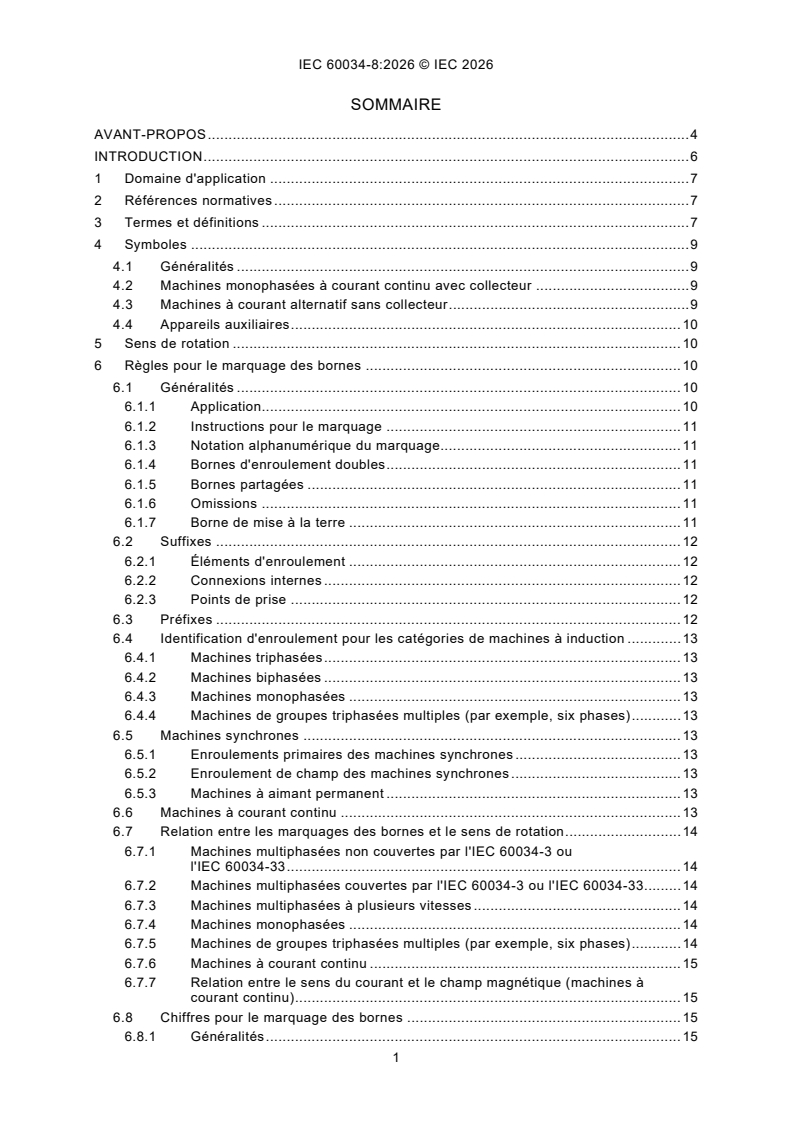

CONTENTS
