Fibre optic interconnecting devices and passive components - Performance standard - Part 111-09: Sealed closures - Category S - Subterranean

IEC 61753-111-09:2021 contains the minimum tests, test severities and measurement requirements which a sealed fibre optic closure need to meet in order to be categorised as meeting the IEC standard for category S – Subterannean, as defined in Table A.15 of IEC 61753‑1:2018. This first edition cancels and replaces IEC 61753-111-9 published in 2009. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to IEC 61753‑111‑9:
terms and definitions updated according to IEC 61753-1:2018 and IEC 61756-1:2019;
detailed test severities added for UV light and fungus resistance tests of materials;
test severities updated according to IEC 61753-1:2018;
laboratory test conditions harmonized with IEC 61300-1 to +23 °C ± 5 °C, unless otherwise specified;
addition of B-657 fibre types with minimum bending radius of stored fibres according to IEC 61756-1:2019;
vibration sealing test changed to 10 Hz, 3 mm amplitude and 1 000 000 cycles;
reduced loads added in cable retention test for small diameter cables and tubes;
reduced loads for cable axial compression test for small diameter cables and tubes;
duration of the cycles in torsion and bending test added;
free fall test removed (is covered now by the optical shock test);
assembly and disassembly test duration reduced to 5 cycles
resistance to solvents and contaminating fluids: changed duration of immersion in diesel to 1 h and 24 h drying time and removed immersion in kerosene;
duration of the change of temperature reduced to 12 cycles.

Dispositifs d'interconnexion et composants passifs fibroniques - Norme de performance - Partie 111-09: Boîtiers étanches pour la catégorie S - Souterrains

IEC 61753-111-09:2021 contient les essais minimaux, ainsi que les sévérités d’essai et les exigences de mesure minimales auxquels il est nécessaire qu’un boîtier à fibres optiques étanche satisfasse afin de pouvoir être classé comme satisfaisant à la norme IEC pour la catégorie S – Souterrains, telle qu’elle est définie dans le Tableau A.15 de l’IEC 61753‑1:2018. Cette première édition annule et remplace l’IEC 61753-111-9 parue en 2009. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'IEC 61753‑111‑9:
a) mise à jour des termes et définitions conformément à l’IEC 61753‑1:2018 et à l’IEC 61756‑1:2019;
ajout des sévérités détaillées pour les essais de résistance des matériaux à la lumière UV et aux moisissures;
mise à jour des sévérités d’essai selon la nouvelle édition de l’IEC 61753-1:2018;
harmonisation des conditions d’essai en laboratoire avec l’IEC 61300-1 à une température de +23 °C ± 5 °C, sauf spécification contraire;
ajout des fibres de type B-657 à rayon de courbure minimal pour les fibres stockées conformément à l’IEC 61756-1:2019;
modification de l’essai d’étanchéité aux vibrations (fréquence de 10 Hz, amplitude de 3 mm et 1 000 000 cycles);
ajout de charges réduites dans l’essai de rétention du câble pour les câbles et les tubes de petit diamètre;
ajout de charges réduites pour l’essai de compression axiale du câble pour les câbles et les tubes de petit diamètre;
ajout de la durée des cycles dans l’essai de torsion et de courbure;
suppression de l’essai de chute libre (couvert désormais par l'essai de choc optique);
réduction à 5 cycles de la durée d’essai de montage et de démontage;
résistance aux solvants et aux fluides contaminants: modification à 1 h de la durée d’immersion dans le gazole et temps de séchage de 24 h, suppression de l’immersion dans le kérosène;
réduction à 12 cycles de la durée de variations de température.

General Information

Status
Published
Publication Date
13-Sep-2021
Current Stage
PPUB - Publication issued
Completion Date
14-Sep-2021
Ref Project

Buy Standard

Standard
IEC 61753-111-09:2021 - Fibre optic interconnecting devices and passive components - Performance standard - Part 111-09: Sealed closures - Category S - Subterranean
English and French language
59 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

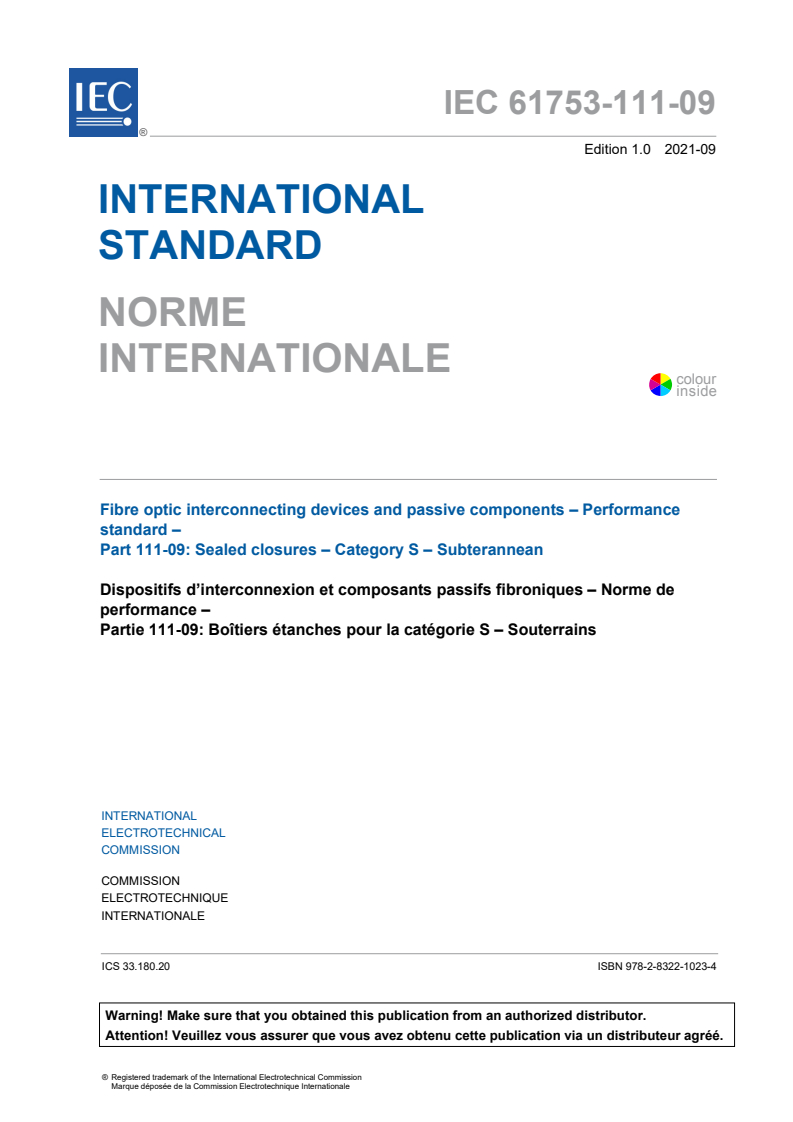

IEC 61753-111-09
Edition 1.0 2021-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 111-09: Sealed closures – Category S – Subterannean
Dispositifs d’interconnexion et composants passifs fibroniques – Norme de
performance –
Partie 111-09: Boîtiers étanches pour la catégorie S – Souterrains
IEC 61753-111-09:2021-09(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 61753-111-09
Edition 1.0 2021-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 111-09: Sealed closures – Category S – Subterannean
Dispositifs d’interconnexion et composants passifs fibroniques – Norme de
performance –
Partie 111-09: Boîtiers étanches pour la catégorie S – Souterrains
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-1023-4

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

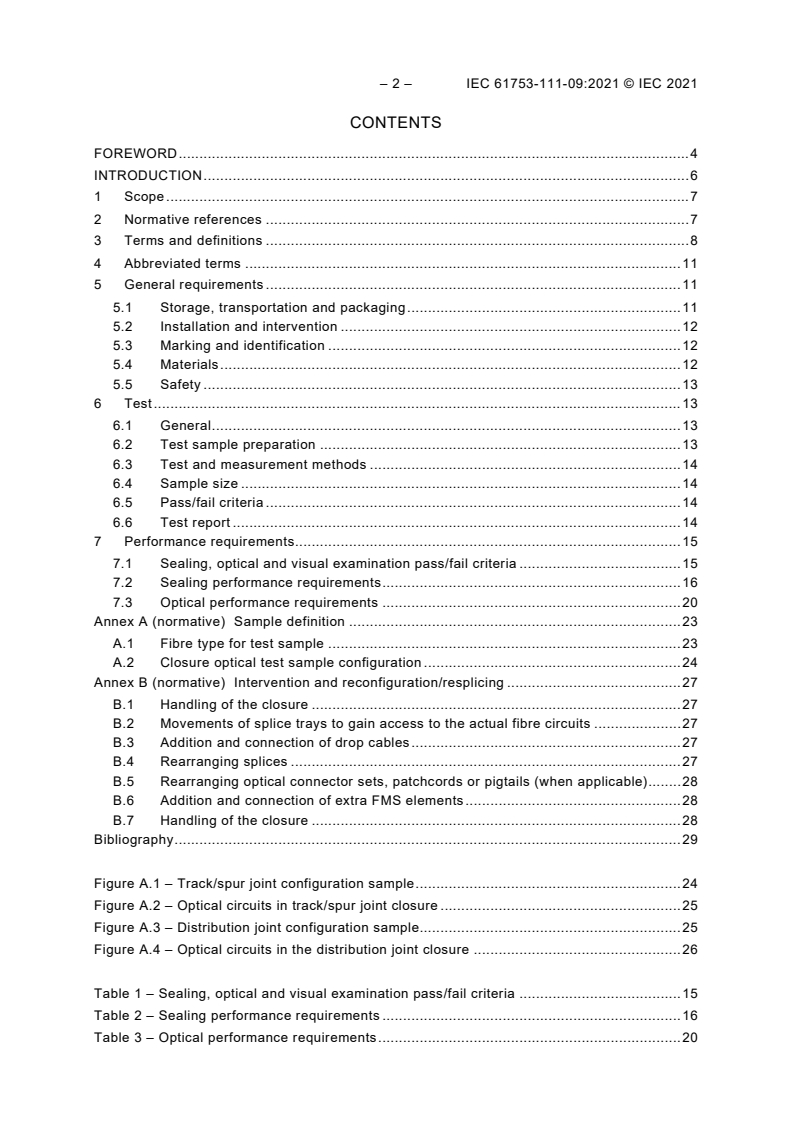

– 2 – IEC 61753-111-09:2021 © IEC 2021
